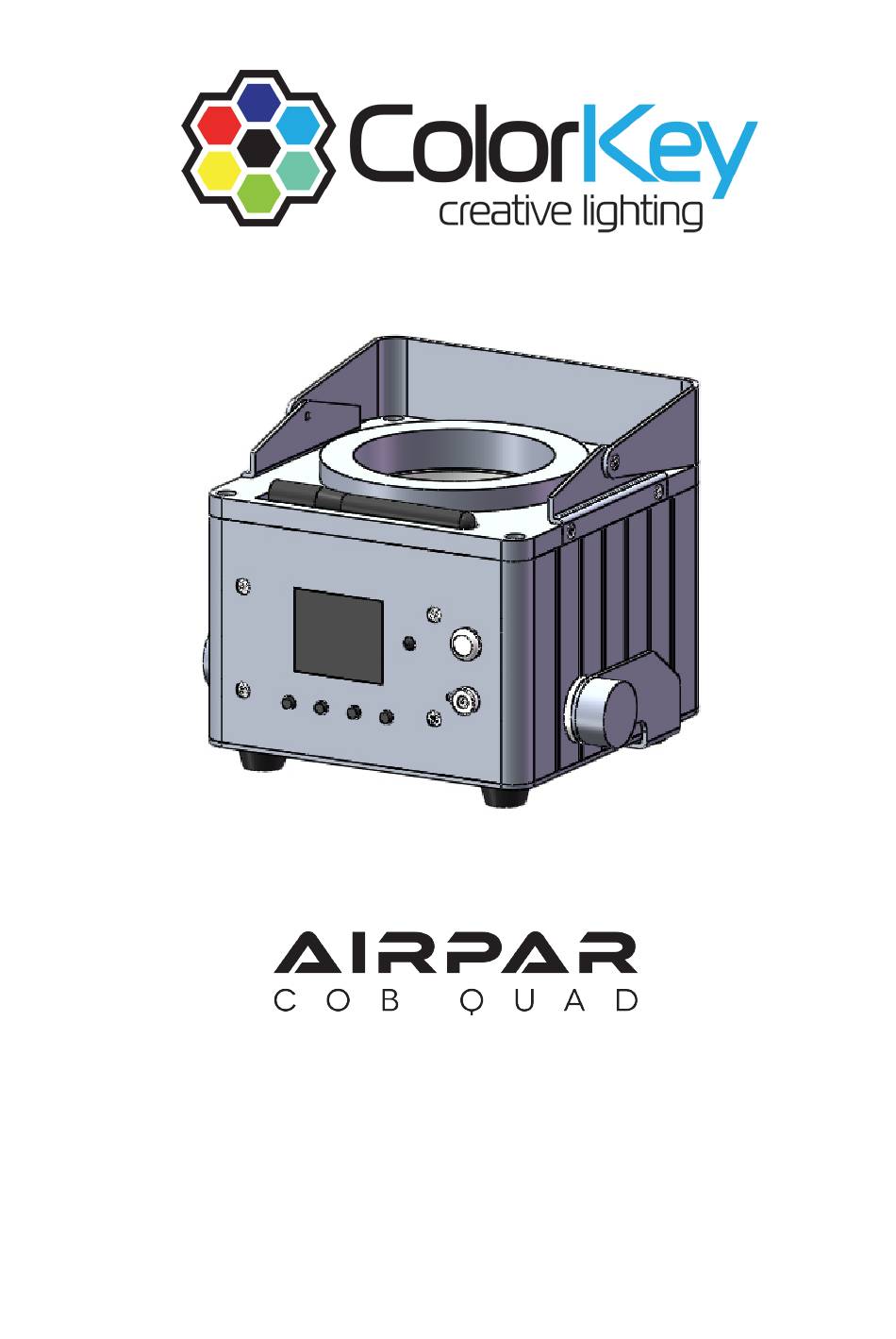

- Page 1 SKU: CKU-7050 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents CONTENTS OF PACKAGE ............................. 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 DISPLAY OPERATION ............................5 MENU GUIDE ................................7 INFRARED REMOTE (IR) CONTROL ........................8 DMX VALUES ................................. 10 SETUP EXAMPLES ............................... 11 POWER & CHARGING ............................5 TROUBLESHOOTING ............................ -
Page 3: Contents Of Package
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your https://www.colorkeyled.com/support/ product, please visit... - Page 4 Introduction Thank you for purchasing the ColorKey AirPar COB QUAD! The AirPar is part of the ColorKey Air Series, an ecosystem of battery-powered, wireless DMX lighting fixtures, with a wireless DMX hub for greater control and connectivity options. DOWN ENTER...
-
Page 5: Power & Charging
Power & Charging The AirPar COB QUAD features a rechargeable lithium-ion battery for wire free use. The battery can power the light for up to 20 hours from a full charge. An adaptive power supply with an input voltage range of 100 to 240 VAC 50/60Hz is also included. -
Page 6: Display Operation
Display Operation Working Temperature Battery Life Wireless DMX Group ID DMX Signal Connected ESC: Navigate to the previous higher-level menu item. Down: Scrolls through the menu items and numbers in descending order. Scrolls through the menu items and numbers in ascending order Enter: Is used to select and confirm/store the current menu selection... -
Page 7: Menu Guide
Menu Guide Address Set DMX Address (001 to 512) Channel Set DMX Channel Mode (3, 6, 8, 11) Slave Set light to Slave or Master Auto Activate Auto mode and adjust speed (1-15) Fade Activate Fade mode and adjust speed (1-15) Color Set light to Color mode and scroll through preset colors (1-15) Sound... -
Page 8: Infrared Remote (Ir) Control
Infrared Remote (IR) Control To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the AirPar COB QUAD is located to the right of the OLED on the side panel. - Page 9 Auto In Auto mode, the light loops through various preprogrammed colors. To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease the speed of the program. Strobe In Strobe mode, the light will flash at the desired rate. To turn on Strobe mode, press the Strobe button, then press (+) or (-) to increase or decrease the strobing rate.
-
Page 10: Dmx Values
DMX Values 3 channel mode Channel Value Function 000-255 000-255 Saturation 000-255 Value 4 channel mode Channel Value Function 000-255 000-255 Green 000-255 Blue 000-255 White 6 channel mode Channel Value Function 000-255 Master Dimmer 000-255 000-255 Green 000-255 Blue 000-255 White 000-255... -
Page 11: Setup Examples
COB QUAD COB QUAD The AirPar COB QUAD includes an integrated W-DMX transceiver for instant wireless connectivity. This enables the AirPar to wirelessly control any Air Series fixture in the same wireless group. To achieve this, simply set an AirPar to Master and all other fixtures to Slave. - Page 12 To make a connection, simply set the AirHub and AirPar COB QUAD to the same group ID. Both units are set to ID01 in the example below. DOWN ENTER DOWN ENTER DOWN ENTER AIRPAR AIRPAR AIRPAR COB QUAD COB QUAD...
-
Page 13: Troubleshooting
Troubleshooting Problem Solutions • Confirm the Wireless Group ID is the same as the transmitter • Make sure the fixture is in DMX mode • Make sure wireless is enabled on your AirPar No DMX control • Make sure a DMX cable is properly connected to your DMX controller Fixture does not •... -
Page 14: Technical Information
Technical Information • 30W 4-in-1 COB RGBW LEDs • Chip-on-Board (COB) LED produces bright, even colors • Beam Angle: 25˚ • DMX Channels: 3 / 4 / 6 / 9 channels • Built-in W-DMX transceiver for 2.4Ghz wireless connectivity • Lithium-Ion battery (+/-) 20 hours single color; (+/-) 6 hours full color, (+/-) 5 hours charge time •...
