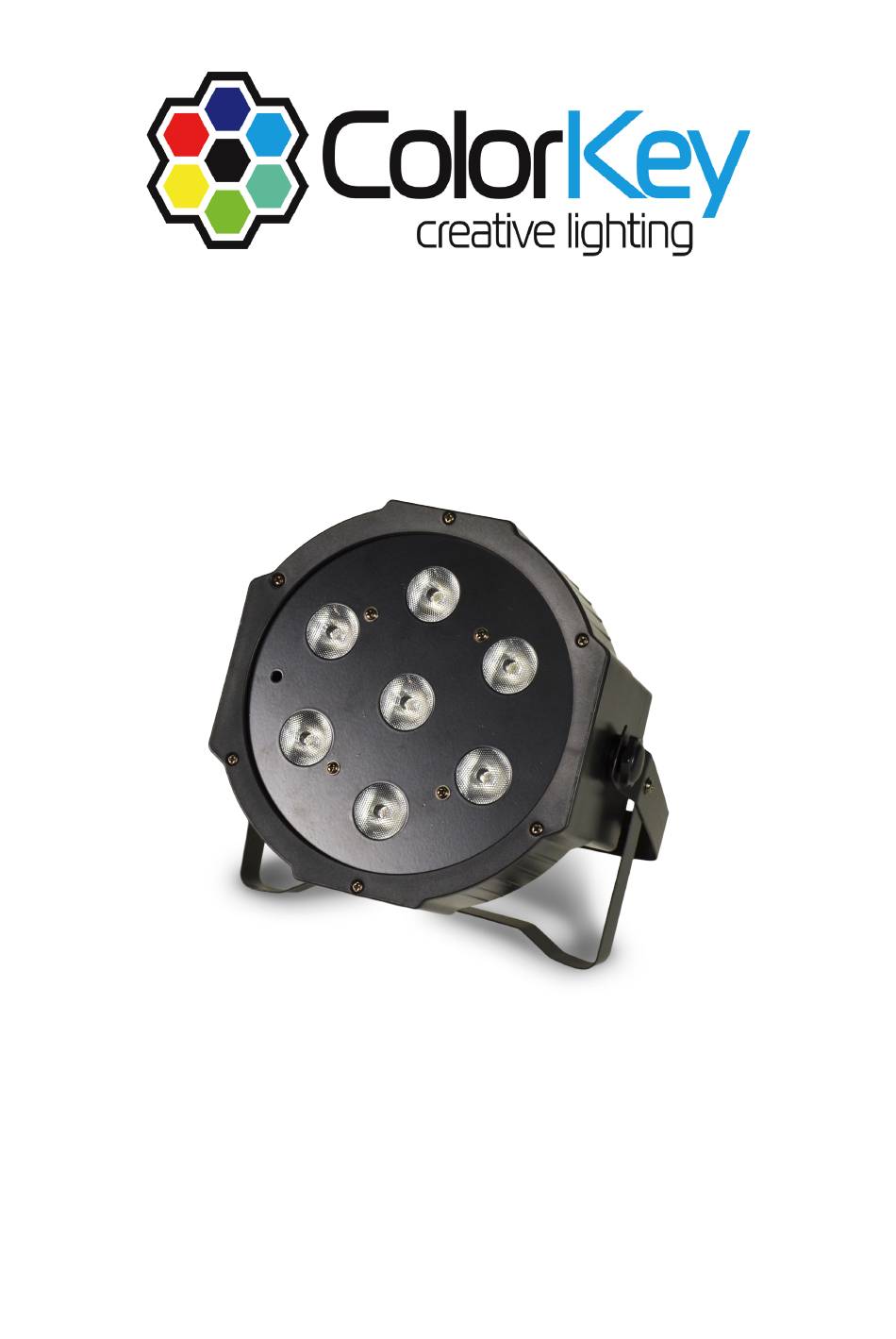

- Page 1 WaferPar QUAD-W 7 CKU01-2110 (US) / CKE01-2110 (EU) USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey WaferPar QUAD-W 7. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Ø Packing list n 1x WaferPar QUAD-W 7 n...
- Page 3 Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease...
- Page 4 Menu Guide d.001 d.512 Address ir.on ir.of Infrared Controller On/OFF P000 p.255 Color Jump (slow to fast) L000 l.255 Fade (slow to fast) E000 E.255 Pulse Jump (slow to fast) Soud Sound Active r000 r.255 G000 G.255 Green b000 b.255 Blue W000 w.255...
- Page 5 DMX Connections Ø DMX Cable： The WaferPar QUAD-W 7 can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a...
- Page 6 Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization.
- Page 7 Working temperature: up to 40˚C IP rate: IP20 Notice to consumer: ColorKey offers a 1-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
