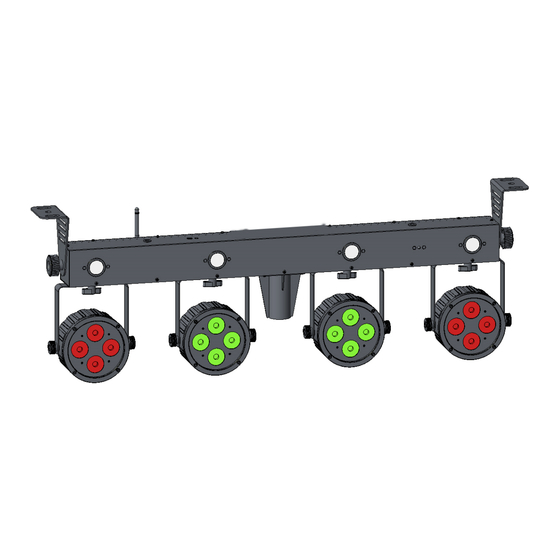

ColorKey PARTYBAR Mobile 150 User Manual
  1. Manuals
  2. Brands
  3. ColorKey Manuals
  4. Lighting Equipment
  5. PARTYBAR Mobile 150
  6. User manual

ColorKey PARTYBAR Mobile 150 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CKU-3060
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PARTYBAR Mobile 150 and is the answer not in the manual?

Questions and answers

Related Manuals for ColorKey PARTYBAR Mobile 150

Summary of Contents for ColorKey PARTYBAR Mobile 150

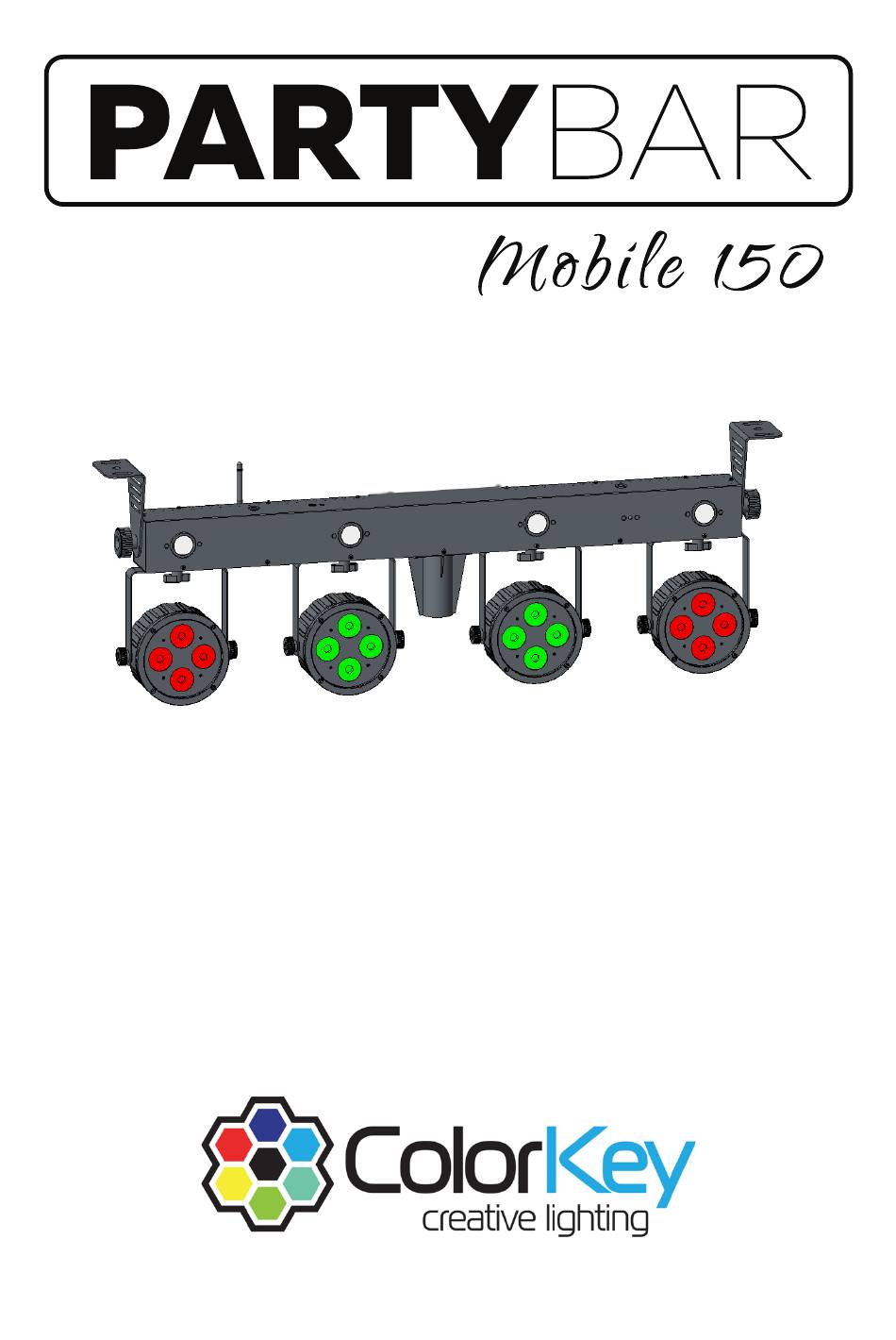

  • Page 1 CKU-3060 USER MANUAL...

  • Page 2: Table Of Contents

    TROUBLESHOOTING ............................ 21 TECHNICAL INFORMATION .......................... 22 Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. PartyBar Mobile 150 User Manual – V1...

  • Page 3: Introduction

    Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –5pm PST at (818) 578-4030.

  • Page 4: Stand Setup Instructions

    Failure to do so may result in the stand being tipped over accidentally, causing damage and bodily injury. PartyBar Mobile 150 User Manual – V1...

  • Page 5: Unpacking & Repacking

    • The retainer strap does not hang out of case when closing the zipper Mounting Orientation PartyBar Mobile 150 may be mounted in any position; however, make sure there is adequate ventilation around the product. Rigging • Before deciding on a location, make sure there is easy access to the product for maintenance and programming.

  • Page 6: Product Overview

    Product Overview Front 1. Mounting Bracket 5. Wireless IR Receiver 2. RGBW 4-in1 LED Par 6. Wireless Footswitch Antenna 3. Wireless DMX Antenna 4. White+UV 2-in-1 LED PartyBar Mobile 150 User Manual – V1...
  • Page 7 7. T3A Fuse Socket 2. Safety Eye-bolt 8. Locking Power In/Out 3. Wireless DMX Antenna 9. DMX In/Out 4. Battery Life Indicator 10. Power On/Off 5. Menu 11. Wireless Footswitch Antenna 6. Microphone PartyBar Mobile 150 User Manual – V1...

  • Page 8: Display Operation

    Display Operation Menu: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter Down: Scroll through menu selection or parameters decrease Enter: Open/Select the current menu option PartyBar Mobile 150 User Manual – V1...

  • Page 9: Menu Guide

    Super energy saving mode at a significant S-EC reduction in brightness to strobe/UV inlay Infrared InFr on/oFF Enable or disable the IR remote Enable or disable a Footswitch controller (sold Foot Foot on/oFF separately) PartyBar Mobile 150 User Manual – V1...

  • Page 10: Dmx Values

    12CH DMX values 0-255 Dimming No function 10-255 PAR Stroboscope (Rate 0-100%) No function 10-19 20-29 Green 30-39 Blue 40-49 White CH3-6 50-59 Yellow 60-69 Magenta 70-79 Cyan 80-89 Dark orange PAR1-4 90-99 Green yellow PartyBar Mobile 150 User Manual – V1...
  • Page 11 Sound program1 90-99 Sound program2 100-109 Sound program3 110-119 Sound program4 120-129 Sound program5 130-139 Sound program6 140-255 Sound program7 0-255 Auto and Sound Program 1-7 speed ( From slow to fast ) CH12 PartyBar Mobile 150 User Manual – V1...
  • Page 12 BAR UV LED ON CH22 20-159 LED Chase pattern cycling 160-255 LED Chase pattern (slow to fast ) No function 10-19 Auto program 1 CH23 20-29 Auto program 2 30-39 Auto program 3 PartyBar Mobile 150 User Manual – V1...
  • Page 13 Sound program1 90-99 Sound program2 100-109 Sound program3 110-119 Sound program4 120-129 Sound program5 130-139 Sound program6 140-255 Sound program7 0-255 Auto and Sound Program 1-7 speed ( From slow to fast ) CH24 PartyBar Mobile 150 User Manual – V1...

  • Page 14: Stand Alone Control Settings

    Stand Alone Control Settings To use your PartyBar Mobile 150 without a DMX Controller, use one of the various standalone modes below. Static Color Programs To run the PartyBar Mobile 150 in a Static color, do the following: 1. Press (Menu) 2.

  • Page 15: Wired Dmx Connections

    2. Use (Up) or (Down)) to select SLAV 3. Press (Enter) Using a DMX controller: 1. Power on your PartyBar Mobile 150 2. Connect to a DMX controller with a DMX cable plugged into the DMX (In) port of your PartyBar Mobile 150 unit.

  • Page 16: Wireless Dmx Connections

    Wireless DMX Connections Your PartyBar Mobile 150 unit can connect wirelessly to other units using 2.4G wireless DMX networks 1-7. It can act as the Master controller or be controlled as Slave, or by wireless DMX. To do so, follow the instructions below.
  • Page 17 To connect to a wireless DMX controller or other wireless network for control, do the following: 1. Turn on your wireless DMX transmitter 2. Turn on your PartyBar Mobile 150 3. Press (Menu) 4. Use (Up) or (Down) to select 2.4G 5.

  • Page 18: Ir Remote Overview

    IR Remote Overview To use the IR remote, point the remote at the IR receiver on the lighting fixture while pressing your desired selection. The IR receiver on the PartyBar Mobile 150 is located on the front face of the unit.

  • Page 19: Wireless Footswitch (Sold Separately)

    Enable the Footswitch Controller within the Menu: 1. Press (Menu) 2. Use (Up) or (Down) to select Foot 3. Press (Enter) 4. Use (Up) or (Down) to select On or Off 5. Press (Enter) PartyBar Mobile 150 User Manual – V1...

  • Page 20: Battery Life And Specifications

    Battery Life and Specifications PartyBar Mobile 150 features a rechargeable lithium-ion battery for wire free use. The battery can power the light for up to 6 hours from a full charge. The battery charges whenever the included power cable is connected and plugged into a power source.

  • Page 21: Maintenance

    Ensure your DMX controller is sending signal and you are using a proper and working DMX cable. No Laser Output Make sure the Laser Key is turned to ON No Wireless Please follow instructions for wireless connections Connections are Made PartyBar Mobile 150 User Manual – V1...

  • Page 22: Technical Information

    Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at info@colorkeyled.com. PartyBar Mobile 150 User Manual – V1...
