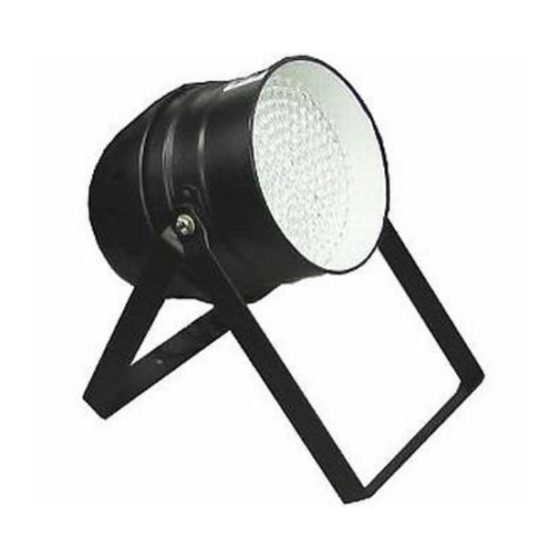

ColorKey LED Par 64 Quick Start Manual

ColorKey LED Par 64 Quick Start Manual

Advertisement

Quick Links

www.ColorKeyLED.com
LED Par 64
10mm Version 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the LED Par 64 and is the answer not in the manual?

Questions and answers

Summary of Contents for ColorKey LED Par 64

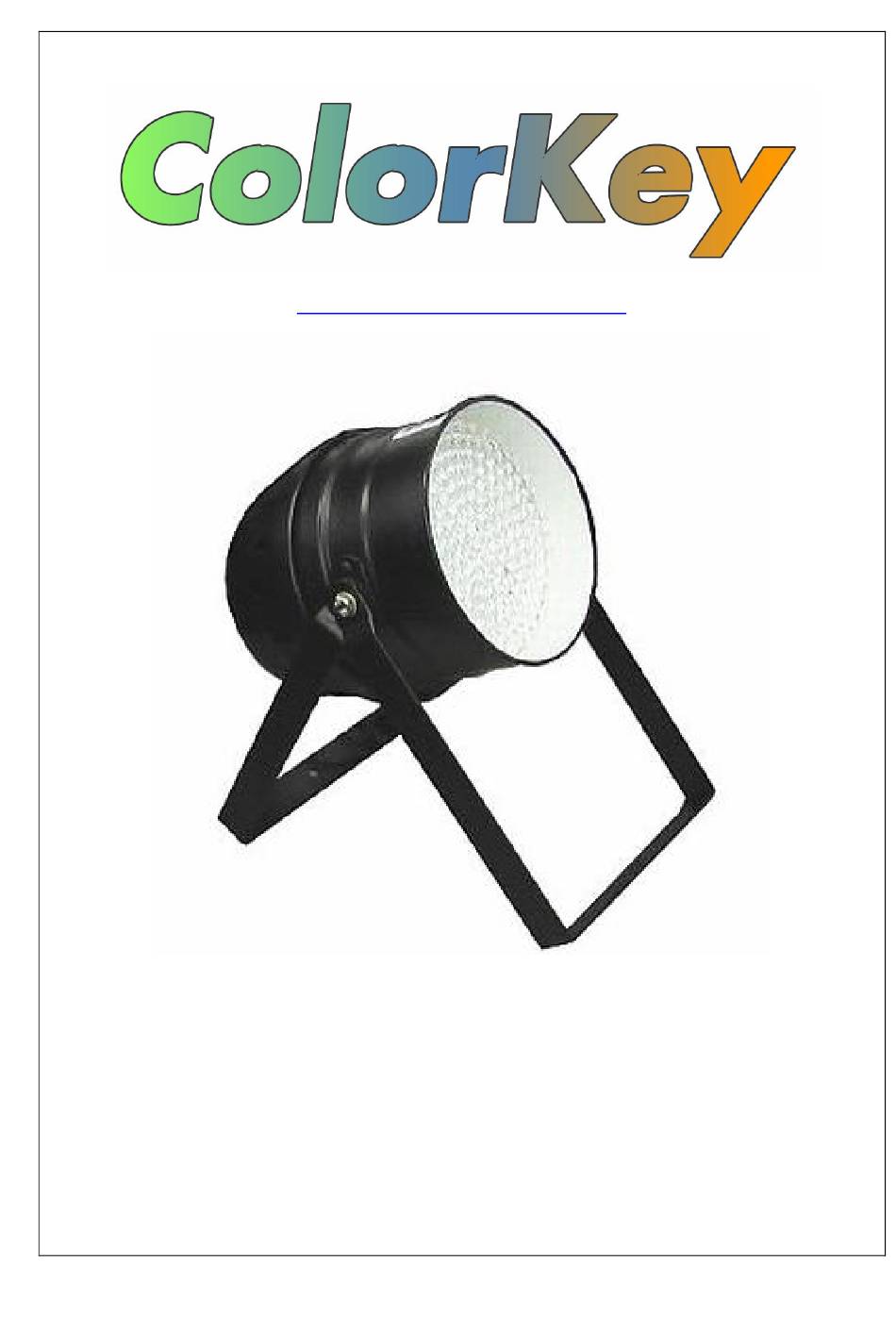

  • Page 1 LED Par 64 10mm Version 2...
  • Page 2 Mode Selection The LED Par 64 10mm V2 has 8 modes or functions that can be set using the Mode select button on the back of the unit. The values for each Mode are set using the Up and Down select buttons located next to the Mode select button.
  • Page 3 LED Par 64 10mm V2 Manual DMX Mapping – 6 Channel Channel Value Function 0-255 0%  100% Green 0-255 0%  100% Blue 0-255 0%  100% No function 8-255 Color macro mixing ( Will override CH1-CH3 0-16 No function...
  • Page 4 LED Par 64 10mm V2 Manual Stand Alone Modes Static Color Mode Press MODE Select button until screen reads Press UP or DOWN button to select one of the 7 desired colors: Red, Green, Blue, Purple, Yellow, Cyan, White Color Jump Mode Press MODE Select button until screen reads J.01...
  • Page 5: Specifications

    LED Par 64 10mm V2 Manual Specifications Specifications # LED's 183 10mm LED’s (60 Red, 60 Green, 63 Blue) Beam Angle 30° Colors 16.7 Million Foot Candles 18.5 LED Life Hours 100,000 Hours Signal Protocol DMX-512 DMX Channels 3 or 6...
