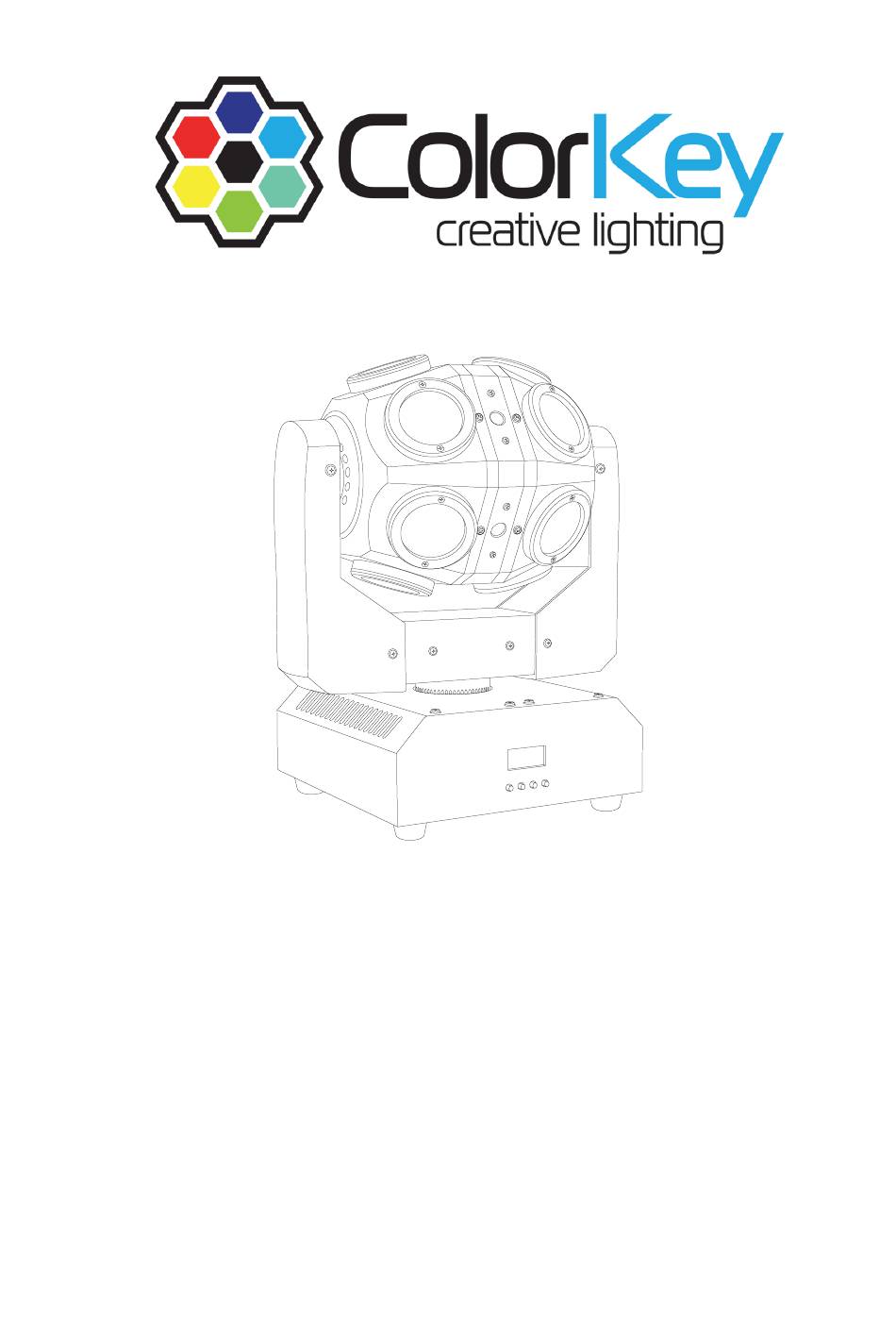

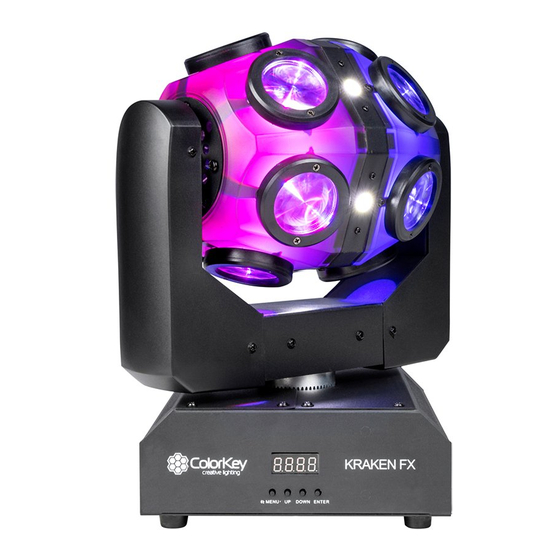

- Page 1 Kraken FX CKU-1070 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................... 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 DISPLAY OPERATION ............................4 MENU GUIDE ................................5 DMX VALUES ................................6 SETUP & CONNECTIONS ............................8 TROUBLESHOOTING ............................. 8 TECHNICAL INFORMATION ..........................9 Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. -
Page 3: Introduction
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/... -
Page 4: Display Operation
Display Operation MENU: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter DOWN: Scroll through menu selection or parameters decrease ENTER: Open/Select the current menu option... -
Page 5: Menu Guide
Menu Guide Menu Item Values Function Show Addr 1-512 Set DMX Address (001 to 512) ChNd 6ch / 12ch Select number of DMX Channels SLNd MAST, SL1, Set for Master / Slave Auto SP(1-9) Adjust Auto Effects speed Soun So(1-9) Set Sound Sensitivity Adjustments in Auto Mode SEnS SE(99-0) -
Page 6: Dmx Values
DMX Values 6 channels mode Chanel Function Value Dimmer 000-255 000-007 Open Strobe 008-255 Strobescope (Speed 0-100%) 000-007 No Function 008-022 Movement 01 023-037 Movement 02 038-052 Movement 03 053-067 Movement 04 068-082 Movement 05 083-097 Movement 06 098-112 Movement 07 113-127 Movement 08 Movement 128-142 Movement 09... - Page 7 10 channels mode Chanel Function Value Dimmer 000-255 000-007 Open Strobe 008-255 Strobe (Speed 0-100%) 000-255 Pan (0-540) Pan Speed 000-255 Speed fast to slow Tilt1 000-255 Tilt1 (0-360) 000-005 Stop 006-126 Movement forward fast to slow Tilt1 Rotate 127-128 Stop 129-249 Movement forward Slow to Fast 250-255 Stop Color Side 1...
-
Page 8: Setup & Connections
Setup & Connections ① Wired DMX Cable Connections Use a DMX to cable to connect to the in/out sockets on the bottom of the light for use with a cabled connection with DMX 512 control. WIRELESS WIRELESS WIRELESS MASTER MASTER MASTER SOUND SLAVE... -
Page 9: Technical Information
Technical Information • 7x10W RGBW 4-in-1 CREE LEDs • DMX Channel Modes: 6 / 10 channels • Control modes: DMX 512, Master /Slave, Sound Active, Stand Alone • 0-100% Dimmer • Working temperature: up to 40˚C • Power consumption: 80W •...
