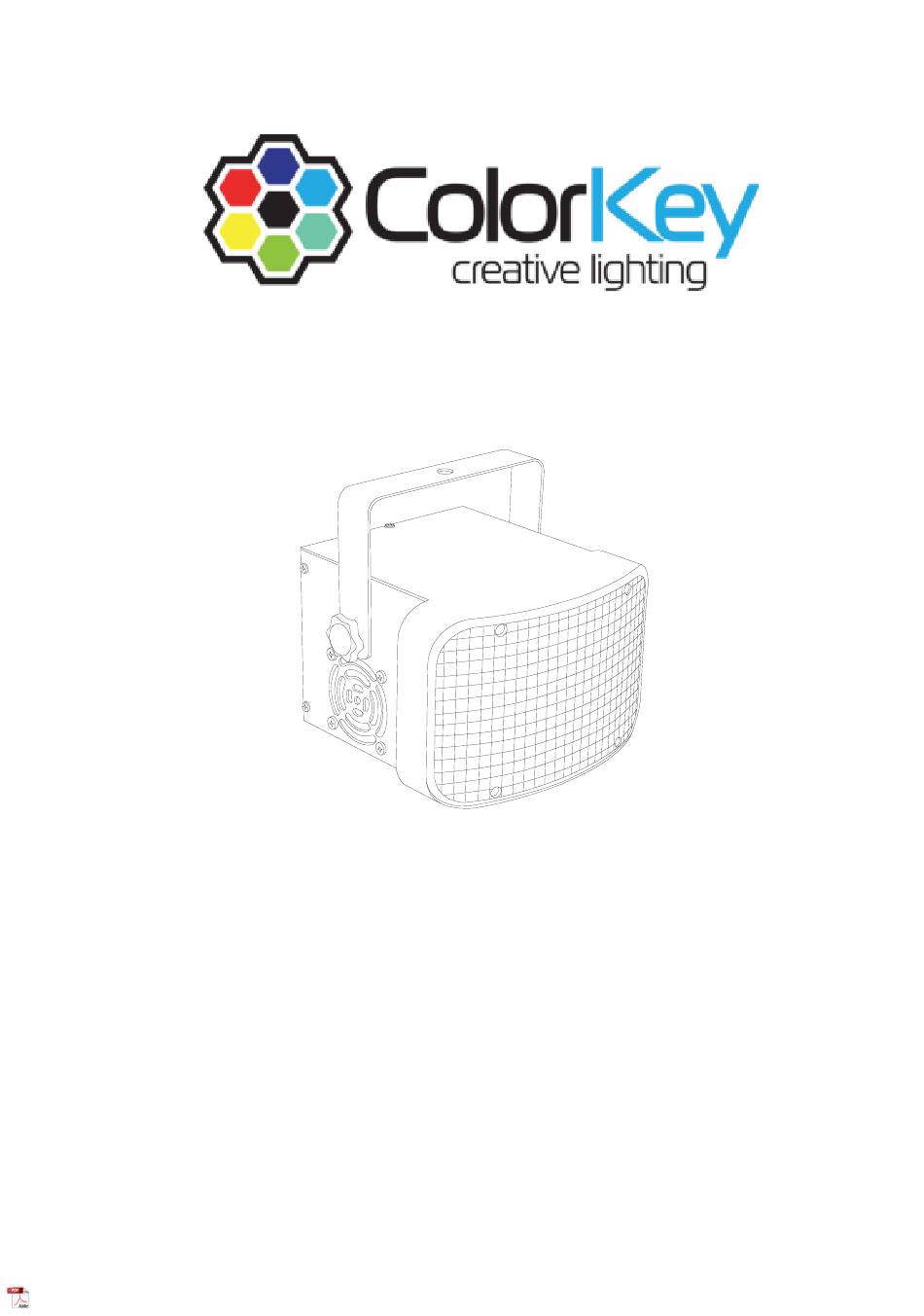

- Page 1 Odin FX CKU-1060 USER MANUAL...
- Page 2 Table of Contents INTRODUCTION ............................... 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 DISPLAY OPERATION ............................4 MENU GUIDE ................................5 DMX VALUES ................................5 SETUP & CONNECTIONS ............................6 TROUBLESHOOTING ............................. 6 TECHNICAL INFORMATION ..........................7 Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse.
- Page 3 • Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 1-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/...
- Page 4 Display Operation MENU: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter DOWN: Scroll through menu selection or parameters decrease ENTER: Open/Select the current menu option...
- Page 5 Menu Guide Menu Item Values Function A001 1-512 Set DMX Address (001 to 512) Red, Slow to Fast Green, Slow to Fast Blue, Slow to Fast White, Slow to Fast Color Change Multi-Color Change Multi-Color Fade Strobe, Slow to Fast Sound, Slow to Fast Sound, Multi-Color Slow to Fast DMX Values...
- Page 6 Setup & Connections ① Wired DMX Cable Connections Use a DMX to cable to connect to the in/out sockets on the bottom of the light for use with a cabled connection for DMX 512 control. Troubleshooting Problem Solutions • Confirm cable is connected securely to both fixture and No DMX control controller •...
- Page 7 Technical Information • 2x10W RGBW 4-in-1 CREE LEDs • DMX Channel Modes: 8 channels • Control modes: DMX 512, Sound Active, Stand Alone • Lamp rated life: >50000 Hours • Working temperature: up to 40˚C • Power consumption: 30W • Power supply: AC220-240V;50-60Hz •...
