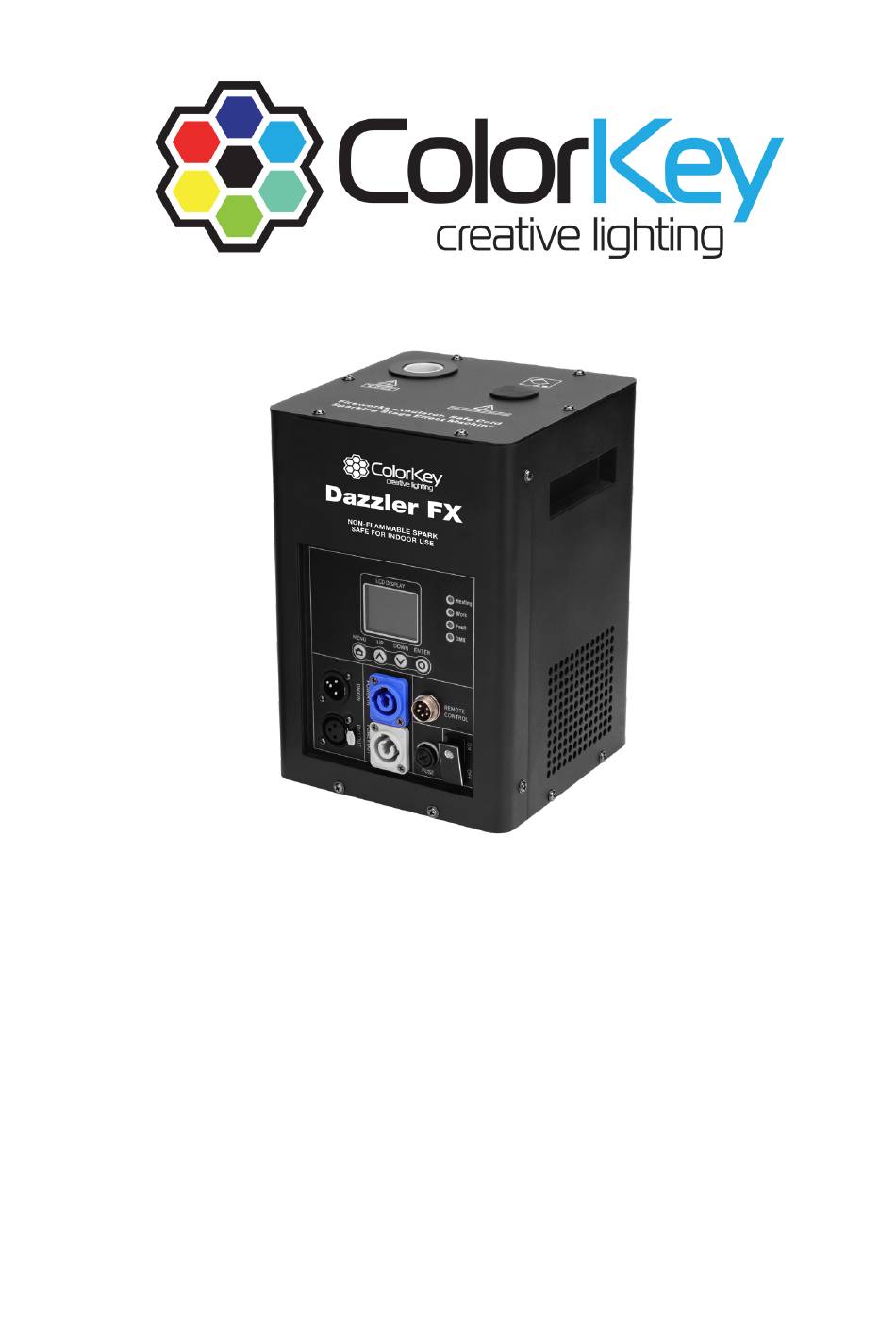

- Page 1 Dazzler FX Cold Spark Machine CKU-7700 / CKU-7701 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................3 INSTALLATION ............................4 MAINTENANCE & PRECAUTIONS ......................4 SERVICE & SUPPORT ..........................4 DAZZLER FX OVERVIEW ......................... 5 LCD DISPLAY OPERATION ........................6 MENU GUIDE .............................. 7 DMX VALUES ............................. 8 3 CHANNELS MODE ..........................8 WIRELESS REMOTE OVERVIEW ...................... -
Page 3: Introduction
• Remote • Remote Receiver • User Manual Caution! Opening this unit voids warranty. Contact ColorKey for any service requests. Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture. -
Page 4: Installation
• Connect the fixture to power and turn on Maintenance & Precautions • Dazzler FX must be cleaned after each use to extend the life of the unit. Use the Clearing function (IR Remote option (6), DMX Ch2; set at 150-255) to expel unspent powder after each use. -
Page 5: Dazzler Fx Overview
Dazzler FX Overview... -
Page 6: Lcd Display Operation
LCD Display Operation Menu: Access the menu/Scroll through menu options Scroll through menu selection or increase parameter Down: Scroll through menu selection or parameters decrease Enter: Open/Select the current menu option... -
Page 7: Menu Guide
Menu Guide Menu Item Show Values Function DMX Address 001-512 DMX Address setting Wireless Switch On / Off Turn the Wireless Remote On or Off Language CN / EN Switch between English and Chinese 11CH/72CH Master On / Off When Multiple units are connected in series, set one unit as the Master. -
Page 8: Dmx Values
DMX Values 3 Channels Mode Channel Value Function 0-10 Spark Off 11-255 Spark On 0-149 No Effect 150-255 Clear Material (Blower only, no heat) Recommended after each use. 0-199 Heating on (Ch1 functions will not work) 200-255 Stop heating (Ch1 functions will not work) *NOTE: The “Stop heating”... -
Page 9: Wireless Remote Overview
Master Slave settings” for instructions for enabling Round FX Auto multi-unit Auto FX. Double Direction FX Auto Flowing FX Auto *More than one Dazzler FX is needed to run Auto FX Refresh FX Auto Double Direction FX Auto Increase FX Speed Decrease FX Speed... -
Page 10: Read Before First Use
Please contact the dealer of purchase of ColorKey directly for more support. • To better protect the life and longevity of your Dazzler FX units, it is advised to use the effect in small increments of 10-30 seconds. If the machine continues to work, heat up and consumes a whole package of powder, please cut off the power and make the machine stop working for more than 10 minutes. -
Page 11: Operation
• Plug in the power cord and power on. Wait for the machine to warm up for 3-5 minutes, the 'heating' indicator will flash during warm up. • Ensure the Wireless Receiver is connected to your Dazzler FX and Wireless is turned On in the main menu. The remote has a power switch located on the right side and uses a A123 battery (included). - Page 12 • To turn off the machine’s continuous heating feature, engage Channel 3 DMX value to 200-255. • Use Channel 2 to start the blower only and clear unused Dazzler FX Spark Powder. WIRELESS WIRELESS...
-
Page 13: Troubleshooting
Dazzler FX is in the correct upright position. Restart to test. If the fan is working but If the fan of the machine is working but the Dazzler FX no spark does not spray sparks, please ensure the machine is fully preheated.
