Summary of Contents for ColorKey Mover Halo Beam QUAD MKII

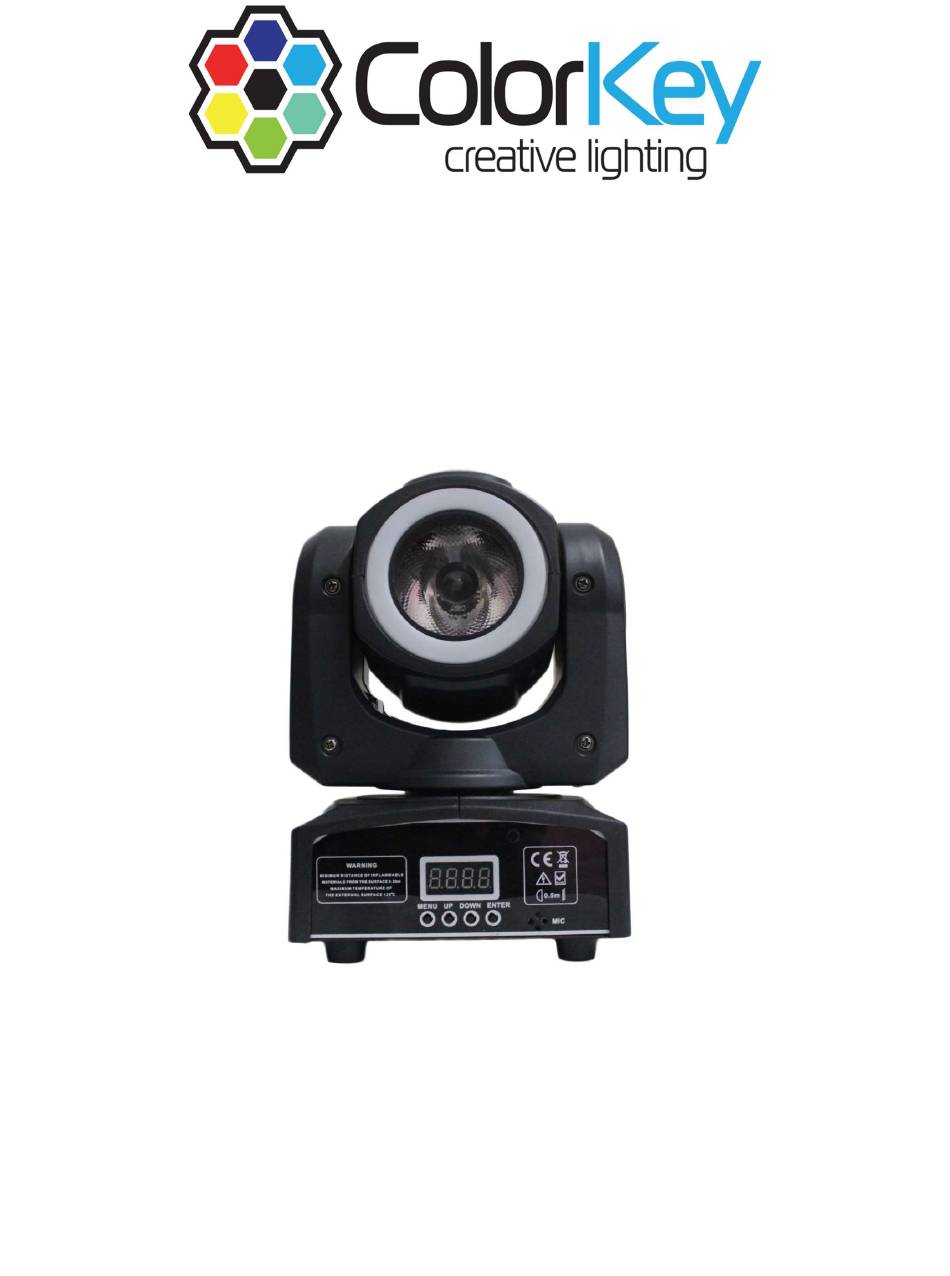

- Page 1 Mover Halo Beam QUAD MKII CKU-5038 USER MANUAL...

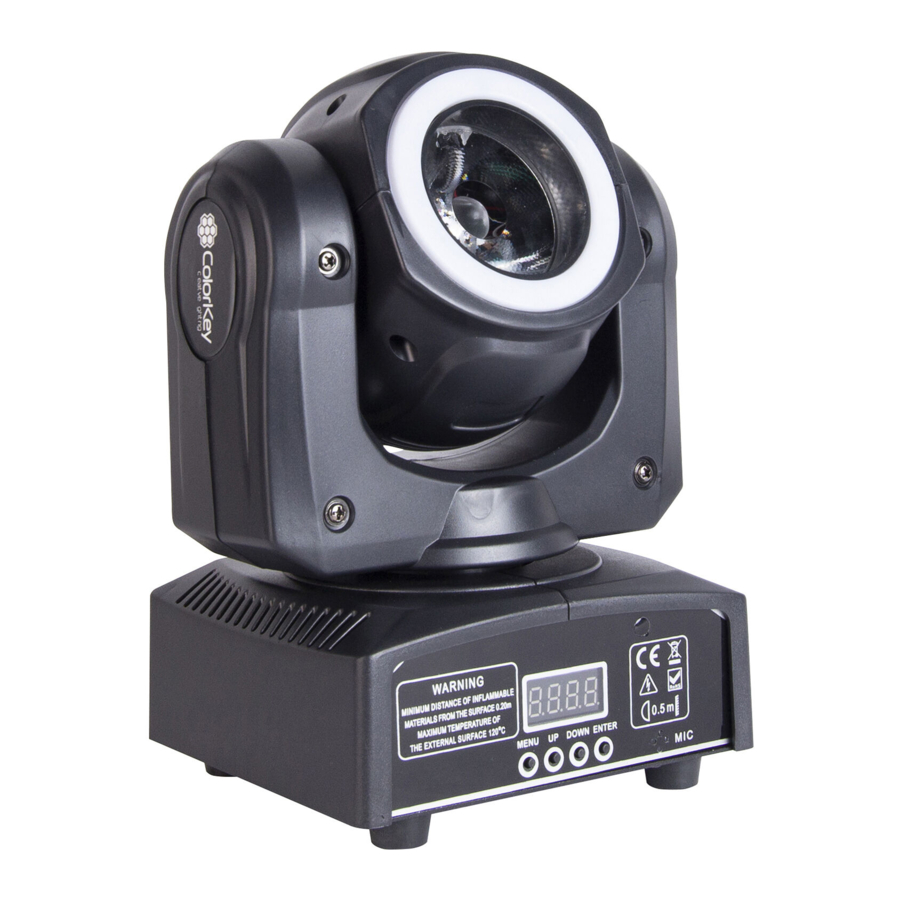

- Page 2 Introduction Thank you for purchasing the ColorKey Mover Halo Beam QUAD MKII. Please read these instructions carefully before use. O perating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list ...
-
Page 3: Display Operation
Display Operation MENU: Access the menu/Scroll through menu options ENTER: Open/Select the current menu option UP: Scroll through menu selection or parameter increase DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Menu Guide
Menu Guide Menu Guide A001- Addr DMX512 address A512 CHnd 16CH 16channel setting 14CH 14channel setting SLnd Auto Auto mode(master) Soun Sound mode(master) SL 1 console mode SL 2 slave mode ID00-ID15 ID setting SHnd SH 0 effect 0 (recommended) SH 1 effect1 SH 2... -
Page 5: Dmx Values
DMX Values 16 Channel Mode Channel Value Function 0-255 Pan (Coarse) 0-255 Pan (Fine) 0-255 Tilt (Coarse) 0-255 Tilt (Fine) 0-255 Rotation Speed 0-255 Dimmer 0-255 Strobe 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-255 Color chase 0-255 Auto (motor: Pan/Tilt) -
Page 6: Dmx Connections
DMX Connections DMX Cable： This fixture can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a resistance120Ω（1/4W）at the end of the DMX connecting as below: ... -
Page 7: Master/Slave Mode Operation
DMX run longer than 60 meters and/or over 32 units, a signal amplifier may be required. ***Please note that Mover Halo Beam QUAD MKII will only work with other Mover Halo Beam QUAD MKII models and not the first generation model.***... -
Page 8: Technical Information
IEC power connection Size: 11.4”x8.25”x8.25” (29x21x21 cm) Weight: 6.6 Lbs. (3kg) Notice to consumer: ColorKey offers a 2-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: We recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com...
