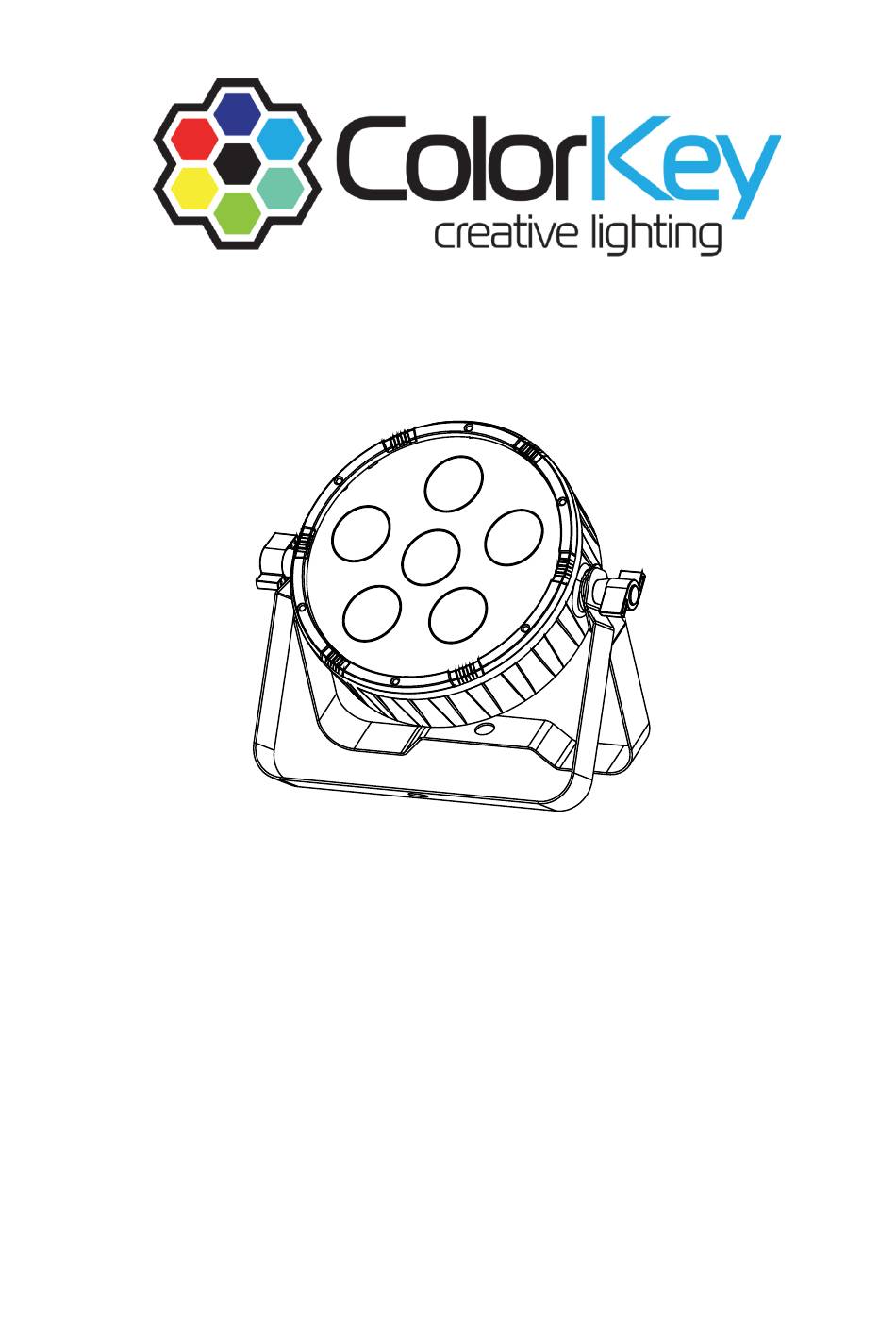

- Page 1 VividPar HEX 6 RGBAW+UV Wash Light CKU-2250 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................. 3 SERVICE & SUPPORT ........................... 3 DISPLAY OPERATION ........................... 4 MENU GUIDE ............................5 DMX VALUES............................6 6 CHANNELS MODE ..........................6 10 CHANNELS MODE ..........................6 IR REMOTE OVERVIEW......................... 7 OPERATION ............................9 TROUBLESHOOTING .......................... 10 TECHNICAL INFORMATION ........................ -
Page 3: Introduction
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –... -
Page 4: Display Operation
Display Operation Menu: Access the menu/Scroll through menu options (*Hold Menu for two seconds exit menu and return to your chosen program) Scroll through menu selection or increase parameter Down: Scroll through menu selection or parameters decrease Enter: Open/Select the current menu option... -
Page 5: Menu Guide
Menu Guide Menu Item Values Function Addr 001-512 DMX Address setting ChNd 6ch / 10ch Channel selection mode SLNd NASt / SL1 / Master / Slave mode 1 / Slave mode 2 / Slave SL2 / SL3 / SL4 mode 3 / Slave mode 4 (see pg 9 &10) Performance modes –... -
Page 6: Dmx Values
DMX Values 6 Channels Mode Channel Value Function 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Amber 0-255 10 Channels Mode Value Function 0-255 0-255 Green 0-255 Blue 0-255 Amber 0-255 White 0-255 0-255 Master Dimmer 3-255 Strobe 8-255 Auto color scroll 008-199 Color auto scroll speed 200-255... -
Page 7: Ir Remote Overview
IR Remote Overview To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the VividPar HEX 6 is located on the face with the LED lenses. Black Out Black Out mode instantly turns all LED’s off. - Page 8 Strobe In Strobe mode, the light will strobe while the button is pressed. To turn on Strobe mode, press and hold the Strobe button, this mode can be engaged while running other programs for added effect. When Strobe is released, the light will continue previous operating program.
-
Page 9: Operation
Operation Using a DMX controller: • Use a DMX cable to connect your VividPar HEX 6 to the DMX in/out sockets on the bottom of the light. Using Master/Slave Mode: The Master/Slave mode allows a group of VividPar HEX 6 units (the slaves) to duplicate the output of another VividPar HEX 6 (the master) without a DMX controller. -
Page 10: Troubleshooting
Using Slave modes (SL1,SL2,SL3,SL4) to create a light show Using 5 or more lights for best effect, VividPar HEX 6 can help create auto-light shows by setting lights in order from Master, SL1, SL2, SL3, SL4 and engaging Auto Programs on the Master fixture. -
Page 11: Technical Information
Technical Information • 6x12W RGBAW+UV LED Wash Light • DMX Channel Modes: 6 / 10 channels • Control modes: DMX 512, Master /Slave, IR Remote, Sound • Power consumption: 80W • Power supply: AC100-240V; 50-60Hz • Weight: 4.4lb • Measurements: 10.25in. x 3.14in. x 9.25in. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at...
