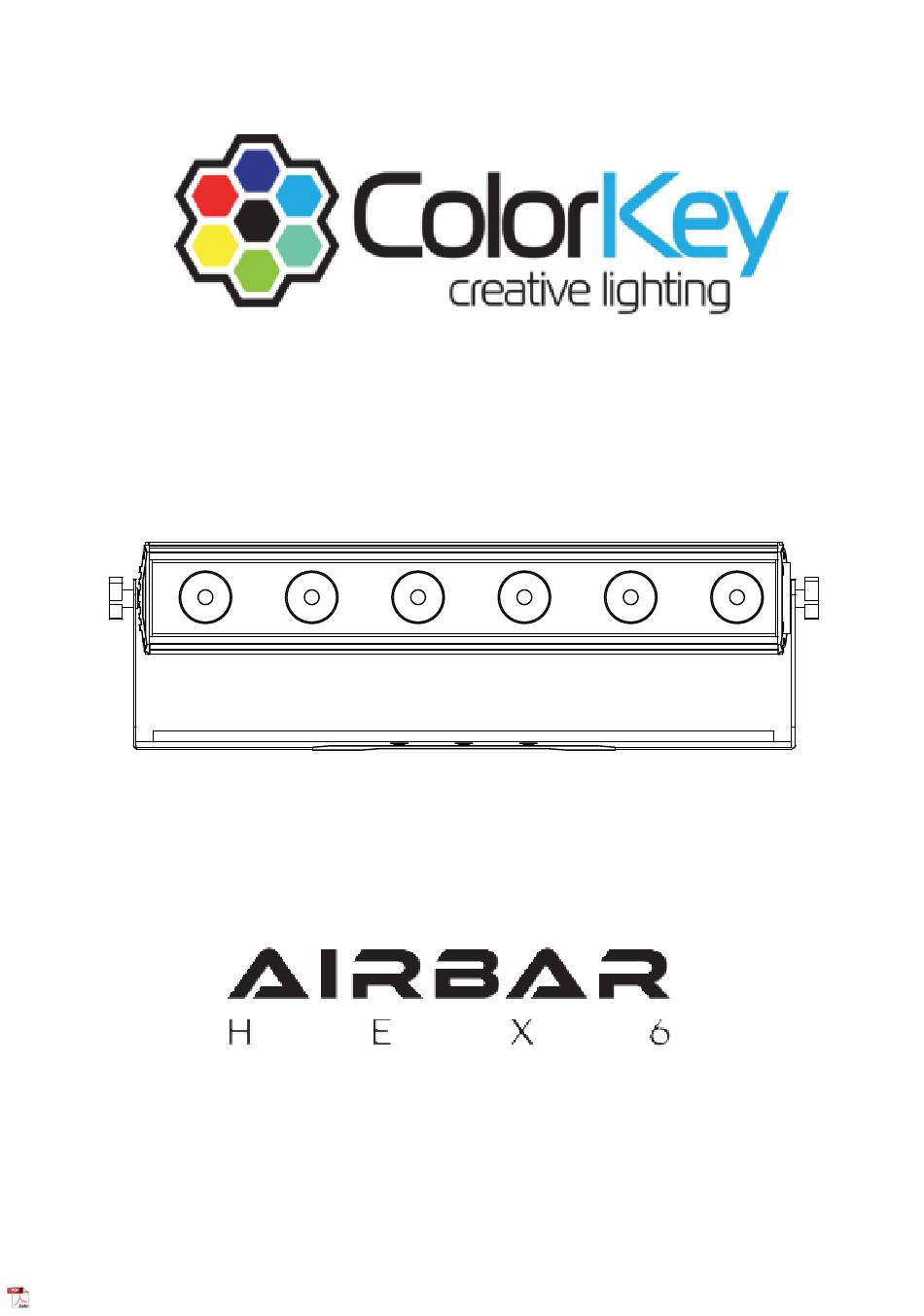

  • Page 1 SKU: CKU-7070 USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents CONTENTS OF PACKAGE ............................. 3 SAFETY ..................................3 SERVICE & SUPPORT ............................3 INTRODUCTION ............................... 4 POWER & CHARGING ............................5 DISPLAY OPERATION ............................5 MENU GUIDE ................................6 INFRARED (IR) REMOTE CONTROL ........................7 DMX VALUES ................................9 SETUP EXAMPLES ...............................

  • Page 3: Contents Of Package

    • Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/...

  • Page 4: Introduction

    Introduction Thank you for purchasing the ColorKey AirBar HEX 6! The AirBar is part of the ColorKey Air Series, an ecosystem of battery-powered, wireless DMX lighting fixtures, with a wireless DMX hub for greater control and connectivity options. DOWN ENTER...

  • Page 5: Power & Charging

    Power & Charging The AirBar HEX 6 features a rechargeable lithium-ion battery for wire free use. The battery can power the light for up to 20 hours from a full charge. The battery charges whenever the fixture is connected to a power source, and the light can also be used while charging. The battery status is shown on the OLED menu display.

  • Page 6: Menu Guide

    Menu Guide Address Set DMX Address (001 to 512) Channel Set DMX Channel Mode (3, 6, 8, 11) Slave Set light to Slave or Master Auto Activate Auto mode and adjust speed (1-15) Fade Activate Fade mode and adjust speed (1-15) Set light to Color mode and scroll through preset Color colors (1-15)

  • Page 7: Infrared (Ir) Remote Control

    Infrared (IR) Remote Control To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the AirBar HEX 6 is located to the right of the LED screen on the rear panel.
  • Page 8 Auto In Auto mode, the light loops through various preprogrammed colors. To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease the speed of the program. Strobe In Strobe mode, the light will flash at the desired rate. To turn on Strobe mode, press the Strobe button, then press (+) or (-) to increase or decrease the strobing rate.

  • Page 9: Dmx Values

    DMX Values 3 channel mode Channel Value Function 000-255 000-255 Saturation 000-255 Value 6 channel mode Channel Value Function 000-255 000-255 Green 000-255 Blue 000-255 Amber 000-255 White 000-255 8 channel mode Channel Value Function 000-255 Master Dimmer 000-255 000-255 Green 000-255 Blue...
  • Page 10 11 channel mode Channel Value Function 000-255 Master Dimmer 000-255 000-255 Green 000-255 Blue 000-255 Amber 000-255 White 000-255 000-255 Strobe 000-015 None 016-095 Auto Mode 096-175 Fade Mode 176-255 Sound Active 0-255 Speed for Ch9 000-005 Menu Default 006-065 Linear Dimmer Mode 066-125 Curve Dimmer Mode...

  • Page 11: Setup Examples

    AIRBAR HEX 6 AIRBAR HEX 6 The AirBar HEX 6 includes an integrated W-DMX transceiver for instant wireless connectivity. This enables the AirBar to wirelessly control any Air Series fixture in the same wireless group. To achieve this, simply set an AirBar to Master and all other fixtures to Slave, and set all fixtures to the same wireless group ID.
  • Page 12 To make a connection, simply set the AirHub DMX and AirBar HEX 6 to the same group ID. Both units are set to ID01 in the example below. AirHub DMX Menu AirBar HEX 6 Menu DMX Controller AIRBAR HEX 6...

  • Page 13: Troubleshooting

    Troubleshooting Problem Solutions • Confirm the Wireless Group ID is the same as the transmitter • Make sure the fixture is in DMX mode No DMX control • Make sure wireless is enabled on your AirBar, or that a DMX cable is properly connected to your controller.

  • Page 14: Technical Information

    Technical Information • 6x12W RGBW 6-in-1 LEDs • 25˚ beam angle • DMX Channels: 3 / 6 / 8 / 11 channels • Built-in 2.4Ghz W-DMX transceiver for wireless connectivity • Lithium-Ion battery (+/-) 20 hours single color; (+/-) 6 hours full color, (+/-) 5 hours charge time •...
