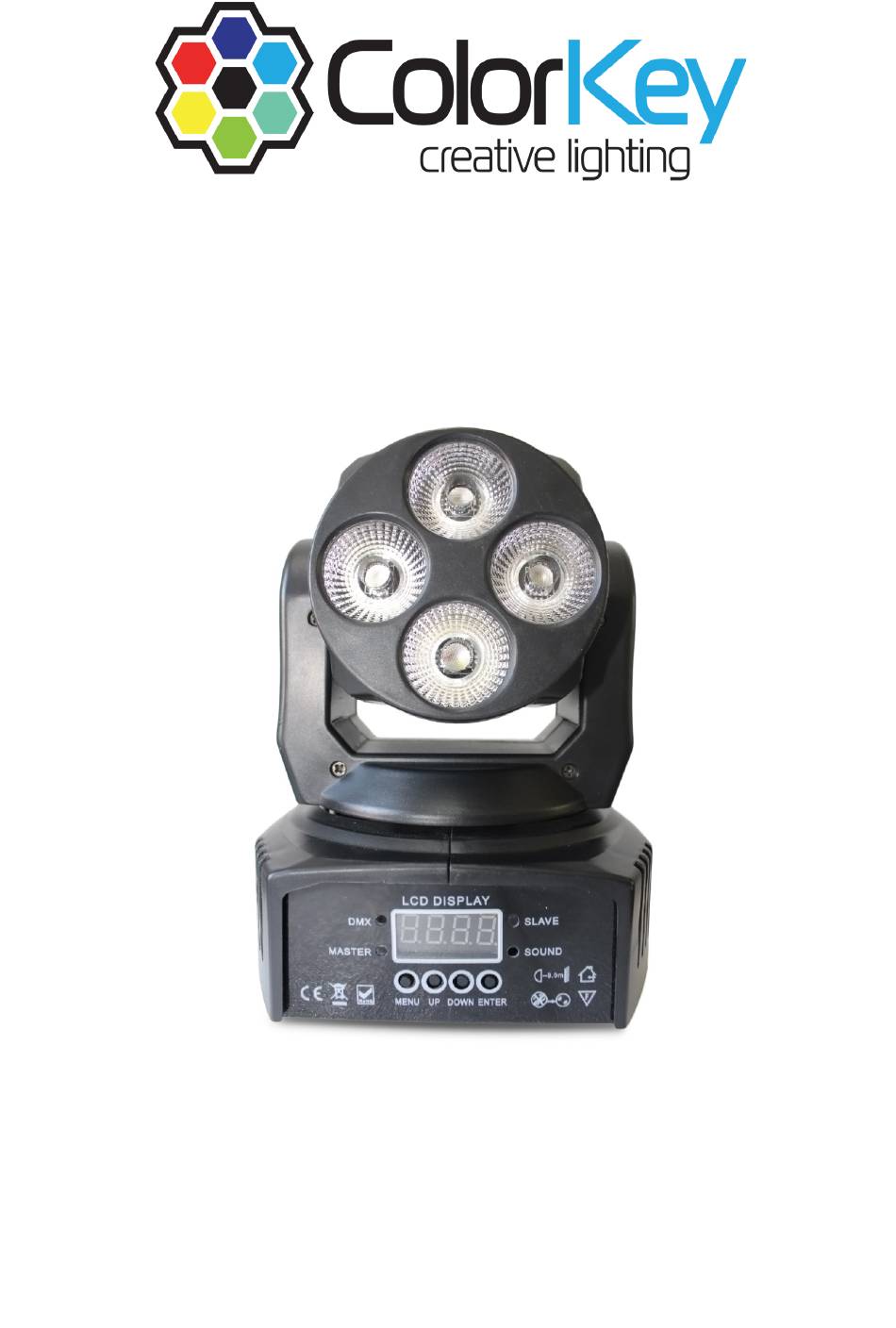

- Page 1 Mover Miniwash QUAD 4 MKII CKU-5037 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey Mover Miniwash QUAD 4. Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Packing list n 1x Mover Miniwash QUAD 4 moving head fixture...
-
Page 3: Display Operation
Display Operation Ø MENU: Access the menu/Scroll through menu options Ø ENTER: Open/Select the current menu option Ø UP: Scroll through menu selection or parameter increase Ø DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Menu Guide
Menu Guide d001 d001-d512 DMX512 FAST Fast auto mode nSTS press enter to engage (Srun) Sound Mode nAFA nSTC press enter to engage (Crun) Stand Alone SLAV press enter to engage (Son) Slave Mode nASL press enter to engage (SLoW) Slow Auto PRn/rPRn X-axis (motor) forward / backward (PAN) TIL/rTIL... -
Page 5: Dmx Values
DMX Values 14 Channel mode Function Value PAN running 0-255 TILT running 0-255 Speed adjustment 0-255 Dimmer 0-255 Strobe (from slow 0-255 speed to fast speed) Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-255 0-15 (no function) 16-128 (fast speed Auto running &... - Page 6 16 Channel mode Channels Function Value PAN running 0-255 Hint adjustment (PAN) 0-255 TILT running 0-255 Hint adjustment (TILT) 0-255 Speed adjustment 0-255 Dimmer 0-255 Strobe (from slow speed 0-255 to fast speed) Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-255...
-
Page 7: Dmx Connections
DMX Connections Ø DMX Cable ： The Mover Miniwash QUAD 4 can be controlled via DMX using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a resistance120Ω... -
Page 8: Master/Slave Mode Operation
60 meters and/or over 32 units, a signal amplifier may be required. ***Please note that Mover Miniwash QUAD 4 MKII will only work with other Mover Miniwash QUAD 4 MKII models and not the first generation model ( CKU01-5033) .***... -
Page 9: Technical Information
Pulse frequency: 0-10HZ Dimming: 0-100% Pan: 540˚ Tilt: 270˚ IP rate: IP20 Notice to consumer: ColorKey offers a -year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: e recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com...
