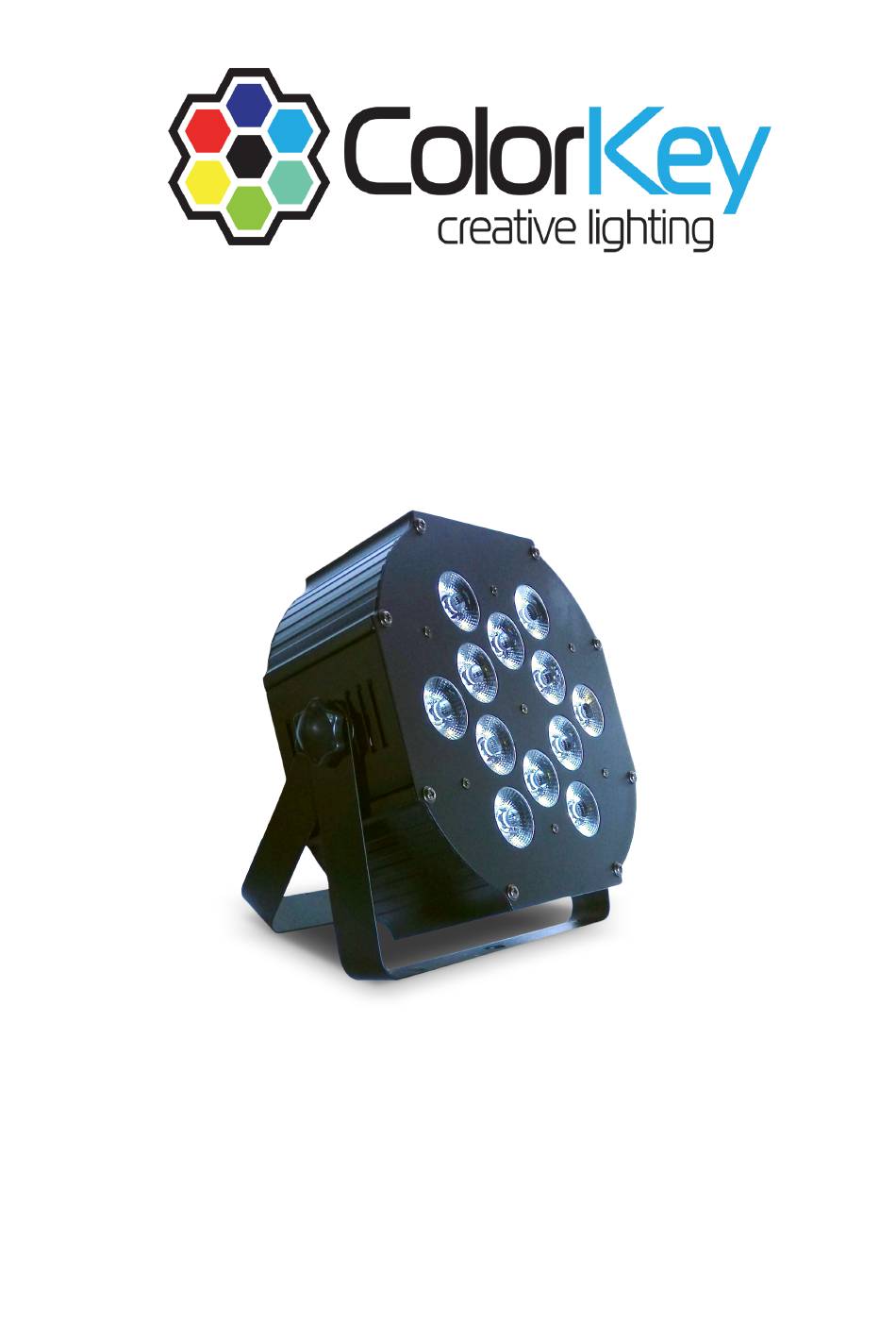

- Page 1 WaferPar HEX 12 MK II Part# CKU-2142 USER MANUAL...
- Page 2 Introduction Thank you for purchasing the ColorKey WaferPar HEX 12 MKII . Please read these instructions carefully before use. Operating this fixture according to these instructions is important avoid possible damage accidents caused misuse. ➢ Packing list ■ 1x WaferPar HEX 12 MK II ■...
-
Page 3: Display Operation
Display Operation ➢ MENU: Access the menu/Scroll through menu options ➢ ENTER: Open/Select the current menu option ➢ UP: Scroll through menu selection or parameter increase ➢ DOWN: Scroll through menu selection or parameters decrease... -
Page 4: Menu Guide
Menu Guide ITEM MENU FUNCTION MODE MENU Addr A.(001-512) DMX mode 10CH 10 channel mode DMX MODE CH-- 6 channel mode 12CH 12 channel mode Pr.01 T.(00-99) Macro mode 1 from slow to fast Pr.02 T.(00-99) Macro mode 2 from slow to fast Au-- ATUO MODE Pr.10... -
Page 5: Dmx Values
DMX Values channels mode VALUE FUNCTION 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Amber 0-255 channels mode VALUE FUNCTION DISCRIPTION 0-255 0~100% Master dimmer 0-255 0~100% Dimming Red 0-255 0~100% Dimming Green 0-255 0~100% Dimming Blue 0-255 0~100% Dimming White 0-255 0~100% Dimming Amber... - Page 6 channels mode VALUE FUNCTION DISCRIPTION 0-255 0~100% Master dimmer 0-255 0~100% Dimming Red Dimming Green 0-255 0~100% Dimming Blue 0-255 0~100% 0-255 0~100% Dimming White 0-255 0~100% Dimming Amber 0-255 0~100% Dimming UV 0-10 no function Red 100%, Green0-100%, 11-30 Blue 0% Red 100-0%, Green 100%, 31-50...
- Page 7 221-225 Color temperature 5 226-230 Color temperature 6 231-235 Color temperature 7 236-240 Color temperature 8 241-245 Color temperature 9 246-250 Color temperature 10 251-255 Color temperature 11 0-13 no function (0Hz) Strobe mode 14-255 1~20Hz 0-20 no function 21-30 Auto1 31-40 Auto2...
-
Page 8: Dmx Connections
DMX Connections ➢ DMX Cable ： The WaferPar HEX 12 MK II can be controlled via DMX also with RDM function, using a 3-pin XLR connection. The standard DMX connection is XLR is: one end connects to the male plug, and the other connects to the female. As below: pin 1: ground, pin 2: negative signal, pin 3: positive signal Noted：In order to avoid failures and interference signal transmission，we connect a... -
Page 9: Master/Slave Mode Operation
Master/Slave Mode Operation Master/Slave Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to ‘Master Mode,’ this unit will always act as a controlling unit until it is switched out of ‘Master Mode’. The Master unit will send out signal via DMX to Slave units which will react in synchronization. -
Page 10: Technical Information
Working temperature: up to 40˚C IP rate: IP20 Notice to consumer: ColorKey offers a 2-year limited warranty. Please visit our website at www.ColorKeyLED.com to register your product. Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at...
