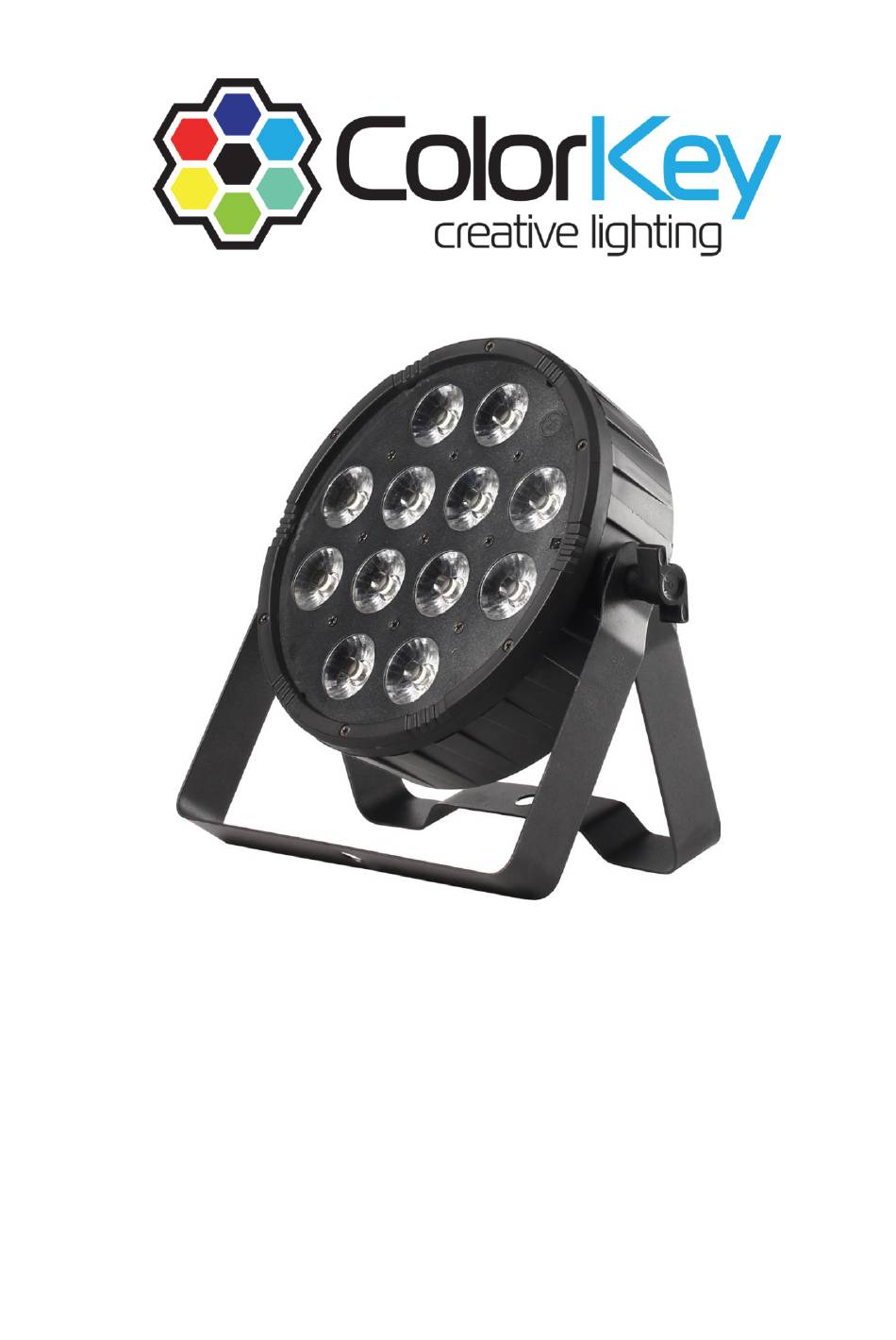

- Page 1 VividPar HEX 12 RGBAW+UV Wash Light CKU-2260 USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................. 3 SERVICE & SUPPORT ........................... 3 DISPLAY OPERATION ........................... 4 MENU GUIDE ............................5 DMX VALUES............................6 6 CHANNELS MODE ..........................6 10 CHANNELS MODE ..........................6 IR REMOTE OVERVIEW......................... 7 OPERATION ............................9 TROUBLESHOOTING .......................... 10 ................................ -
Page 3: Introduction
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –... -
Page 4: Display Operation
Display Operation Menu: Access the menu/Scroll through menu options (*Hold Menu for two seconds exit menu and return to your chosen program) Scroll through menu selection or increase parameter Down: Scroll through menu selection or parameters decrease Enter: Open/Select the current menu option... -
Page 5: Menu Guide
Menu Guide Menu Item Values Function Addr 001-512 DMX Address setting ChNd 6ch / 10ch Channel selection mode SLNd NASt / SL1 / Master / Slave mode 1 / Slave mode 2 / Slave SL2 / SL3 / SL4 mode 3 / Slave mode 4 Performance modes –... -
Page 6: Dmx Values
DMX Values 6 Channels Mode Channel Value Function 0-255 0-255 Green 0-255 Blue 0-255 White 0-255 Amber 0-255 10 Channels Mode Value Function 0-255 0-255 Green 0-255 Blue 0-255 Amber 0-255 White 0-255 0-255 Master Dimmer 3-255 Strobe 8-255 Auto color scroll 008-199 Color auto scroll speed 200-255... -
Page 7: Ir Remote Overview
IR Remote Overview To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the VividPar HEX 12 is located on the face with the LED lenses. Black Out Black Out mode instantly turns all LED’s off. - Page 8 Press the Sound button to activate Sound-Active mode. Press (+) or (-) to increase or decrease sound sensitivity based on the playback level of the music. Strobe In Strobe mode, the light will strobe while the button is pressed. To turn on Strobe mode, press and hold the Strobe button, this mode can be engaged while running other programs for added effect.
-
Page 9: Operation
Operation Using a DMX controller: • Use a DMX cable to connect your VividPar HEX 12 to the DMX in/out sockets on the bottom of the light. Using Master/Slave Mode: The Master/Slave mode allows a group of VividPar HEX 12 units (the slaves) to duplicate the output of another VividPar HEX 12 (the master) without a DMX controller. -
Page 10: Troubleshooting
Using Slave modes (SL1,SL2,SL3,SL4) to create a light show Using 5 or more lights for best effect, VividPar HEX 12 can help create auto-light shows by setting lights in order from Master, SL1, SL2, SL3, SL4 and engaging Auto Programs on the Master fixture. -
Page 11: Technical Information
Technical Information • 12x12W RGBAW+UV LED Wash Light • DMX Channel Modes: 6 / 10 channels • Control modes: DMX 512, Master /Slave, IR Remote, Sound active, Auto programs • Power consumption: 160W • Power supply: AC100-240V; 50-60Hz • Weight: 4.4lb •...
