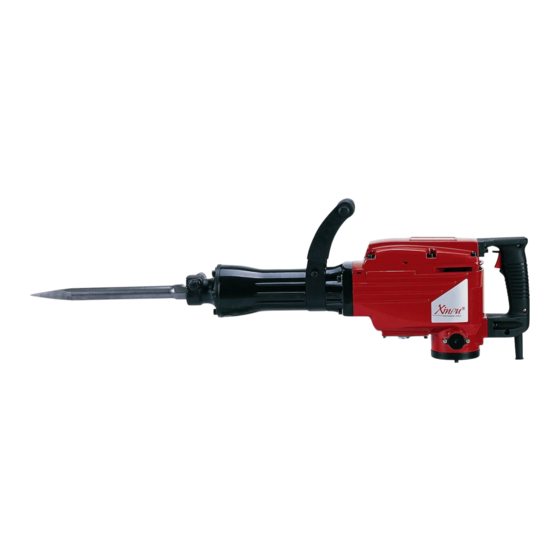

Model: XP-65RA-1 HANDLING INSTRUCTIONS Before using this XINPU demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make...
Contents 1. Machine information 2. Safety instruction 3. Assembly 4. Operation 5. Maintenance 1. Machine information Technical specifications XP-65RA-1 Machine Type Voltage AC 230V Frequency 50Hz Input power 1100W Impact rate...
Page 3
Optional accessories (sold separately) Notice: Optional accessories (sold separately) are recommended only for XINPU tool for specified purpose in manual, any other brand accessories or attachments used may present risk of injury. 1. Point chisel Hexagon size30*410 length (Unit: mm) 2.
2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Read the manual carefully Accordance with essential applicable safety of European directives Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual.
Page 6
General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
Page 7
b) Use safety equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
Page 8
12、Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized serve center to check and repair. 13. Parts replace: Only original XINPU's parts can be used to replace by authorized service center. 14. Right use accessories and parts: Don't use other parts and accessories which not mentioned in the manual otherwise may cause injuries! 15.
3. Assembly Name of the parts Mounting tool bits Warning: before do it, make sure unplug the machine! (1) Pull out of the retainer "2", turning 180℃ clockwise or anticlockwise, insert the accessory shank portion"1" into the hole on the front cover. (2) Turning the retainer back into original position.
Prior to operation 1. Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer. 2. Power switch Ensure that the power switch is in the position of OFF. If the plug is connected to power receptacle while the power switch is in ON position, the demolition hammer will start operation immediately, which can cause serious accident! Operation...
Page 11
1. Inspecting the demolition hammer Use a dull accessory, such as bull point, cutter, etc., will cause motor malfunction and efficiency degraded. Replace with a new one when your accessory is abased. 2. Inspecting the mounting screws Regularly inspect all mounting screws and ensure that they are properly tightened. Any loose should be tighten immediately, failure to do maybe cause serious hazard.
Page 12
Zhejiang Xinpu Industrial & Commercial Co., Ltd. We herewith declare, No.106, 330 National Highway, Huajie Industrial Zone, Yongkang, Zhejiang 321300, China That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by us.
