PROFILE

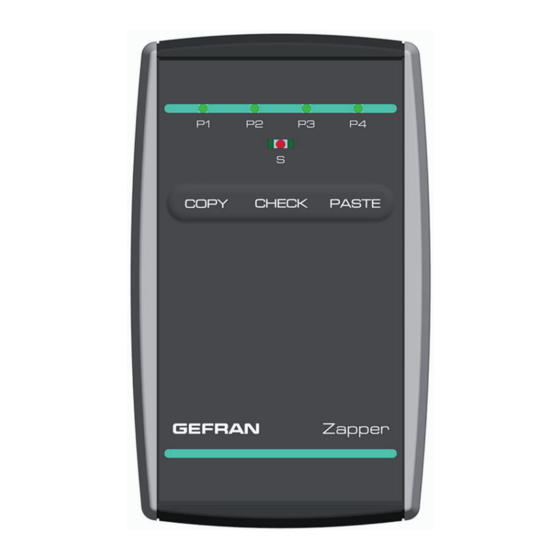

Zapper is the portable, battery-po-
wered device for cloning configura-
tion parameters among Gefran model
650/1250/1350 temperature control-
lers.
You don't have to know the meaning
of the parameters or the program-
ming philosophy: everyone can use
Zapper immediately.
With a simple click, Zapper can copy
the program (parameters) you need
from a PC and GF_eXpress (Gefran's
universal configuration software) or
directly from a field device.
The program, saved securely in Zap-
per, can then be pasted easily into
another device, duplicating configu-
rations safely and without mistakes.
You can use Zapper without having
to power the controllers. Zapper uses
the energy from its batteries and
can be used on the device still in its
package or on controllers installed on
the panel.
Zapper
PORTABLE BATTERY-POWERED CONFIGURATOR FOR CONTROLLERS
Note: Zapper can store the data of
four different programs.
The stored configurations are sa-
ved and maintained even if the
batteries are drained or absent.

Main features

• Configures models 650/1250/1350
with power supply off
• Can save four programs
• Only three keys for simple copying/
pasting/checking of selected pro-
gram
• One bi-color (green/red) LED for
clear diagnostics
• Saves programs even when battery
is low

TECHNICAL DATA

Standard case
Self-extinguishing plastic V0 conforms to
UL94
Standard connector
micro-USB-B
Number of keys: 3
LEDs
- 1 bi-color (red/green)
- 4 green
Power supply
- two AA (1.5 V) batteries
- low battery signal
- autonomy >150 operations
(with 1.5V alkaline batteries)
Dimensions
70x115x24mm
Operating temperature
0 to 50 °C (32 to 122 °F)
Storage temperature
-20 to + 70 °C (-4 to 158 °F)
Humidity
20 to 80 % RH non condensing
Pollution level: II
Weight
80g. (without batteries)
