4. Operation

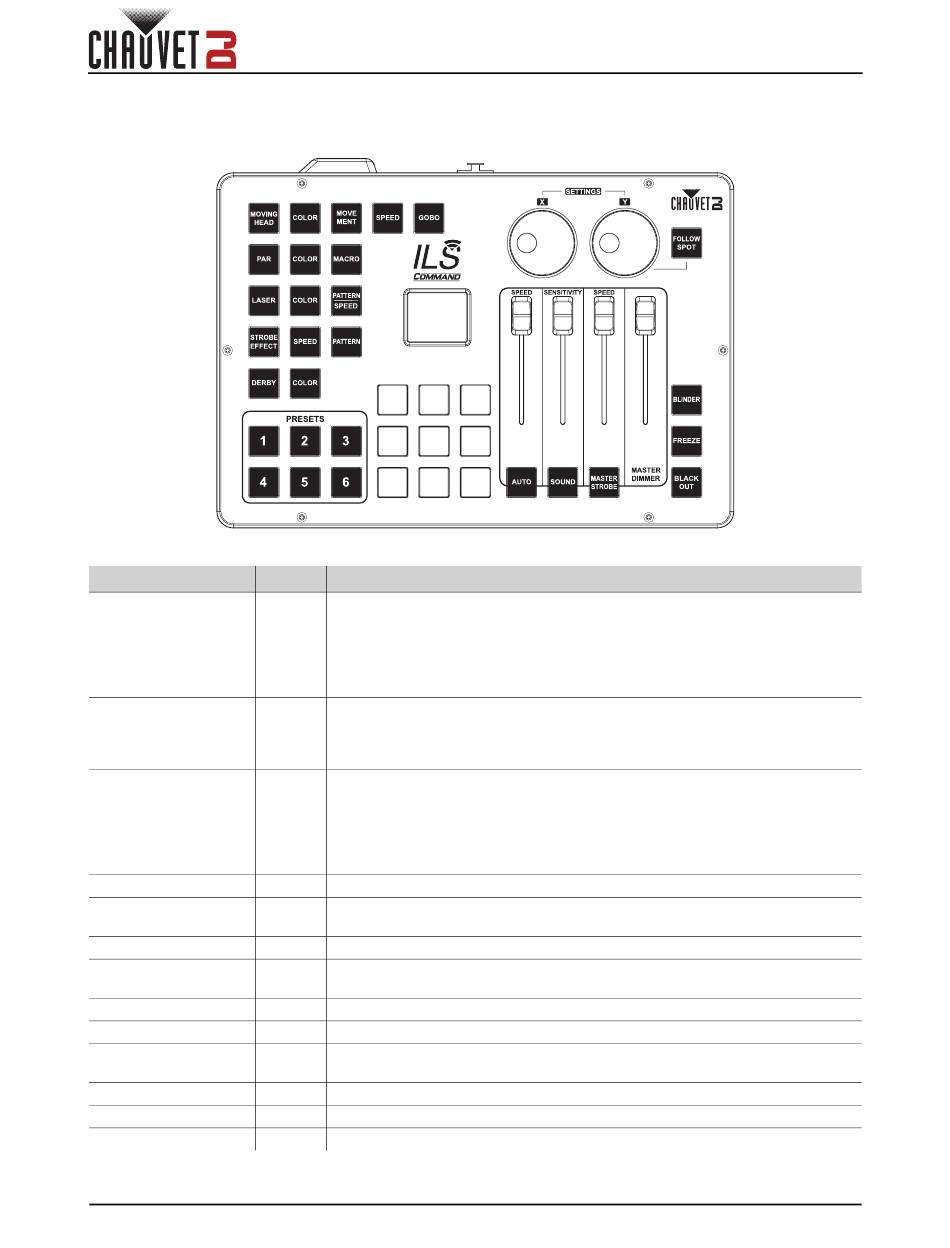

Control Panel Overview

Control Panel Description

Label/Color
<X> Encoder
<Y> Encoder
<FOLLOW SPOT> Button
<AUTO SPEED>
<SENSITIVITY>
<STROBE SPEED>
<MASTER
DIMMER>
<AUTO> Button Press to activate automatic mode
<SOUND> Button Press to activate sound mode
<MASTER
Button Press to trigger/toggle all effects to strobe
STROBE>
<BLINDER> Button Press to trigger/toggle blinder effect (all effects white at full output)
<FREEZE> Button Press to toggle freeze (hold all output at the current setting)
<BLACK OUT> Button Press to toggle black out
5
Type Function
Press to access menu, enable the currently displayed menu, or set the
currently selected value into the selected function
Press and hold for 3 seconds to lock and unlock the ILS Command
Rotate to navigate through the menu list, to increase or decrease
numeric values in a function, and to program the pan of moving heads
for follow spot mode
Press to exit from the current menu or function
Press and hold for 3 seconds to lock and unlock the ILS Command
except for the <PRESET> buttons
Rotate to program the tilt of moving heads for follow spot mode
Press to activate and deactivate follow spot mode
Press and hold to program follow spot mode positions, colors, and gobos
(Use the <amber>, <green>, <cyan>, and <white> buttons with the <X>
and <Y> encoders to program)
Press and hold again to finish programming, then use the <X> encoder
to save or cancel
Fader Adjust to set the speed of automatic/preset programs and macros
Fader Adjust to set the sensitivity of the microphone or aux input in sound
mode
Fader Adjust to set the strobe speed
Fader Adjust to set the master dimmer value
