- Page 1 User Manual...
-
Page 2: Table Of Contents
System Information ......................14 IRC-6 Infrared Remote Control ................IRC-6 Operation ......................15 Master/Slave Mode ....................Zero Adjust Mode..................... Changing Gobos ...................... 5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Returns ......................Contact Us......................Intimidator Spot 360 User Manual Rev. 1... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Intimidator Spot 360 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 21 Intimidator Spot 360 User Manual Rev. 1... -

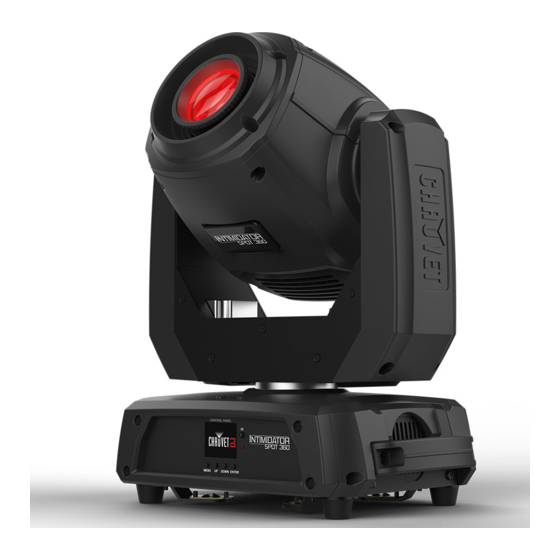

Page 5: Introduction
IR Sensor Carry Handles Safety Menu Power Power Fuse Display Loop Buttons Indicator Holder In/Out Product Dimensions 11.69 in 297 mm 16.65 in 423 mm 12.68 in 322 mm Intimidator Spot 360 User Manual Rev. 1 Page 3 of 21... -
Page 6: Setup
3. Setup AC Power The Intimidator Spot 360 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 360 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 8: Operation
Totem mode, Base Down Sensitivity 001–100 Sets the sound sensitivity Indicator Enables/Disables LED indicator Flash if DMX Enables/Disables Flash if DMX Reset Resets the product Factory Set Loads factory defaults Page 6 of 21 Intimidator Spot 360 User Manual Rev. 1... -
Page 9: Configuration (Dmx)
Temperature: _ _ _ Displays the product temperature in °C Configuration (DMX) The Intimidator Spot 360 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 10: 14Ch
064 145 Gobo rotation, slow to fast Gobo Rotation 146 149 Stop 150 231 Reverse gobo rotation, slow to fast 232 255 Gobo bounce, short to long Page 8 of 21 Intimidator Spot 360 User Manual Rev. 1... - Page 11 120 127 Gobo wheel reset 128 135 No function 136 143 Prism reset 144 151 Focus reset 152 159 Reset all 160 255 No function Intimidator Spot 360 User Manual Rev. 1 Page 9 of 21...
-
Page 12: 08Ch
063 064 White 065 189 Color indexing 190 221 Color cycling rainbow, fast to slow 222 223 Stop 224 255 Reverse color cycling rainbow, slow to fast Page 10 of 21 Intimidator Spot 360 User Manual Rev. 1... - Page 13 004 007 On 008 076 Strobe, slow to fast Strobe 077 145 Pulse strobe, slow to fast 146 215 Random strobe, slow to fast 216 255 On Intimidator Spot 360 User Manual Rev. 1 Page 11 of 21...
-
Page 14: Configuration (Standalone)
4. Use <UP> or <DOWN> to select Sound. 5. Press <ENTER>. Sound Sensitivity To set the sound sensitivity on the Intimidator Spot 360, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>. -
Page 15: Configuration (Settings)
6. Use <UP> or <DOWN> to select from 540 (540°), 360 (360°), or 180 (180°). 7. Press <ENTER>. Tilt Angle To set the tilt angle range on the Intimidator Spot 360, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. -
Page 16: Indicator
4. Use <UP> or <DOWN> to select Reset. 5. Press <ENTER>. Factory Reset To restore the Intimidator Spot 360 to factory default settings, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>. -
Page 17: Irc-6 Infrared Remote Control
Operation IRC-6 Infrared Remote Control The Intimidator Spot 360 is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Spot 360 to IR mode, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Run Mode. -
Page 18: Master/Slave Mode
The Master/Slave mode allows a single Intimidator Spot 360 product (the “master”) to control the actions of one or more Intimidator Spot 360 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, while the slave products will be set to operate in slave mode. -
Page 19: Changing Gobos
NOTE: If the gobo wheel is not accessible, the wrong cover was removed. Replace the cover immediately and remove the cover on the opposite side of the Intimidator Spot 360. 4. Rotate the gobo wheel until the gobo that needs replacing is accessible. -
Page 20: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because it they could be damaged. Page 18 of 21 Intimidator Spot 360 User Manual Rev. 1... -
Page 21: Technical Specifications
8 or 14 Ordering Product Name Item Code UPC Number Intimidator Spot 360 (black) 08011468 781462218164 Intimidator Spot 360 (white) 08011469 781462218171 UL 1573 CSA C22.2 No. 166 E113093 Intimidator Spot 360 User Manual Rev. 1 Page 19 of 21... -
Page 22: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 20 of 21 Intimidator Spot 360 User Manual Rev. 1... -
Page 23: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Intimidator Spot 360 User Manual Rev. 1 Page 21 of 21...
Need help?
Do you have a question about the Intimidator Spot 360 and is the answer not in the manual?
Questions and answers

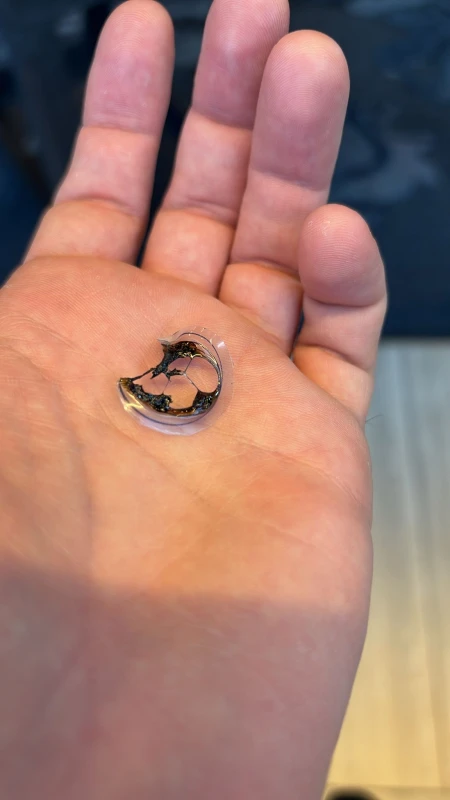

Which transparent paper and ink should I use to print my own Gobo’s on the Intimidator 360x? I tried my own and it was burned through immediately.
