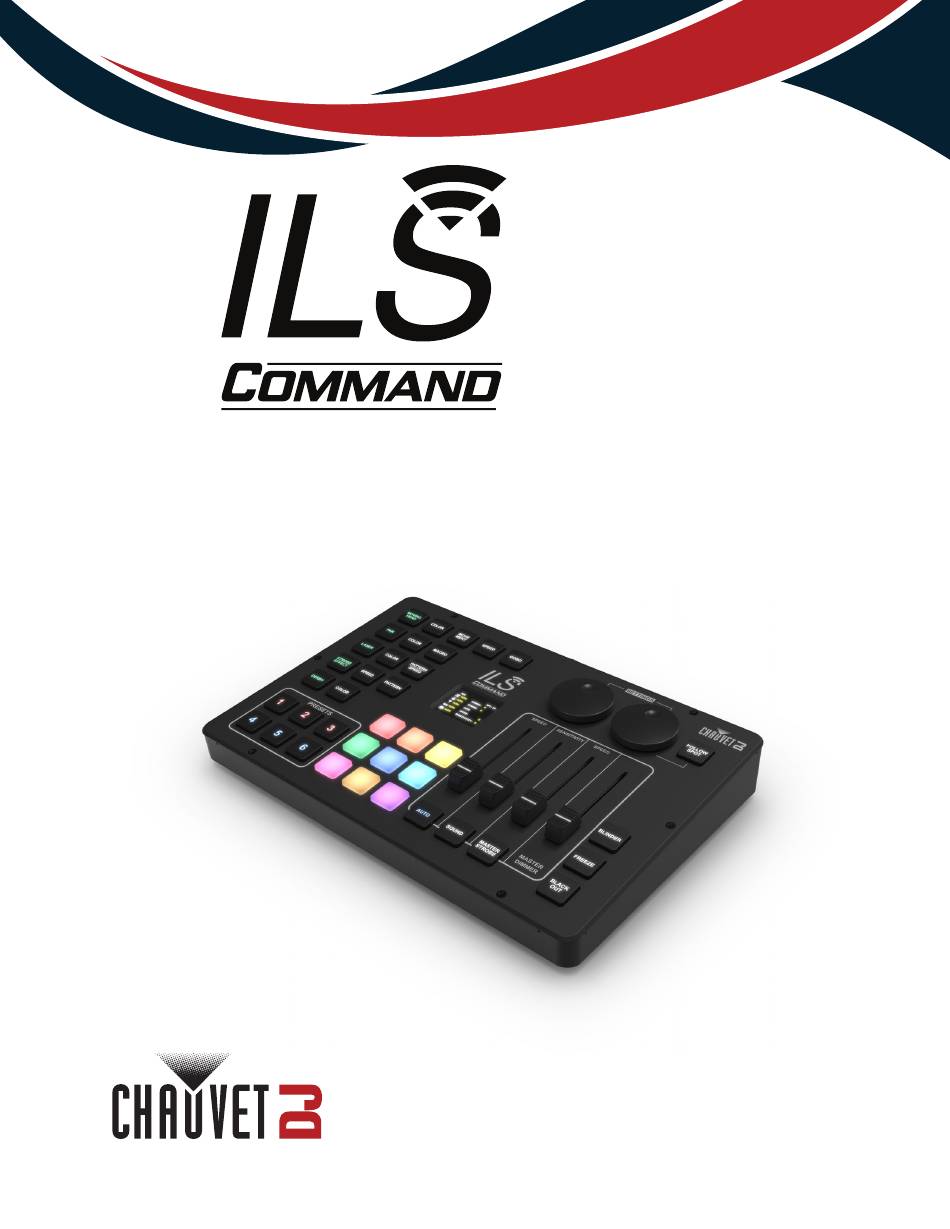

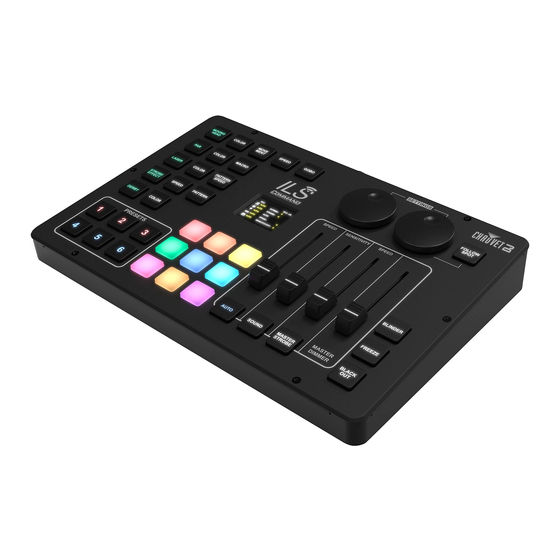

- Page 1 User Manual...
-
Page 2: Table Of Contents
Sound Input ..................... Sound Loss....................Par Color....................Program Mode ..................Effect Type....................Blinder Mode.................... Strobe Mode .................... Presets Playback Mode ................Power Loss ....................Laser Mode....................USB Backup or Restore................Factory Reset ..................System Update ..................ILS Command User Manual Rev. 1... - Page 3 Color Override ....................Effect Type Controls ................Moving Head ....................Par........................ Laser ......................Strobe Effect....................Derby......................Follow Spot Mode ..................Presets..................... 5. Maintenance................Product Maintenance................6. Technical Specifications ............Contact Us ..................Warranty & Returns ................ILS Command User Manual Rev. 1...
-
Page 4: Before You Begin
Electronically published by Chauvet in the United States of America. Chauvet, Chauvet DJ, the Chauvet logo, and ILS Command are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 5: Fcc Statement Of Compliance
Use outdoors. ♦ Submerge. ♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. ILS Command User Manual Rev. 1... -
Page 6: Introduction
WARNING! DO NOT plug anything other than a USB drive into the USB type B port. Doing so may cause damage to the product. Product Dimensions 12.3 in 8.86 in 313 mm 225 mm 2.15 in 54.7 mm ILS Command User Manual Rev. 1... -
Page 7: Setup
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The ILS Command has 4 rubber feet for placing on a flat surface. Make sure adequate ventilation is provided around the product. ILS Command User Manual Rev. 1... -
Page 8: Operation
Function Press to access menu, enable the currently displayed menu, or set the currently selected value into the selected function Press and hold for 3 seconds to lock and unlock the ILS Command <X> Encoder Rotate to navigate through the menu list, to increase or decrease... - Page 9 Press and hold to save shows to the preset slot, then use the <X> <PRESET 1–6> Button encoder to name the preset and assign a button color Press to activate and deactivate the preset ILS Command User Manual Rev. 1...
-
Page 10: Menu Map
All products black out on ILS Command power loss All products continue last instruction on ILS Command Power Lost LAST SET power loss AUTO All products switch to auto on ILS Command power loss Disables lasers Laser Mode Maintains EU laser standards Maintains US laser standards Backup... -
Page 11: Home Screen
Operation Home Screen The home screen of the ILS Command displays the current operating modes of each effect type and the current master settings. Effect Operating Mode The left side of the home screen displays the operating modes of each effect type. -
Page 12: Configuration (Settings)
5. Press the <X> encoder. Sound Loss To select what the ILS Command in sound mode does without sound input, follow the instructions below. 1. Press the <X> encoder to access the menu. 2. Turn the <X> encoder left or right to select Sound Lost. -
Page 13: Effect Type
7. Press the <X> encoder. Power Loss To select what connected products will do if the ILS Command loses power, follow the instructions below. 1. Press the <X> encoder to access the menu. 2. Turn the <X> encoder left or right to select Power Lost. -
Page 14: Laser Mode
6. Press the <X> encoder. The product will reset and enter upload mode. 7. Plug the USB drive with the firmware update file into the USB type A port. The ILS Command will automatically find the firmware update file and apply it. -
Page 15: Configuration (Ils)
Operation Configuration (ILS) The ILS Command controls each connected effect via ILS instructions configured by the control panel. Master Controls The master controls affect all connected products and effects. Automatic or Sound-Activated Mode To set the operating mode to automatic, press <AUTO>. Upon activation or cycling through options, the default mode for each effect type becomes AUTO. -
Page 16: Effect Type Controls
5. Repeat steps 3 and 4 until the macro is set as desired. 6. Press and hold <MACRO> to return to the home screen. The product will automatically return to the home screen after 30 seconds of inactivity. ILS Command User Manual Rev. 1... -
Page 17: Laser
3. Use the <Amber>, <Green>, <Cyan>, and <White> buttons to select SAVE (to save these settings to follow spot mode) or CANCEL (to return to the home screen without configuring follow spot mode). 4. Press the <X> encoder. ILS Command User Manual Rev. 1... -
Page 18: Presets
Operation Presets The ILS Command has 6 <PRESET> buttons which can store a show for instant playback. In chase play mode, saved presets will cycle in numerical order. See Presets Playback Mode for more information. To save the current output to a preset, do the following: 1. -
Page 19: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. ILS Command User Manual Rev. 1... -
Page 20: Technical Specifications
104 °F (40 °C) Convection I/O Connector Operating Frequency Max Unobstructed Distance 3-pin XLR, D-Fi 2.412 to 2.484 GHz 600 ft (183 m) Ordering Product Name Item Code UPC Number ILS Command 10082103 781462224516 ILS Command User Manual Rev. 1... -
Page 21: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. ILS Command User Manual Rev. 1...
