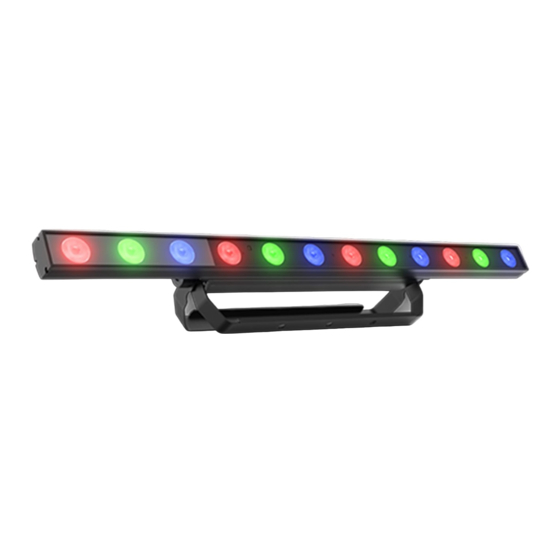

Summary of Contents for Chauvet DJ COLORband PiX ILS
- Page 1 User Manual...
-
Page 2: Table Of Contents
Custom Color Mixing...................... 15 Dimmer........................... 15 RF Control........................16 Factory Reset........................Master/Slave Mode (Wired) ..................Master/Slave Mode (D-Fi USB)................ILS Mode........................5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Returns ......................Contact Us......................COLORband PiX ILS User Manual Rev. 1... -
Page 3: Warranty
United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor. COLORband PiX ILS User Manual Rev. 1 Page 1 of 21... -
Page 4: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and COLORband PiX ILS are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 5: Safety Notes
Use a clamp with a captive bolt when a single hanging bracket is used. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. COLORband PiX ILS User Manual Rev. 1 Page 3 of 21... -
Page 6: Introduction
Port knob (2x) Mounting bracket (2x) WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. Page 4 of 21 COLORband PiX ILS User Manual Rev. 1... -
Page 7: Product Dimensions
7.9 in/ 200 mm 20.9 in/ 532 mm 18.9 in/ 479 mm 38.9 in 987 mm 38.5 mm 6.2 in 157 mm 3.4 in 87mm 2 in 49 mm COLORband PiX ILS User Manual Rev. 1 Page 5 of 21... -
Page 8: Setup
3. Setup AC Power The COLORband PiX ILS has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 9: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The COLORband PiX ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 10: Operation
Navigates downwards through the menu list or decreases a selected numeric value <ENTER> Enables the currently displayed menu or sets a selected value into the selected function Menu Map Refer to the COLORband PiX ILS product page on www.chauvetdj.com for the latest menu map. Mode... -
Page 11: Configuration (Dmx)
Operation Configuration (DMX) The COLORband PiX ILS works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 12: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The COLORband PiX ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 13: Dmx Channel Assignments And Values
000 255 0–100% Green 12 Zone 12 000 255 0–100% Blue 12 000 255 0–100% 000 014 No function – Color macros 015 255 Color macros COLORband PiX ILS User Manual Rev. 1 Page 11 of 21... - Page 14 115 127 Automatic chase 128 159 Automatic fade 160 191 Automatic 3-color snap 192 223 Automatic 7-color snap 224 255 Sound-active program Dimmer 000 255 0–100% Page 12 of 21 COLORband PiX ILS User Manual Rev. 1...
-
Page 15: Pixel Control Modes
000 255 0–100% Blue 11 000 255 0–100% Red 12 000 255 0–100% Green 12 Zone 12 000 255 0–100% Blue 12 000 255 0–100% COLORband PiX ILS User Manual Rev. 1 Page 13 of 21... -
Page 16: Zones For Dmx Control
Operation Zones for DMX Control 12 Zones (36Ch, 41Ch) 6 Zones (18Ch) 4 Zones (12Ch) 3 Zones (9-Ch) 2 Zones (6-Ch) Page 14 of 21 COLORband PiX ILS User Manual Rev. 1... -
Page 17: Configuration (Standalone)
DMX signals from the controller. Static Color Mode To run the COLORband PiX ILS on a static color, follow the instructions below. 1. Press <MENU> repeatedly until C-- shows on the display. 2. Press <ENTER>. -
Page 18: Rf Control
Password: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER> Factory Reset To reset the COLORband PiX ILS to default factory settings, follow the instructions below: 1. Press <MENU> repeatedly until SEt shows on the display. Press <ENTER>. 2. Use <UP> or <DOWN> to select RESt. Press <ENTER>. -
Page 19: Master/Slave Mode (Wired)
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single COLORband PiX ILS product (the “master”) to control the actions of one or more COLORband PiX ILS products (the “slaves”) without the need of a DMX controller or DMX cables. -
Page 20: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 18 of 21 COLORband PiX ILS User Manual Rev. 1... -
Page 21: Technical Specifications
3, 4, 6, 7, 8, 9, 12, 18, 36 or 41 Ordering Product Name Item Code UPC Number COLORband PiX ILS 07031960 781462223083 UL 1573 CSA C22.2 No. 166 E113093 COLORband PiX ILS User Manual Rev. 1 Page 19 of 21... -
Page 22: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 20 of 21 COLORband PiX ILS User Manual Rev. 1... -
Page 23: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. COLORband PiX ILS User Manual Rev. 1 Page 21 of 21...
