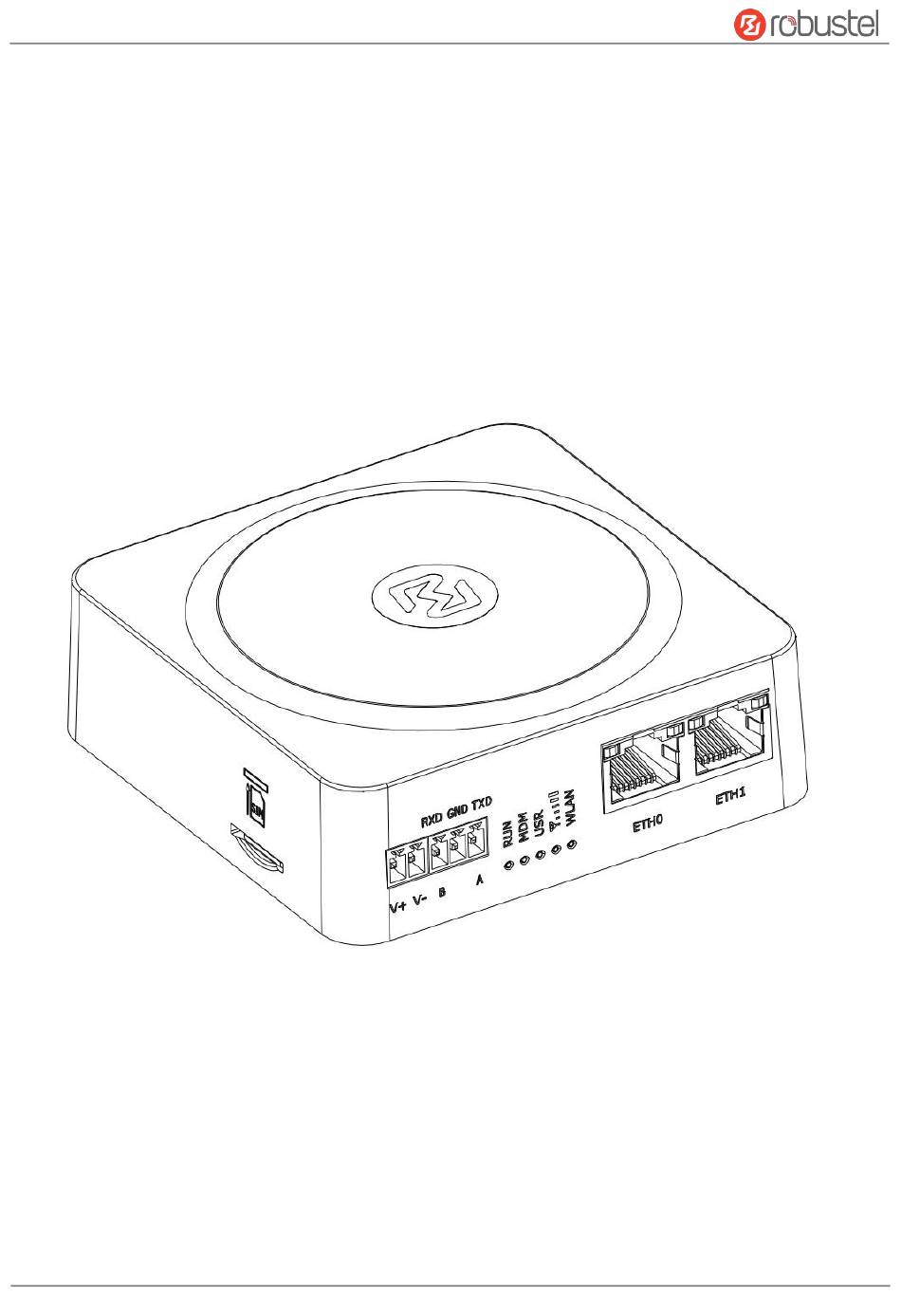

- Page 1 Robustel R1511 Hardware Manual R1511 Hardware Manual Version: 1.0.0 Date: July 6, 2022 RT061_HM_R1511 1/10...
- Page 2 Robustel R1511 Hardware Manual Regulatory and Type Approval Information Table 1: Directives 2011/65/EU The European RoHS2.0 2011/65/EU Directive was issued by the European parliament and the European Council on 1 July 2011 on the restriction of the use of certain Hazardous substances in electrical and electronic equipment.
- Page 3 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 4 Robustel R1511 Hardware Manual Cet équipement est conforme aux limites d'exposition IC définies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et la carrosserie. Related download link Find more product documents or tools at: www.robustel.com/en/documentations/...

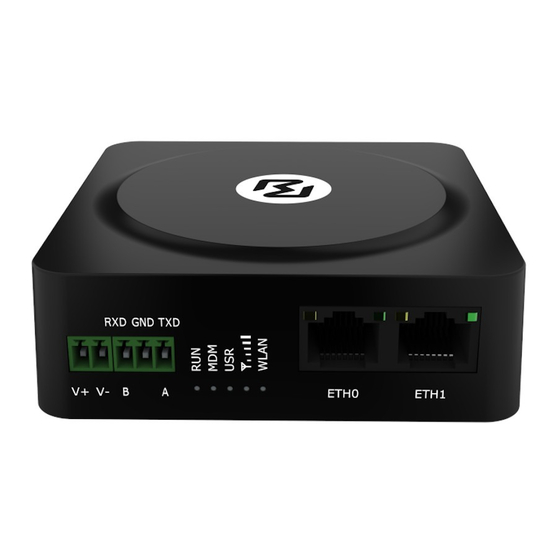

- Page 5 Robustel R1511 Hardware Manual Overview Robustel R1511 industrial-grade cellular VPN wireless router supports GSM 2G network, WCDMA 3G network, LTE 4G network to provide high-speed wireless network bandwidth for devices through wireless connection. Package Checklist Before commencing installation ensure your package has the following components:...
-
Page 6: Interface Descriptions
Robustel R1511 Hardware Manual Interface Descriptions PIN Description Description Note Power Supply Positive Note: Power Supply Negative The input voltage is 9 to 36V DC (Without ignition sensing) RXD/B RS232 Data Receive/RS485_B, may vary on different model. Signal Ground RS232 Data Transmission/RS485_A, may vary on different TXD/A model. -
Page 7: Reset Button
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are two Ethernet ports on R1511, including ETH0 (WAN/LAN), and ETH1. Each has two LED indicators. The green one is a link indicator but the yellow one doesn’t mean anything (always off). For details about status, see the table below. - Page 8 Robustel R1511 Hardware Manual Hardware Installation SIM Card Installation. Insert the SIM cards into the device, then stick the sticker. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Terminal Block Installation. Insert the 2PIN, 3PIN terminal blocks into the interfaces connector.
- Page 9 DIN rail mounting Connect the Router to a Computer Connect a standard Ethernet cable to the port marked ETH0~ETH1 at the front of the R1511 Router, and connect the other end of the cable to your computer. Power Supply installation. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way.
- Page 10 Robustel R1511 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
