- Page 1 Robustel R1510 Hardware Manual R1510 Hardware Manual Version: 1.0.0 Date: July 6, 2022 RT048_HM_R1510 1/10...
- Page 2 Robustel R1510 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 4 Robustel R1510 Hardware Manual Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description July 6, 2022 5.0.0 1.0.0 Initial release. RT048_HM_R1510 4/10...

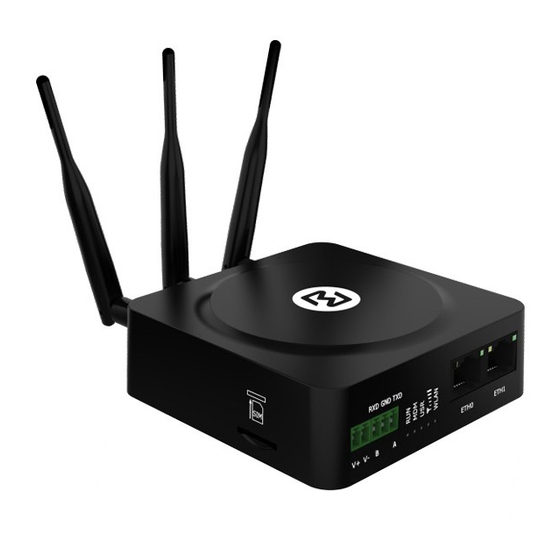

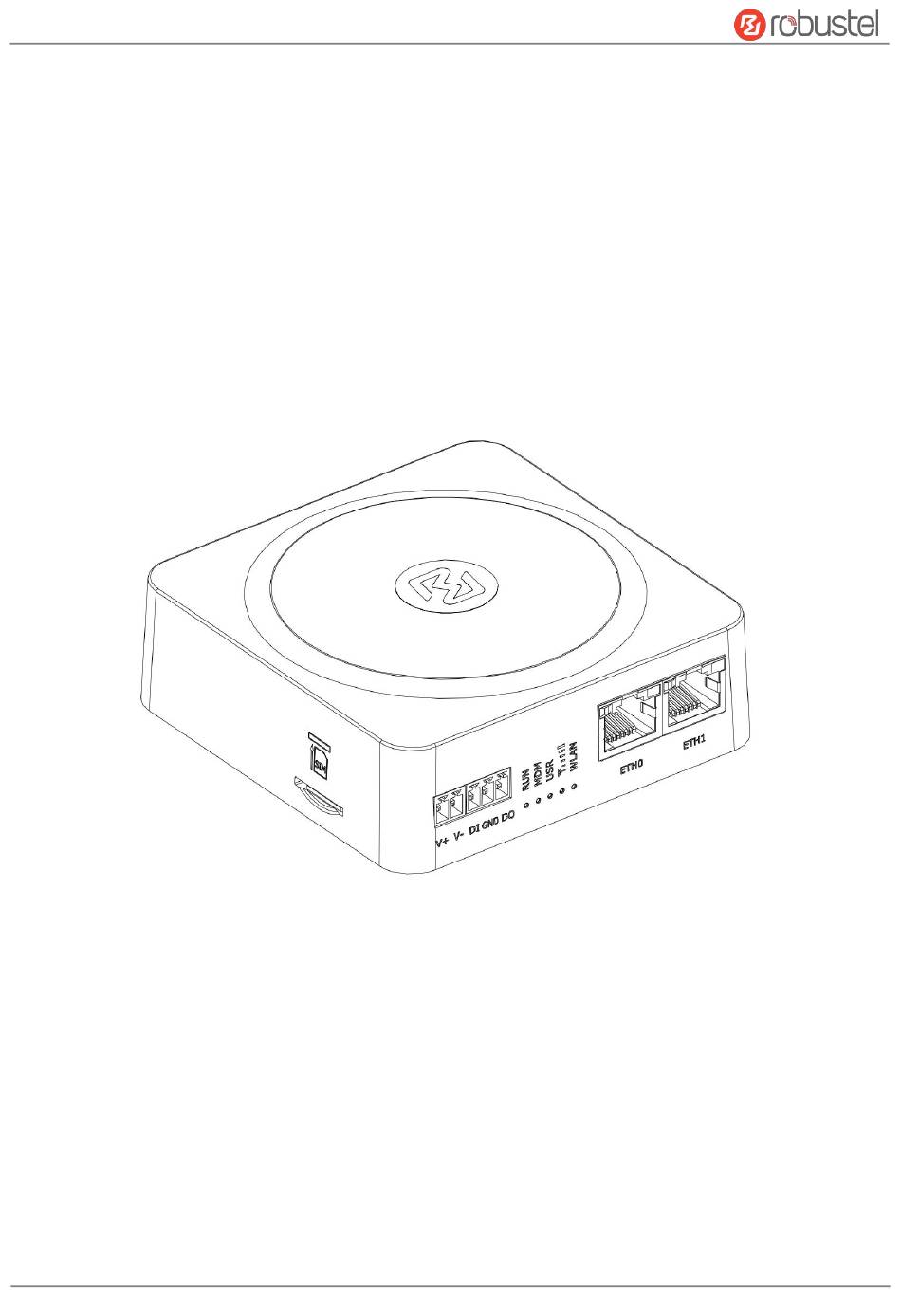

- Page 5 Robustel R1510 Hardware Manual Overview Robustel R1510 router is a Dual Ethernet port (LAN + WAN) 3G/4G router with advanced software functions at a very competitive price point. Package Checklist Before commencing installation ensure your package has the following components:...
-
Page 6: Interface Descriptions
Robustel R1510 Hardware Manual Interface Descriptions Power Supply. 2PIN 3.5mm pitch terminal block. Power DI/DO Description Power input Positive, 9-36VDC Power input Negative Digital input (Maximum absolute voltage: 30V. Maximum absolute current: 20mA) Ground Digital output (Maximum absolute voltage: 30V. Maximum absolute current: 20mA) DI&DO Internal Diagram... -
Page 7: Reset Button
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are two Ethernet ports on R1510, including ETH0 (WAN/LAN), and ETH1. Each has two LED indicators. The green one is a link indicator but the yellow one doesn’t mean anything. For details about status, see the table below. - Page 8 Robustel R1510 Hardware Manual Hardware Installation SIM Card Installation. Insert the SIM cards into the device, then stick the sticker. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Terminal Block Installation. Insert the 2PIN、3PIN terminal blocks into the interfaces connector.
- Page 9 Robustel R1510 Hardware Manual DIN rail mounting Connect the Router to a Computer Power Supply installation. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way.
- Page 10 Robustel R1510 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
