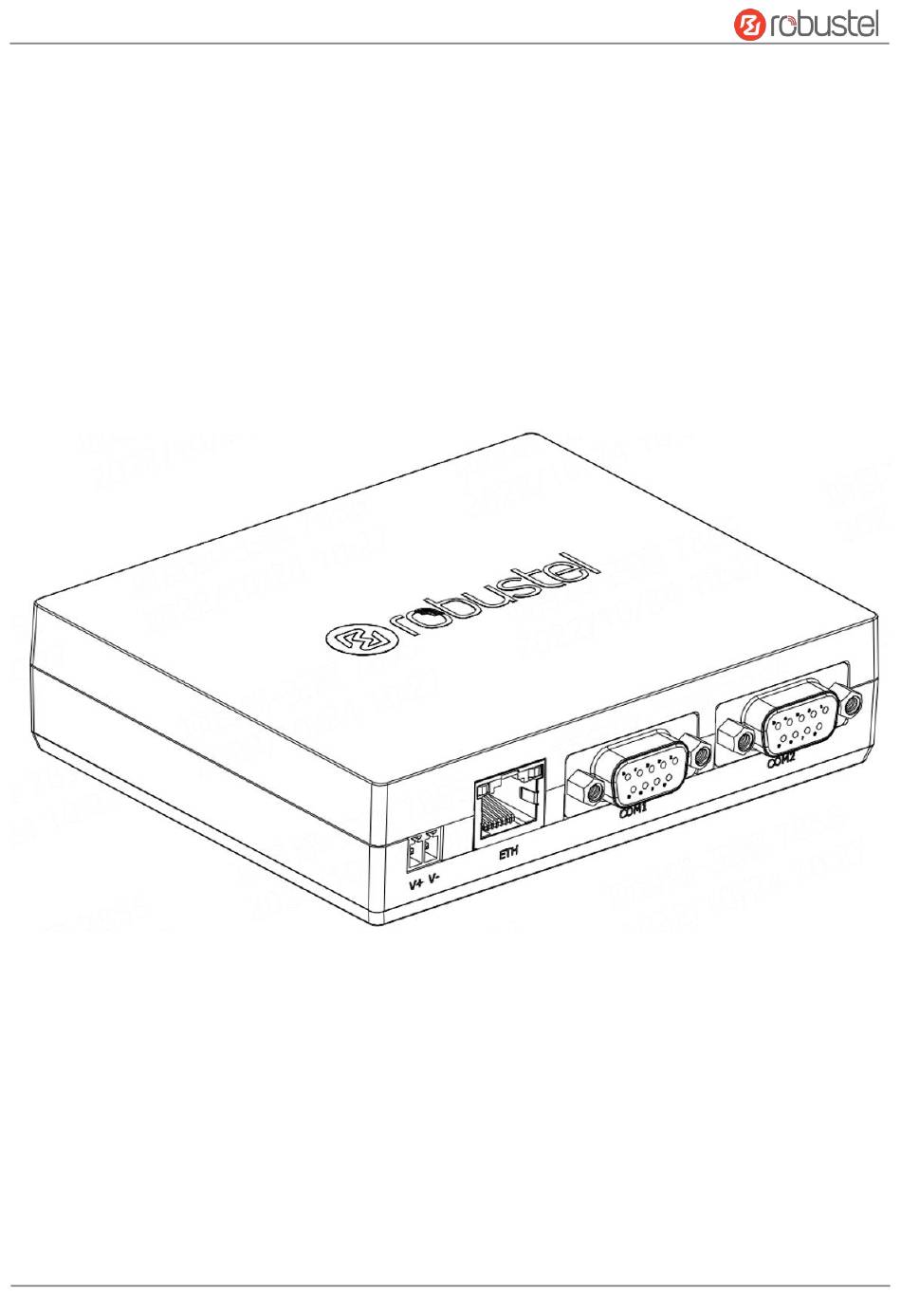

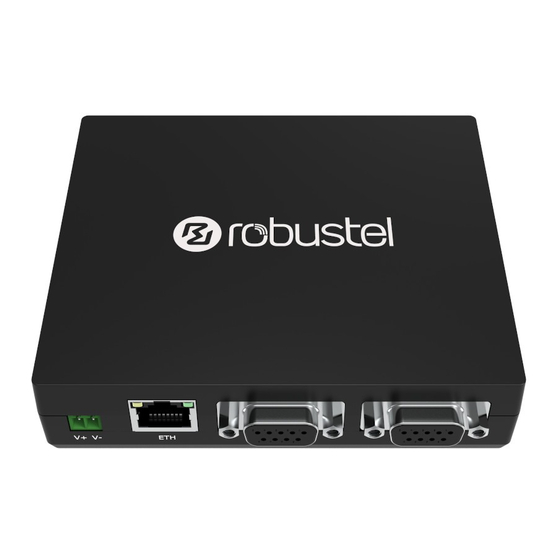

- Page 1 Robustel R1500 Hardware Manual R1500 Hardware Manual Version: 1.0.0 Date: July 6, 2022 RT041_HM_R1500...
- Page 2 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 3 Robustel R1500 Hardware Manual This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 Robustel R1500 Hardware Manual Overview Robustel R1500 supports GSM/GPRS/EDGE 2G networks, 3G networks such as WCDMA, HSPA+ 3.5G and LTE 4G networks, providing high-speed wireless network bandwidth for devices over wireless connections, and it has dual SIM backups to ensure a stable connection to the wireless network.
-
Page 5: Pin Description
Robustel R1500 Hardware Manual Interface Descriptions PIN Description Name Mark Function Label Name Function Direction Power input positive, 9-36VDC (red line) Transmit Data, Signal output R1500 →Device Power input negative (yellow Receive Data, Signal input R1500 ←Device line) Data Terminal Ready, Signal input R1500 ←Device... -
Page 6: Reset Button
Robustel R1500 Hardware Manual None All off (three lights) No signal On, solid(three light) Signal Level: Best Signal Level Green Wireless module: 21-31dB (signal strength) On, solid(two light) Signal Level: Average Signal Level Green Wireless module: 11-20dB (signal moderate) On, solid(one light) -
Page 7: Hardware Installation
Robustel R1500 Hardware Manual Hardware Installation SIM Card Installation. Insert the SIM cards into the device. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Here take the cellular antenna as example. Slave antenna, SMA antenna Main antenna, SMA antenna... - Page 8 Robustel R1500 Hardware Manual Mounting Kit installation. DIN rail mounting Connect the Gateway to a Computer. Connect a Category 5 cable to the gateway Network port (ETH) to an external controller or computer's network port. Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector.
- Page 9 Robustel R1500 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
