Robustel GoRugged R3000 Quad User Manual

Dual sim industrial cellular vpn router for gprs/edge/umts/hspa+/lte networks
Hide thumbs Also See for GoRugged R3000 Quad:
Table of Contents

Advertisement

Quick Links

Download this manual

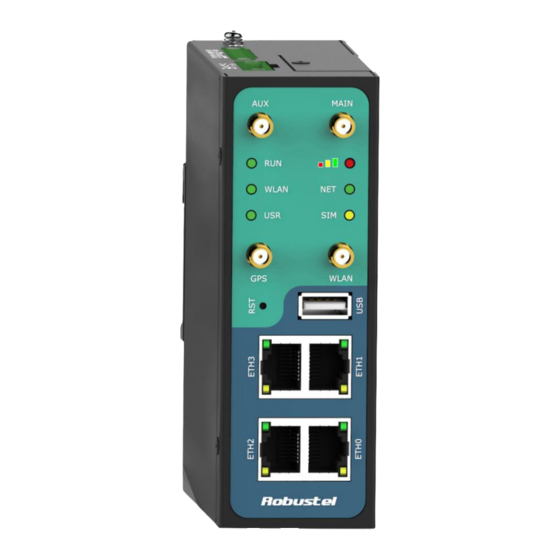

Robustel GoRugged R3000 Quad
Dual SIM Industrial Cellular VPN Router
For GPRS/EDGE/UMTS/HSPA+/LTE Networks

User Guide

Document Name:
User Guide
Firmware:
1.2.8
Date:
2015-07-02
Status:
Confidential
Doc ID:
RT_UG_R3000 Quad_v.1.2.0
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R3000 Quad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel GoRugged R3000 Quad

Summary of Contents for Robustel GoRugged R3000 Quad

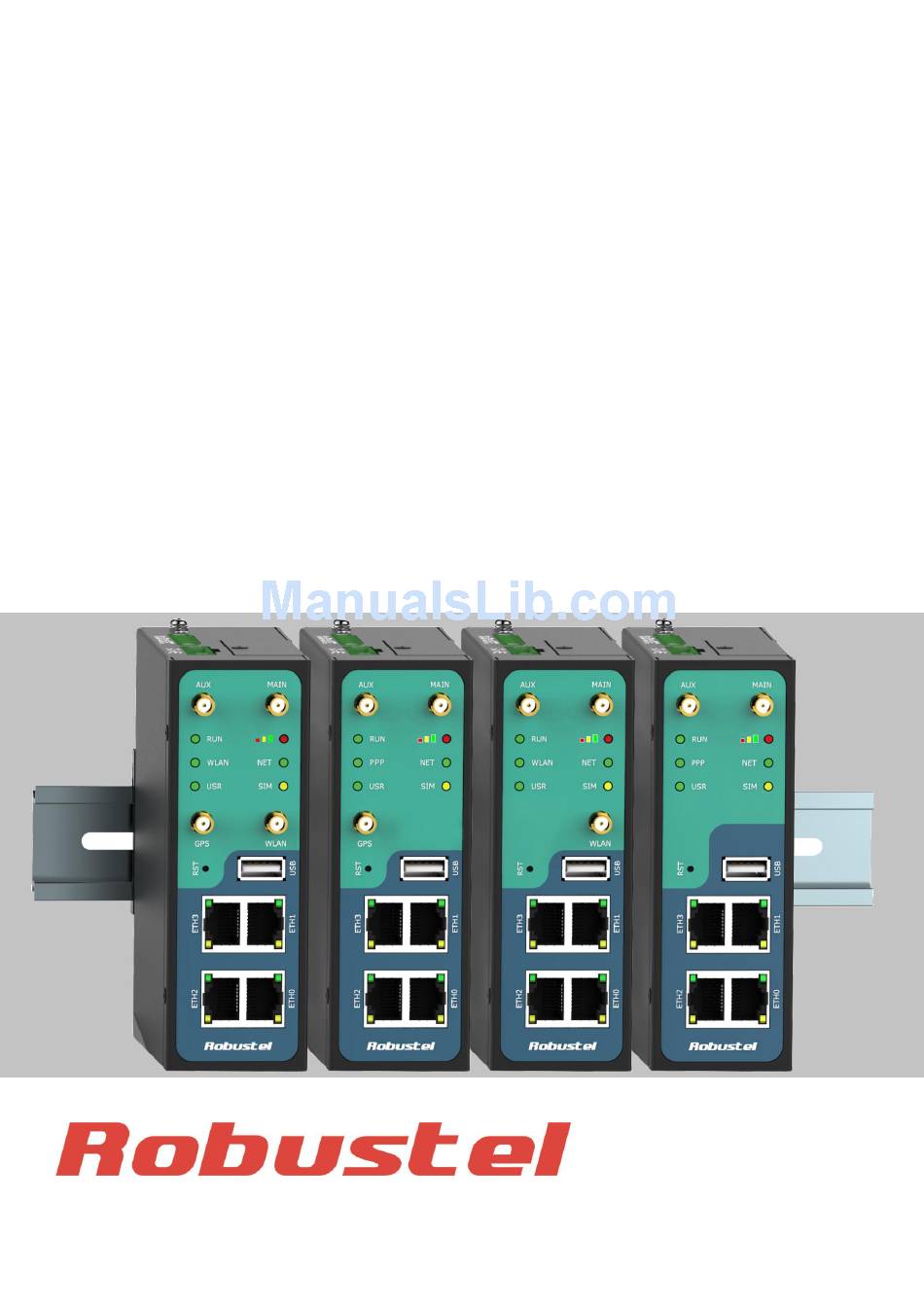

  • Page 1: User Guide

    Robustel GoRugged R3000 Quad Dual SIM Industrial Cellular VPN Router For GPRS/EDGE/UMTS/HSPA+/LTE Networks User Guide Document Name: User Guide Firmware: 1.2.8 Date: 2015-07-02 Status: Confidential Doc ID: RT_UG_R3000 Quad_v.1.2.0 www.robustel.com...
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.
  • Page 4 Robustel GoRugged R3000 Quad User Guide Do not expose the router to extreme conditions such as high humidity / rain, high temperature, direct sunlight,  caustic / harsh chemicals, dust, or water. Do not try to disassemble or modify the router. There is no user serviceable part inside and the warranty would ...
  • Page 5 Robustel GoRugged R3000 Quad User Guide Regulatory and Type Approval Information Table 1: Directives Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and...
  • Page 6 Robustel GoRugged R3000 Quad User Guide Revision History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Release Date Firmware Version Doc Version Details 2014-06-26 1.01.18 V1.0.0 First Release 2014-07-31 1.01.18 V1.0.1...

  • Page 7: Table Of Contents

    Robustel GoRugged R3000 Quad User Guide Contents Chapter 1 Product Concept ............................8 Overview ..............................8 Packing List ..............................9 Specifications ............................11 Selection and Ordering Data ........................13 Chapter 2 Installation ..............................14 LED Indicators ............................14 PIN Assignment ............................15 USB Interface ............................
  • Page 8 Robustel GoRugged R3000 Quad User Guide 3.26 Configuration -> PPTP..........................85 3.27 Configuration -> SNMP ..........................90 3.28 Configuration -> VRRP ..........................92 3.29 Configuration -> AT over IP ........................92 3.30 Configuration -> Phone Book ........................93 3.31 Configuration -> SMS ..........................94 3.32...

  • Page 9: Chapter 1 Product Concept

    Robustel GoRugged R3000 Quad User Guide Chapter 1 Product Concept 1.1 Overview Robustel GoRugged R3000 Quad is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.  Dual SIM redundancy for continuous cellular connections, supports 2G/3G/4G.

  • Page 10: Packing List

    Robustel GoRugged R3000 Quad User Guide 1.2 Packing List Check your package to make sure it contains the following items:  Robustel GoRugged R3000 Quad router x 1  3-pin pluggable terminal block with lock for power connector x 1 ...
  • Page 11 Robustel GoRugged R3000 Quad User Guide Optional accessories (can be purchased separately):  SMA antenna (Stubby antenna or Magnet antenna optional) x 1 Stubby antenna Magnet antenna  Ethernet cable x 1  Wall Mounting Kit  35mm Din-Rail mounting kit ...

  • Page 12: Specifications

    Robustel GoRugged R3000 Quad User Guide 1.3 Specifications Cellular Interface Standards: GSM/GPRS/EDGE/UMTS/HSPA+/FDD LTE  GPRS/EDGE: 850/900/1800/1900 MHz  HSPA+: 850/900/1900/2100 MHz, DL/UL 21/5.76 Mbps, fallback to 2G  FDD LTE: 800/900/1800/2100/2600 MHz, DL/UL 100/50 Mbps, fallback to 3G/2G  SIM: 2 x (3V & 1.8V) ...
  • Page 13 Robustel GoRugged R3000 Quad User Guide GPS & GLONASS Interface (Optional) Antenna Interface: SMA Female, 50 ohms impedance  Tracking Sensitivity: GPS: better than -148 dBm  GLONASS: better than -140 dBm Horizontal position accuracy: GPS: 2.5 m  GLONASS: 4.0 m Time-To-First-Fix: GPS: 26 s ...

  • Page 14: Selection And Ordering Data

    Robustel GoRugged R3000 Quad User Guide Power Supply and Consumption Power Supply Interface: 5mm terminal block with lock  Input Voltage: 9 to 60 VDC  Power Consumption: Idle: 100 mA @ 12 V  Data Link: 400 mA (peak) @ 12 V Physical Characteristics Housing &...

  • Page 15: Chapter 2 Installation

    Robustel GoRugged R3000 Quad User Guide Chapter 2 Installation 2.1 LED Indicators Name Color Status Function Blinking Router is ready. Green Router is starting. Router is power off. WLAN Indicator: Data is being transmitted. Blinking PPP Indicator: Null WLAN/PP WLAN Indicator: Wi-Fi AP/Client is enabled.

  • Page 16: Pin Assignment

    Robustel GoRugged R3000 Quad User Guide 2.2 PIN Assignment PIN assignment of R3000-Q3PA and R3000-Q4LA: Debug RS232 Direction Device R3000 R3000  Device R3000  Device Device R3000 R3000  Device Device R3000 Power Positive Negative PIN assignment of R3000-Q3PB and R3000-Q4LB:...

  • Page 17: Usb Interface

    Robustel GoRugged R3000 Quad User Guide 2.3 USB Interface USB interface is used for batch firmware upgrade, cannot used to send or receive data from slave devices which with USB interface. Users can insert a USB storage device, such as U disk or hard disk, into the router’s USB interface, if there is configuration file or firmware of R3000...

  • Page 18: Ethernet Ports

    Robustel GoRugged R3000 Quad User Guide 2.5 Ethernet Ports Each Ethernet port has two LED indicators (please check the following picture). The yellow one is Speed indicator and the green one is Link indicator. There are three status of each indicator. For details please refer to the form below.

  • Page 19: Mount The Router

    Robustel GoRugged R3000 Quad User Guide 2.6 Mount the Router Two ways of mounting the router  Use 3 pcs of M3 screw to mount the router on the Wall mounting Kit. And then use 2 pcs of M3 screw to mount the Wall mounting Kit on the wall.

  • Page 20: Install Sim Card And Micro Sd Card

    Robustel GoRugged R3000 Quad User Guide 2.7 Install SIM Card and Micro SD Card Inserting SIM Card or Micro SD Card  Make sure power supply is disconnected. Use a screwdriver to unscrew the screw on the cover, and then remove the cover, you could find the SIM Card slots and the Micro SD slot.

  • Page 21: Connect The External Antenna

    Robustel GoRugged R3000 Quad User Guide 2.8 Connect the External Antenna Connect router with an external antenna connector. Make sure the antenna is within correct frequency range and is screwed tightly. SMA Male antenna connector for Cellular Male antenna connector for GPS RP-SMA Male antenna connector for WLAN 2.9 Ground the Router...

  • Page 22: Power Supply

    Robustel GoRugged R3000 Quad User Guide 2.10 Power Supply The power supply range is 9 to 60 VDC. Note: Please take care about the polarity, and do not make reverse connection. There are two lines connecting to the power supply adapter, as it illustrates on the power supply adapter label, the line printed with letters needs to be connected with the positive polarity, and the striped line needs to be connected with the negative polarity.

  • Page 23: Chapter 3 Configuration Settings Over Web Browser

    Robustel GoRugged R3000 Quad User Guide Chapter 3 Configuration Settings over Web Browser The router can be configured through your web browser that include IE 8.0 or above, Chrome and Firefox. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc.
  • Page 24 Robustel GoRugged R3000 Quad User Guide 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties. RT_UG_R3000 Quad_v.1.2.0 02.07.2015 23 / 136 Confidential...

  • Page 25: Factory Default Settings

    Robustel GoRugged R3000 Quad User Guide 5. Select Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. 3.2 Factory Default Settings Before configuring your router, you need to know the following default settings.

  • Page 26: Control Panel

    Robustel GoRugged R3000 Quad User Guide 3.3 Control Panel This section allows users to save configuration, reboot router, logout and select language. Control Panel Item Description Button Save Click to save the current configuration into router’s flash. After save the current configuration, router needs to be rebooted to Reboot make the modification taking effect.

  • Page 27: Status -> System

    Robustel GoRugged R3000 Quad User Guide 1. Modify in one page; 2. Click under this page; 3. Modify in another page; 4. Click under this page; 5. Complete all modification; 6. Click 7. Click 3.4 Status -> System This section displays the router’s system status, which shows you a number of helpful information such as the LEDs information, Router information, Current WAN Link and Cellular Information.
  • Page 28 Robustel GoRugged R3000 Quad User Guide Device Name Show the device name to distinguish different devices you have installed. Firmware Version Show the current firmware version Hardware Version Show the current hardware version Kernel Version Show the current kernel version...
  • Page 29 Robustel GoRugged R3000 Quad User Guide Cellular Information Item Description Current SIM Show the SIM card which the router work with currently: SIM1 or SIM2 Phone No. Show the phone number of the current SIM. SMS Service Center Show the SMS Service Center.

  • Page 30: Status -> Network

    Robustel GoRugged R3000 Quad User Guide 3.5 Status -> Network This section displays the router’s Network status, which include status of Cellular WAN, ETH0, WLAN (AP mode)/WLAN (Client mode), DHCP and Device List. Note: Cellular WAN information will not be shown if you select “Eth0” in “Configuration”->”Link Management”->”...

  • Page 31: Status -> Route

    Robustel GoRugged R3000 Quad User Guide 3.6 Status -> Route This section displays the router’s route table. 3.7 Status -> VPN This section displays the router’s VPN status, which includes IPSec, L2TP, PPTP, OpenVPN and GRE. RT_UG_R3000 Quad_v.1.2.0 02.07.2015 30 / 136...

  • Page 32: Status -> Services

    Robustel GoRugged R3000 Quad User Guide 3.8 Status -> Services This section displays the router’s Services’ status, including VRRP, DynDNS and Serial. 3.9 Status -> Event/Log This section displays the router’s event/log information. You need to enable router to output the log and select the RT_UG_R3000 Quad_v.1.2.0...
  • Page 33 Robustel GoRugged R3000 Quad User Guide log level first, then you can view the log information here. Also you can click Download System Diagnosing Data to download diagnose data. Event/Log Item Description Download Select the log messages you want to download.

  • Page 34: Configuration -> Link Management

    Robustel GoRugged R3000 Quad User Guide 3.10 Configuration -> Link Management This section allows users to set the WAN link and the related parameters. Link Management Item Description Default Selected from “Cellular”, “Eth0”, “WiFi”. Cellular: Select to make cellular as the primary WAN link.

  • Page 35: Configuration -> Cellular Wan

    Robustel GoRugged R3000 Quad User Guide 3.11 Configuration -> Cellular WAN This section allows users to set the Cellular WAN and the related parameters. Note: This section will not be displayed if you select “Eth0 Only” in “Configuration”->”Link Management”->”WAN Link”.
  • Page 36 Robustel GoRugged R3000 Quad User Guide Basic @Cellular WAN Item Description Default Cellular Settings Select from “Auto”, “Custom” or the ISP name you preset in “Configuration”->”Cellular WAN”->”ISP Profile”. Auto: Router will get the ISP information from SIM card, and set the APN,...
  • Page 37 Robustel GoRugged R3000 Quad User Guide in item “New PIN Code” and “Confirm New PIN Code”. You can go to tab “Status” -> “Event/Log” and find out “AT+CPIN?” to check what the status of the SIM card is. PPPoE Bridge Setting PPPoE Bridge uses PPPoE to pass the IP address (and DNS server) that has been assigned to R3000’s PPP interface by an ISP, to a PPPoE client which...
  • Page 38 Robustel GoRugged R3000 Quad User Guide When router connects to cellular network, it will automatically send out SMS Connect Reply Null this SMS to specific users (set in the Phone Group). When router disconnect from cellular network, it will automatically send...
  • Page 39 Robustel GoRugged R3000 Quad User Guide Select the router’s reaction when both data limit is exceeded. Select from Stay When Both Data Limit Is “Stay in Backup SIM card”, “Switch Back Main SIM Card” and “Disable Backup Exceeded Cellular Until Data Is Cleared”.

  • Page 40: Configuration -> Ethernet

    Robustel GoRugged R3000 Quad User Guide Maximum Receiving Unit. It is the identifier of the maximum size of 1500 packet, which is possible to receive in a given environment. One of the PPP initialization strings. In general, you don’t need to modify Asyncmap Value this value.
  • Page 41 Robustel GoRugged R3000 Quad User Guide LAN Interface@Eth0@Ethernet Item Description Default IP Address, Netmask, Set the IP address, Netmask and MTU of LAN. Null Multiple IP Address Assign multiple IP addresses for Eth0. Null Enable to make router can lease IP address to DHCP clients which...
  • Page 42 Robustel GoRugged R3000 Quad User Guide Define the WINS Server which the DHCP clients will obtain from DHCP Windows Name Server Null server. Define to lease static IP Addresses, which conform to MAC Address of Static Lease Null the connected equipment.
  • Page 43 Robustel GoRugged R3000 Quad User Guide WAN Interface@Eth0@Ethernet Item Description Default WAN Interface Type Select from “Static IP”, “DHCP Client” and “PPPoE”. Null When select “Static IP”, user need to set the IP address, Netmask, Static IP Null Gateway, MTU and DNS server.
  • Page 44 Robustel GoRugged R3000 Quad User Guide Client DHCP server and user do not need to set the Primary and Secondary DNS Server. 192.168.0.2/ Override DHCP Server Router will use the follow preset Netmask and Gateway instead of the 192.168.0.10 Values @ DHCP Client addresses which obtained from the DHCP server.
  • Page 45 Robustel GoRugged R3000 Quad User Guide PPPoE PPPoE server. Remote IP Address @ PPPoE client will only accept the acknowledge from the PPPoE server Null PPPoE with this IP address. Authentication @ PPPoE Select from “Auto”, “PAP” and “CHAP” as the local ISP required.

  • Page 46: Configuration -> Wifi

    Robustel GoRugged R3000 Quad User Guide VLAN VLAN trunk is a point-to-point link between two network devices that carries more than one VLAN. With VLAN trunk, user can extend the configured VLAN across the entire network. VLAN @ Ethernet Item...
  • Page 47 Robustel GoRugged R3000 Quad User Guide Note: when R3000 enable WiFi feature and works as AP mode Note: when R3000 enable WiFi feature and works as Client mode Basic @ WiFi Item Description Default Enable WiFi Click to enable WiFi feature.
  • Page 48 Robustel GoRugged R3000 Quad User Guide provide wireless connectivity to another AP. When R3000 is wanted to work as “Client” mode, please go to tab “Configuration” -> “Link Management” -> “Primary Interface” to select “WiFi” as WAN link. Select the frequency channel, which includes “Auto”, “1”, “2”…… “13”.
  • Page 49 Robustel GoRugged R3000 Quad User Guide passphrase should only be disclosed to users who need it, and it should be changed regularly. When R3000 works as Client mode, enter access point’s passphrase which it wants to connect to. Input from 8 to 63 characters.
  • Page 50 Robustel GoRugged R3000 Quad User Guide Status @ WiFi Show MAC address of R3000’s WiFi interface or the access point which BSSID Null R3000 connects to. Show SSID of R3000’s WiFi interface or the access point which R3000 SSID Null connects to.

  • Page 51: Configuration -> Serial

    Robustel GoRugged R3000 Quad User Guide Address Show the MAC address of R3000’s WiFi interface. Null Associated Clients @ AP Show current associated wireless client devices’ BSSID and IP address. Null mode Show current scan results of any wireless network (access point), such...
  • Page 52 Robustel GoRugged R3000 Quad User Guide  When Select Protocol “Transparent Over Rlink”:  When Select Protocol “Modbus Over Rlink”:  When Select Protocol “AT Over COM”:  When Select Protocol “GPS Report”: RS232 @ Serial Item Description Default Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”,...
  • Page 53 Robustel GoRugged R3000 Quad User Guide “Modbus Over Rlink” “AT Over COM” and “GPS Report”. None: Router will do nothing in RS232 serial port. Transparent: Router will transmit the serial data transparently without any protocols. Modbus: Router will translate the Modbus RTU data to Modbus TCP data and vice versa.
  • Page 54 Robustel GoRugged R3000 Quad User Guide When a packet length between 1 and 1024 bytes is specified, data in the buffer will be sent as soon it reaches the specified length. Note: Data will also be sent as specified by the interval timeout or delimiter settings even when data is not reaching the preset packet length.

  • Page 55: Configuration -> Usb

    Robustel GoRugged R3000 Quad User Guide Slave Address @ This connection is usually used to connect to the Modbus slave devices which Null Modbus Slave as TCP server. Enter IP address of the TCP server. Slave Port @ Enter the port number of TCP server.

  • Page 56: Configuration -> Gps

    Robustel GoRugged R3000 Quad User Guide 3.16 Configuration -> GPS This section allows users to set the GPS setting parameters. GPS Setting @ GPS Item Description Default Enable GPS Click to enable GPS function. Disable Report To RS232 Click to enable GPS report to RS232 serial port of router.
  • Page 57 Robustel GoRugged R3000 Quad User Guide Global Navigation Satellite System Type: GNSS Type GPS: Global Position System. Index @ GPS Server Show the index of GPS Server. Null Setting Server Name @ GPS Show the type of GPS Server. Null Server Setting Click “Add”...
  • Page 58 Robustel GoRugged R3000 Quad User Guide RT_UG_R3000 Quad_v.1.2.0 02.07.2015 57 / 136 Confidential...
  • Page 59 Robustel GoRugged R3000 Quad User Guide GPS Status @ GPS Item Description Default Show the GPS Status. GPS status includes: Not Installed, Disabled, No Fix/Invalid, Standalone GPS Fix, Differential GPS Fix. Not Installed: No GPS module inside. Disabled: GPS function is not enabled (not click “Enable GPS” in item “GPS Setting”...

  • Page 60: Configuration -> Nat/Dmz

    Robustel GoRugged R3000 Quad User Guide 3.17 Configuration -> NAT/DMZ This section allows users to set the NAT/DMZ parameters. Port Forwarding @ NAT/DMZ Item Description Default Manually defining a rule in the router to send all data received on some...

  • Page 61: Configuration -> Firewall

    Robustel GoRugged R3000 Quad User Guide Virtual IP Mapping@ NAT/DMZ Item Description Default Virtual IP for Router Set a Virtual IP for router. Null Virtual IP @ Internal Set a Virtual IP for the Internal PC. Null PC’s IP Mapping List Real IP @ Internal PC’s...
  • Page 62 Robustel GoRugged R3000 Quad User Guide Remote Access Using Enable to allow users to access the router remotely on the internet side via Enable SSH2 SSH2. Remote Ping Request Enable to make router reply the Ping requests from the internet side.

  • Page 63: Configuration -> Qos

    Robustel GoRugged R3000 Quad User Guide Target IP Address@ Defines if access is allowed to one or a range of IP addresses which are defined Null Add Filter List by Target IP Address, or every IP addresses. Target Port@ Add...
  • Page 64 Robustel GoRugged R3000 Quad User Guide Item Description Default Enable QoS Click to enable “QoS” function. Disable Downlink Speed Prescribe downlink speed of router. (kbps) Note: Default setting“0” means that there is no limitation of downlink speed. Prescribe uplink speed of router.
  • Page 65 Robustel GoRugged R3000 Quad User Guide Note: if user click to enable “Optimize for TCP Flags”, “Optimize for Serial Data Forwarding”, and “Optimize for ICMP” at the same time (these three services are in the same priority level), router will automatically start Stochastic Fairness Queueing (SFQ) strategy to make a fair bandwidth allocation, in case of one service occupy all the bandwidth.
  • Page 66 Robustel GoRugged R3000 Quad User Guide Speed”, and the maximum rate can reach to 100% of “Downlink Speed”. Bulk: guarantees that the minimum global rate of router is 1% of “Downlink Speed”, and the maximum rate can reach to 100% of “Downlink Speed”.

  • Page 67: Configuration -> Ip Routing

    Robustel GoRugged R3000 Quad User Guide Bulk: guarantees that the minimum global rate of router is 1% of “Downlink Speed”, and the maximum rate can reach to 100% of “Downlink Speed”. Note: If services are in the same priority level, router will automatically start Stochastic Fairness Queueing (SFQ) strategy to make a fair bandwidth allocation.
  • Page 68 Robustel GoRugged R3000 Quad User Guide RT_UG_R3000 Quad_v.1.2.0 02.07.2015 67 / 136 Confidential...
  • Page 69 Robustel GoRugged R3000 Quad User Guide RIP @ IP Routing Item Description Default RIP (Routing Information Protocol) is a distance-vector routing protocol, which employs the hop count as a routing metric. RIP prevents routing loops by Null implementing a limit on the number of hops allowed in a path from the source to a destination.

  • Page 70: Configuration -> Dyndns

    Robustel GoRugged R3000 Quad User Guide OSPF @ IP Routing Item Description Default OSPF (Open Shortest Path First) is a link-state routing protocol for IP networks. OSPF It uses a link state routing algorithm and falls into the group of interior routing Null protocols, operating within a single autonomous system (AS).

  • Page 71: Configuration -> Ipsec

    Robustel GoRugged R3000 Quad User Guide Username Enter the user name the DDNS server provided. Null Password Enter the password the DDNS server provided. Null Enter the connection address of custom DDNS server. Null Force Update Click to the update and use the DynDNS settings.
  • Page 72 Robustel GoRugged R3000 Quad User Guide IPSec Tunnel @ IPSec Item Description Default Click Add to add new IPSec Tunnel Null Enable Enable IPSec Tunnel, the max tunnel account is 3 Null IPSec Gateway Enter the address of remote side IPSec VPN server.
  • Page 73 Robustel GoRugged R3000 Quad User Guide ESP: Uses the ESP protocol. AH: Uses the AH protocol. Local Subnet Enter IPSec Local Protected subnet’s address. 0.0.0.0 Local Subnet Mask Enter IPSec Local Protected subnet’s mask. 0.0.0.0 Select from “IP Address”, “FQDN” and “User FQDN” for IKE negotiation.
  • Page 74 Robustel GoRugged R3000 Quad User Guide MODP1536_5: Uses the 1536-bit Diffie-Hellman group. Select from “PSK”, “CA”, “XAUTH Init PSK” and “XAUTH Init CA” to be used in IKE negotiation. Authentication PSK: Pre-shared Key. CA: Certification Authority. XAUTH: Extended Authentication to AAA server.
  • Page 75 Robustel GoRugged R3000 Quad User Guide Detection Enter the IP address or domain name or remote server. Router will ping ICMP Detection this address/domain name to check that if the current connectivity is Null Server active. ICMP Detection Local Set the local IP address.

  • Page 76: Configuration -> Open Vpn

    Robustel GoRugged R3000 Quad User Guide 3.23 Configuration -> Open VPN This section allows users to set the Open VPN parameters. Client @ Open VPN Item Description Default Enable Enable OpenVPN Client, the max tunnel account is 3 Null Protocol Select from “UDP”...
  • Page 77 Robustel GoRugged R3000 Quad User Guide Select from “tun” and “tap” which are two different kinds of device interface for OpenVPN. Interface The difference between tun and tap device is this: a tun device is a virtual IP point-to-point device and a tap device is a virtual Ethernet device.
  • Page 78 Robustel GoRugged R3000 Quad User Guide Server @ Open VPN Item Description Default Enable OpenVPN Tick to enable OpenVPN server tunnel. Disable Server Tunnel_OpenVPN_ Tunnel name Name the OpenVPN server tunnel. You can enter the IP address of cellular WAN, Ethernet WAN or Listen IP Ethernet LAN.
  • Page 79 Robustel GoRugged R3000 Quad User Guide device. Select from four different kinds of authentication ways: “Pre-shared”, Authentication None “Username/Password”, “X.509 cert” and “X.509 cert+user”. Local IP Define the local IP address of OpenVPN tunnel. 10.8.0.1 Remote IP Define the remote IP address of OpenVPN tunnel.
  • Page 80 Robustel GoRugged R3000 Quad User Guide VPN Server otherwise only allows one VPN connection with the same certificate. Advanced Maintain a record of client <-> virtual IP address associations in this Enable IP Persist @ file. If OpenVPN goes down or is restarted, reconnecting clients can...

  • Page 81: Configuration -> Gre

    Robustel GoRugged R3000 Quad User Guide Click “Browse” to select the correct TA file from your PC, and then click “Import” to import it to the router. Null Click “Export” you can export the TA file from router to your PC.

  • Page 82: Configuration -> L2Tp

    Robustel GoRugged R3000 Quad User Guide Remote virtual IP Set remote IP Address of the virtual GRE tunnel. Null Remote Subnet Add a static route to the remote side’s subnet so that the remote network is @ Remote Subnet Null known to the local network.
  • Page 83 Robustel GoRugged R3000 Quad User Guide L2TP Client @ L2TP Item Description Default Click “Add” to add a L2TP client. You can add at most 3 L2TP clients. Null Remote IP Address Enter your L2TP server’s public IP or domain name.
  • Page 84 Robustel GoRugged R3000 Quad User Guide Compression Protocol Field Used for PPP initialization. In general, you need to enable it as default. Enable Compression One of the L2TP initialization strings. In general, you don’t need to modify Asyncmap Value ffffffff this value.
  • Page 85 Robustel GoRugged R3000 Quad User Guide L2TP Server @ L2TP Item Description Default Enable L2TP Server Tick to enable L2TP server. Disable Username Set the username which will assign to L2TP client. Null Password Set the password which will assign to L2TP client.

  • Page 86: Configuration -> Pptp

    Robustel GoRugged R3000 Quad User Guide Specify the interval between L2TP client and server. To check the connectivity of a tunnel, the client and server regularly send PPP Echo to each other. If the client or server receives no response from Link Detection Interval the peer within a specified period of time, it retransmits the PPP echo.
  • Page 87 Robustel GoRugged R3000 Quad User Guide PPTP Client @ PPTP Item Description Default Click “Add” to add a PPTP client Enable Enable PPTP Client. The max tunnel accounts are 3. Null Disable Disable PPTP Client. Null Remote IP Address Enter your PPTP server’s public IP or domain name.
  • Page 88 Robustel GoRugged R3000 Quad User Guide Set the IP address of the PPTP client. Local IP You can enter the IP which assigned by PPTP server. Null means PPTP client Null will obtain an IP address automatically from PPTP server’s IP pool.
  • Page 89 Robustel GoRugged R3000 Quad User Guide RT_UG_R3000 Quad_v.1.2.0 02.07.2015 88 / 136 Confidential...
  • Page 90 Robustel GoRugged R3000 Quad User Guide PPTP Server @ PPTP Item Description Default Enable PPTP Server Tick to enable PPTP server. Disable Username Set the username which will assign to PPTP client. Null Password Set the password which will assign to PPTP client.

  • Page 91: Configuration -> Snmp

    Robustel GoRugged R3000 Quad User Guide 3.27 Configuration -> SNMP This section allows users to set the SNMP parameters. Basic @ SNMP Item Description Default Port UDP port for sending and receiving SNMP requests. Agent Mode Select the correct agent mode.
  • Page 92 Robustel GoRugged R3000 Quad User Guide VACM @ SNMP Item Description Default Readwrite Select the access rights from “Readonly” and “ReadWrite”. Readonly Network Define the network from which is allowed to access. E.g. 172.16.0.0. Null Community Enter the community name.

  • Page 93: Configuration -> Vrrp

    Robustel GoRugged R3000 Quad User Guide 3.28 Configuration -> VRRP This section allows users to set the VRRP parameters. VRRP Item Description Default Tick to enable VRRP protocol. VRRP (Virtual Router Redundancy Protocol) is an Internet protocol that provides a way to have one or more backup routers...

  • Page 94: Configuration -> Phone Book

    Robustel GoRugged R3000 Quad User Guide AT over IP Item Description Default Enable AT Settings Tick to enable AT over IP to control cellular module via AT command remotely. Disable Protocol Select from “TCP server” or “UDP” You can enter the IP address of cellular WAN, Ethernet WAN or Ethernet LAN.

  • Page 95: Configuration -> Sms

    Robustel GoRugged R3000 Quad User Guide Phone Group Group Name Set the Group Name. Null Phone List Show the phone list in the Group. Null Add or remove the Click right arrow to add the phone no.to this group; Click left arrow to remove phone no.to/from...

  • Page 96: Configuration -> Reboot

    Robustel GoRugged R3000 Quad User Guide Item Description Default Send SMS on power Enable to send SMS to specific user after router was powered up. Disable Send SMS on PPP Enable to send SMS to specific user when router PPP up.

  • Page 97: Configuration -> Portal

    Robustel GoRugged R3000 Quad User Guide Time @ Reboot Item Description Default Enable daily reboot, you should follow ahh:mm,24h time frame, or the data will Enable(ahh:mm,24h) Disable be invalid. Reboot Time1 Specify time1 when you need router reboot. Null Reboot Time2 Specify time2 when you need router reboot.
  • Page 98 Robustel GoRugged R3000 Quad User Guide Robustlink @ Portal Item Description Default Server address Enter IP address of RobustLink. Null Port Enter port number of RobustLink. 1883 Enter the password preset in RobustLink. Password Null Note: The passwords set in R3000 and RobustLink need to be the same.

  • Page 99: Configuration -> Syslog

    Robustel GoRugged R3000 Quad User Guide Password, Device Cumulosity. Default settings will be ok. After settings are activated, R3000 will Name, Device ID (S), update information to Cumulosity automatically. KeepAlive GpsGate@Portal GpsGate Connect to GpsGate portal. You should configure the GpsGPS Setting at first.

  • Page 100: Configuration -> Event

    Robustel GoRugged R3000 Quad User Guide 3.2 Configuration -> Event This section allows users to set the Event parameters. Event Item Description Default Click to enable Event feature. This feature is used to report R3000’s main running event to SNMP-TRAP or RobustLink.

  • Page 101: Configuration -> Usr Led

    Robustel GoRugged R3000 Quad User Guide 3.3 Configuration -> USR LED This section allows users to change the display status of USR LED. Note: Please refer to “Status” -> “System” -> “LEDs Information” -> “USR”. USR LED Item Description Default USR LED Type Select from “VPN”, “PPPoE”, “DynDNS”...

  • Page 102: Administration -> Profile

    Robustel GoRugged R3000 Quad User Guide RobustVPN Item Description Default Enable RobustVPN Click to enable RobustVPN. Disable Server Address Enter the IP address or Domain Name of RobustVPN server. Null HTTPS Port Enter the HTTPS Port of RobustVPN server. Username Enter the Username of RobustVPN server.

  • Page 103: Administration -> Tools

    Robustel GoRugged R3000 Quad User Guide 3.6 Administration -> Tools This section provides users four tools: Ping, AT Debug, Traceroute and Test. Ping @ Tools Item Description Default Ping IP address Enter the ping destination IP address or domain name.
  • Page 104 Robustel GoRugged R3000 Quad User Guide AT Debug @ Tools Item Description Default Send AT Commands Enter the AT commands which you need to send to cellular module in this box. Null Send Click this button to send the AT commands.
  • Page 105 Robustel GoRugged R3000 Quad User Guide Sniffer @ Tools Item Description Default Select form “all”, “lo”, “imq0”, “imq1”, “eth0”, “gre0”, and “ppp0”: all: contain all the interface; lo: Local Loopback interface; imq0/1: virtual interface for QoS, which used to limit the download and upload Interface speed;...
  • Page 106 Robustel GoRugged R3000 Quad User Guide Test @ Tools Item Description Default Click “Enable” to select the hardware component whose status you want to Enable Enable check. Select from “SD Test”, “USB Test”, “Flash Test”, “Memory Test”, “Ethernet Description Test”, “SIM1 Test”, “SIM2 Test” and “Module Test”.

  • Page 107: Administration -> Clock

    Robustel GoRugged R3000 Quad User Guide 3.7 Administration -> Clock This section allows users to set clock of router and NTP server. Clock Item Description Default Real Time Clock Router’s RTC can be showed and modified in this field. Null PC Time You PC’s time can be showed here.

  • Page 108: Administration -> Web Server

    Robustel GoRugged R3000 Quad User Guide 3.8 Administration -> Web Server This section allows users to modify the parameters of Web Server. Basic @ Web Server Item Description Default Enter the HTTP port number you want to change in R3000’s Web Server.

  • Page 109: Administration -> User Management

    Robustel GoRugged R3000 Quad User Guide 3.9 Administration -> User Management This section allows users to modify or add management user accounts. Super @ User Management Item Description Default One router has only one super user account. Under this account, user has the...

  • Page 110: Administration -> Sdk Management

    Robustel GoRugged R3000 Quad User Guide 3.10 Administration -> SDK Management This section allows users to set SDK Management parameters of router. APP @ SDK Management Item Description Default Import Applications Click to import APP files in this item. Null This list shows which APP files you have imported to the router, which APP file you want to start up, as well as the running information.

  • Page 111: Administration -> Update Firmware

    Robustel GoRugged R3000 Quad User Guide 3.11 Administration -> Update Firmware This section allows users to update the firmware of router. Update Item Description Default Firmware Version Show the current firmware version. Null Show the old firmware version of the router.

  • Page 112: Chapter 4 Configuration Examples

    Robustel GoRugged R3000 Quad User Guide Chapter 4 Configuration Examples 4.1 Interface 4.1.1 Console Port User can use the console port to manage the router via CLI commands, please check section Introductions for CLI. RT_UG_R3000 Quad_v.1.2.0 02.07.2015 111 / 136...

  • Page 113: Rs232

    Robustel GoRugged R3000 Quad User Guide 4.1.2 RS232 R3000 Quad supports one RS232 or one RS485 for serial data communication. Please refer to the connection diagram at the right site. 4.1.3 RS485 R3000 Quad supports one RS232 or one RS485 for serial data communication.

  • Page 114: Cellular

    Robustel GoRugged R3000 Quad User Guide 4.2 Cellular 4.2.1 Cellular Dial-Up This section shows users how to configure the parameters of Cellular Dial-up within two configuration methods: “Always Online” and “Connect on Demand”. Note: This section will be hidden if user selects “Eth0 Only” in “Configuration ->Link Management”.
  • Page 115 Robustel GoRugged R3000 Quad User Guide The modifications will take effect after click “Apply” button. If a customized SIM card is using, please select “Custom” instead of “Auto” in “Network Provider Type”, and some relative settings should be filled in manually.

  • Page 116: Sms Remote Status Reading

    Robustel GoRugged R3000 Quad User Guide Select the trigger policy you need. Note If you select multiple trigger policies, the router will be triggered under anyone of them. 4.2.2 SMS Remote Status Reading R3000 supports remote control via SMS. Users can use following commands to get the status of R3000, cannot set new parameters of R3000 at present.

  • Page 117: Network

    Robustel GoRugged R3000 Quad User Guide The semicolon character (‘;’) is used to separate more than one commands packed in a single SMS. E.g., 1234:0001 In this command, password is 1234, 0001 is the command to reset R3000. Description Syntax...
  • Page 118 Robustel GoRugged R3000 Quad User Guide Configuration--->NAT/DMZ--->Port Forwarding Note This section will be hidden if user selects “Cellular as primary and if fail use Eth0” in “Configuration ->Link Management”. Explanations for above diagram: If there are two IP addresses 58.1.1.1 and 59.1.1.1 for the External Devices, that the result will be different from the test when the NAT is working at R3000.

  • Page 119: L2Tp

    Robustel GoRugged R3000 Quad User Guide 4.3.2 L2TP L2TP_SERVER: Configuration--->L2TP--->L2TP Server Tick “Enable L2TP Server”, and fill in the blank textbox The modification will take effect after “Apply-->Save-->Reboot”. RT_UG_R3000 Quad_v.1.2.0 02.07.2015 118 / 136 Confidential...

  • Page 120: Pptp

    Robustel GoRugged R3000 Quad User Guide Note The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel. L2TP_CLIENT: Configuration--->L2TP--->L2TP Client Click “Add”...
  • Page 121 Robustel GoRugged R3000 Quad User Guide PPTP_SERVER: Configuration--->PPTP--->PPTP Server Tick “Enable PPTP Server”, and fill in the blank textbox The modification will take effect after “Apply-->Save-->Reboot”. PPTP_CLIENT: Configuration--->PPTP--->PPTP Client Click “Add” button, and fill in the blank textbox RT_UG_R3000 Quad_v.1.2.0 02.07.2015...

  • Page 122: Ipsec Vpn

    Robustel GoRugged R3000 Quad User Guide The modification will take effect after “Apply-->Save-->Reboot”. 4.3.4 IPSEC VPN Note The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel.
  • Page 123 Robustel GoRugged R3000 Quad User Guide Note Polices 1,4,6,7 are default for Cisco router and do not display at the CMD IPsecVPN_CLIENT: Configuration--->IPSec--->IPSec Basic Then click “Apply”. Configuration--->IPSec--->IPSec Tunnel Tick “Enable IPSec Tunnel1” RT_UG_R3000 Quad_v.1.2.0 02.07.2015 122 / 136 Confidential...
  • Page 124 Robustel GoRugged R3000 Quad User Guide The modification will take effect after “Apply-->Save-->Reboot”. RT_UG_R3000 Quad_v.1.2.0 02.07.2015 123 / 136 Confidential...

  • Page 125: Openvpn

    Robustel GoRugged R3000 Quad User Guide 4.3.5 OPENVPN Note: The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel.
  • Page 126 Robustel GoRugged R3000 Quad User Guide The modifications will take effect after click “Apply-->Save-->Reboot”. OPENVPN_CLIENT: Configuration--->OpenVPN--->Client Tick “Enable OpenVPN Client1”, and fill in the blank textbox RT_UG_R3000 Quad_v.1.2.0 02.07.2015 125 / 136 Confidential...
  • Page 127 Robustel GoRugged R3000 Quad User Guide The modification will take effect after “Apply-->Save-->Reboot”. RT_UG_R3000 Quad_v.1.2.0 02.07.2015 126 / 136 Confidential...

  • Page 128: Chapter 5 Introductions For Cli

    Robustel GoRugged R3000 Quad User Guide Chapter 5 Introductions for CLI 5.1 What’s CLI and Hierarchy Level Mode The R3000 command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the console or through a telnet network connection. There are four different CLI hierarchy level modes which have different access rights: User exec mode—The command prompt “>”...
  • Page 129 Robustel GoRugged R3000 Quad User Guide Password: ***** R3000# ? //check what commands can be used in Privileged exec mode debug Debug configure information enable Turn on privileged commands exit Exit from current mode export Export file using tftp syslog...

  • Page 130: How To Configure The Cli

    Robustel GoRugged R3000 Quad User Guide 5.2 How to Configure the CLI Following is a list about the description of help and the error should be encountered in the configuring program. Commands /tips Description Typing a question mark “?” will show you the help information.
  • Page 131 Robustel GoRugged R3000 Quad User Guide Building configuration... R3000#reload !Reboot the system?'yes'or 'no':yes //reload to take effect Example 3: Set link-management R3000> enable Password: ***** R3000# R3000# configure R3000(config)# set link-management Primary Interface: 1.Cellular 2.Eth0 3.WiFi ->please select mode(1-3)[1]:2 Secondary Interface: 1.None...
  • Page 132 Robustel GoRugged R3000 Quad User Guide ********************************************* Primary Interface : Eth0 // now “Eth0” as primary wan-link Secondary Interface : None ICMP primary server : 8.8.8.8 ICMP second server : 8.8.4.4 ICMP detection interval : 30 seconds ICMP detection timeout...
  • Page 133 Robustel GoRugged R3000 Quad User Guide Primary Interface : Cellular // now “Cellular ” as wan-link Secondary Interface : None ICMP primary server : 8.8.8.8 ICMP second server : 8.8.8.4 ICMP detection interval : 30 seconds ICMP detection timeout : 3 seconds...

  • Page 134: Commands Reference

    Robustel GoRugged R3000 Quad User Guide SIM 1 parameters: network provider : Auto dial numbers : *99***1# pin code : NULL connection Mode : Always online redial interval : 30 seconds max connect try main SIM select : SIM_1 when connect fail...

  • Page 135: Glossary

    Robustel GoRugged R3000 Quad User Guide Glossary Abbreviations Description Alternating Current Access Point Name of GPRS Service Provider Network ASCII American Standard Code for Information Interchange Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Command Line Interface for batch scripting...
  • Page 136 Robustel GoRugged R3000 Quad User Guide IPSec Internet Protocol Security kbps kbits per second L2TP Layer 2 Tunneling Protocol local area network Light Emitting Diode Machine to Machine Maximum Minimum Mobile Originated Mobile Station Mobile Terminated OpenVPN Open Virtual Private Network...
  • Page 137 Robustel GoRugged R3000 Quad User Guide Universal Serial Bus USSD Unstructured Supplementary Service Data Volts Direct current VLAN Virtual Local Area Network Virtual Private Network VSWR Voltage Stationary Wave Ratio Wide Area Network RT_UG_R3000 Quad_v.1.2.0 02.07.2015 136 / 136 Confidential...

Table of Contents
