Roland VS-2000 Appendices page 27

Stereo Pitch Shifter Delay
Changes the pitch of the direct sound. Corrects vocals out of tune or adds thickness to the sound by mixing the direct sound and a
sound at a shifted pitch.

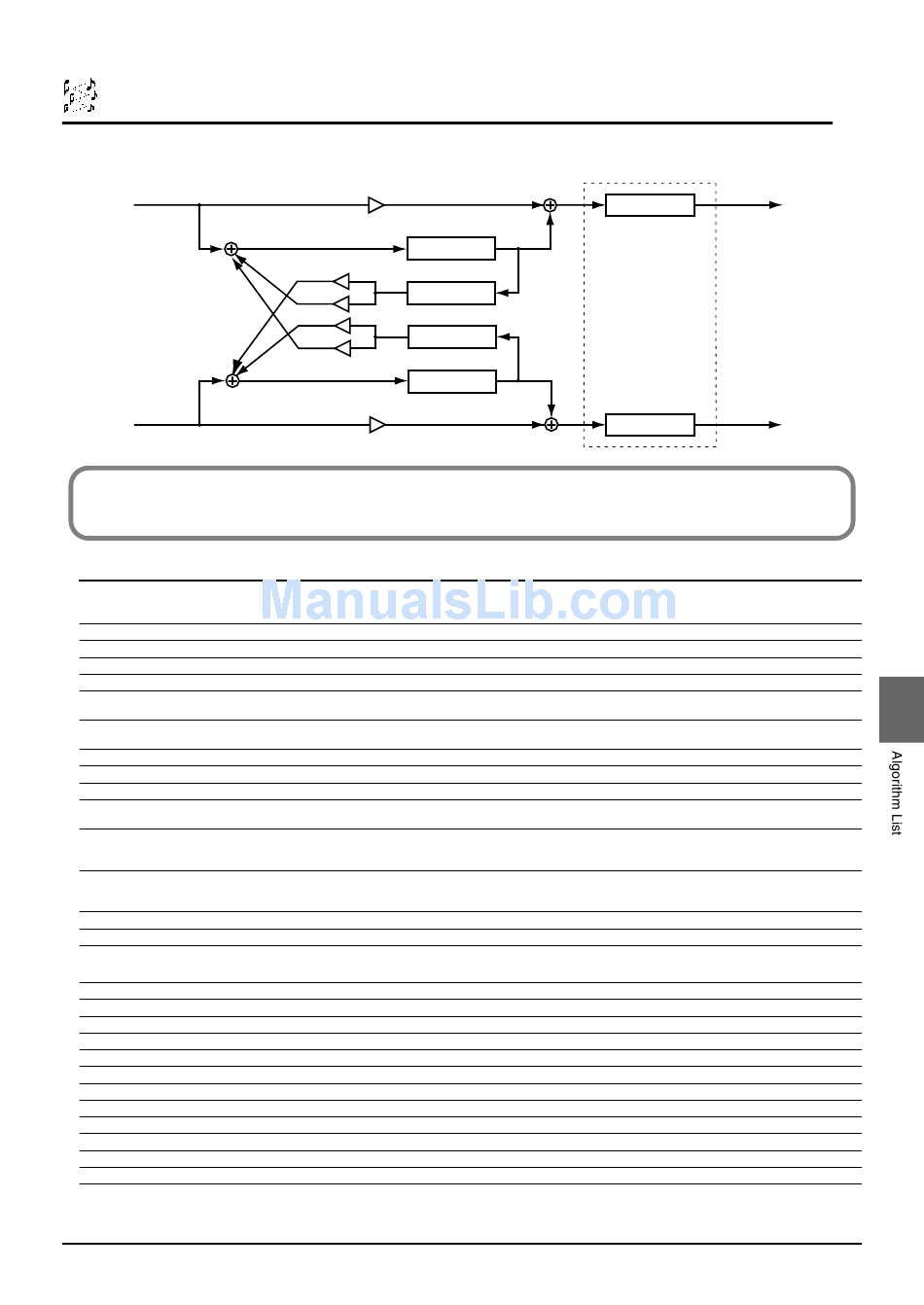

fig.08-12
Input L
Input R
Setting up pitch
Chromatic Pitch (Chromatic) is used for major pitch variation while Fine Pitch (Fine) is used for fine adjustment. Setting up
slightly different pitches for the right and left gives thickness to the sound.
Parameter (full name)
PShift (Pitch Shifter Delay)
Sw (Switch)
Lch Chroma Pitch (Lch Chromatic Pitch)
Rch Chroma Pitch (Rch Chromatic Pitch)
Lch Fine Pitch
Rch Fine Pitch
Lch PreDly (Lch Pre-Delay)
Rch PreDly (Rch Pre-Delay)
Lch FBDly (Lch Feedback Delay Time)
Rch FBDly (Rch Feedback Delay Time)
Lch FeedbackLvl (Lch Feedback Level)
Rch FeedbackLvl (Rch Feedback Level)
Lch CrossFeedbackLvl
(Lch Cross-Feedback Level)
input.
Rch CrossFeedbackLvl
(Rch Cross-Feedback Level)
input.
FX Lvl (Effect Level)
DirLvl (Direct Level)
EQ (Equalizer)
Sw (Switch)
Low Gain (Low Gain)
Low Freq (Low Frequency)
Low Q
Low Type
Mid Gain (Middle Gain)
Mid Freq (Middle Frequency)
Mid Q (Middle Q)
High Gain
High Freq (High Frequency)
High Q
Hi Type (High Type)
Level (Output Level)
*1: If Low Type (Lo Type) or High Type (Hi Type) is set to "Shlv (Shlving Type)," the setting for Lo Q or High Q is invalid.
Direct Level
Pitch Shifter L
Delay L
Delay R
Pitch Shifter R
Direct Level
Setting Function
: Shifts the pitch.
On, Off Turns the pitch shifter on or off.
-12–12 Sets the left-side pitch variation (by semitone).
-12–12 Sets the right-side pitch variation (by semitone).
-100–100 Sets the left-side pitch variation (by cent).
-100–100 Sets the right-side pitch variation (by cent).
0–50 ms Sets the time from when the direct sound is output until when the left-side sound at a shifted pitch is
output.
0–50 ms Sets the time from when the direct sound is output until when the right-side sound at a shifted pitch is
output.
0–500 ms Sets the feedback repetition cycle for the left-side delay sound.
0–500 ms Sets the feedback repetition cycle for the right-side delay sound.
-100–100 Sets the amount of the left-side sound at a shifted pitch should be returned to the left pitch shifter input.
-100–100 Sets the amount of the right-side sound at a shifted pitch should be returned to the right-side pitch
shifter input.
-100–100 Sets the amount of the left-side sound at a shifter pitch should be returned to the right-side pitch shifter
-100–100 Sets the amount of the right-side sound at a shifted pith should be returned to the left-side pitch shifter
-100–100 Sets the volume of the sound at a shifter pitch.
-100–100 Sets the volume of the direct sound.
On, Off Turns the equalizer on or off.
-12– +12 dB Sets the boost/cut amount in the low frequency band.
20 - 2000 Hz Sets the center frequency in the low frequency band.
0.3–10.0 Sets the width of the area around the low frequency that will be affected by the gain settings.
Shlv, Peak Sets the type of the low frequency band equalizer (Shlving type or peaking type).
-12– +12 dB Sets the boost/cut amount in the middle frequency band.
200–8000 Hz Sets the center frequency in the middle frequency band.
0.3–10.0 Sets the width of the area around the middle frequency that will be affected by the gain settings.
-12– +12 dB Sets the boost/cut amount in the High frequency band.
1.4–20.0 kHz Sets the center frequency in the High frequency band.
0.3–10.0 Sets the width of the area around the High frequency that will be affected by the gain settings. *1
Shlv, Peak Sets the type of the High frequency band equalizer (Shlving type or peaking type).
0–100 Sets the volume after passing through the equalizer.
Output L
3BAND EQ
3BAND EQ
Output R
*1
27
