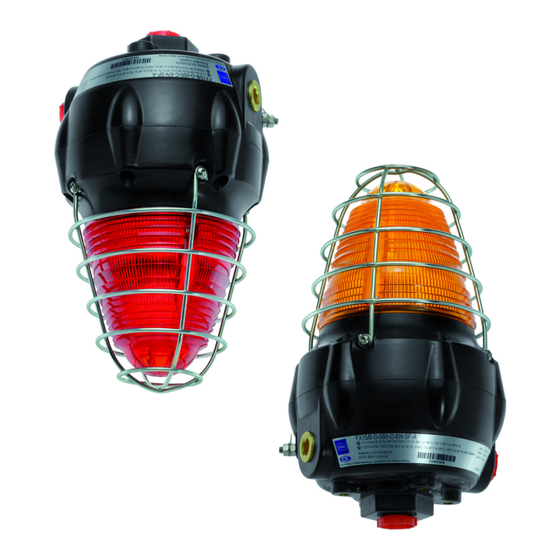

- Page 1 Operating instructions Additional languages r-stahl.com Visual signalling device Series FX15/2...
-
Page 2: Table Of Contents
Contents Contents General information .....................3 Manufacturer......................3 Information regarding the operating instructions..........3 Further documents....................3 Conformity with standards and regulations............3 Explanation of symbols ..................4 Symbols used in these operating instructions............4 Warning notes......................4 Symbols on the device..................5 Safety notes ......................6 Operating instructions storage ................6 Personnel qualification..................6 Safe use.......................6 Modifications and alterations ................7... -
Page 3: En Fr
They are legally binding in all legal affairs. Further documents • Data sheet For documents in other languages, see r-stahl.com. Conformity with standards and regulations IECEx, ATEX, EU Declaration of Conformity and further national certificates can be downloaded via the following link: https://r-stahl.com/en/global/support/downloads/. -
Page 4: Explanation Of Symbols
Explanation of symbols Explanation of symbols Symbols used in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Warning notes Warning notes must be observed under all circumstances, in order to minimise the risk resulting from design engineering and operation. -
Page 5: Se Fi
Explanation of symbols Symbols on the device Symbol Meaning CE marking according to the current applicable directive. 05594E00 Device certified for hazardous areas according to the marking. 02198E00 Input 15649E00 Output 15648E00 Safety notes that must always be observed: The corresponding data and/or safety-related instructions contained in the operating instructions must be followed for devices with this symbol! 11048E00... -
Page 6: Safety Notes
Additional knowledge is required for any activity in hazardous areas! R. STAHL recommends having a level of knowledge equal to that described in the following standards: • IEC/EN 60079-14 (Project engineering, selection and construction of electrical systems) •... -
Page 7: Modifications And Alterations
Function and device design Commissioning, maintenance, repair • Only have commissioning and repairs performed by qualified and authorised persons (see chapter "Personnel qualification"). • Before commissioning, make sure that the device is not damaged. • Perform only maintenance work described in these operating instructions. Modifications and alterations DANGER Explosion hazard due to modifications and alterations to the device! -
Page 8: Device Design
Function and device design Device design 23047E00 Device base Seal Top part Screws Cheese-head screws Visual signalling device 283935 / FX1560300190 Series FX15/2 2022‐03‐04·BA00·III·en·01... -
Page 9: Technical Data
Technical data Technical data Explosion protection Global (IECEx) Gas and dust IECEx EPS 20.0036X Ex db IIC T. Ex tb IIIC T... °C Europe (ATEX) Gas and dust EPS 20 ATEX 1 076 X E II 2 G Ex db IIC T. E II 2 D Ex tb IIIC T... - Page 10 Technical data Technical data Technical data Product weight 2.4 kg Electrical data Rated operational 21.1 to 24 V DC voltage Average input power/ Max. current Average max. current consumption power consumption [mA] XENON 5J In flash mode 1,200 Class I (PE connection) (internal + external) Ambient conditions Functional ambient min.
- Page 11 Technical data Technical data Visual data Calculated LED disc: max. range Inform Alert Function Flashing Blinking Flashing Blinking 1 Hz 1 Hz 1 Hz 1 Hz Colour 45 m 58 m 10 m 13 m amber 69 m 89 m 15 m 20 m blue...
- Page 12 Technical data Technical data Luminous characteristics Effective luminous Type LED disc LED tower XENON intensity Function Flash- Blink- Flash- Blink- Flashing 1 Hz 1 Hz 1 Hz 1 Hz 1 Hz Colour 41 cd 67 cd 55 cd 90 cd 24 cd amber 96 cd...
- Page 13 Technical data Technical data Pole diagram XENON: 180° 165° 165° 150° 150° 135° 135° 120° 120° 105° 105° 90° 90° 75° 75° 60° 60° 45° 45° 30° 30° 15° 15° [cd] 0° C0 - C180 C90 - C270 22498E00 LED tower: 180°...
-
Page 14: Transport And Storage
Signalling device according to configuration L-bracket Dust caps For further technical data, see r-stahl.com. Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) free of vibrations. -
Page 15: Mounting And Installation
Mounting and installation Mounting and installation Dimensions/fastening dimensions Dimensional drawings (all dimensions in mm [inch]) – Subject to change 105 mm / 4.13 " 78 mm / 3.07 " 78 mm / 3.07 " 152 mm / 5.98 " 137 mm / 5.39 " 180 mm / 7.09 "... -
Page 16: Mounting/Dismounting, Operating Position
Mounting and installation Mounting/dismounting, operating position DANGER Explosion hazard due to improper mounting! Non-compliance results in severe or fatal injuries. • Only operate the device if it is not damaged. If the thread is damaged, replace the device immediately. • Only install the device in a clean and dry operating environment. •... -
Page 17: Installation
Mounting and installation NOTICE Malfunction or device damage from electrostatic discharge. Electronic components can be destroyed if touched. Non-compliance may lead to material damage! • Do not touch the LED PCBs! • Select a mounting location that is suitable for the signal effect of the device, as well as the required mounting and installation parameters (see "Technical data"... - Page 18 Mounting and installation 7.3.1 Dismounting the device The figure depicts the xenon flash tube variant for the FX15/2. The upper PCB components of the LED variant are different to the xenon variant. However, the fundamental structure of both products is the same. •...
- Page 19 Mounting and installation 7.3.2 Electrical connections DANGER Explosion hazard due to insufficient protective measures! Non-compliance results in severe or fatal injuries. • Select suitable conductors to ensure that the maximum permissible conductor temperatures are not exceeded. • When using core end sleeves, attach them using a suitable tool. •...
- Page 20 Mounting and installation 0V 24V 0V 24V 0V 24V 24 V 22798E00 Example: Connection diagram for combining multiple devices When doing so: • Observe the maximum permissible single wire cross-sections for the connection terminals – see "Technical data" chapter. • Only such cable entries and stopping plugs may be installed that have been separately tested and certified according to Directive 2014/34/EU (ATEX) and IECEx (CoC);...
- Page 21 Mounting and installation 7.3.3 Configuration The configuration of the device is performed by adjusting the DIP switch on the PCB. The following general/visual configuration options are available: XENON circuit board 22846E00 DIP switch designation Function General settings "SW1" DIP switch Reserved Reserved Reserved...
- Page 22 Mounting and installation General settings A/B control signal Emitted signal Signal Signal selection ACTIVATION XENON 1 Hz XENON 1 Hz XENON 1 Hz XENON 1 Hz Signal deactivated Signal deactivated XENON 1 Hz XENON 1 Hz Visual signalling device 283935 / FX1560300190 Series FX15/2 2022‐03‐04·BA00·III·en·01...
- Page 23 Mounting and installation LED circuit board 22799E00 DIP switch designation Function Visual functions General settings "SW2" DIP switch LED ECO MODE (current consumption reduced by up to 50%) LED POWER MODE (max. power) LED disc LED tower Reserved Reserved Reserved Reserved RI ACTIVATION Active switching via B signal...
- Page 24 Mounting and installation General settings A/B control signal Emitted signal Signal Signal selection ACTIVATION LED prog.1 LED prog.2 LED prog.3 LED prog.4 Signal deactivated Signal deactivated LED prog.1 LED prog.2 Visual signalling device 283935 / FX1560300190 Series FX15/2 2022‐03‐04·BA00·III·en·01...
- Page 25 Mounting and installation Visual settings DIP switch "SW1" function tower, monochrome LED prog1 LED prog2 LED prog3 LED prog4 Continuous light Double flash 1 Hz Blinking light 1 Hz Rotating light 120 rpm Blinking light 1 Hz Continuous light Blinking light 1.5 Hz Blinking light 2 Hz (dimmed) Blinking light 1.5 Hz...
- Page 26 Mounting and installation DIP switch "SW1" function disc, monochrome LED prog1 LED prog2 LED prog3 LED prog4 Continuous light Double flash 1 Hz Blinking light 1 Hz Continuous light (dimmed) Blinking light 1 Hz Continuous light Blinking light 1.5 Hz Blinking light 2 Hz (dimmed) Blinking light 1.5 Hz...
- Page 27 Mounting and installation 7.3.4 Mounting the device 23047E00 Device base Seal Top part Screws Cheese-head screws 283935 / FX1560300190 Visual signalling device 2022‐03‐04·BA00·III·en·01 Series FX15/2...
- Page 28 Mounting and installation Screws and seals The cheese-head screws are delivered with Nyltite seals. • Before mounting, check the seals for damage. • Replace damaged seals. • Use seals a maximum of 5 times. • When using screws on a flat surface, note the seal on the screw head –...
- Page 29 Mounting and installation • Secure the top part using the 6 cheese-head screws (tightening torque 4 Nm). 23051E00 7.3.5 Mounting the earth connection • Connect the internal earth connection as the primary connection point. The external connection can be used as an additional equipotential bonding conductor, provided that it is permissible or required in accordance with local regulations or by the authorities.
-
Page 30: Commissioning
Commissioning Commissioning Prerequisites DANGER Explosion hazard due to incorrect installation! Non-compliance results in severe or fatal injuries. • Check the device for proper installation before commissioning. • Comply with national regulations. Before commissioning, ensure that: • the device has been installed according to regulations. •... -
Page 31: Operation
• a visual signal. Troubleshooting If the error cannot be eliminated using the specified procedures: • Contact R. STAHL Schaltgeräte GmbH. For rapid processing, have the following information ready: • Type and serial number of the device • Purchase information •... -
Page 32: 10.3 Returning The Device
• Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website.
