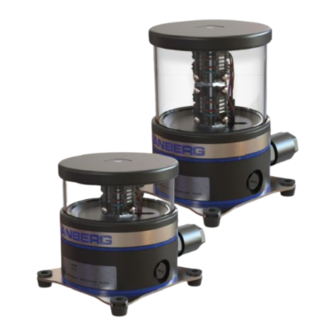

TEF2880
Navigation Light
TEF 2880
Document properties (TUM6500)
Revision Comment
I
Added more info on appendix #1
J
Added DoC on last page
K
Added additional information – sealed for life, do not open
Installation and operating manual
Navigation Light
Revision
Approved
date
15.09.2021
CKR
22.02.2022
CKR
15.03.2022
CS
Advertisement
Table of Contents
Related Manuals for Stahl TEF 2880
Summary of Contents for Stahl TEF 2880
-
Page 1: Document Properties (Tum6500)
Installation and operating manual TEF2880 Navigation Light Navigation Light TEF 2880 Document properties (TUM6500) Revision Comment Revision Approved date Added more info on appendix #1 15.09.2021 Added DoC on last page 22.02.2022 Added additional information – sealed for life, do not open... -
Page 2: Table Of Contents
Installation and operating manual TEF2880 Navigation Light Installation and operating manual Contents Document properties (TUM6500) ..........................1 Warnings and risk levels ............................3 General information ..............................3 Marking and intended use ............................4 Technical data ................................. 5 Product description ..............................5 Transport and storage ............................. -
Page 3: Warnings And Risk Levels
Installation and operating manual TEF2880 Navigation Light Warnings and risk levels DANGER Non-compliance with the instruction results in risk of severe or fatal injuries to persons WARNING Non-compliance with the instruction may result in risk of severe or fatal injuries to persons CAUTION Non-compliance with the instruction may result in risk of injuries or damage to equipment NOTICE... -
Page 4: Marking And Intended Use
Installation and operating manual TEF2880 Navigation Light Marking and intended use CAUTION Not intended for use in “these” conditions (Where mud may be present, on helidecks, underground, direct sunlight, heavy vibrations, high risk of impact, harsh cleaning agents, high pressure washer etc.) -
Page 5: Technical Data
Installation and operating manual TEF2880 Navigation Light Technical data Property Material Seawater resistant aluminium, borosilicate glass and stainless steel base. Voltage 24V DC (18-32V DC) Power Max. 22W (Dependent on model) Digital input Logic ‘0’: -3V DC to +5V DC Nominal current: 2.4mA Logic ‘1’: 11V DC to 30V DC Digital output... -
Page 6: Mounting And Installation
Installation and operating manual TEF2880 Navigation Light Mounting and installation DANGER Incorrect mounting and installation may lead to risk for falling objects, risk for electric shock or fire and risk for equipment malfunction. In turn, this can lead to severe damage and/or injuries. Mounting See figure 1 &... - Page 7 Installation and operating manual TEF2880 Navigation Light Figure 1 (view from top)
-
Page 8: Positioning Of Lights
Installation and operating manual TEF2880 Navigation Light Figure 3 Positioning of lights Inboard screen is not required as the light itself fulfill the requirements. If an inboard screen is installed please follow the following procedure: Ref. COLREG 72, Annex I. Positioning of side lights (port and starboard) COLREG 72, Annex I, 5: The sidelights shall be fitted with inboard screens painted matt black, and meeting the requirements of Section 9 of this Annex. -
Page 9: Electrical Connections
CAUTION Do not open the product. The R. Stahl TRANBERG TEF2880 series is sealed for life. Non-compliance with the instruction may result in risk of injuries or damage to equipment Cable termination Cable diameter: Ø9-16 mm. -
Page 10: Control And Monitoring
Installation and operating manual TEF2880 Navigation Light Ground bonding screw The navigation lights are equipped with an external M5 ground bonding screw. Connect to ground where national or company regulations require it. Versions without DI/DO, part #2880***0* and 2880**9* Terminal # Standard versions, part # Duplex versions with single cable 2880***0*... -
Page 11: Maintenance And Cleaning
Installation and operating manual TEF2880 Navigation Light Part # 2880***X* where X = 0 or 9. (Versions without digital input/output): Part # 2880***1* (Versions with digital input/output, on/off (blinking) control): Digital input = on/off or blinking control. Logical ‘0’ = off. ‘1’ = on. Alternatively, tie DI to +24V and control on/off by switching power. -
Page 12: Part No Matrix
Installation and operating manual TEF2880 Navigation Light Part No Matrix Format: 2880ABCDE (9 numbers).* 2880 Sector Colour Visible Range Option Option (functional) Simplex All-round (360°) Simplex Half 1 White 1 nm DI/DO (on/off White All-round (181°) or blinking painted function) Simplex 2 Red 2 nm... -
Page 13: Options And Spare Parts
Installation and operating manual TEF2880 Navigation Light Options and spare parts Image Description Part No Cable termination nut Ø6 -11 mm 50500223 Cable termination nut Ø9-16 mm 50091435 Plug connector for cable Ø6 - 11 mm Digital output (Alarm Plug connector for cable Ø9-16 mm output) Protective cap for unused cable entries IP68 50500226... -
Page 14: Disposal
Installation and operating manual TEF2880 Navigation Light Disposal CAUTION This equipment or part of this equipment is considered EE-Waste, and shall be handled accordingly Observe national and local regulations and statutory regulations regarding disposal Separate materials when sending it for recycling ... - Page 15 Installation and operating manual TEF2880 Navigation Light Appendix #1...
-
Page 16: Appendix #2, Doc
Installation and operating manual TEF2880 Navigation Light Appendix #2, DoC...
