Screw cam bolts flush as Press cam into hole until flush with Insert bolt through pre-drilled Turn clockwise to lock cam with bolt. surface. The arrow direction must hole in edge of panel. illustrated. be in the direction of the hole.
Parts List: Panels ITEM DESCRIPTION ITEM DESCRIPTION A/A1/A2 Top Panel 1 of 3 Drawer Right Side Panel 3 of 3 Lift Panel 1 of 3 Drawer Back Panel 3 of 3 Cover Panel 1 of 3 Drawer Bottom Panel 3 of 3 Bottom Panel 1 of 3 Front Brace Panel...
Parts List: Hardware TIP: Keep all the parts in their individually labeled bags. This will make finding parts easier as you assemble your cabinet. 6x35 Cam Bolt Magnet and Plate x1 8x30 Dowel Pin x26 4x14 Screw x34 ⁄ “ Cam Cover Non-Locking Plate Caster x2 3x14Screw...
Step 1: Cabinet Shell 6x35 Cam Bolt 8x30 Dowel Pin x12 Panel D, SIDE 1 12mm Cam Lock PANEL D IS DOUBLE SIDED. Panel D, SIDE 1: - Attach 2 c1 Cam Bolts - Insert 8 d1 Dowels Panel D, SIDE 2: - Insert 10 c3 Cam Locks Panel D, SIDE 2 3.5x14 Screw x3...
Page 6
Step 1: Cabinet Shell PANEL Y IS DOUBLE SIDED. 8x30 Dowel Pin x10 To Panel Y, Side 1: - Insert 4 c3 Cam Locks 12mm Cam Lock - Insert 6 d1 Dowel Pins 6x35 Cam Bolt 3.5x14 Screw x3 Magnet x1 3.5x20 Screw Lift Rail (Right) x1...
Page 7
Step 1: Cabinet Shell ⁄ “ Cam Cover CABINET ASSEMBLY IS SHOWN UPSIDE DOWN Carefully slide Panel Y onto Panel D, guiding Cam Bolts on Panel D into Cam Locks on Panel Y. Tighten Cam Locks and apply c2 Cam Covers. Harriet Assembly Instructions...
Page 8
Step 1: Cabinet Shell 8x30 Dowel Pin x2 ⁄ “ Cam Cover 12mm Cam Lock To Panel O2: - Attach 6 c1 Cam Bolts -Insert 2 d1 Dowel Pins On a carpeted or protected floor, lay Panel X down on its back.
Page 9
Step 1: Cabinet Shell Carefully slide the Panel X/O2 assembly into position as shown. ⁄ “ Cam Cover Guide Cam Bolts on Panels X and Y into Cam Locks on Panels D and O2. Tighten Cam Locks and apply c2 Cam Covers. Harriet Assembly Instructions...
Page 10
Step 1: Cabinet Shell ⁄ “ Cam Cover 6x35 Cam Bolt Carefully slide Panel Z into position as shown. Guide Cam Bolts on Panel Z into Cam Locks on Panel D. Tighten Cam Locks and apply c2 Cam Covers. Attach 5 c1 Cam Bolts to Panel G as shown. Harriet Assembly Instructions...
Step 2: Bottom Panel ⁄ “ Cam Cover Carefully slide the Panel G into position as shown. Guide Cam Bolts on Panel G into Cam Locks on panels X and D. Tighten Cam Locks and apply c2 Cam Covers. Harriet Assembly Instructions...
Page 12
Step 2: Bottom Panel Screw x4 Finish securing Panel G to the cabinet with 4 s7 Screws. Harriet Assembly Instructions...
Page 13
Step 2: Bottom Panel Allen Wrench x1 8x16 Fix Bolt 16 Locking Plate Caster x2 Non-Locking Plate Caster x2 Attach t1 Locking Plate Casters nto the front edge of Panel G. Attach t3 Non-Locking Plate Casters nto the back edge of Panel G. Secure with c1 Fix Bolts.
Page 14
Step 3: Leaf Support Hinge x2 3.5x14 Screw x12 3M Adhesive Panel Protector x1 Attach h1 Hinges to Panel O using 6 s1 Screws. Attach Panel O to Panel Z through the h1 Hinges using 6 s1 Screws. Add pp Panel Protector to the top edge of Panel O.
Page 15
Step 4: Door 3x14Screw Flush Hinge x3 12mm Cam Lock To Panel O1: - Attach 3 h2 Hinges using 6 s2 Screws - Insert 3 c3 Cam Locks 8x30 Dowel Pin x2 - Insert 2 d1 Dowel Pins Attach Panel O1 to Panel X through the h2 Hinges using 6 s2 Screws.
Page 16
Step 4: Door Insert 4 c4 Cam Locks and 2 ⁄ “ 10mm Cam Lock x14 6x35 Cam Bolt Cam Cover c1 Cam Bolts into each Panel O5. Attach 5 c1 Cam Bolts to Panel O4. Insert 6 c3 Cam Locks into Panel O3. Attach Panel O5 pieces to Panel O3 as shown.
Page 17
Step 4: Door 6x35 Cam Bolt 3.5x14 Screw x8 Locking Stem Caster x1 Magnet Plate x1 Door Hooks 3x14Screw 14mm Wrench x1 To Panel V: - Attach 8 c1 Cam Bolts - Attach m Magnet Plate using 2 s2 Screws. - Attach 4 h4 Hooks using 2 s1 Screws per hook (8 s1 Screws) - Attach b3 Caster Bracket using 4 s1 Screws.
Page 18
Step 4: Door Handle x1 4x20 Fix Bolt x2 3M Adhesive Panel Protector x4 ⁄ “ Cam Cover 3M Adhesive Panel Protector x4 Attach the Door Bin Assembly to Panel V, sliding cam bolts on Panel V into cam locks on Panels O5 and O3. Tighten cam locks and cover with c2 Cam Covers.
Page 19
Step 5: Hydraulic Lift Installation HYDRAULIC LIFT INSTALLATION WARNING: DO NOT remove the small wooden block from the Lift until assembly is complete. If the block is removed or falls out before lift assembly is complete, the cables will retract, making installation more difficult. If the block falls out before complete assembly, please call Customer Service at 1-800-533-7347, ext.
Page 20
Step 5: Hydraulic Lift Installation For video lift installation instructions, visit www.arrowsewing.com/assembly and find the “Installing Your Hydraulic Lift” video. Cable Lift rail Rail tabs Plastic guides on Lift Lift rail Guide Lift onto Lift Rails using plastic guides. Insert ends of cable into rail tabs; make sure the cable is hooked into the rail tabs on both sides.
Step 6: Cabinet Top ⁄ “ Cam Cover With the lift platform (Panel A3) lowered into Storage Position, carefully lower the cabinet top (pre-assembled Panels A/A1/A2) onto the cabinet assembly, guiding cam bolts on the cabinet top into cam locks on the cabinet shell. Tighten cam locks and apply c2 Cam Covers.
Page 23
Step 7: Drawers 6x35 Cam Bolt 10mm Cam Lock x16 Insert 4 c1 Cam Bolts to each Drawer Front (Panels K1 (x1) and K (x3) - 16 cam bolts total. Insert 2 c4 Cam Locks to each Drawer Side (Panels K2 (x4) and K3 (x4) - 16 cam locks total. Harriet Assembly Instructions...
Page 24
Step 7: Drawers ⁄ “ Cam Cover Attach Drawer Sides to Drawer Fronts, guiding cam bolts on Panels K1 (x1) and K (x3) into cam locks on Panels K2 (x4) and K3 (x4). Tighten cam locks and cover with c2 Cam Covers. Slide Drawer Bottoms (Panel K5) into the routed grooves on Drawer Sides and Drawer Fronts as shown.
Page 25
Step 7: Drawers 3.5x30 Screw x16 Handle x5 4x20 Fix Bolt x10 Attach Drawer Backs (Panel K4) to Drawer Sides (Panels K2 and K3) as shown, securing with s5 Screws. Attach h handles to Drawer Fronts (Panels K1 (x1) and K (x3), securing with b2 Fix Bolts. Harriet Assembly Instructions...
Page 26

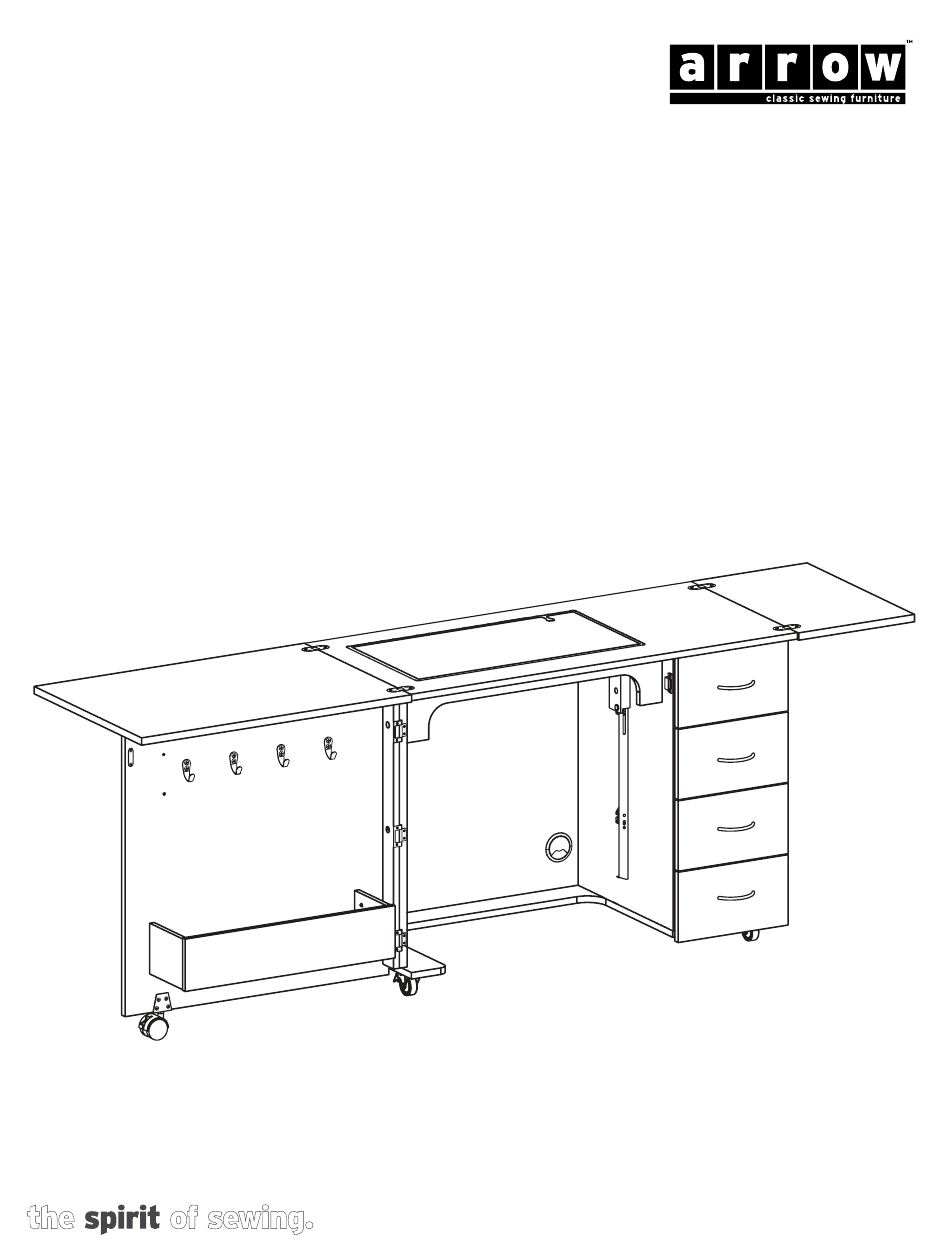

Completed Harriet Sewing Cabinet Carefully slide drawers into the cabinet as shown. Visit arrowsewing.com/assembly for helpful video tutorials on hydraulic lift adjustment and operation. Harriet Assembly Instructions...
(detailed receipt), and photos of the product. Arrow will replace any defective part (at its sole option), excluding labor. Replacement parts will be warranted for only the remaining period of the original Warranty.
