Summary of Contents for Vivax Metrotech vCamDrain

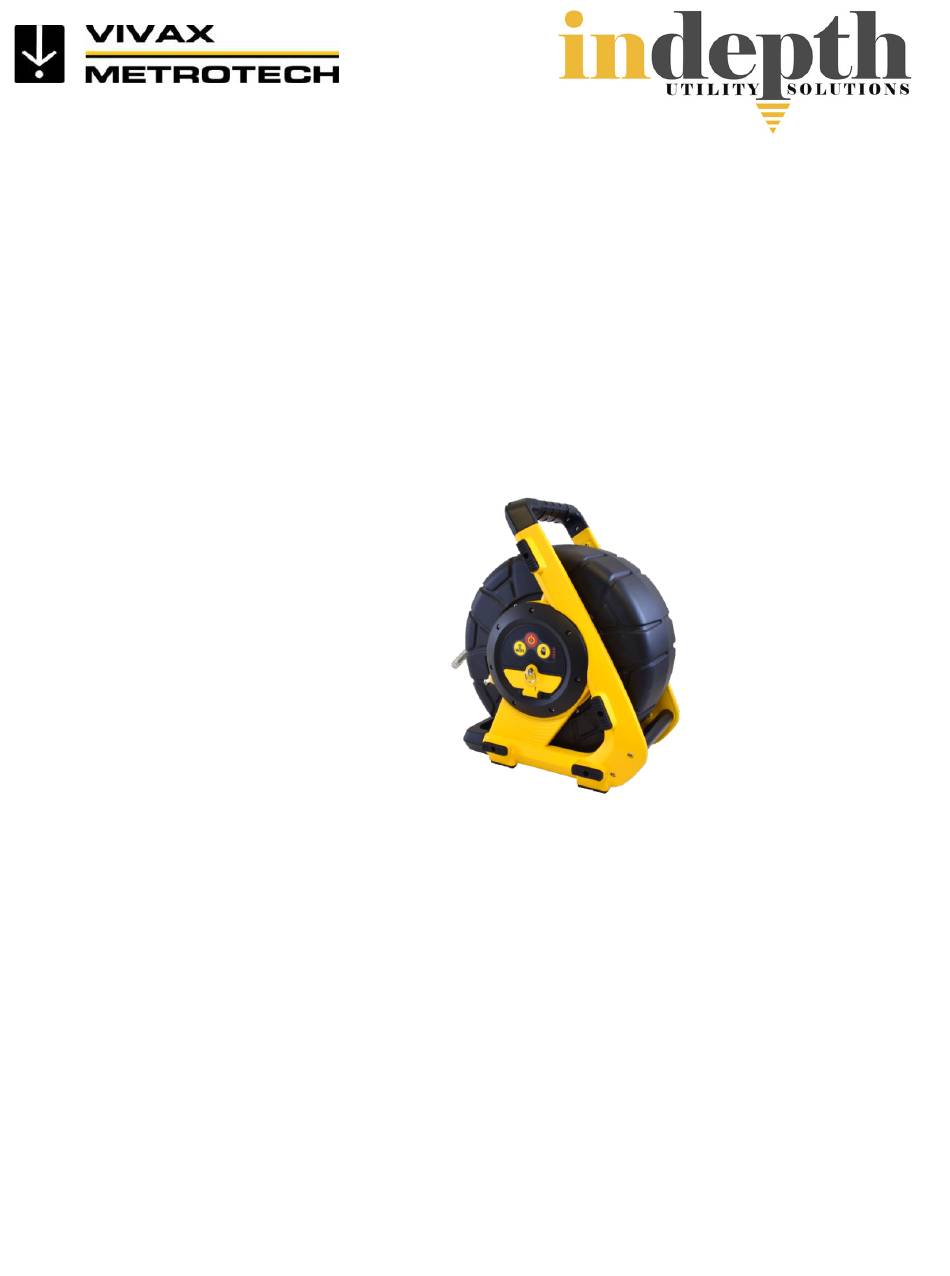

- Page 1 281-969-8530 vCamDrain User Handbook (English Edition) Version 1.0 P/N: 4.04.000241...
- Page 2 General Safety & Care Information Health and Safety This equipment is primarily used to inspect sewer pipes by professionals in the sewer and plumbing industry and is maintained by professionals familiar with the health risks of maintaining equipment in a sewer. Such professionals will be protected by their own company’s recommendations and work practices.
-
Page 3: Table Of Contents
Table of Contents Service & Support ..................1 Model and Serial Number Location ............1 Firmware Revision Location ..............1 Request for Service ................1 Distributors and Service Centers ............2 Introduction ....................3 The vCam Drain Wireless Reel ............. 3 vCam Drain Wireless Reel Features ............. - Page 4 6.1.7 Language ..................14 6.1.8 About .................... 14 6.1.9 Logs ....................14 Using the vCam Mobile Controller App ............. 15 Overview ..................... 15 7.1.1 Connect to the Control Module ............. 15 7.1.2 Making a video recording .............. 15 7.1.3 Capturing JPEG images (taking pictures) ........15 7.1.4 Adding an observation to the screen ..........
-
Page 5: Service & Support
The firmware version of the reel can be found by connecting the vCam Mobile Controller app to the reel and going to the ABOUT section in the app. The vCamDrain firmware updates come in a “zip” extension file. The firmware files can be obtained at www.vivax-metrotech.com, an authorized service center, distributor, or a local Vivax-Metrotech office. -
Page 6: Introduction
Introduction Introduction Please read this section! Vivax-Metrotech provides technical support for the vCam Mobile Controller (VMC) app, our vCam series camera systems and our locators. Vivax-Metrotech can not supply technical support or training for smartphones, tablets or file- sharing apps on your phones and tablets. Please refer to the help screens and documentation included with your file-sharing apps and the operating system on your phone or tablet (Android and iOS (Apple). -
Page 7: Vcam Drain Wireless Reel Features
Introduction vCam Drain Wireless Reel Features Handle Power/Media Compartment Horizontal position feet Wi-Fi refresh button Power button and indicator USB Port Battery status indicator AC/DC Charging socket Rubber feet Cable drum Brake Serial number/model label Camera head Spring/Sonde assembly Cable guide... -
Page 8: Vcam Drain Setup
vCam Drain Setup vCam Drain Setup Initial Setup 3.1.1 Charging the Internal Battery Plug the supplied battery charger into the reel's AC/DC charging socket. The charging icon on the battery status indicator will glow red while charging and glow green when fully charged. The typical time to fully charge a completely discharged battery will be approximately six hours and provide approximately seven hours of intermittent use. -
Page 9: Wi-Fi Connection For App
Wi-Fi Connection for App Wi-Fi Connection for App The vCam Mobiule Controller app must be installed to view the images from the camera and to control all functions of the vCamDrain Wireless Reel. Platform Apple Android Minimun operating system 13.0 or greater 6.0 or greater... -
Page 10: Connect To The Vmc App
Wi-Fi Connection for App Connect to the VMC App 1. Press and release to turn the unit on. When on, this button will glow green. 2. In approximately 30 seconds, a green light will appear in the center of the Wi-FI button. - Page 11 Wi-Fi Connection for App This update method requires the use of a USB thumb drive. Connect to the reel via the VMC app, go to SETTINGS > ABOUT, and note the reel's current firmware version. Go to the DOWNLOADS section on the Cambrian webpage and download the firmware update. Save the download drain_ota.zip file onto a USB thumb drive.
-
Page 12: The Vcam Mobile Controller App
The Start/Selection Screen Before launching the app turn on the vCamDrain Reel and wait for the Wi-fi indicator light to turn green. When the vCam Mobile Controller app starts, the first screen seen will be the Selection Screen, select... -
Page 13: Offline Access To Files (Access Files Without Being Connected)
The vCam Mobile Controller App VMC Start/Selection Screen Offline Access to Files (access files without being connected) All files created in the vCam Mobile Controller app are stored in the app in the Gallery. The Gallery can be accessed without being connected to a control module. 1. - Page 14 The vCam Mobile Controller App Step Back/Exit – Tapping this Connection Status – This shows icon will move back one step. the connected Control Module and its Continue tapping to disconnect and battery status. exit the app. Settings – Set the user preferences Active Project –...
- Page 15 The vCam Mobile Controller App Default view with all icons View with icons and status bar hidden Use the StepBack/Exit icon to return to the Start/Selection screen before exiting the app. Returning to the Start/Selection screen will automatically disconnect the control module and free up the Wi-Fi to connect to the internet.
-
Page 16: Vmc App Settings
VMC App Settings VMC App Settings Enter the VMC app settings by tapping the Settings icon. To return to the Main Screen tap the Settings icon again or tap on the Step Back/Exit icon. Setting up the app options At the time of publishing this guide the Settings menu consists of: Manage Projects Units Sonde Frequency... -
Page 17: Sonde Frequency
VMC App Settings 6.1.2 Sonde Frequency Set the sonde frequency to use when the sonde icon is selected. Select from 512Hz, 640Hz or 33kHz. Tap the Step Back icon to return to the Settings menu. 6.1.3 Video Settings Set the video quality and frames per second. First select the resolution of 1080p, 720p or 480p. After selecting the resolution tap on 30fps (frames per second) or 15fps. -
Page 18: Using The Vcam Mobile Controller App
Using the vCam Mobile Controller App Using the vCam Mobile Controller App Overview Now that the initial settings have been saved let's start using the app! Before launching the app ensure the control module is turned on and the Wi-Fi option activated. 7.1.1 Connect to the Control Module From the Start/Selection screen select the Control Module to connect. -
Page 19: File Managment
Using the vCam Mobile Controller App Tap on the Observation icon to open the Text Box. The icon will fill with a black background when the text box opens. Android Enter text in the text box, up to 100 characters, and tap on OK. Enter text in the text box, up to 100 characters and then tap Return on the keyboard. -
Page 20: Sharing Files
Using the vCam Mobile Controller App The video review screen While in the Review screens swiping right to left and back will scroll through all of the files in that Project folder. 3. Tap on the Play icon to watch the video. While playing the video tap the Pause icon to pause and unpause the video. Use your finger on the progress line to move forward and backward through the video. - Page 21 Using the vCam Mobile Controller App Export Project – Tap on this icon to begin the file export or delete options. When this icon is selected a white selection box will appear in the bottom left of the thumbnails. Now when a thumbnail is selected a symbol will appear in iOS or an ...
- Page 22 Using the vCam Mobile Controller App Please read this section! Vivax-Metrotech provides technical support for the vCam Mobile Controller (VMC) app, our vCam series camera systems and our locators. Vivax-Metrotech does not supply technical support or training for smartphones, tablets or file-sharing apps on your phones and tablets.
-
Page 23: Cable Reels
Cable Reels Cable Reels Using the Cable Reel 8.1.1 Distance Counter Accuracy For the best distance counter accuracy the entire length of pushrod and camera should be inside the drum when the reel is powered on and connected to the app. 8.1.2 Pushrod Cable The Pushrod Cable is constructed of a fiberglass rod surrounded by wire conductors and a Kevlar braid... - Page 24 Cable Reels Do not wear loose clothing that can become caught in a spinning reel. Keep hands away from a spinning reel. Position the reel on a flat surface approximately 3 to 4 feet or 1 to 1-1/2 meters from the entry point. This will provide enough space to work with the pushrod without much slack dragging on the ground.
- Page 25 Cable Reels Use finesse and not force when needed. The camera and pushrod are made to travel through multiple bends within reason. If you are having trouble navigating through the pipe, try pulling the camera back four to six inches and giving it a quick push-through. Sometimes the quick pushing motion will push the camera and termination through a tight area.
-
Page 26: Camera Heads And Terminations
Camera Heads and Terminations Camera Heads and Terminations Spring Termination Parts The Spring Termination Assembly is comprised of the parts that connect the camera head on one end and the reel base on the other. The termination spring assembly for the vCam Drain consists of a spring, coiled cable, sonde, and lanyard preassembled. -
Page 27: Removing And Installing The Drain Spring Assembly
Camera Heads and Terminations Camera head installation Remove any excess dirt that might contact the gold pins or green circuit board. Check that the O- ring is in good condition. 1. Hold the termination spring close to the base of the camera head. 2. -
Page 28: Troubleshooting
2. Check the control module or vCamDrain reel has the latest software installed. 3. Check that the SSID on the control module or vCamDrain reel starts with "vCam." If the SSID was changed, the app might not be able to find the control module. - Page 29 Problem: The control module will not connect - Android-specific Check: 1. Check and see if the control module or vCamDRain reel is showing in the list of available Wi-Fi networks. 2. If the unit is not in the Wi-Fi list close the Android settings and start the control module or vCamDrain reel.
- Page 30 Illustrations used in this manual's preparation will inevitably show some resemblance to similar images from other manufacturers. These manufacturers have permitted the use of their graphics, and this statement is intended to attribute such credit. ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. iOS is a trademark of Cisco Systems, Inc., registered in the U.S.
