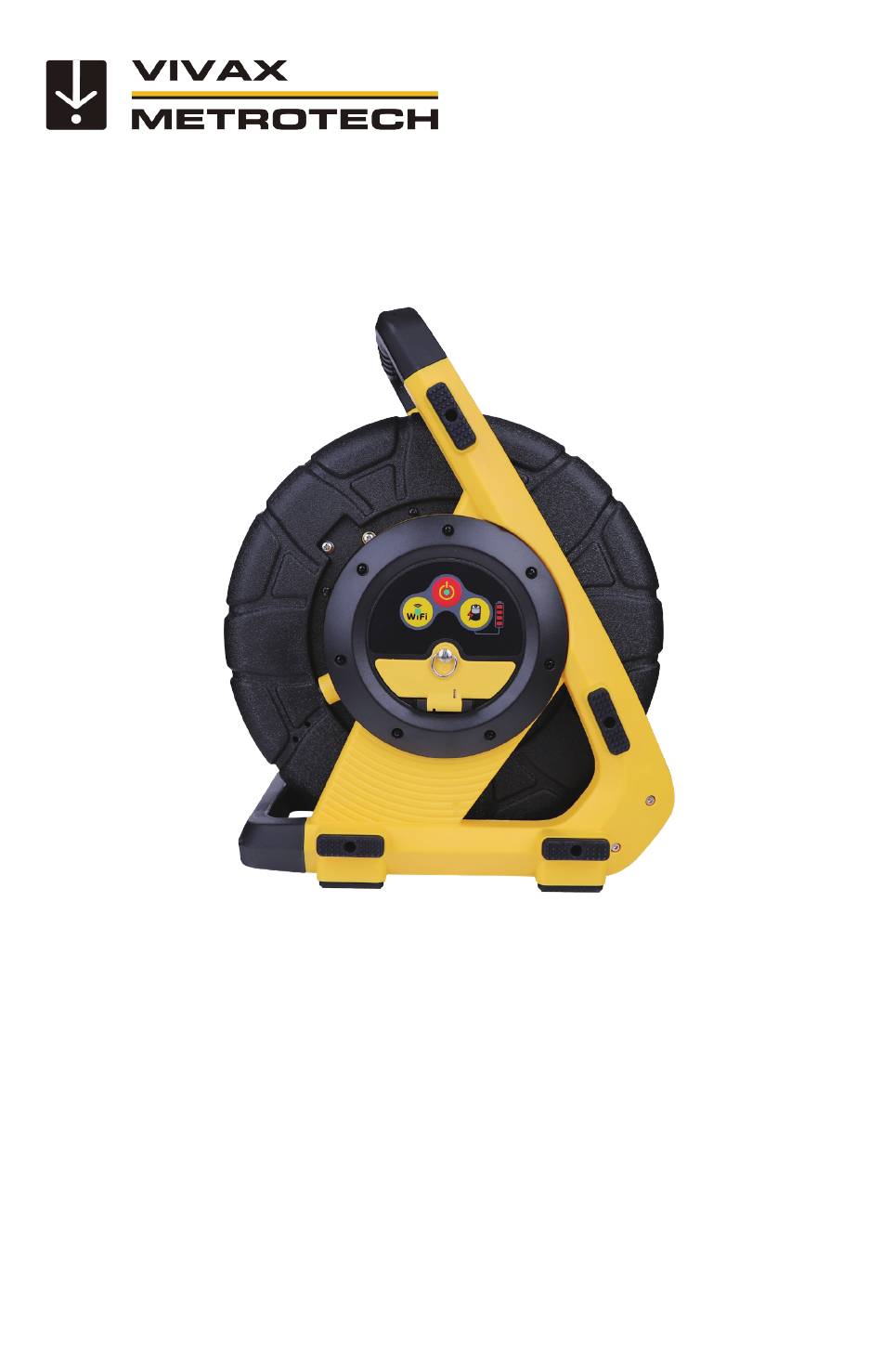

- Page 1 Wireless Reel User Manual Vivax-Metrotech Corporation...
- Page 3 General Safety & Care Information Health and Safety This device complies with Part 15 of the FCC Rules. ‹ Operation is subject to the following two conditions: This equipment is primarily used to inspect sewer pipes (1) This device may not cause harmful interference, and by professionals in the sewer and plumbing industry (2) This device must accept any interference received, and is maintained by professionals familiar with the...
-
Page 4: Table Of Contents
5. The vCam Mobile Controller App......................8 5.1 Introduction..........................8 5.2 The Start/Selection Screen......................8 5.3 Offline Access to Files (access files without being connected to the vCamDrain Reel)....9 5.4 The Main Screen........................9 6. VMC App Settings...........................11 6.1 Setting up the app options......................11 6.1.1 Manage Projects......................11... - Page 5 Table of Content 8.1 Using the Cable Reel.......................21 8.1.1 Pushrod Cable.......................21 8.1.2 Deployment of the Pushrod Cable..................21 9. Camera Heads and Terminations....................23 9.1 Camera Head..........................23 9.2 Spring Sonde Assembly......................24 9.2.1 Termination Parts List.....................24 9.3 Removing and Installing the Camera Head................24 9.4 Removing and Installing the Spring Sonde Assembly...............26 10.
-
Page 6: Service & Support
The firmware version of the reel can be found by connecting the vCam Mobile Controller app to the reel and going to the ABOUT section in the app. The vCamDrain firmware updates come in a “zip” extension file. The firmware files can be obtained at www.vivax-metrotech.com, an authorized service center, distributor, or a local Vivax-Metrotech office. -
Page 7: Worldwide Sales Offices And Service Centers
Service & Support Worldwide Sales Offices and Service Centers Worldwide Sales Offices and Service Centers World Headquarters, Central/South America United States of America and the Caribbean Vivax-Metrotech Corporation Ventas para América Latina 3251 Olcott Street, Santa Clara, 3251 Olcott Street, CA 95054, USA Santa Clara, CA 95054, USA T/Free: 1-800-446-3392... -
Page 8: Introduction
Wi-Fi - The Wi-Fi button shows the connection status of the vDamDrain. When the LED is solid the vCamDRain is ready to connect to. The Wi-Fi button is also used for USB firmware updates. Battery Status - Press this button to see the reel's internal battery status. The indicator is... -
Page 9: Vcamdrain Wireless Reel Features
Introduction vCamDrain Wireless Reel Features Handle Horizontal position feet Power button and indicator Power/Media Compartment Battery status indicator Rubber feet Power/Media Compartment Wi-Fi status LED USB Port AC/DC Charging socket Cable drum Brake Serial number/model label Camera head Spring/Sonde assembly... -
Page 10: Vcamdrain Setup
Setup 3. vCamDrain Setup Initial Setup 3.1.1 Charging the Internal Battery Plug the supplied battery charger into the reel's AC/DC charging socket. The charging icon on the battery status indicator will glow red while charging and glow green when fully charged. -
Page 11: Wi-Fi Connection For App
Wait, in approximately 30 seconds for the green light in the center of the Wi-Fi button to glow. This shows that the unit is now ready to connect to the app. Launch the vCam Mobile Controller App. Tap on the vCamDrain icon at the Start Screen. -
Page 12: Check For A Firmware Update
1. Connect to the vCam Drain Reel via Wi-Fi. 2. If the vCamDrain Wireless Reels firmware is out of date a pop-up dialog box will appear advising so. 3. Select OK to proceed with the firmware update or select Cancel to skip the update process. -
Page 13: The Vcam Mobile Controller App
The vCam Mobile Controller App 5. The vCam Mobile Controller App The vCam Mobile Controller (VMC) controls all the functions of the vCamDrain Wireless Reel. This manual covers the operation of the vCam Mobile Controller app when used with the vCamDrain Wireless Reel. -
Page 14: Offline Access To Files (Access Files Without Being Connected To The Vcamdrain Reel)
The vCam Mobile Controller App Offline Access to Files (access files without being connected to the vCamDrain Reel) All files created in the vCam Mobile Controller app are stored in the app in the Gallery. The Gallery can be accessed without being connected to a control module. - Page 15 The vCam Mobile Controller App Recording in progress icons – When a recording is in progress: 1. The inside top portion of the recording icon will blink red. 2. The video elapsed time and size will appear in red above the recording icon. Pause and resume a video recording –...
-
Page 16: Vmc App Settings
VMC App Settings 6. VMC App Settings Enter the VMC app settings by tapping the Settings icon. To return to the Main Screen tap the Settings icon again or tap on the Step Back/Exit icon. Setting up the app options At the time of publishing this manual, the Settings menu consists of the following: Manage Projects Sonde Frequency... -
Page 17: Sonde Frequency
VMC App Settings 6.1.2 6.1.2 Sonde Frequency Sonde Frequency Set the sonde frequency to use when the sonde icon is selected. Select from 512Hz, 640Hz or 33kHz. Tap the Step Back icon to return to the Settings menu. 6.1.3 6.1.3 Video Settings Video Settings Set the video quality and frames per second. -
Page 18: About
VMC App Settings 6.1.9 6.1.9 About About System Information The About screen contains important vCamDrain Serial Number: 11301190002 information needed when calling for technical vCamDrain Firmware Version: 6.38 support. This screen shows the connected App version: 1.6 (19) units firmware version, VMC app version and Support serial number. -
Page 19: Using The Vcam Mobile Controller App
– Tap on the Join icon of the control module to connect. Connect to device? vCam Mobile Controller will use a temporary Wi-Fi network to connect to the device. “vCamMobileController” Wants to join Wi-Fi Network vCamDrain-1130119000002 “vCamDrain1130119000002”? vCamDrain-130119000012 Cancel Cancel Join... -
Page 20: Capturing Jpeg Images (Taking Pictures)
Using the vCam Mobile Controller App 2. To end the recording video tap on the red flashing Record icon again. 7.1.3 7.1.3 Capturing JPEG images (taking pictures) Capturing JPEG images (taking pictures) Tap the JPEG button to capture a JPEG image. The screen will momentarily flash yellow confirming a captured image. -
Page 21: Reviewing Files In The Gallery
Using the vCam Mobile Controller App 7.1.5.3 Reviewing Files in the Gallery In the Gallery files can be reviewed, shared or deleted. This section will cover reviewing the files. 1. Tap on a Thumbnail to enter that Project's gallery. Gallery Main Screen Gallery Review Screen... - Page 22 Using the vCam Mobile Controller App 2. Tap on a Video Thumbnail to enter the video review screen. The video review screen While in the Review screens swiping right to left and back will scroll through all of the files in that Project folder. 3.
-
Page 23: Sharing (Export) Files And Projects
Using the vCam Mobile Controller App 7.1.6 7.1.6 Sharing (Export) Files and Projects Sharing (Export) Files and Projects Files created in the VMC app can be shared (exported) in several ways. • Use the share features native to the iOS and Android platforms. •... -
Page 24: Sharing Single Files
Using the vCam Mobile Controller App 3. The sharing dialog box will appear. Make your selections and continue. File sharing dialog box 7.1.6.2 Sharing Single Files 1. Tap any thumbnail in the Project to enter its Gallery. 2. Tap the Share icon and checkboxes will appear in the bottom right corner of each thumbnail. -
Page 25: Deleting Files
Using the vCam Mobile Controller App 4. Select OK in the Export files dialog box. Export The number of files that will be exported are 4: 2022_08_17_11_17_5.jpg, 2022_08_17_11_17_3.mp4, 2022_08_17_11_17_1.jpg, 2022_08_17_11_17_3.jpg! Cancel 5. Use the Share dialog box to complete the operation. 7.1.7 7.1.7 Deleting Files... -
Page 26: Cable Reels
Cable Reels 8. Cable Reels Using the Cable Reel 8.1.1 8.1.1 Pushrod Cable Pushrod Cable The Pushrod Cable comprises a fiberglass rod surrounded by wire conductors and a Kevlar braid coated with a thick polypropylene jacket. Because of the harsh environment the pushrod is used in, care should be taken to keep it in good operating condition. - Page 27 Cable Reels MX Mini Reel Cable Guide Locking and Friction Brake Before deploying the pushrod you should: a) Remove any standing water from the pipe. The images will be much better if the camera head is not underwater. b) Remove debris and objects from the pipe first. The camera is made to inspect the insides of pipes and not to clean or unblock them.
-
Page 28: Camera Heads And Terminations
9. Camera Heads and Terminations Camera Head The vCamDrain ships standard with the D18-HD camera head. Check with your local distributor or Vivax-Metrotech office for optional camera heads that may be used with the vCamDrain system. A 2.5mm flat blade screwdriver is included in the kit for the standard skid removal and installation. -
Page 29: Spring Sonde Assembly
Touching these will transfer oils from the fingers to these components, leading to premature corrosion. Wear clean rubber gloves if possible. The vCamDrain is supplied with tools for camera and spring removal and installation. 3-Point tool for spring removal/installation... - Page 30 Camera Heads and Terminations Camera head removal 1. Use one camera tool to hold the flats on the spring. 2. Place the flats of the other tool on the camera head flats and turn counterclockwise until the camera is loosened. 3.
-
Page 31: Removing And Installing The Spring Sonde Assembly
Camera Heads and Terminations Removing and Installing the Spring Sonde Assembly Don’t touch the green circuit board, gold pins on the spring sonde assembly, or camera head with bare hands. Touching these will transfer oils from the fingers to these components, leading to premature corrosion. -
Page 32: Troubleshooting
2. Check the control module or vCamDrain reel has the latest software installed. 3. Check that the SSID on the control module or vCamDrain reel starts with "vCam." If the SSID was changed the app might be unable to find the control module. - Page 33 Illustrations used in this manual's preparation will inevitably show some resemblance to similar images from other manufacturers. These manufacturers have permitted the use of their graphics, and this statement is intended to attribute such credit. ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. iOS is a Cisco Systems, Inc.
- Page 35 Vivax-Metrotech Corporation 3251 Olcott Street, Santa Clara, CA 95054, USA Toll-Free: 1-800-446-3392 Phone: +1 (408) 734-1400 Website: www.vivax-metrotech.com Online Manual 4.04.000241 © 2023 Vivax-Metrotech Corporation 04/04/2023 V1.0...
