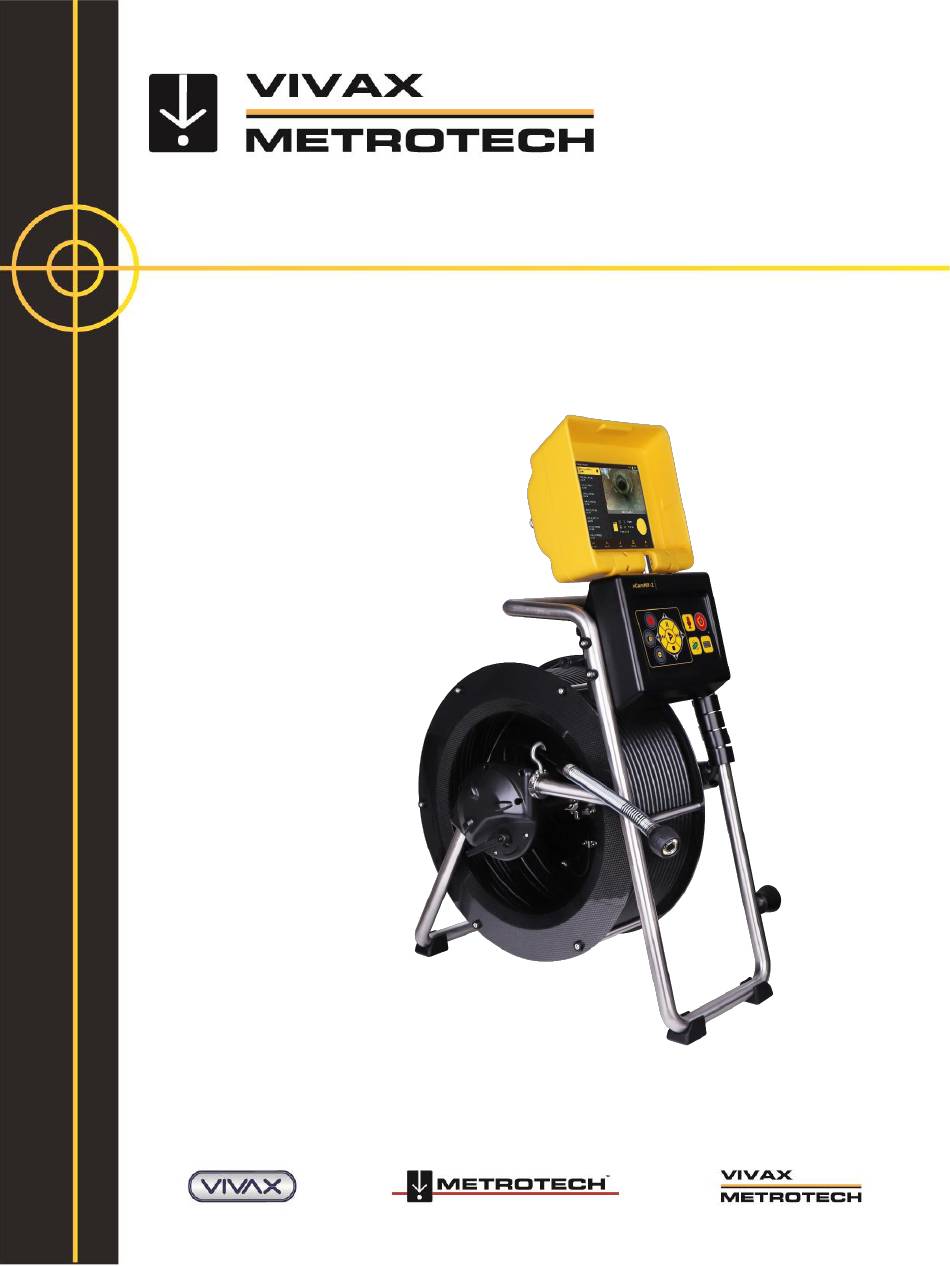

- Page 1 vCamMX-2 Technical Specifications V1.0...
- Page 2 vCamMX-2+ Technical Specifications V1.0 Worldwide Locations World Headquarters, United States of America Central/South America and the Caribbean Vivax-Metrotech Corporation Ventas para América Latina 3251 Olcott Street, Santa Clara, CA 95054, USA 3251 Olcott Street, Santa Clara, CA 95054, USA T/Free : 1-800-446-3392 T/Free : 1-800-446-3392 : +1-408-734-3880 : +1-408-734-3880...
-
Page 3: Typical Applications
vCamMX-2+ Technical Specifications V1.0 A. Typical Applications Component Specification Purpose A tool to inspect and produce digital video recordings and JPEG images of the interior of small- diameter drains, conduits, and ducts. The most typical application is the inspection of sewer laterals and plumbing. - Page 4 vCamMX-2+ Technical Specifications V1.0 Storage • USB Port – Supports up to 128 GB Removable USB Drives • SD Card Slot – Supports up to 64GB Removable Class 10 SD Cards • File Format MP4 Video • JPEG Still image capture Display 8”...
-
Page 5: Microphone Operation
vCamMX-2+ Technical Specifications V1.0 Operator Controls Controls Functions Camera LED Dimmer Push-button control on the front panel to adjust the brightness of the camera LEDs Distance Counter Push-button control on the front panel to zero distance count* The approximate distance of the pushrod deployed, in feet or meters, is displayed on the LCD with the option to appear in still images or recorded video. - Page 6 vCamMX-2+ Technical Specifications V1.0 Media Sockets USB 2.0 and SD card socket located in the media compartment supports up to 128GB USB 2.0 Drives and 64GB SD Cards DC Power 12V 1 Pin male circular socket for DC power cable assembly C.
- Page 7 vCamMX-2+ Technical Specifications V1.0 D. Camera Heads for the Type-MX Reel D26-HD, 1-inch (26mm) self-leveling color camera Component Specification Model Name D26-HD Model Number VX112-3 Application Used with the Type-MX reel in pipe diameters from 2 to 4 inches / 50 to 101mm Resolution 1080p, 25 FPS Focus Point...
-
Page 8: Warranty
vCamMX-2+ Technical Specifications V1.0 Aperture / Field of View 90º Lighting 69 Lumens Measure at 1 meter in 4-inch cast iron pipe Auto Upright None, fixed position, non-leveling camera Construction Stainless-steel housing with scratch-resistant Sapphire lens Environmental Water resistance up to 11 BAR pressure Temperature Range Storage: -4ºF to 158ºF (-20ºC to +70ºC), Operating: 14ºF to 122ºF (-10ºC to +50ºC). - Page 9 vCamMX-2+ Technical Specifications V1.0 G. Note *The distance count shown on the LCD is designed to provide an estimate. The camera should always be located with care using a Sonde or Pipe and Cable Locator. Shipping dimensions and weights are approximate. This product’s LCD is a consumer product, and models may change.
