Vivax Metrotech vCam-6 Quick Manual

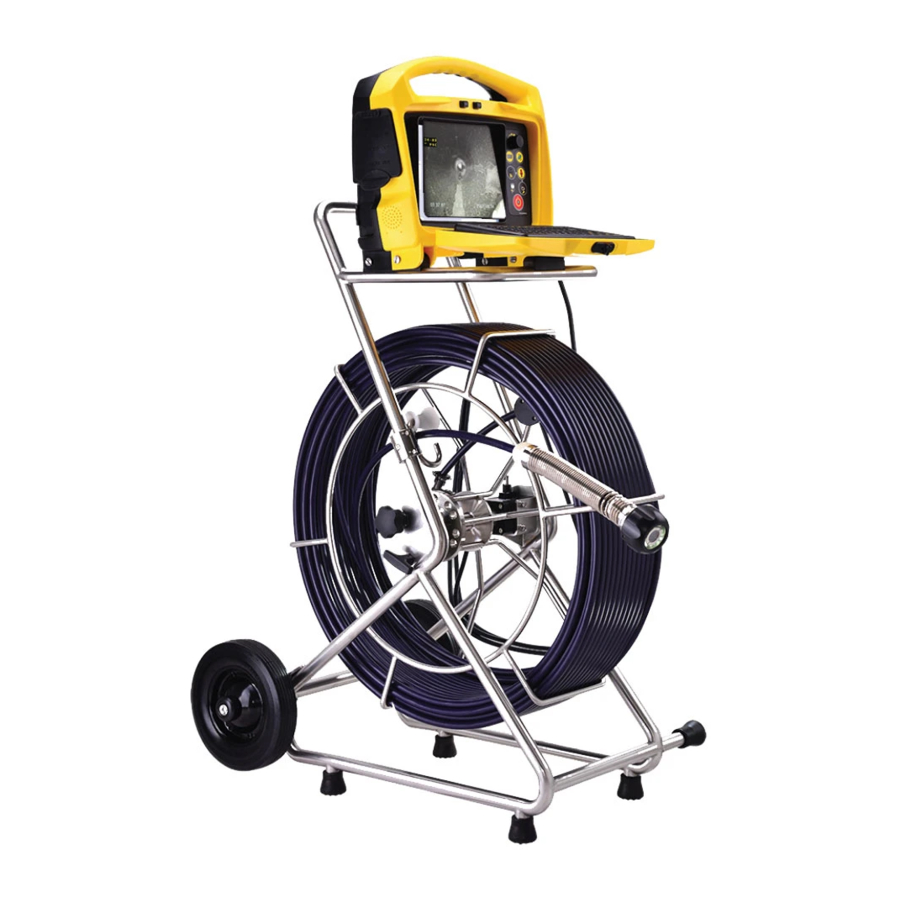

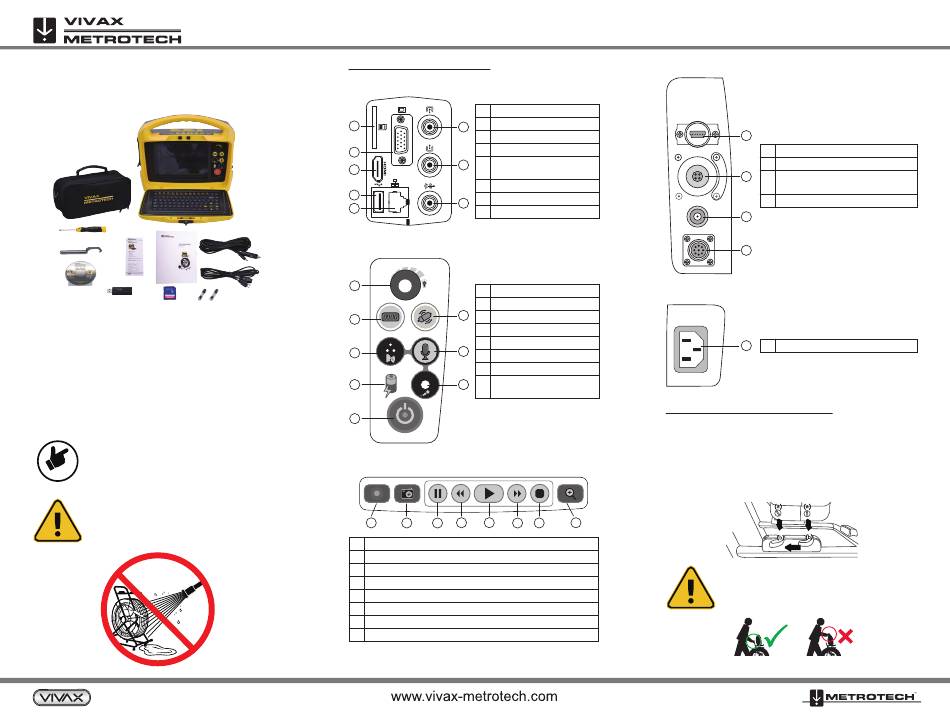

vCam-6
Quick Guide V1.5
What's in the box:
- SD card - Camera removal tool
- Flat screwdriver
- USB thumb drive
- 12V DC power cord - CD with user handbook & codecs
- AC power cord - Carry pouch
Refer to the user manual for detailed instructions, safety
and care information.
Fuse - Make sure the 10A-250V fuse is installed
in the fuse compartment on the back of the
unit.
NOTE
Do not use pressure washers to clean the
reel, pushrod, spring assembly or camera
heads. Use low-pressure water to rinse off
the reel components.
Control Module Interface
Media Ports (left side)
1 SD Card Slot
2 VGA Port
1
6
3 HDMI Out Port
4 USB Port
2
RJ45 Ethernet Port
7 5
3
(for factory use)
6 Video In Socket
4
7 Video Out Socket
8
5
8 Audio Out Socket
Main Controls (front panel)
1
1 LED Dimmer Control
2 Distance Counter Reset*
3 Internal Microphone
6
2
4 Battery Charging Indicator
5 Power On/Off
7
3 6 Sonde On/Off
7 Microphone On/Off
External Microphone
4 8 8
Socket
*Note that you must verify the actual
position and depth with a Sonde
5
Locator or Pipe & Cable Locator
before excavating pipe.
Video Recording/Playback Controls
1 2 3 4 5 6
1 Start / Stop Video Recording
2 JPEG Snapshot Capture
3 Pause Video Recording or Playback
4 Rewind Video Playback
5 Play Video
6 Fast Forward Video Playback
7 Stop Video Recording or Playback
8 Digital Zoom
Power/Interconnect Sockets (right side)
AC in Power Socket (bottom left side)
Mounting the Control Module
1. Line up the control module's mounting pins(a) to the open
slots on the reel mounting plate.
2. Lower the control module into the reel mounting plate(b).
3. Standing in front of the control module, push the bottom
of the control module backward until the control module
locks in place.
7 8
1
1 Data Port
2 Camera Head Test Port
External 12V DC Power
2
3
(IN) Socket
4 Reel Interconnect Cable Socket
3
4
1 AC Power (IN) Socket
1
Do not use the Control Module as a handle
to move the reel. Move the reel only by the
reel's handle.
P/N: 4.04.000088
