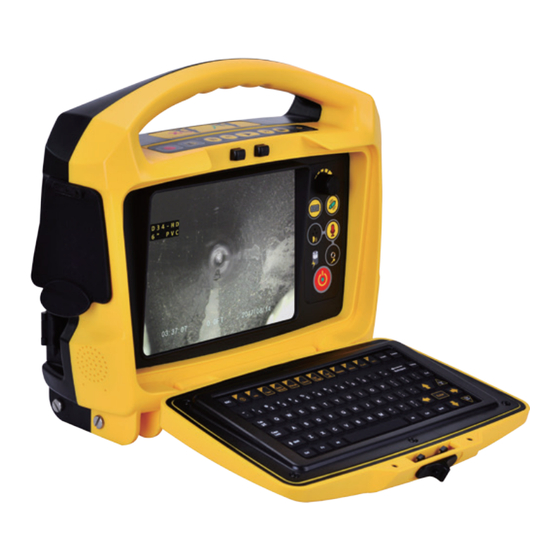

vCam-6
Quick Guide V1.1

Standard package includes:

- SD card
- USB thumb drive
- Ethernet cable
- 12V DC power cord
- AC power cord
- Camera removal tool
- Flat screwdriver
- CD with user handbook & codecs
- Carry pouch
Refer to the user manual for detailed instructions, safety and
care information.
Fuse – Make sure the 10A-250V fuse is installed in the fuse
compartment on the back of the unit.
Vivax-Metrotech Corporation (USA)
3251 Olcott Street, Santa Clara, CA 95054, USA
T/Free: 800-446-3392 Tel: +1-408-734-1400
Fax: +1-408-734-1415 Email: sales@vxmt.com
Vivax-Metrotech Ltd. (UK)
Unit 18-19, Woodside Road,
South Marston Industrial Estate, Swindon, SN3 4WA, UK
Free Phone: 0800 0281811
Tel: +44(0)1793 822679 Email: salesUK@vxmt.com
Vivax Canada Inc. (Canada)
41 Courtland Ave Unit 6, Vaughan, ON L4K 3T3, Canada
Tel: +1-289-846-3010 Fax: +1-905-752-0214
Email: CanadianSales@vxmt.com

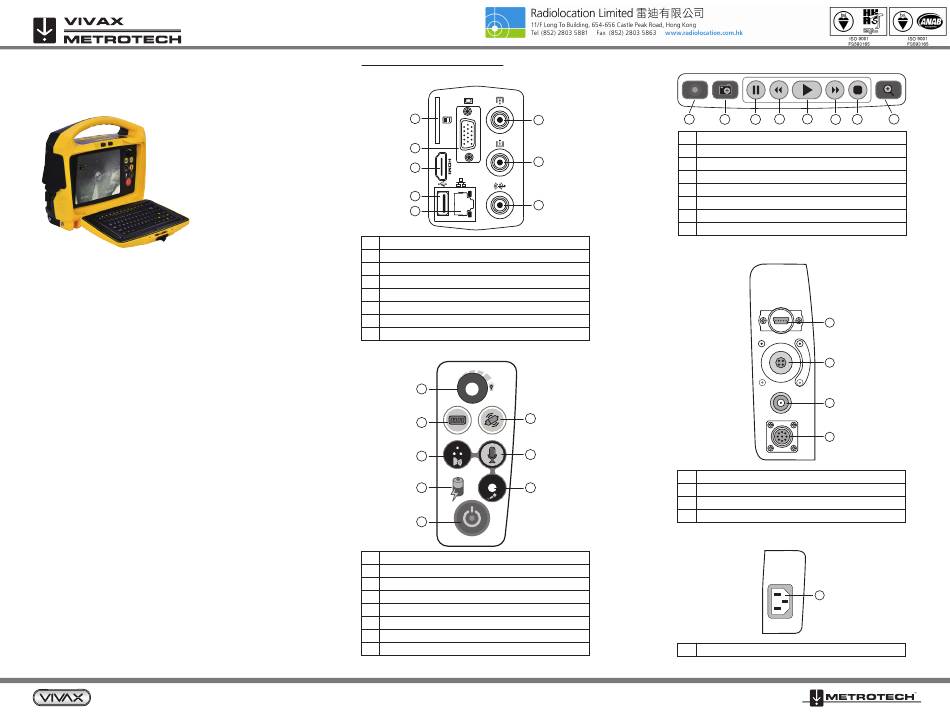

Control Module Interface

Media Ports (left side)

1
2
3
4
5
1 SD Card Slot
2 VGA Port
3 HDMI Out Port
4 USB Port
5 RJ45 Ethernet Port
6 Video In Socket
7 Video Out Socket
8 Audio Out Socket

Main Controls (front panel)

1
2
3
4
5
1 LED Dimmer Control
2 Distance Counter Reset*
3 Internal Microphone
4 Battery Charging Indicator
5 Power On/Off
6 Sonde On/Off
7 Microphone On/Off
8 External Microphone Socket
*Note that it is important that you verify the actual position and depth
with a Sonde Locator or Pipe & Cable Locator before excavating pipe.
w w w . r a d i o l o c a t i o n . c o m . h k
Video Recording/Playback Controls
1
6
1 Start / Stop Video Recording
2 JPEG Snapshot Capture
7 3 Pause Video Recording or Playback
4 Rewind Video Playback
5 Play Video
6 Fast Forward Video Playback
8
7 Stop Video Recording or Playback
8 Digital Zoom

Power/Interconnect Sockets (right side)

6
7
1 Data Port
8 2 Camera Head Test Port
3 External 12V DC Power (IN) Socket
4 Reel Interconnect Cable Socket

AC in Power Socket (bottom left side)

1 AC Power (IN) Socket
2 4 5 7 8
3 6
1
2
3
4
1
