Measurement mode
•Placement verification screen (Main screen)
The Placement condition is indicated by the switch output status (ON/OFF).
•Level meter (Sub screen)
Element
Switch point value bar
Level meter
○

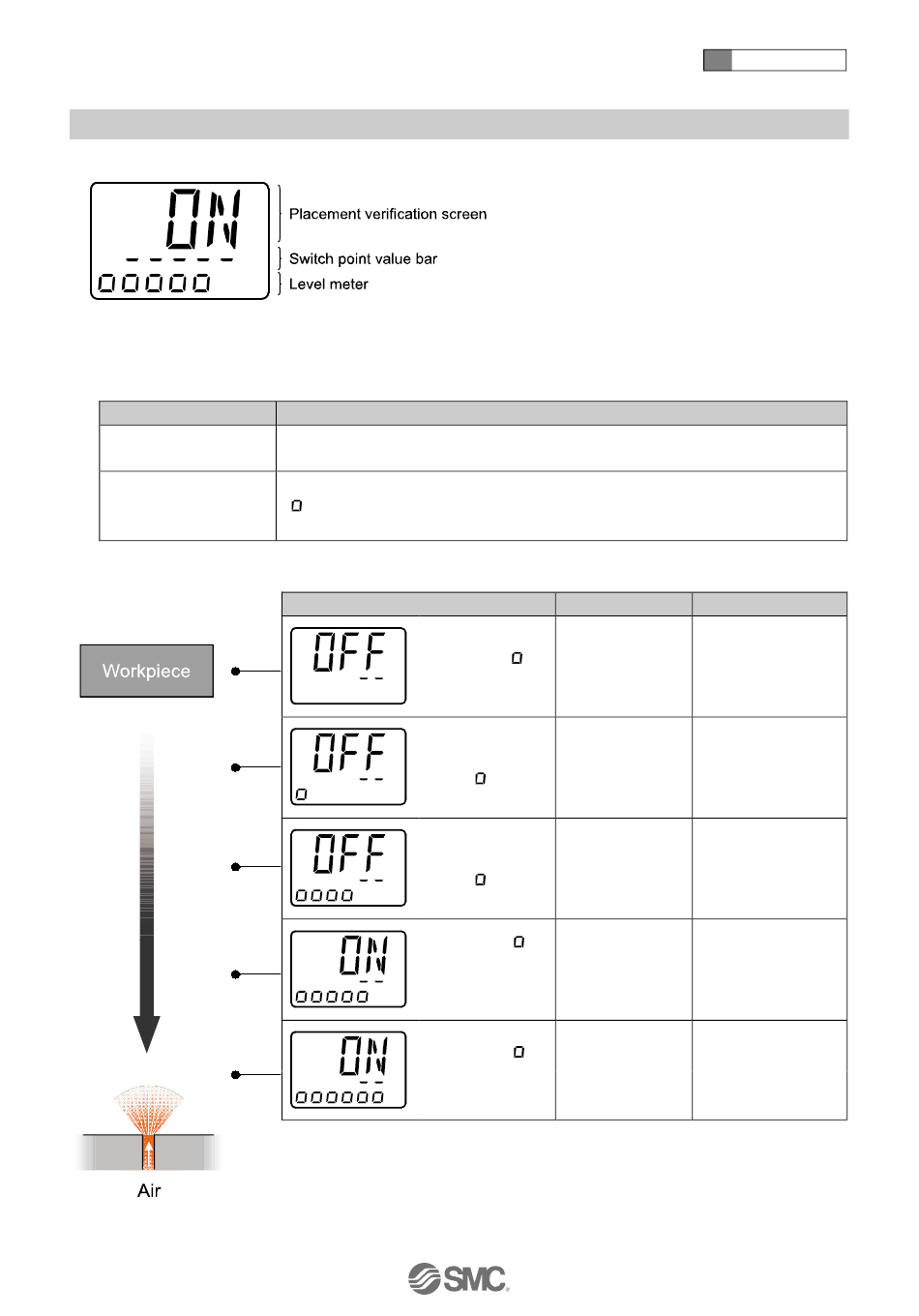

Relationship between the display and the placement status (Example)
・
・
・
Placement surface
(Detection nozzle)
A bar to indicate the switch point value which has been set, is automatically
displayed. Refer to how to change the switch point value (page 44).
The workpiece gap condition approaching the nozzle is indicated by the number of
" " displayed.
.
This display is a reference only. It is not an accurate distance measurement.
Display
Level meter " " is
not displayed.
Switch point value
bar "- -" and level
meter " " are not
close.
Switch point value
bar "- -" and level
meter " " are
close.
Level meter " "
has reached
switch point value
bar "- -".
Level meter " "
reaches its
maximum.
-42-
Description
Placement status
Detection surface
and the workpiece
are very distant.
Detection surface
and the workpiece
are too far apart.
Detection surface
and the workpiece
are slightly apart.
Workpiece is
placed on the
detection surface.
Workpiece is in
close contact with
the detection
surface.
4 How to use
Switch output
Switch output is OFF.
Switch output is OFF.
Switch output is OFF.
Switch output is ON.
Switch output is ON.
