Switch Point Setting

■

Switch point change mode

The mode in which the switch point value can be changed.
To change the hysteresis etc., refer to the function selection mode on page 48.
■

Table of default settings

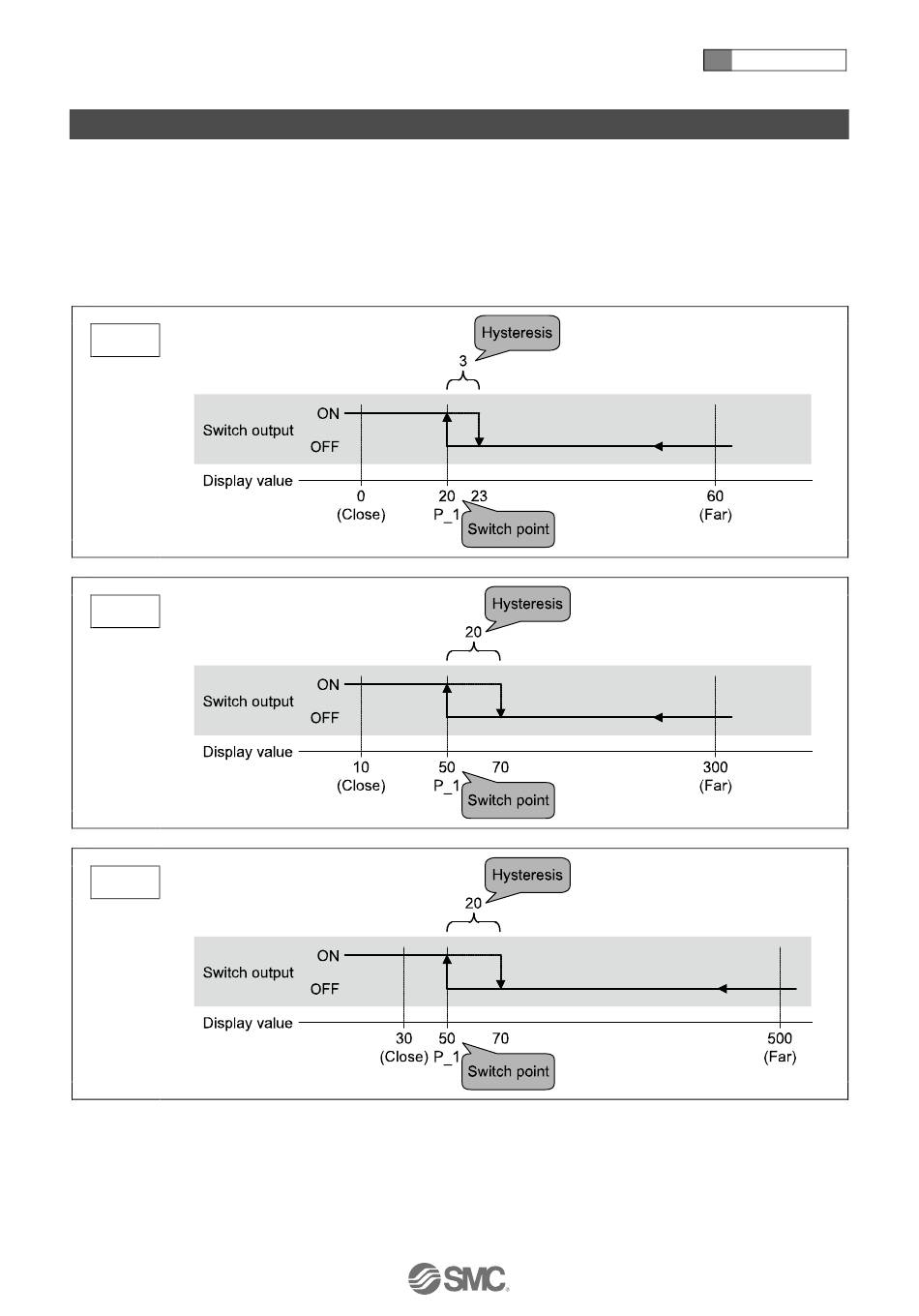

Refer to the figure below for the default settings.
ISA3-F
ISA3-G
ISA3-H
The switch output turns ON when the display value is less than switch point. (Solid line in the chart)
The switch output turns OFF when the display value is greater than the switch point added to the hysteresis
value. (Dashed line in the chart)
Refer to the following pages for how to change the settings.
