SMC Networks IZH10 Series Quick Start Manual

Series
Accessories and Option / Part Number for Individual Parts
Ground wire (1.5 m) / Accessories
IZH-A-01
Ground wire
Specifications
Model
Rated charge amount range
Minimum display unit
Measurement distance
Note 1)
Power supply
Display accuracy
Enclosure
Operating temperature range
Operating humidity range
Vibration resistance
Impact resistance
Material
Mass
Standards
Accessories
Note 1) 2A alkali dry cell batteries are not included, and must be acquired separately.
Note 2) When new alkali dry cell batteries are used at ordinary temperature.
1100

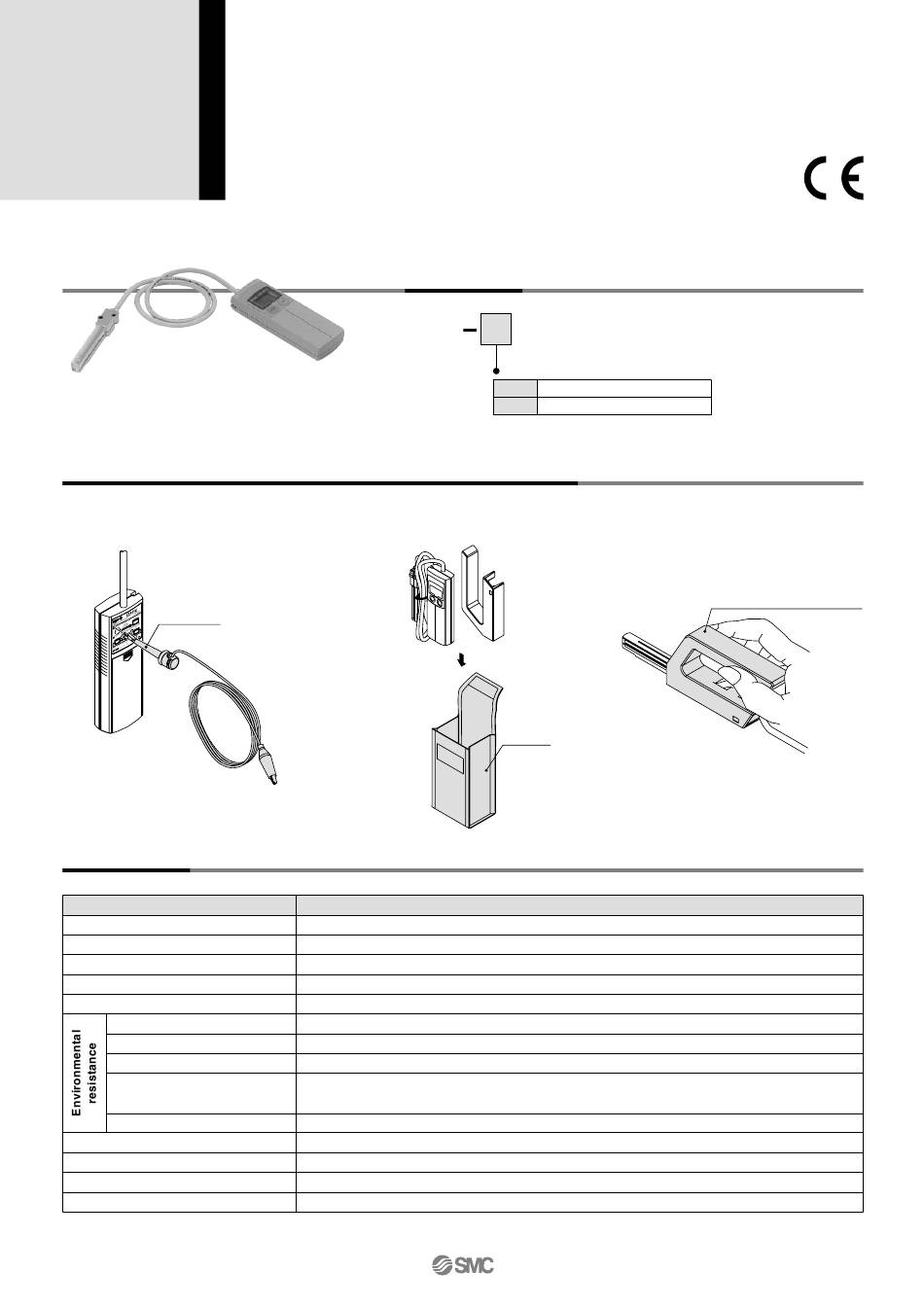

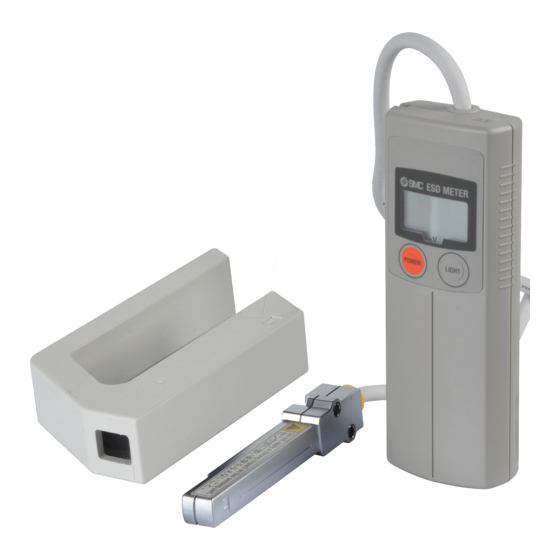

Handheld Electrostatic Meter
How to Order
IZH 10
Soft case / Accessories
IZH-B-01
1.5 VDC 2A alkali dry cell battery, 2 pcs (continuous use for 15 hours or more, see
Operating: 0 to 40°C, Stored: –10 to 60°C (with no freezing or condensation)
10 to 150 Hz at whichever is smaller of 1.5 mm amplitude or
98 m/s
IZH10
Option
Nil None
H
High-voltage measuring handle
Soft case
IZH10
±20.0 kV
0.1 kV (±1.0 kV to ±20.0 kV), 0.01 kV (0 to ±0.99 kV)
50 mm (between sensor part and measured target)
±5% F.S. ±1 digit
IP40
Operating/Stored: 35 to 85% R.H. (with no condensation)
2 acceleration, in X, Y, Z directions for 2 hs. each (De-energized)
2
100 m/s in X, Y, Z directions 3 times each (De-energized)
Display part: PC/ABS Sensor part: ABS
85 g (excluding dry cell batteries)
CE marking
Ground wire, Soft case
∗
The ground wire and soft case
are attached to the IZH series.
High-voltage
measuring handle / Option
IZH-C-01
High-voltage measuring handle
Note) Be sure to use a high-voltage measuring
handle in situations such as during high-
voltage measurement when there is a
possibility of personnel coming in contact
with electricity.
Note 2)
)
