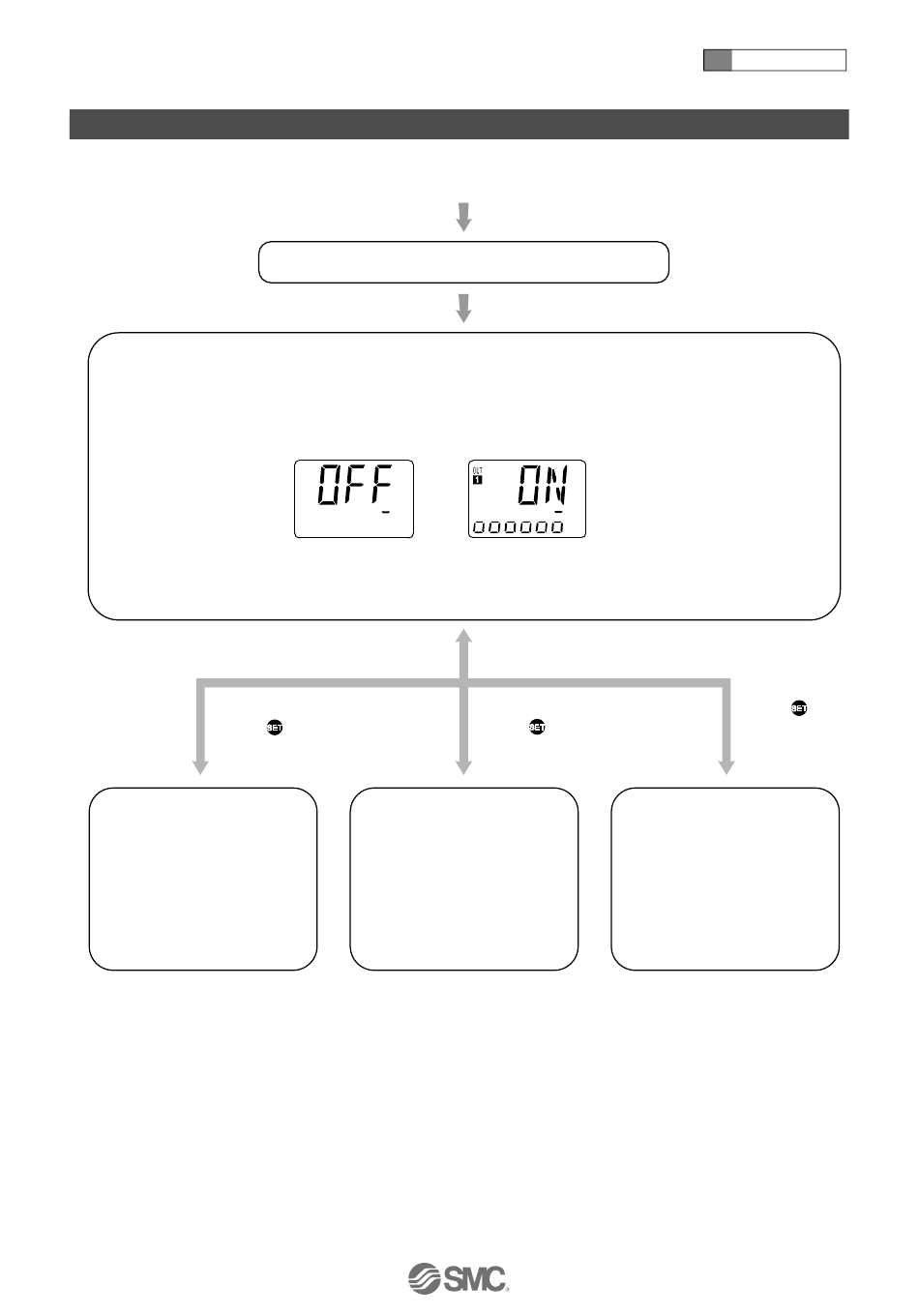

Outline of setting

Measurement mode starts automatically when supply pressure is between 80 and 220 kPa.
Switch status ON or OFF will be displayed on the main screen.
Level meter will be displayed on the sub screen (default setting). ∗
Press
button once.
Switch point
change mode
The switch point value can
be changed.
(Refer to page 44)
∗: Parameters other than the level meter can be displayed, by selecting the parameter using function selection mode [F10].
(Refer to page 52)
Power is supplied
The identification code of the product is displayed.

Measurement mode

OFF displayed
(Refer to page 42)
Function
selection mode
Each function can be
changed individually.
(Refer to page 46)
-41-
ON displayed
Press button
for 2 seconds or
longer.
4 How to use
Press
button for 5
seconds or
longer.
Key lock
mode
(Refer to page 58)
No.PS※※-OMR0002-K
