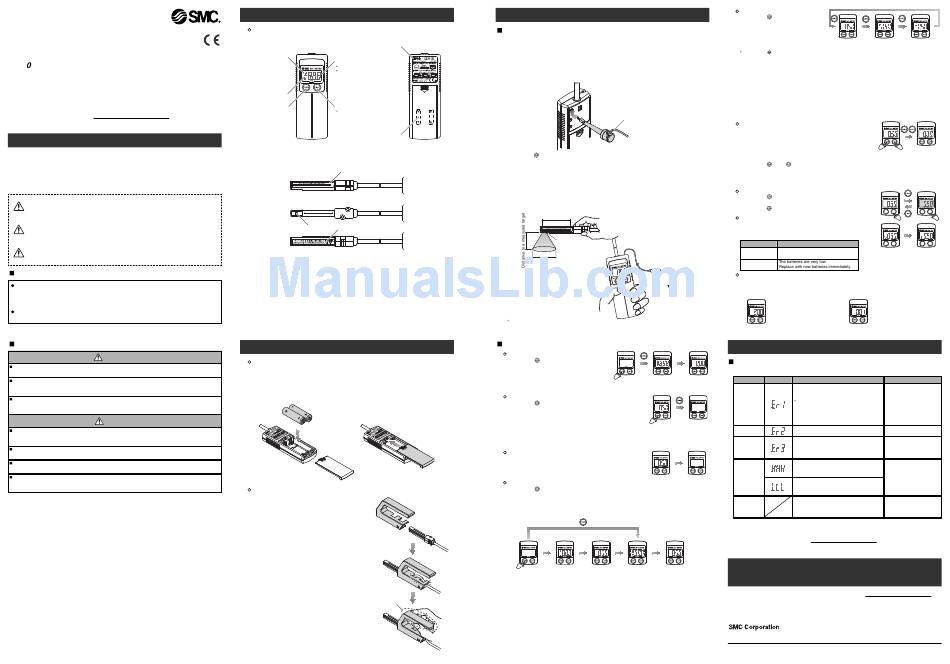

SMC Networks IZH10 Series Operation Manual

Handheld Electrostatic
Meter
Operation Manual
IZH1
Thank you for purchasing an SMC IZH10 Series Handheld Electrostatic Meter.
Please read this manual carefully before operating the product and make sure you
understand its capabilities and limitations.
Please keep this manual handy for future reference.
To obtain more detailed information about operating this product, please
refer to the SMC website (URL http://www.smcworld.com) or contact SMC
directly.
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or
equipment damage.
These instructions indicate the level of potential hazard with the labels of
"Caution", "Warning" or "Danger". They are all important notes for safety and must
be followed in addition to International standards (ISO/IEC) and other safety
regulations.
CAUTION indicates a hazard with a low level of risk
Caution:
which, if not avoided, could result in minor or
moderate injury.
WARNING indicates a hazard with a medium level of
Warning:
risk which, if not avoided, could result in death or
serious injury.
DANGER indicates a hazard with a high level of risk
Danger:
which, if not avoided, will result in death or serious
injury.
Operator
This operation manual is intended for those who have knowledge of machinery
using pneumatic equipment, and have sufficient knowledge of assembly,
operation and maintenance of such equipment. Only those persons are
allowed to perform assembly, operation and maintenance.
Read and understand this operation manual carefully before assembling,
operating or providing maintenance to the product.
Safety Instructions
Warning
Do not disassemble, modify (including change of printed circuit board) or repair.
An injury or failure can result.
Do not operate outside of the specification.
Fire, malfunction or damage can result.
Please use it after confirming the specification.
Do not operate in an atmosphere containing flammable or explosive gases.
Fire or an explosion can result.
The product is not designed to be explosion proof.
Caution
Avoid strong impact on the product
Do not drop, hit or apply excessive shock to the product while handling.
It can cause failure.
Do not contact the sensor with the measured target.
It can cause failure.
Do not handle with wet hands.
This can cause electric shock.
Provide grounding to ensure safety and accurate measurement.
Improper grounding of the ground wire can cause electrical charge to build up at the sensor and ground terminal of
the product and discharge to the user.
Summary of Product parts
Names of individual parts
•Display
Ground terminal
Peak hold: "P"
Bottom hold: "b"
LCD
Charge amount
Peak/Bottom hold value
Battery saving: "L"
Power button LIGHT button
Switch on and off Back light ON/OFF
the power supply
LR6 dry cell battery
(2 pcs.)
•Sensor
Sensor label
Detecting port
Caution label for sensor
Assembly
Insertion of batteries
Slide the cover of the case open to insert the batteries.
Use 2 x AA (LR6) alkaline dry cell batteries.
When inserting the batteries, pay attention to the polarities and insert them in
the correct direction.
After insertion, ensure the cover is closed correctly.
Mounting of the high voltage measuring handle (option)
1. Insert the sensor into the handle in the
direction shown.
2. Fix the cable to the handle as shown.
Handle
3. The assembly is complete and the handle is
now ready for use.
Setting / Adjustment
Procedure
1. Insert the batteries.
2. Connect the ground wire.
Connect the ground wire to a point suitable for connection to an external
protective earthing system.
The position for attaching the ground wire to the Handheld meter is shown
below.
Ground wire
3. Press the button.
4. Move the sensor closer to the position 50 mm away from the measured target.
Gradually bring the sensor closer to the measured target from a distance, and
stop measurement immediately if the displayed value indicates overflow
(HHH) or underflow (LLL).
(The target has a high charged potential that is highly dangerous. The
measured value does not change even if the distance is shortened.)
5. Check the display.
Reference of 50 mm
Detecting port
Detecting range
Protected earth
: The detecting range of the sensor is 180 mm (at a detection distance of 50 mm).
Function settings
Power ON
When the is pressed with the power
supply off, the power supply will be
1 s. after
turned on.
All indications
All indications are displayed for 1 s.
after the power supply is turned on.
Power OFF
When the is pressed for 3 s. or more with the
power supply on, the power supply will be turned off.
3 s.
Also, no button operation for a certain period will turn
off the power supply.
(For details, refer to Auto power-OFF function.)
Turn off the power supply after using the product to keep the life of batteries
as long as possible.
Auto power-OFF
If no button is pressed for 5 min. or more with the
power supply on, the power supply will turn off
5 min.
automatically.
Auto power-OFF extension
When the is pressed for 6 s. or more with the power supply off, the
continuous operating time with no button operation will extend to 15 min.
(When this auto power-off extension is activated, indications on the display
will keep flashing for 3 s.)
6 s.
3 s. after
All indications Instantaneous Flashing Instantaneous
value indication value indication
Peak / Bottom hold value
When the is pressed with the
power supply on, the indication
will be changed to instantaneous
value, peak hold value, bottom
hold value and instantaneous Instantaneous
value indication
value, in that order.
: Release the after "P" or "b" is displayed so as not to turn off the power supply.
•Peak hold value
The maximum charged potential and "P" are displayed.
The maximum charged potential is continuously detected and updated from
when the peak hold is started. If the value over the held maximum charged
potential is detected, the display will change.
•Bottom hold value
The minimum charged potential and "b" are displayed.
The minimum charged potential is continuously detected and updated from
when the bottom hold is started. If the value under the held minimum
charged potential is detected, the display will change.
Zero clear
A displayed value can be adjusted to zero at
measured charged potential in a range of ±5%F.S. of
default potential.
(There will be a slight displacement, depending on
the deviation of the sensor itself and ambient
environment of the sensor when the zero clear is performed.)
When the and are pressed for 6 s. or more with the power supply on,
the displayed value is reset to zero, and then the measuring mode is
recovered automatically.
Once the power supply is turned off, the offset value for zero clear is cleared.
Back Light
When the is pressed while the charged potential
is displayed, the back light will turn on.
Press the button again to turn off the back light.
Battery low
When the battery voltage becomes low "L" will be
displayed. The display will vary depending on how
much battery is left.
Display Content
L The batteries are low.
(Flashing) Prepare to replace with new batteries.
L
(On continuously)
Display resolution change
The display resolution changes depending on the measured charged potential
value.
<Display example>
±1 to ±20 kV
Minimum display unit:
0.1 kV
Troubleshooting
Error Indication
This function is to display error location and content when a problem or an error occurs.
Instantaneous
Error Name Error Display Error Type
value indicatio
When zero clear was performed, a charge
exceeding ±5%F.S of the default zero point was
present.
Zero clear : After approx. 1 s. error display, the sensor
error returns to measurement mode.
kV This time will depend on the deviation of the
product itself and ambient environment during
zero clear operation.
Sensor failure The sensor is broken.
System error Error in internal data.
The charge has exceeded the upper limit of the
measurable voltage range, or the measuring
distance is not suitable.
Measurement
error
The charge has exceeded the lower limit of the
measurable voltage range, or the measuring
distance is not suitable.
The cable is broken and the product cannot
measure correctly. The charge amount is
Cable broken
detected, but not reflected in the displayed
value.
If the error cannot be reset after the above measures are taken, then please
contact SMC.
Refer to the SMC website (URL http://www.smcworld.com) for more information
about troubleshooting.
Specifications
Outline with Dimensions (in mm)
Refer to the product catalogue or SMC website (URL http://www.smcworld.com) for
more information about the product specifications and outline dimensions.
URL http://www.smcworld.com
Akihabara UDX 15F, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, JAPAN
Phone: +81 3-5207-8249 Fax: +81 3-5298-5362
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
