3 Installation
○

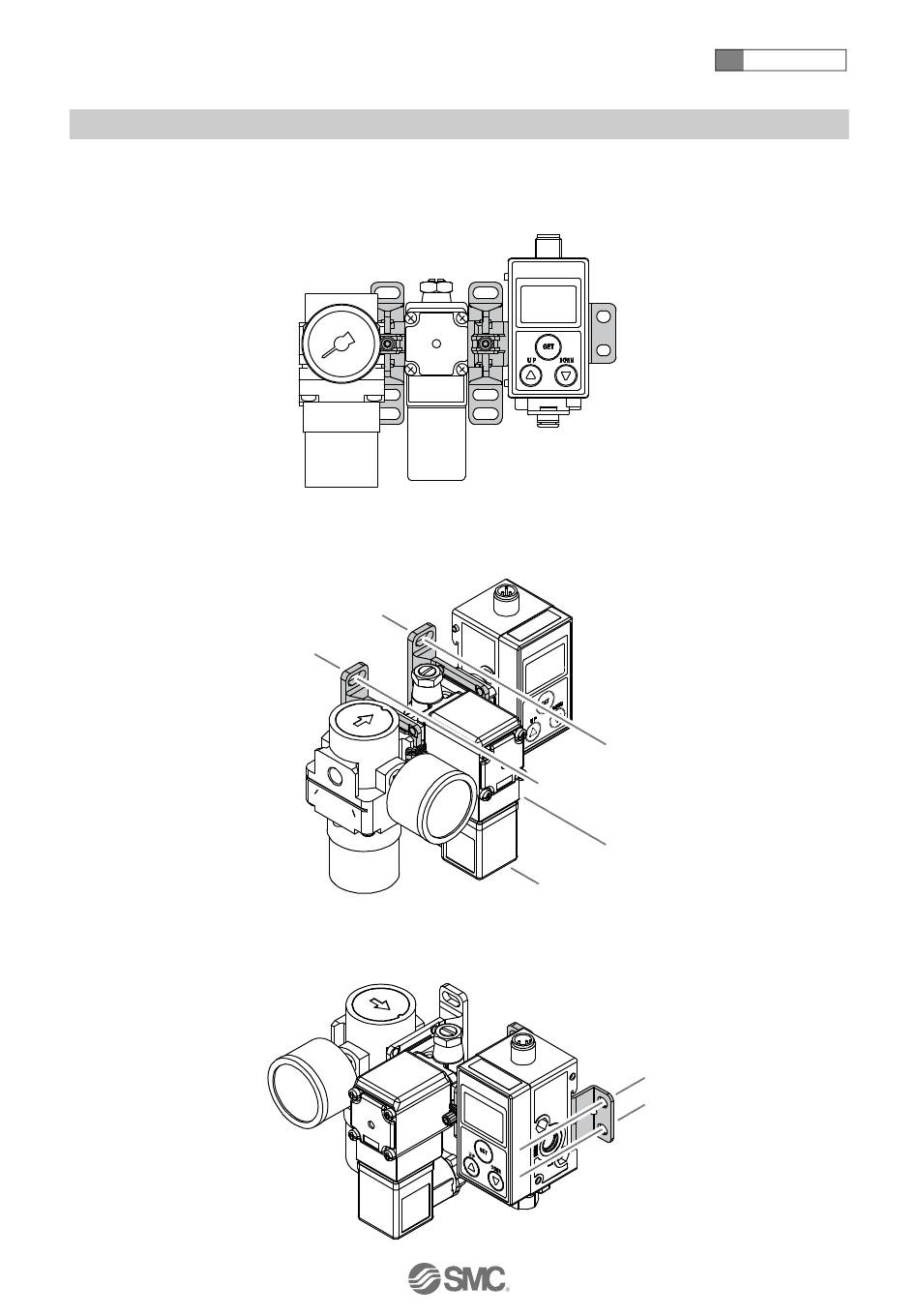

Bracket (when control unit fitted)
•When a product with control unit is ordered, the bracket will be mounted to the product before
shipment.
•Mount the spacer with bracket using an M5 mounting screw or equivalent.
•Thickness of the spacer with bracket is approximately 3.5 mm.
•Refer to the "Bracket mounting" dimensions (page 22) for the mounting hole dimensions.
•Mount the bracket using M5 mounting screws (2 pcs.) or equivalent.
•The bracket plate thickness is approximately 1.6 mm.
•Refer to the "Bracket mounting" dimensions (page 22) for the mounting hole dimensions.
