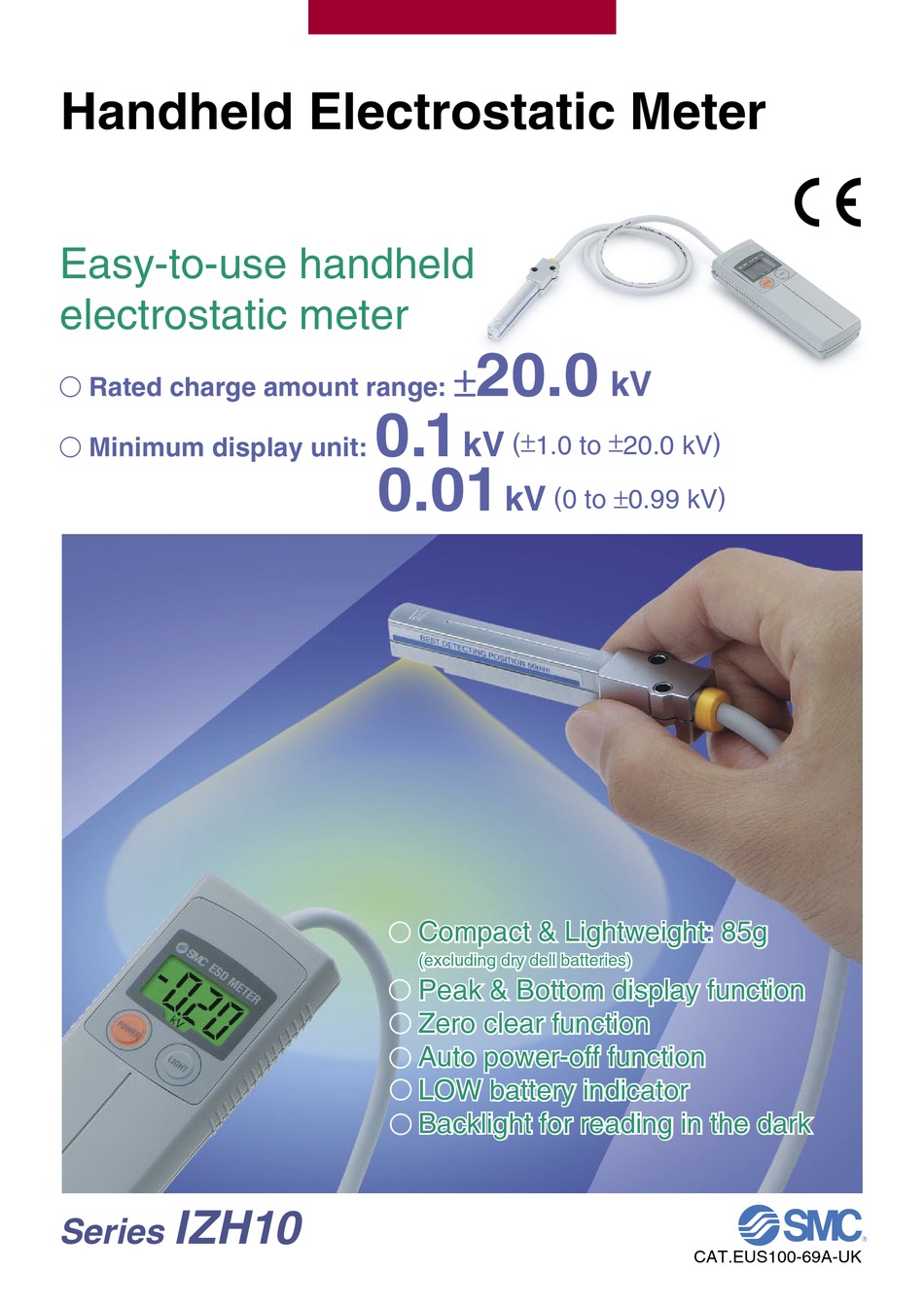

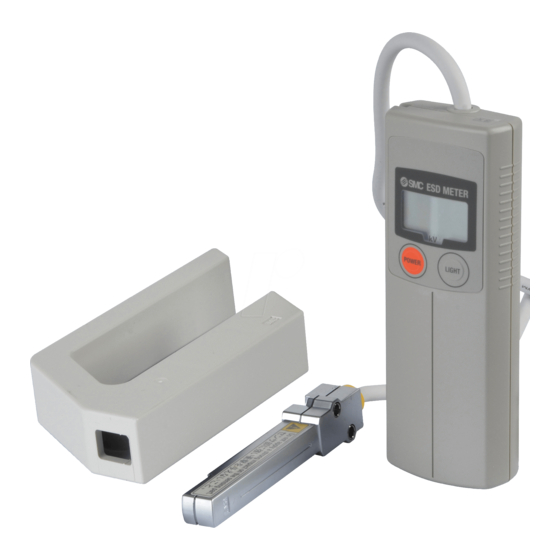

Handheld Electrostatic Meter
Easy-to-use handheld
electrostatic meter
 Rated charge amount range:
 Minimum display unit:
IZH10
Series
20.0
±
0.1
kV
(± 1.0 to ± 20.0 kV )
0.01
kV
Compact & Lightweight: 85g
Compact & Lightweight: 85g
(excluding dry dell batteries)
(excluding dry dell batteries)
Peak & Bottom display function
Peak & Bottom display function
Zero clear function
Zero clear function
Auto power-off function
Auto power-off function
LOW battery indicator
LOW battery indicator
Backlight for reading in the dark
Backlight for reading in the dark
kV
( 0 to ±0.99 kV )
CAT.EUS100-69A-UK
