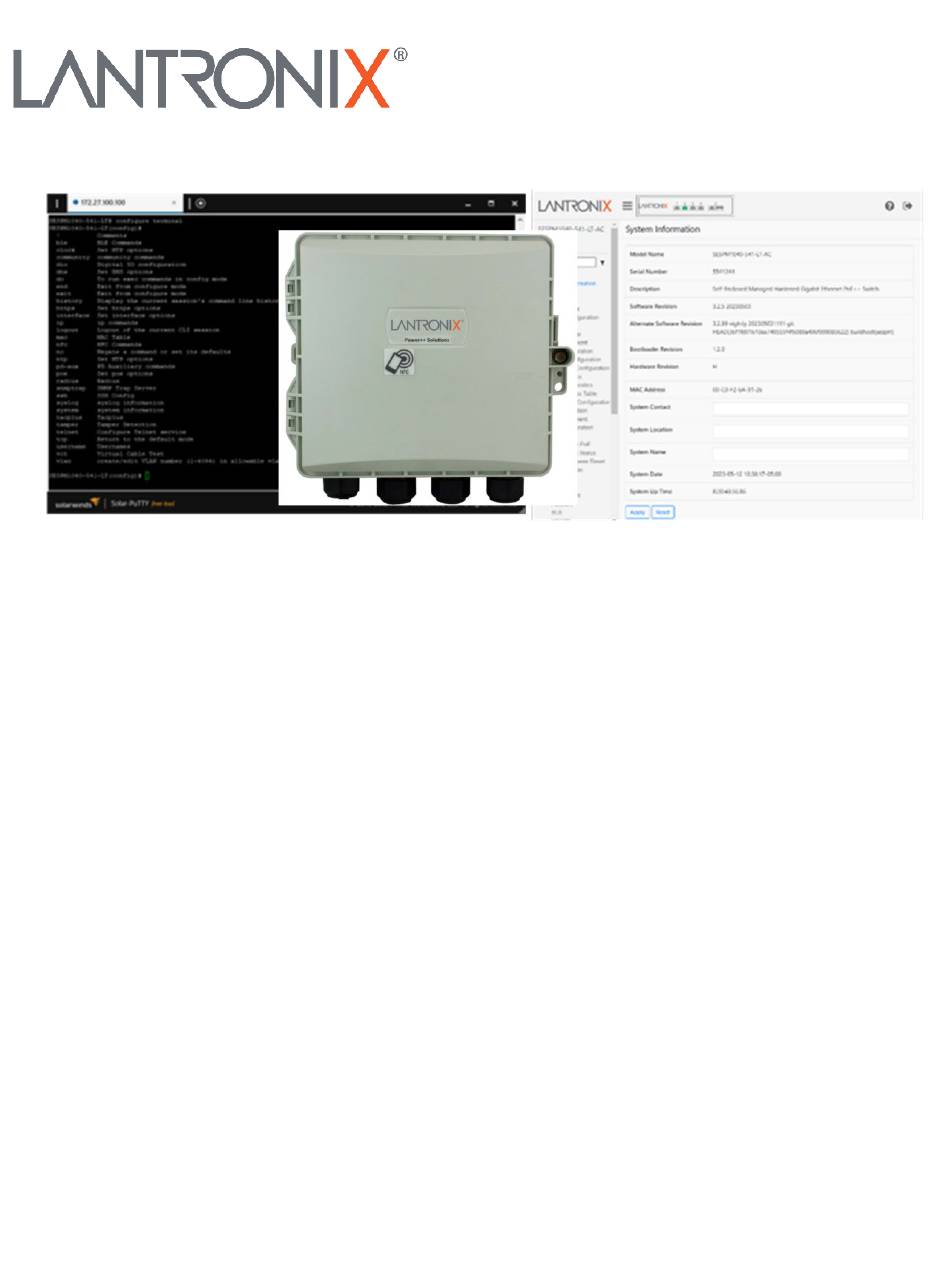

SESPM1040-541-LT-xx

Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch

(4) 10/100/1000Base-T PoE++ Ports + (1) 10/100/1000Base-T or

100/1000Base-X SFP/RJ-45 Combo Ports

Operation Guide

Part Number 33773

Revision F June 2023

Table of Contents

Troubleshooting

Need help?

Do you have a question about the SESPM1040-541-LT Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Lantronix SESPM1040-541-LT Series

Page 1 SESPM1040-541-LT-xx Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch (4) 10/100/1000Base-T PoE++ Ports + (1) 10/100/1000Base-T or 100/1000Base-X SFP/RJ-45 Combo Ports Operation Guide Part Number 33773 Revision F June 2023...
Page 2: Revision History
SESPM1040-541-LT-xx Operation Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders.
Page 3: Table Of Contents
Lantronix SESPM1040-541-LT-xx Operation Guide Contents Revision History ...............................2 Introduction ...............................6 Ordering Information ..............................6 Port Configuration ..............................7 Console Port ................................7 Related Manuals ...............................7 For More Information..............................8 Software Configuration ............................9 Software Components ............................9 Last Gasp ................................9 Automatic Operation ...............................9 PoE Services ............................... 10 PoE Automatic Power Reset (APR) Services....................
Page 4 Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > System Time ........................142 Switch > System > SNMP Configuration ....................... 144 Switch > System > Digital I/O ........................146 Switch > System > DHCP Server ........................147 Switch > Port Management > Port Configuration ..................149 Switch >...
Page 5 Lantronix SESPM1040-541-LT-xx Operation Guide Party Software Packages ..........................224 Open Source Software Packages ........................224 Tech Support ................................ 224 Recording Device and System Information ....................... 224 Contact Us ................................. 224 Warranty ................................224 Glossary of Terms ............................... 225 Page 5 of 228 33773 Rev.
Page 6: Introduction
SESPM1040-541-LT-xx Operation Guide 1. Introduction The Lantronix SESPM1040-541-LT-xx Switch is a Layer 2 managed switch with (4) 10/100/1000Base-T PoE++ (IEEE 802.3bt) ports and (1) combination 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP uplink port (additional optional ports available), that is ideal for use in security and surveillance, PoE lighting, digital signage and many other applications.
Page 7: Port Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Port Configuration Ports 1-4 are 10/100/1000Base-T PoE++ PSE Ports. Port 5 is a combo 10/100/1000Base-T or a 100/1000Base-X uplink port. On the AC and DC version, it can either be used as a copper or fiber port. However, on the PD version, it is normally used for PoE power input, in which...
Page 8: For More Information
A printed Quick Start Guide is shipped with each switch. See the SESPM1040-541-lt-xx Series product page for more information. For Lantronix Drivers, Firmware, Manuals, Product Notifications, Warranty Policy & Procedures, etc. go to the Lantronix Technical Resource Center. Industrial SFP Modules User Guides; see Lantronix Optical Devices webpage for specific information.
Page 9: Software Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide 2. Software Configuration Software Components The SESPM1040-541-LT-xx interfaces with the following software elements: • Web UI on a desktop or laptop • Smartphone or tablet via NFC • Smartphone or tablet via BLE • Last Gasp In the event of power failure, the switch has a Last Gasp feature that allows the switch to save enough power to send a trap notification of the power failure.
Page 10: Poe Services
Lantronix SESPM1040-541-LT-xx Operation Guide PoE Services The SESPM1040-541-LT-xx PoE is controlled by a set of services that are each able to disable PoE on one or all PoE ports. You can configure and enable or disable the following services: PoE Auto Power Reset (APR) services •...
Page 11 Lantronix SESPM1040-541-LT-xx Operation Guide Failure phase indicates that APR was unable to contact the attached device. APR disables itself and user • intervention is required to restart APR. If the Failure Action is Log and Trap, power remains on for this port.
Page 12: Poe Schedule Services
Lantronix SESPM1040-541-LT-xx Operation Guide If APR is in either of the Discovery Phases, its status would be like this (Phase 2 for 222 seconds): Discovery Phase 2 - Duration: 222s If APR is in the Monitor Phase, the status shows how long it has been in this phase, the current consecutive...
Page 13 Lantronix SESPM1040-541-LT-xx Operation Guide To create a schedule: From the Web UI: • 1. Go to the PoE Schedule page. 2. Press the Add Event button. 3. Select the Profile ID you wish to add events for. 4. Set the Day of the Week, the Hour of the Day, the Minute of the Hour (5 minute intervals on Web UI), and the Action.
Page 14: Port Power Monitor Services
Lantronix SESPM1040-541-LT-xx Operation Guide If a port has been disabled by another PoE Service, the status will look like this: Off - Disabled by service For ports with a schedule applied, the status will look like this: Running - Current PoE State: On Next event: Reset, Friday at 01:10...
Page 15: Psu Temperature Monitor Services
Lantronix SESPM1040-541-LT-xx Operation Guide The status message will look like this under normal conditions: Monitoring - 3.1W If the Port Power Monitor disabled a port, its status will look like this: Port Disabled - Over power limit detected: 15.5W If the Port Power Monitor has been disabled by another service (scheduler turning the port off, for example), its...
Page 16: Total Power Monitor Services
Lantronix SESPM1040-541-LT-xx Operation Guide Total Power Monitor Services The Total Power Monitor is always running and cannot be disabled. The purpose of this monitor is to keep the overall power draw on the PSU at or below 180W on the -AC or 240W on the -DC but to allow individual ports to allocate up to 90W.
Page 17: Software Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Software Configuration Initial Switch Configuration This manual assumes that the switch was successfully installed as described in the Install Guide. Initial switch configuration can be via: • Console Port (Serial) (RS-232 RJ-45) (out-of-band) • Command Line Interface (CLI) (Telnet or SSH; in-band) GUI via Ethernet (in-band) •...
Page 18: Idle Timeout
Lantronix SESPM1040-541-LT-xx Operation Guide Idle timeout The messages: “Warning: Idle timeout. The session will be closed.” and “Login timed out after 60 seconds.” display after 60 seconds of CLI inactivity. Hit the Enter key, wait for the login prompt to display, then log back in to the SESPM1040-541-LT.
Page 19: Exec Mode Commands
Lantronix SESPM1040-541-LT-xx Operation Guide Exec Mode Commands When you first access the CLI, the system is in Exec mode and the command prompt displays as SESPM1040# At the prompt enter a and hit the Enter key to display the commands supported in the current mode.
Page 20 Lantronix SESPM1040-541-LT-xx Operation Guide interface Interface status and configuration IP interface status and configuration Show MAC table Display NFC state Show NTP information pd-aux PD Auxiliary Port Status show poe pvlans show pvlans radius Radius Servers running-config Current operating configuration...
Page 21 Lantronix SESPM1040-541-LT-xx Operation Guide Command: configure terminal Description: Enter Configuration mode. See Config Mode Commands on page 58. Syntax : configure terminal <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040# configure ? terminal Configure from the terminal SESPM1040# configure terminal ? <cr>...
Page 22 Lantronix SESPM1040-541-LT-xx Operation Guide Command: copy Description: Restore system configuration (copy current system configuration). Use this command to back up current system configuration and restore backed up system configuration. Syntax : copy { startup-config | running-config | <source_path> } { startup-config | running-config | <destination_path>...
Page 23 Lantronix SESPM1040-541-LT-xx Operation Guide Backup failed Copy successful Copy timed out Copy failed Save running to startup failed Save startup to running failed Backup and Restore Summary The table below lists and briefly explains each command in the Backup and Restore functions.
Page 24 Lantronix SESPM1040-541-LT-xx Operation Guide Command: debug Description: Enter debug mode Syntax : debug <cr> Parameters: Comments dmi polling Exit from debug mode exit Exit from debug mode history Display the current session's command line history logout Logout of the current CLI session Return to the default mode stop dmi polling.
Page 25 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Exit from Config mode or Config Interface mode to Exec mode. Syntax : end <cr> Parameters: None. Mode: Config mode or Interface Config mode. Example: SESPM1040(config)# end SESPM1040# configure terminal SESPM1040(config)# interface ? GigabitEthernet...
Page 26 If just the switch firmware needs upgrading the switch will reboot once after the switch firmware upgrade; the switch will reboot twice if both the switch firmware and the BLE firmware are upgraded. Send Lantronix a firmware download request based on your current firmware version.
Page 27 Lantronix SESPM1040-541-LT-xx Operation Guide Command: history Description: Display the current session's command line history. Syntax : history <size of history list> Parameters: Unsigned integer Set the size of history list (zero means no limit) Mode: Exec mode. Example: # history 10...
Page 28 Lantronix SESPM1040-541-LT-xx Operation Guide Command: reload Description: Reload factory defaults. Syntax : reload cold <cr> reload defaults (keep-ip/do not-keep-ip)> Parameters: cold Reload cold (cycle power) defaults Reload defaults keep-ip Enter "keep-ip" to maintain all management interface settings, including the method, address (if method is static), netmask, gateway, and management VLAN.
Page 29: Show Commands
Lantronix SESPM1040-541-LT-xx Operation Guide Show Commands commands display running system information from Exec mode. show BLE commands clock Set clock options community-names show community names default-config Contents of default configuration dhcp DHCP Server pool Digital IO configuration Show DMI Information...
Page 30 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show ble Description: See the BLE Commands section on page 104. Command: show clock Description: Display clock options. Syntax : show clock detail <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040# show clock detail System Date: 2019-05-17 12:52:06-05:00...
Page 31 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show default-config Description: Display the contents of startup configuration. Syntax : show default config <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040-AC PLM 1# show default-config <<BEGIN-CONFIG>> [nfc] portno = 1 enable = 1 [ntp] servers[1] address = 0.0.0.0...
Page 32 Lantronix SESPM1040-541-LT-xx Operation Guide port 3 maxpower = 90 port 3 profileid = 0 port 3 opermode = 2 port 4 portno = 4 port 4 mode = enabled port 4 priority = low port 4 maxpower = 90 port 4 profileid = 0...
Page 33 Lantronix SESPM1040-541-LT-xx Operation Guide [management] br0 auto 1 = br0 br0 iface = br0 br0 iface family = inet br0 iface method = static br0 iface address = 192.168.1.10 br0 iface netmask = 255.255.255.0 br0 iface gateway = 192.168.1.1 br0 iface bridge-vlan-aware = yes...
Page 34 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show dhcp pool Description: Display current DHCP server pool information. Syntax : show dhcp pool Parameters: pool DHCP Server Mode: Exec mode. Example: # show dhcp pool No record found. Command: show dio Description: Display current Digital IO configuration.
Page 35 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show dns Description: Display DNS server settings. Syntax : show dns servers <cr> Parameters: servers Display IPv4 DNS Server(s) configuration. Show "n/a" for server entries that are not configured. <cr> Mode: Exec mode. Example: SESPM1040(config)# do show dns servers DNS Server 1 2.2.2.2...
Page 36 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show https Description: Display HTTPS information. Syntax : show https config <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040# show https config HTTPS configuration: ------------------------------------------------------------------------ HTTPS State: enable HTTPS port: Method: Cert Type: Cert Name:...
Page 37 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show interface Description: Display Interface status and configuration. Syntax : show interface < GigabitEthernet | 1/1-x> show interface status <* | 1/1-4> show interface statistics <* | 1/1-4> show interface get-description <* | 1/1-4> show interface vlan < Vlan 1>...
Page 38 Lantronix SESPM1040-541-LT-xx Operation Guide ---------------------------------------------- Link State: Speed: 100Mbps Duplex: full AutoCross Mode: autoCross Connector Type: RJ-45 Auto Negotiation: enable Force Speed: 100Mbps Force Duplex: full Description: SESPM1040# Example 2: SESPM1040# show interface <cr> 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo...
Page 39 Lantronix SESPM1040-541-LT-xx Operation Guide valid_lft forever preferred_lft forever inet6 fe80::2c0:f2ff:fe58:3f08/64 scope link valid_lft forever preferred_lft forever Messages Command line is not complete. Try option "help" Device "br0.1,100" does not exist. Syntax error: Illegal command line Page 39 of 228 33773 Rev. F...
Page 40 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show ip Description: Display contents of current configuration (IP interface status and configuration). Syntax : show ip interface <brief> <details> Parameters: dhcp DHCP Server interface IP interface status and configuration brief IP interface status and configuration (terse)
Page 41 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show ntp Description: Display NTP (Network Timing Protocol) information. Syntax : show ntp status Parameters: status Show NTP information Mode: Exec mode. Example: SESPM1040# show ntp status NTP configuration: ------------------------------------------------------------------------ NTP State: enable NTP daylight saving time state:...
Page 42 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show pd-aux Description: Display PD Auxiliary Port Status (SESPM1040-541-LT-PD only). Syntax : show pd-aux <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040# show pd-aux Auxiliary Port Status: disabled SESPM1040# show pd-aux Auxiliary Port Status: enabled...
Page 43 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show radius Description: Display RADIUS server parameters. Syntax : show radius <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040(config)# radius add 1 radhost11 setStandard4 4 Radius is Disabled, please do a "radius enable" first. SESPM1040(config)# radius enable...
Page 44 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show running-config Display current operating configuration. Press the space bar to continue displaying Description: running-config data. Press the q key to quit the running-config display. Note that this command only shows changes; if the IP Address, Subnet mask, and/or Gateway have not been changed then they will not be displayed by this command.
Page 45 Lantronix SESPM1040-541-LT-xx Operation Guide iface[1] = port1 iface[1] bridge-pvid = 1 iface[1] bridge-access = 1 iface[1] bridge-allow-untagged = yes iface[2] = port2 iface[2] bridge-pvid = 1 iface[2] bridge-access = 1 iface[2] bridge-allow-untagged = yes iface[3] = port3 iface[3] bridge-pvid = 1...
Page 46 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show ssh Description: Display current Secure SHell configuration. Syntax : show ssh <cr> Parameters: None. Mode: Exec mode. Example: # show ssh SSH Server Status: enabled Major Version: Minor Version: SSH Auth Timeout: SSH Auth Retries:...
Page 47 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show startup-config Display contents of startup configuration. Press the space bar to continue displaying startup- Description: config data. Press the q key to quit the startup-config display. Syntax : show startup-config <cr> Parameters: None. Mode: Exec mode.
Page 48 Lantronix SESPM1040-541-LT-xx Operation Guide Example 2: -PD Model # show startup-config <<BEGIN-CONFIG>> [account] <<begin>> U2FsdGVkX1+nYkAI+EDUhsQVYgWcC5SDmxgjMmapW5FwS6lPusqFDiGvsltY+XV9 MkOv+dq1MZxJ9tZySBIJOg== <<end>> [ntp] servers[1] address = 192.168.93.28 [dhcp-server] default-lease-time = 600 max-lease-time = 7200 ddns-update-style = none [ble] portno = 1 broadcast = 1 connection = 0...
Page 49 Lantronix SESPM1040-541-LT-xx Operation Guide iface[4] bridge-allow-untagged = yes iface[5] = port5 iface[5] bridge-pvid = 1 iface[5] bridge-pvid = 1 iface[5] bridge-allow-untagged = yes iface[6] = port6 iface[6] bridge-pvid = 1 iface[6] bridge-access = 1 iface[6] bridge-allow-untagged = yes [management] br0 iface[2] method = dhcp...
Page 50 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show syslog Show contents of system log. Press the space bar to continue displaying syslog log data. Description: Enter the letter q to quit. Syntax : show syslog <host | log | port> Parameters: host...
Page 51 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show system Description: Display system information. Syntax : show system <cr> Parameters: None. Mode: Exec mode. Example 1: The –AC model: # show system Model Name: SESPM1040-541-LT-AC System Description: Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch...
Page 52 Lantronix SESPM1040-541-LT-xx Operation Guide Memory: Total=251608 KBytes, Free=193232 KBytes BLE MAC Address: D0:CF:5E:96:FC:D7 BLE State: Enabled BLE Connection: Disconnected NFC State: Enabled Digital IO Board: Not installed Phy Module: Installed. Version = REVA PSU Temperature: 26.75C CPU Temperature: 30.50C Page 52 of 228 33773 Rev.
Page 53 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show tacplus Description: Display TACACS+ Server parameters and status. TACACS+ authentication requires Password Authentication Protocol (PAP) login setup on the TACACS+ server. Syntax : show tacplus <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040# show tacplus...
Page 54 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show telnet Description: Display telnet state. Syntax : show tacplus <cr> Parameters: None. Mode: Exec mode. Example: SESPM1040# show telnet Telnet Service Status: enabled SESPM1040# Command: show trapservers Description: Display SNMP trap server configuration. Syntax : show trapservers <cr>...
Page 55 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show usernames Description: Display usernames. Syntax : show usernames <cr> Mode: Exec mode. Example: SESPM1040# show usernames admin admin SESPM1040# show usernames admin admin jeffs read-only BobB admin s_holt read-only SESPM1040# Command: show vct Description: Virtual cable test results.
Page 56 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show version Description: Display software revisions and related information. Syntax : show version <cr> Parameters: None. Mode: Exec mode. Example 1: The –AC version: # show version Active Rev: 3.2.5 20230503 Backup Rev: 3.2.4 20230424...
Page 57 Lantronix SESPM1040-541-LT-xx Operation Guide Command: show vlan Description: Display VLAN parameters. Syntax : show vlan Parameters: Show vlan information brief Show status of all VLANs VLAN number (1-4094) membership Show which ports are members of the specified vlan status Show status of all (access and trunk) VLANs vlan expression list 1,100,200-205 vlanid <cr>...
Page 58: Config Mode Commands
Lantronix SESPM1040-541-LT-xx Operation Guide Config Mode Commands These commands can be entered from Config mode. Enter Config mode with the configure terminal command. Comments BLE Commands clock Set NTP options community community commands Digital IO configuration Set DNS options To run exec commands in config mode...
Page 59 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Comments Syntax : ! <cr> Parameters: None. Mode: Config mode. Example: SESPM1040(config)# ! ? Arguments ignored comment text <cr> SESPM1040(config)# ! SESPM1040(config)# Command: Description: See the BLE Commands section on page 103. Command: clock Description: Set NTP options.
Page 60 Lantronix SESPM1040-541-LT-xx Operation Guide Arctic Display Arctic List Asia Display Asia List Atlantic Display Atlantic List Australia Display Australia List Europe Display Europe List Indian Display Indian List Pacific Display Pacific List Mode: Config mode. Example 1: Before FW v 3.0.0:...
Page 61 Lantronix SESPM1040-541-LT-xx Operation Guide Example 2: FW v 3.0.0 and above: Test-2(config)# clock set ? Year (1993..2035) Test-2(config)# clock set 2020 ? Month of the year (01..12) Test-2(config)# clock set 2020 04 ? Calendar day of month (01..31) Test-2(config)# clock set 2020 04 07 ?
Page 62 Lantronix SESPM1040-541-LT-xx Operation Guide Command: community add Description: Add SNMP Community name and access level (Read Only or Read/Write). Syntax : community add name | access level Parameters: String The SNMP community name access level Access level (RO/RW) Mode: Config mode.
Page 63 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Set Digital IO config. The SESPM-4P-DIG is an optional Digital Input/Output Module with four optical isolators and a 12V integral power source. It provides connection for alarms, event notifications, or other customer designated items. See the SESPM-4P-DIG Option Install Guide.
Page 64 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Add and delete up to 4 IPv4 DNS servers and set DNS options. Syntax : dns add <DNS server index> < DNS IPv4 address> dns delete <<DNS server index> Parameters: Add DNS Server delete Delete DNS Server DNS server index (1..4)
Page 65 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: To run Exec mode commands in Config mode or Interface Config mode. Syntax : do <cli command> Parameters: clear Reset functions configure Enter configuration mode copy Restore system configuration debug Enter debug mode firmware...
Page 66 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Exit from Config mode to Exec mode or exit from Interface Config mode to Config mode. Syntax : end <cr> Parameters: None. Mode: Interface Config mode or Config mode. Example: SESPM1040(config)# end SESPM1040# SESPM1040(config-if-1/4)# end...
Page 67 Lantronix SESPM1040-541-LT-xx Operation Guide Command: history Description: Set/display the current session's command line history. Syntax : history <size> Parameters: Unsigned integer Set the size of history list (zero means no limit) <cr> Mode: Config mode. Example: SESPM1040-AC PLM 1(config)# history 50...
Page 68 Lantronix SESPM1040-541-LT-xx Operation Guide Command: https Note Description: Set HTTPS options. that if you disable HTTPS here or via the Web UI, the Web server is disabled and Web browser access goes away. Syntax : https <certificate-file | certificate-type | method | port >...
Page 69 Lantronix SESPM1040-541-LT-xx Operation Guide Command: interface Description: Enter configure interface mode. See Interface Config Mode Commands on page sub-commands in this mode. Syntax : interface <GigabitEthernet> Parameters: GigabitEthernet Port List S/X-Y,Z (1/1-6) vlan vlan id (1-4094) in allowed vlans list...
Page 70 Lantronix SESPM1040-541-LT-xx Operation Guide SESPM1040(config-if-1/6)# exit SESPM1040(config-if-1/3)# statistics Port 3 statistics: ---------------------------------------------- Rx Packets: Tx Packets: 78791 Rx Octets: 49639 Tx Octets: 7950161 Rx Errors: Tx Errors: Rx Drops: Tx Drops: SESPM1040(config-if-1/3)# status Port 3 configuration: ---------------------------------------------- Link State: Speed:...
Page 71 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: IP commands; configure DHCP server pool. Syntax : Parameters: dhcp Configure DHCP server pool vlanid vlan expression list 1,100,200-205 A.B.C.D Starting IP address A.B.C.D End IP address 1-86400 Max Lease Time (1..86400) A.B.C.D[/mask] IPv4 network mask A.B.C.D...
Page 72 Lantronix SESPM1040-541-LT-xx Operation Guide Command: logout Description: Logout of the current CLI session. You can then hit Enter and log back in to the switch. Syntax : logout <cr> Parameters: None. Mode: Config mode. Example: SESPM1040-AC PLM 1(config)# logout Command:...
Page 73 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Negate a command or set its defaults. Most Config mode commands have a ‘no’ form, generally used to disable a function. Use the command without the ‘no’ keyword to re-enable a disabled function or to enable a function that is disabled by default.
Page 74 Lantronix SESPM1040-541-LT-xx Operation Guide SESPM1040-AC PLM 1(config-if-1/5)# no switchport access vlan should remove VLAN 5 and default back to VLAN 1 Message: Additional Combo Port currently not installed Command: Description: Set NTP (Network Timing Protocol) options. Syntax : Parameters: server...
Page 75 Lantronix SESPM1040-541-LT-xx Operation Guide Command: pd-aux Description: Set PD Auxiliary parameters (SESPM1040-541-LT-PD only). This command lets you enable or disable the Auxiliary Port state and view the present PoE Input Status on the SESPM1040-541- LT-PD. Syntax : pd-aux <enable | disable>...
Page 76 Lantronix SESPM1040-541-LT-xx Operation Guide Command: radius Note Description: Configure RADIUS Server parameters. that you must enable Radius before you can add a Radius server instance. Syntax : radius <add |disable | enable> < server index (1..2)> < radius host> <key> < retries (1..5)>...
Page 77 Lantronix SESPM1040-541-LT-xx Operation Guide Command: snmptrap Description: Configure SNMP Trap Server parameters. Syntax : snmptrap <add | delete> <host ip> <snmp version> <Community string> <port> <Delete trap> Parameters: trap server host delete Delete trap A.B.C.D host ip snmp version snmp version (v1/v2c)
Page 78 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Set SSH configuration. Syntax : ssh <Auth Retries (1..5) > <Auth Timeout (1..120) > < server state (enable/disabled) > Parameters: auth-retries Authentication Retries auth-timeout Authentication Timeout server-status Server status Authentication Retries (1..5) 1-120 Authentication Timeout (1..120)
Page 79 Lantronix SESPM1040-541-LT-xx Operation Guide Command: syslog Description: Configure Syslog parameters. Syntax : syslog <host> <port> Parameters: host Set syslog host IP address port Set syslog port number A.B.C.D The syslog host SYSLOG port The syslog port (1..65535) <cr> Mode: Config mode.
Page 80 Lantronix SESPM1040-541-LT-xx Operation Guide Command: system Description: Set system commands. Do not enter spaces or the pound sign (#) in these commands. Note: starting at Software Version 2.1.0.3, when configuring " System Name" in the Web UI, it does not update in the CLI until you switch CLI modes (e.g., from Config mode to either Exec mode or Interface Config mode and back).
Page 81 Lantronix SESPM1040-541-LT-xx Operation Guide Command: tacplus Note Description: Configure TACACS + parameters. that you must enable TACACS + before you can add a TACACS + instance. TACACS+ authentication requires Password Authentication Protocol (PAP) login setup on the TACACS+ server. Syntax : tacplus <add | delete>...
Page 82 Lantronix SESPM1040-541-LT-xx Operation Guide Command: telnet Description: Configure Telnet service (enable or disable telnet). Syntax : telnet < enable | disable > Parameters: enable Enable Telnet service. disable Disable Telnet service. Mode: Config mode. Example: SESPM1040(config)# telnet ? disable Disable telnet service...
Page 83 Lantronix SESPM1040-541-LT-xx Operation Guide Command: username Description: Add a new user, set user name parameters, and delete a user. Each user requires a username, password, and privilege level. Initially, one user (admin) exists. You can add up to 50 users via the CLI.
Page 84 Lantronix SESPM1040-541-LT-xx Operation Guide Command: vlan Description: Enter VLAN Config mode; create/edit VLAN number (1-4094) in allowable VLANs. Syntax : vlan <vlan id | sub-command> Parameters: vlanid vlan expression list 1,100,200-205 Comments To run Exec mode commands in Config mode...
Page 85 Lantronix SESPM1040-541-LT-xx Operation Guide VLAN Name Status Ports ------- ----------------------- -------- -------------------------- Active Gi 1/1 1/2 1/3 1/5 1/6 Active Active Gi 1/4 (config-vlan)# Example 2: (config-vlan)# do show version Active Rev: 3.2.5 20230424 Active Rev: 3.0.3 20210605 Device name:...
Page 86: Interface Config Mode Commands
Lantronix SESPM1040-541-LT-xx Operation Guide Interface Config Mode Commands These commands can be entered from Interface Config mode. Enter Interface Config mode with the configure command. interface GigabitEthernet Port List S/X-Y,Z (1/1-6) vlan vlan id (1-4094) in allowed vlans list? vlan expression list...
Page 87 Lantronix SESPM1040-541-LT-xx Operation Guide access Set access mode for a port trunk Set trunk mode for a port. vlan Set access mode for a port vlan expression list 1,100,200-205 vlanid Command: configure interface Description: Enter interface Config mode from Exec mode.
Page 88 Lantronix SESPM1040-541-LT-xx Operation Guide SESPM1040(config-if-1/1)# poe mode enabled SESPM1040(config-if-1/1)# poe priority critical SESPM1040(config-if-1/1)# poe schedule 15 SESPM1040(config-if-1/1)# Messages: Combo port 6 is not installed displays if you try to configure Port 6 when no optional port 6 module (e.g., SESPM-2P-1G-CP Additional Combo Port Module) is installed (added at FW v3.0.0.1.).
Page 89 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: To run exec commands in Interface Config mode. Syntax: do <command> Parameters: clear Reset functions configure Enter configuration mode copy Copy from one file to another firmware firmware ping Send ICMP frame to network host to verify network connectivity and host...
Page 90 Lantronix SESPM1040-541-LT-xx Operation Guide SESPM1040(config-if-1/2)# SESPM1040(config-if-1/2)# do reboot ? <cr> SESPM1040(config-if-1/2)# do show ? BLE commands clock Set clock options community-names show community names default-config Contents of default configuration Digital IO configuration show dns firmware firmware https Show HTTPS information...
Page 91 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Exit from interface mode Syntax: Parameters: None. Mode: Interface Config mode. Example: SESPM1040(config-if-1/2)# end SESPM1040# Command: exit Description: Exit from interface configuration mode Syntax: Parameters: None. Mode: Interface Config mode. Example: SESPM1040(config-if-1/2)# exit SESPM1040(config)#...
Page 92 Lantronix SESPM1040-541-LT-xx Operation Guide Command: history Description: Display the current session's command line history. Syntax: history <size> Parameters: Unsigned integer Set the size of history list (zero means no limit) Mode: Interface Config mode. Example: SESPM1040-AC PLM 1(config-if-1/3)# history 5...
Page 93 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Interface Internet Protocol config commands. Syntax: ip < address | arp | dhcp | igmp | verify> Parameters: address Set the IP address of a management VLAN interface Address Resolution Protocol dhcp Dynamic Host Configuration Protocol...
Page 94 Lantronix SESPM1040-541-LT-xx Operation Guide Mode: Interface Config mode. Example: (config-if-vlan)# ip address 192.168.90.27 255.255.255.0 192.168.90.1 (config-if-vlan)# do show vlan VLAN Name Status Ports ------- ----------------------- -------- -------------------------- Active Gi 1/1 1/2 1/3 1/5 Active Active Gi 1/4 (config-if-vlan)# PLM SESPM-PD 1(config-if-vlan)# ip <tab>...
Page 95 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Negate a command or set its defaults. Most Config mode commands have a no form, generally used to disable a function. Use the command without the no keyword to re-enable a disabled function or to enable a function that is disabled by default.
Page 96 Lantronix SESPM1040-541-LT-xx Operation Guide Command: pvlan Description: list of PVLANs. Configure Private VLAN for an interface. Syntax: pvlan <pvlan instance number> Parameters: pvlan (1..6) <cr> Mode: Interface Config mode. Example: SESPM1040(config-if-1/3)# pvlan ? pvlan (1..6) SESPM1040(config-if-1/3)# pvlan 1 ? <cr>...
Page 97 Lantronix SESPM1040-541-LT-xx Operation Guide Command: speed Description: Set the speed and duplex for an interface. Syntax: speed < auto | 10Mbps_HDX | 10Mbps_FDX | 100Mbps_HDX | 100Mbps_FDX | 1Gbps_FDX > Parameters: auto Auto-negotiate speed and duplex for interface 10Mbps_HDX Set interface speed to 10 Mbps and Half Duplex...
Page 98 Lantronix SESPM1040-541-LT-xx Operation Guide Command: status Description: Get port status. Syntax: status <cr> Parameters: None. Mode: Interface Config mode. Example: SESPM1040(config-if-1/3)# status Port 3 configuration: ---------------------------------------------- Link State: Speed: 100Mbps Duplex: full AutoCross Mode: autoCross Connector Type: RJ-45 Auto Negotiation:...
Page 99 Lantronix SESPM1040-541-LT-xx Operation Guide Command: switchport Description: Enter and set switchport VLAN mode. Allow vlan expression list 1,100,200-205.Note: Range checking of the VLAN IDs is not yet present. A number larger than 4095 will be map/truncated to the 0-4095 range and will be used in the back end. If you wind up with a VLAN ID > 4095, it can be removed by using a negation command (no ..) with the same too-large number.
Page 100 Lantronix SESPM1040-541-LT-xx Operation Guide Negate a command or set its defaults show show vlan status shutdown Disable the VLAN Return to the default mode SESPM1040-AC PLM 1(config-vlan)# Example 3: SESPM1040-AC PLM 1(config)# vlan ? vlan 1-4094 vlanid (1..4094) <cr> SESPM1040-AC PLM 1(config)# vlan 10 ? <cr>...
Page 101 Lantronix SESPM1040-541-LT-xx Operation Guide Example 5: PLM SESPM-PD 1(config-if-1/1)# switchport trunk ? vlan Set up trunk mode for a port. <cr> PLM SESPM-PD 1(config-if-1/1)# switchport trunk vlan ? vlan expression list 1,100,200-205 vlanid PLM SESPM-PD 1(config-if-1/1)# switchport trunk vlan 100 ? <cr>...
Page 102 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Return to the default mode. Syntax: top <cr> Parameters: None. Mode: Interface Config mode. Example: SESPM1040-AC PLM 1(switchport-1/4)# top SESPM1040-AC PLM 1# SESPM1040-AC PLM 1(config)# top SESPM1040-AC PLM 1# Command: trunk Description: trunk mode commands Syntax: trunk <cr>...
Page 103: Ble Commands
Lantronix SESPM1040-541-LT-xx Operation Guide BLE Commands Bluetooth Low Energy (BLE) allows remote access to alarm information or to read or change equipment settings without requiring physical access using ladders or scissor lifts. BLE session timeout: within a minute of inactivity the CLI session will be logged out and BLE connection dropped.
Page 104 Lantronix SESPM1040-541-LT-xx Operation Guide Command: configure ble Description: Configure BLE parameters. Syntax : ble <broadcast | disconnect | end> Parameters: broadcast ble broadcast disconnect ble disconnect ble end select broadcast (enable/disable) Mode: Config mode. Example: # show ble broadcast BLE Broadcast State: Enabled...
Page 105: Poe Commands
Lantronix SESPM1040-541-LT-xx Operation Guide PoE Commands Commands for configuring Power over Ethernet and Passive PoE. Note that there are commands for configuring PoE in Exec mode, Config mode and Interface Config mode. Also, be aware that not all PoE commands are available for Passive PoE operation (e.g., APR and PoE Scheduling are not available with Passive PoE).
Page 106 Lantronix SESPM1040-541-LT-xx Operation Guide Example: SESPM1040# show poe apr -------------------------------------------------------------------------- Port Ping Check Ping IP Address Interval Retry Failure Action -------------------------------------------------------------------------- enable 192.168.1.30 Reset and Log & Trap enable 192.168.1.40 Log & Trap enable 192.168.1.30 Reset and Log & Trap enable 192.168.1.50...
Page 107 Lantronix SESPM1040-541-LT-xx Operation Guide Total Power Monitor Enabled Monitoring - 0.0W PoE State ----------------------------------------------------------------------- Port: 2 Disabled Scheduler Disabled Port Power Monitor Enabled Monitoring PSU Temperature Monitor Enabled Monitoring - PSU temperature: 42.5C Total Power Monitor Enabled Monitoring - 1.0W...
Page 108 Lantronix SESPM1040-541-LT-xx Operation Guide All PoE Port Status Port Status Description Port Off (Mains Voltage above Max Voltage Mains voltage is higher than Max Voltage limit. Limit) Port Off (Insufficient Mains Voltage) Mains voltage is lower than Min Voltage limit.
Page 109 Lantronix SESPM1040-541-LT-xx Operation Guide During crash recovery, port was disabled due to PG event. If power Port Off (During recovery, PG Event) cycling does not clear this condition, contact support. PD Detected (2-Pair non-IEEE on 2-Pair Non-IEEE PD detected in BT 2P mode.
Page 110 Lantronix SESPM1040-541-LT-xx Operation Guide Command: poe apr Description: Set PoE Auto Power Reset (APR) parameters. This command lets you enable and configure a ping check of connected powered devices. The Auto Power Reset feature provides savings by allowing connected powered devices to be remotely monitored and reset (rebooted) in the event they become unresponsive, eliminating the need to dispatch technicians for simple power issues.
Page 111 Lantronix SESPM1040-541-LT-xx Operation Guide port mode Enabled priority Critical opermode bt_90w max power # show poe config port 1/3 -------------------------------- Port configuration -------------------------------- port mode Enabled priority High opermode bt_90w max power Command: poe maxpower Description: Set maximum PoE power for a specific interface.
Page 112 Lantronix SESPM1040-541-LT-xx Operation Guide Command: poe opermode Description: Configure PoE port Operation Mode for ports 1-4. See “Operation Mode Details” below for more information. Note: the default Operation Mode is IEEE 802.3bt 90W but the switch should recognize other IEEE 802.3 devices. If the device to be powered is not recognized, it may be a non-standard device and you may need to manually change the Operation Mode to the correct mode.
Page 113 Lantronix SESPM1040-541-LT-xx Operation Guide PoE Operation Mode Details PoE Operation Mode, set with the ' CLI command or on the PoE Configuration web page, controls poe opermode what the port presents to an attached PD. The available modes are: 4Pair PSE...
Page 114 Lantronix SESPM1040-541-LT-xx Operation Guide passive Command: Description: 24V Passive PoE Module Commands; see the “SESPM-2P-24V-CP Passive PoE Port Module Option Install Guide”. Command: poe priority Description: Configure PoE priority for a specified interface. Mode: Interface Config mode. Syntax: poe priority < low/high/critical >...
Page 115 Lantronix SESPM1040-541-LT-xx Operation Guide Command: poe schedule Description: Configure PoE schedule for a specified interface. Mode: Interface Config mode. Syntax: poe schedule < disabled | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16>...
Page 116: Nfc Commands
Lantronix SESPM1040-541-LT-xx Operation Guide NFC Commands Commands for configuring Near Field Communications. You can display and set NFC state. Command: nfc state Description: Set NFC state. Enable/disable NFC for a specified interface. The default is enabled. Mode: Interface Config mode.
Page 117: Virtual Cable Test (Vct) Commands
Lantronix SESPM1040-541-LT-xx Operation Guide Virtual Cable Test (VCT) Commands The SESPM1040-541-LT-xx Virtual Cable Tester uses TDR (Time Domain Reflectometry) for remote identification of potential cable malfunctions. VCT detects and reports potential cabling issues such as pair swaps, pair polarity, and excessive skew. It can also detect cable opens, shorts, or impedance mismatch in the cable and report accurately within one meter the distance to the fault.
Page 118 Lantronix SESPM1040-541-LT-xx Operation Guide Command: Description: Run Virtual Cable Test (VCT). Use the VCT test to determine if cabling is at fault when you cannot establish a link for a switch copper port. Mode: Config mode. Syntax: vct < start | port >...
Page 119 Lantronix SESPM1040-541-LT-xx Operation Guide Cable Test Results ------------------------------------------------- Pair Status Length (meters) ------------------------------------------------- Not Started Not Started Not Started Not Started POE++# Port Pair A Length A Pair B Length B Pair C Length C Pair D Length D Virtual Cable Test Status Not Started: The Virtual Cable Test has not begun yet.
Page 120: Tamper Detection Commands
Lantronix SESPM1040-541-LT-xx Operation Guide Tamper Detection Commands The switch includes tamper detection. A 3-axis linear accelerometer detects if the switch has exceeded user-selected vibration limits, indicating someone may be tampering with the switch or if the switch mount has somehow been compromised.
Page 121 Lantronix SESPM1040-541-LT-xx Operation Guide ---------------- Tamper Detection is Disabled Tamper Event: False Threshold = 1 (config)# Command: show tamper Description: Display tamper detection settings. Mode: Exec mode. Syntax: show tamper <cr> Parameters: None. Example: SESPM1040-AC-PLM1# show tamper Tamper Detection ----------------...
Page 122: Dmi (Diagnostic Monitoring Interface) Commands
Lantronix SESPM1040-541-LT-xx Operation Guide DMI (Diagnostic Monitoring Interface) Commands The switch can display electrical and vendor information specific to an SFP module present in an SFP port. DMI values are shown for ports 5 and 6. The switch polls the SFPs every 30 seconds to test for threshold and alarm events.
Page 123 Lantronix SESPM1040-541-LT-xx Operation Guide Tx Bias(mA) 39.0 29.0 Tx Power(mW) 0.2024 0.5012 0.1000 0.3981 0.1259 Rx Power(mW) 0.0008 0.6310 0.0126 0.5012 0.0200 Tx Power(dBm) -6.90 -3.00 -10.00 -4.00 -9.00 Rx Power(dBm) -30.46 -2.00 -19.00 -3.00 -16.99 Messages: SFP is not present in port 5, SFP is not present in port 6 Parameter descriptions: Vendor Name: Displays the name of the SFP module vendor (e.g., Transition).
Page 124 Lantronix SESPM1040-541-LT-xx Operation Guide Rx Power(dBm): Shows the receiver power of the SFP module (e.g., none). Displays the measured received optical power in mW. Absolute accuracy is dependent upon the exact optical wavelength. For the vendor specified wavelength, accuracy should be better than 3dB over specified temperature and voltage. This accuracy should be maintained for input power levels up to the lesser of maximum transmitted or maximum received optical power per the appropriate standard.
Page 125: Mac Address Table Commands
Lantronix SESPM1040-541-LT-xx Operation Guide MAC Address Table Commands The switch lets you configure and view MAC Address Table parameters. Switching of frames is based on the DMAC address contained in the frame. The switch builds a table that maps MAC addresses to switch ports for knowing which ports the frames should go to (based on the DMAC address in the frame).
Page 126 Lantronix SESPM1040-541-LT-xx Operation Guide 00:C0:F2:46:87:38 Dynamic 00:C0:F2:58:3F:08 Static 00:C0:F2:5A:4E:54 Dynamic 00:C0:F2:4C:43:A2 Dynamic 00:C0:F2:45:13:41 Dynamic 00:08:E3:FF:FC:28 Dynamic 00:C0:F2:57:59:25 Dynamic 2701 00:C0:F2:56:16:40 Dynamic 5891 00:C0:F2:49:45:81 Dynamic 00:C0:F2:47:A6:F8 Dynamic 00:C0:F2:44:AC:EE Dynamic 1618 58:97:BD:F6:0E:E4 Dynamic 00:C0:F2:54:B9:40 Dynamic 5851 00:C0:F2:5A:49:81 Dynamic 00:C0:F2:00:99:DC Dynamic 2980 00:C0:F2:58:3F:60...
Page 127 Lantronix SESPM1040-541-LT-xx Operation Guide (config)# exit # show mac address-table -------------------------------------------- Aging Time: -------------------------------------------- Mac Address Port Type -------------------------------------------- 00:1B:11:B2:6D:4B Dynamic 00:C0:F2:6A:90:50 Static Example 2: # show mac address-table static -------------------------------------------------- Type Mac Address Port -------------------------------------------------- Static 00:00:00:00:00:00 Static 00:C0:F2:58:3F:08...
Page 128 Lantronix SESPM1040-541-LT-xx Operation Guide Example 3: (config)# do show mac address-table static -------------------------------------------------- Type Mac Address Port -------------------------------------------------- Static 00:C0:F2:58:3F:08 Static 11:22:33:44:55:66 Static 00:00:00:00:00:00 (config)# mac address-table delete-static 0a:0b:0c:0d:0e:0f 48 bit MAC address: xx:xx:xx:xx:xx:xx (config)# mac address-table delete-static 00-00-00-00-00-00 ? <cr>...
Page 129: Cli Messages
Lantronix SESPM1040-541-LT-xx Operation Guide Messages: Syntax error: Illegal parameter SetSnmp Error 2 CLI Change at Switch FW v 2.1.0 Command format before switch firmware v 2.1.0.3: mac address-table static <mac> <port> Example: mac address-table static aa:bb:cc:dd:ee:ff 4 Command at v 2.1.0.3 and after (added “vlan” parameter to static mac create command): mac address-table static <mac>...
Page 130 Lantronix SESPM1040-541-LT-xx Operation Guide CLI Error messages Message: Syntax error: The command is not completed Meaning: You entered only part of a CLI command. Recovery: Type the entire CLI command; see the related command description above. Message: The system is going down for reboot NOW!n (ttyp1) (Wed Nov 7 09:20:15 2018): Meaning: CLI operation timed out.
Page 131 Lantronix SESPM1040-541-LT-xx Operation Guide Message: Command Failed (1) Meaning: The attempted command entry failed. Recovery: 1. Verify the command syntax and re-enter the command. Message: Syntax error: Illegal command line Meaning: You entered an unsupported command / parameter. Recovery: Use the (help) command to determine the command / parameter required.
Page 132: Cli Command Summary
Lantronix SESPM1040-541-LT-xx Operation Guide CLI Command Summary Exec Mode Commands Config Mode Commands Comments Comments clear Reset functions BLE Commands configure Enter configuration mode clock Set NTP options copy Copy from one file to another community community commands debug Enter debug mode...
Page 133: Interface Config Mode Commands (Ports)
Lantronix SESPM1040-541-LT-xx Operation Guide Interface Config Mode Commands (Ports) Interface Config Mode Commands (Vlan1) Comments Comments autoneg Set port auto-negotiation To run exec commands in config mode connector-type Set port media connector type Exit from interface mode description Set port description...
Page 134: Web Ui Menu System
Lantronix SESPM1040-541-LT-xx Operation Guide Web UI Menu System The left-hand menu contains one main tab (Switch) and several sub-tabs for configuring and monitoring the switch’s major functions. The major Switch tab functions include System, Port Management, PoE Management, Security, Event Notifications, and Maintenance.
Page 135: Valid Characters
Lantronix SESPM1040-541-LT-xx Operation Guide Valid Characters Most text entry fields have a set of 65 valid characters: "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/” The ‘#’ is the only printable character that is not allowed in text fields. Spaces are allowed within strings in most text fields, but the Web UI trims leading and trailing spaces. User names cannot contain a space and are limited to alpha-numeric characters plus ‘.’, ‘-‘...
Page 136: Switch > System > System Information
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > System Information This page lets you view and configure device level parameters. The System Information page for the SESPM1040-541-LT-AC is shown below. Parameter descriptions: Model Name: displays the device model name (e.g., SESPM1040-541-LT-AC or SESPM1040-541-LT-PD).
Page 137 Lantronix SESPM1040-541-LT-xx Operation Guide System Name: lets you enter a name for this system. Do not enter the pound sign (#). Note: starting at Software Version 2.0.3, when configuring "System Name" in the Web UI, it does not update in the CLI until you switch CLI modes (e.g., from Config mode to either Exec mode or Interface Config mode and back).
Page 138: Switch > System > Ip Settings
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > IP Settings Here you can view and configure IP address parameters and DNS Server parameters for up to four DNS Servers. Parameter descriptions: IPv4 section IP Address Mode: At the dropdown select DHCP or Static, where: DHCP: A configured and running DHCP server assigns the IP address for this device.
Page 139 Lantronix SESPM1040-541-LT-xx Operation Guide Default Gateway: The default gateway (e.g., 192.168.1.30). A default gateway is the node in a computer network using the Internet Protocol Suite that serves as the forwarding host (router) to other networks when no other route specification matches the destination IP address of a packet.
Page 140: Switch > System > Ip Status
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > IP Status This page lets you view IP status parameters assigned to the switch (read only fields). If one or more DNS Servers are configured at the Switch > System > IP Settings page, then you can view the DNS Server parameters.
Page 141 Lantronix SESPM1040-541-LT-xx Operation Guide Subnet Mask : The current Subnet Mask assigned to the switch (255.255.255.0 by default). Default Gateway : The current Default Gateway assigned to the switch (192.168.90.1 by default). DNS Server 1 -4: Displays the DNS Server(s) IP address(es) if one or more DNS Server(s) are configured at the Switch >...
Page 142: Switch > System > System Time
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > System Time This page lets you configure clock, time, time zone, and/or NTP parameters. Parameter descriptions: Clock Source : At the dropdown select Local Settings or NTP Server. This selection determines the remaining page selections available.
Page 143 Lantronix SESPM1040-541-LT-xx Operation Guide NTP Server 2-5: Enter an IP address for a second, third, fourth and fifth NTP Server. If local time is set the Device Time field is grayed out. The NTP fields are grayed out when NTP is not set.
Page 144: Switch > System > Snmp Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > SNMP Configuration This page lets you view and configure SNMP parameters. The SNMP Configuration page configures the SNMPv2 community strings to which the switch will respond. You can add additional read-only or read-write community strings, and you can optionally delete the default “public”...
Page 145 Lantronix SESPM1040-541-LT-xx Operation Guide SNMP Configuration – Add Community String page: Apply: Saves the entries on this page to the running-config file. Cancel: Click to re-display the SNMP Configuration page. Messages Failed. Server error: 12 Successfully saved! Form data has been reset Page 145 of 228 33773 Rev.
Page 146: Switch > System > Digital I/O
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > Digital I/O This page displays the install status of the optional SESPM-4P-DIG (Digital Input/Output Module). The SESPM-4P-DIG is a Digital Input/Output Module with four optical isolators. It provides connection for alarms, event notifications, or other customer designated items.
Page 147: Switch > System > Dhcp Server
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > System > DHCP Server This page lets you view and configure up to five DHCP server instances. A DHCP Server is a network server that automatically provides and assigns IP addresses, default gateways and other network parameters to client devices.
Page 148 Lantronix SESPM1040-541-LT-xx Operation Guide Remove Interface: Click to delete a line from the table. Click to delete a DHCP Server instance from the table. Reset: Resets the page to default parameter settings. Apply: Click to save the entries on this page to the running-config file.
Page 149: Switch > Port Management > Port Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > Port Configuration This page lets you view and configure port parameters such as Link Status, Speed, etc. The Port Configuration page for the –AC and the –DC is shown below: Parameter descriptions: Port: The port number described by this line in the table.
Page 150 Lantronix SESPM1040-541-LT-xx Operation Guide The Port Configuration page for the –PD is shown below: Note: Port 5 is a combo 10/100/1000Base-T or a 100/1000Base-X uplink port. On the -AC and -DC version, it can either be used as a copper or fiber port. However, on the -PD version, it is normally used for PoE power input, in...
Page 151: Switch > Port Management > Pvlan Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > PVLAN Configuration This page lets you assign port membership for up to six Private VLAN instances. By default, all ports are members of PVLAN ID 1. Note: You can manage the device only from ports of PVLAN 1.
Page 152: Switch > Port Management > Port Vlan Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > Port VLAN Configuration The switch supports up to 50 VLANs per port. This page lets you perform port VLAN related tasks: 1. Create A VLAN: Create a VLAN and associate a VLAN ID (number from 1 - 4094) with it.
Page 153 Lantronix SESPM1040-541-LT-xx Operation Guide • Member of exactly one VLAN, the Port VLAN (a.k.a. Access VLAN), which by default is 1, • accepts untagged frames and C-tagged frames with VLAN configured as Port VLAN, • discards all frames that are not classified to the Access VLAN, and •...
Page 154 Lantronix SESPM1040-541-LT-xx Operation Guide Count VLANs should be equal to 50 or less Additional Combo Port currently not installed Successfully saved! These messages may display momentarily: The port #3 still in progress please wait and apply again. The port #4 still in progress please wait and apply again.
Page 155: Switch > Port Management > Port Statistics
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > Port Statistics This page displays the current port statistics for the switch ports. Parameter descriptions: Port : This column shows the set of switch ports. Packets : Shows the number of packets received and transmitted for each port.
Page 156: Switch > Port Management > Cable Diagnostics
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > Cable Diagnostics This page lets you run cable diagnostic tests per port. The SESPM1040-541-LT-xx Cable Diagnostics uses TDR (Time Domain Reflectometry) for remote identification of potential cable malfunctions. Cable Diagnostics detects and reports potential cabling issues such as pair swaps, pair polarity, and excessive skew.
Page 157 Lantronix SESPM1040-541-LT-xx Operation Guide Example : Ports 1 and 3 show Pair Open, Port 2 shows Pair OK, Ports and 5 have Not Started. Page 157 of 228 33773 Rev. F https://www.lantronix.com/...
Page 158: Switch > Port Management > Mac Address Table
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > MAC Address Table This page lets you view and set MAC Address Table parameters. The switch maintains a MAC address table for switching frames efficiently between ports. The MAC address table contains Static and Dynamic MAC addresses.
Page 159 Lantronix SESPM1040-541-LT-xx Operation Guide Aging: Displays the time period that an entry can remain in the table, measured from the most recent reception of a frame on the entry’s VLAN from the specified MAC address. The switch removes entries when their presence in the MAC address table exceeds this aging time setting.
Page 160: Switch > Port Management > Static Mac Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > Static MAC Configuration This page lets you create, view, configure, and delete Static MAC addresses. The default (startup) page is shown below. Parameter descriptions: Delete: Click to delete an existing Static MAC address from the table. The valid range is 1-2049.
Page 161 Lantronix SESPM1040-541-LT-xx Operation Guide MAC Address: Enter a valid MAC address in the format 11-22-33-44-55-66. PORT Members: At the dropdown select Port 1 – 5 or 1- 6 as the Port member for this Static MAC. Buttons Create: Click to add the Static MAC address, as configured on this page, to the MAC Address Table page.
Page 162: Switch > Port Management > Dmi Information
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Port Management > DMI Information This page lets you view DMI (Diagnostic Monitoring Information) for SFP ports. DMI values are shown for ports 5 and 6. The switch polls the SFPs every 30 seconds to test for threshold and alarm events. A detected Event will cause SNMP traps and syslog entries.
Page 163 Lantronix SESPM1040-541-LT-xx Operation Guide Temperature(C): Displays the current internally measured temperature of SFP module in degrees Celsius (e.g., 37.968). Temperature accuracy is vendor specific but must be better than 3 degrees Celsius over specified operating temperature and voltage. Voltage(V): Displays the working DC voltage of SFP module (e.g., 3.2776). This is the internally measured SFP transceiver supply voltage.
Page 164: Switch > Poe Management > Poe Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > PoE Management > PoE Configuration This page lets you view and configure PoE (Power over Ethernet) parameters for the ports. The switch is available as either 1) an AC- or DC-powered power source (PSE) providing up to 90W on individual ports* (not to exceed 180W total on the AC powered version or 240W total on the DC powered version), or 2) a PoE-powered device (PD) which is also a PSE, providing up to 80W of power.
Page 165 Lantronix SESPM1040-541-LT-xx Operation Guide Operation Mode: At the dropdown select which PoE standard to use. This defines how much power to allocate to each PoE port. Note: the default Operation Mode is IEEE 802.3bt 90W but the switch should recognize other IEEE 802.3 devices. If the device to be powered is not recognized, it may be a non-standard device and you may need to manually change the Operation Mode to the correct mode.
Page 166 Lantronix SESPM1040-541-LT-xx Operation Guide PoE Operation Mode Details PoE Operation Mode, set on the PoE Configuration page or with the “poe opermode” CLI command, controls what the port presents to an attached PD. The available modes are: 4Pair PSE 2Pair PSE...
Page 167 Lantronix SESPM1040-541-LT-xx Operation Guide Order of Port Power Shutdown in Case of Over-powering of Connected Devices Configured PoE Port Priority Port 1 Port 2 Port 3 Port 4 High Critical For the PoE powered version (-PD), the same priority rules apply, although the maximum total power is 80W.
Page 168: Switch > Poe Management > Poe Status
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > PoE Management > PoE Status This page lets you view PoE status on a per-port basis. Parameter descriptions: Local Port: Displays the port number described by this line in the table. PD Class: The PoE PD class (1-8) of the powered device attached to this port.
Page 169 Lantronix SESPM1040-541-LT-xx Operation Guide PD Detected (4-Pair, IEEE 802.3bt Single Signature): The switch detected an attached Powered Device and is reporting its status as 4-Pair, IEEE 802.3bt Single Signature. PD Detected (2-Pair, IEEE 802.3af/at) : The switch detected an attached Powered Device and is reporting its status as 2-Pair, IEEE 802.3af/at.
Page 170 Lantronix SESPM1040-541-LT-xx Operation Guide Port Off (Illegal Class detected) PD class is illegal. Port Off Post-Crash Port off due to switch crash. If power cycling does not clear this condition, (Overload/Underload/Short detected) contact support. Port off due to switch crash, internal configuration set to forced off after Port Off Post-Crash crash.
Page 171 Lantronix SESPM1040-541-LT-xx Operation Guide Examples: Page 171 of 228 33773 Rev. F https://www.lantronix.com/...
Page 172: Switch > Poe Management > 24V Passive Poe
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > PoE Management > 24V Passive PoE The switch lets you configure and view SESPM-2P-24V-CP Option Module parameters. See the “SESPM-2P-24V- CP Option Install Guide” for option installation, CLI commands, web UI, and troubleshooting information.
Page 173: Switch > Poe Management > Poe Service Status
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > PoE Management > PoE Service Status This page lets you view PoE service status on a per-port basis. See “PoE Automatic Power Reset (APR) Services” on page for more information. Parameter descriptions: Port: Displays the port number described by this line in the table.
Page 174 Lantronix SESPM1040-541-LT-xx Operation Guide Scheduler Status: The current PoE scheduler status. For example: Off: PoE scheduling is disabled for this port. On: PoE scheduling is enabled for this port. Off - Disabled by service: PoE scheduling is disabled for this port. See “PoE Schedule Services” on page for more information.
Page 175: Switch > Poe Management > Poe Auto Power Reset
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > PoE Management > PoE Auto Power Reset This page lets you enable and configure a ping check of connected devices. The Auto Power Reset feature provides savings by allowing connected devices to be remotely monitored and reset (rebooted) in the event they become unresponsive, eliminating the need to dispatch technicians for simple power issues.
Page 176: Switch > Poe Management > Poe Schedule
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > PoE Management > PoE Schedule This page lets you configure 1-16 PoE schedule profiles of scheduled events (actions) to be applied. Note that you must also select a profile at System > PoE Management > PoE Configuration in the PoE Schedule column (see above).
Page 177 Lantronix SESPM1040-541-LT-xx Operation Guide Parameter descriptions: Profile ID: At the dropdown select the PoE schedule profiles (e.g., Profile 1-16). Day of the Week: Displays the day of the week the event will occur at, Monday - Sunday or Every Day.
Page 178 Lantronix SESPM1040-541-LT-xx Operation Guide Example 1: PoE Schedule selections: Example 2 : Two PoE Schedule profiles successfully added: Parameter descriptions: Profile: At the dropdown select a PoE schedule profile (profile 1-16). Name: Displays the selected PoE schedule profile (e.g., profile 1-16).
Page 179 Lantronix SESPM1040-541-LT-xx Operation Guide Example 3 : Click the Table Configure button to display the PoE Schedule - Add Event page: Profile Visible / Hidden : At the dropdown select Visible on the PoE Schedule Table or Hidden (enabled but not displayed on the PoE Schedule Table) and click the Apply button.
Page 180: Switch > Poe Management > Poe Input (-Pd Only)
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > PoE Management > PoE Input (-PD Only) This page lets you enable / disable the Auxiliary Port state and view the present PoE Input Status on the SESPM1040-541-LT-PD. Parameter descriptions: PoE Input Configuration section: Auxiliary Port: At the dropdown select Enabled or Disabled as the Aux Port state.
Page 181: Switch > Security > Management > Account
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > Account This page lets you add, configure, and delete users. Each user requires a username, password, and privilege level. Initially, one user (admin) exists. You can add up to 10 users via the Web UI. The default admin user cannot be deleted.
Page 182 Lantronix SESPM1040-541-LT-xx Operation Guide Buttons Add New User: Click to add and configure a new user to the system. Apply: Click to save the entries on this page to the running-config file. Cancel: Click to reset the page to all blank fields.
Page 183 Lantronix SESPM1040-541-LT-xx Operation Guide Delete a User: 1. On the Account page, click on the User Name to be deleted. 2. At the Security > Management > Account page click the Delete button. The message Successfully deleted! displays momentarily after the selected user is deleted.
Page 184 Lantronix SESPM1040-541-LT-xx Operation Guide Example: Ten user accounts added with varying User Names, Passwords, and privilege Levels. Messages Failed created user displays if you try to add too many users to the table (max. is 10 users). cannot add user - user table is full.
Page 185: Switch > Security > Management > Ble
The range is approximately 100m. The Lantronix Switch Manager Mobile App interfaces with the NFC and BLE features to allow switch configuration, remote diagnosis and troubleshooting without having to climb a ladder or use a scissor lift to connect to the switch.
Page 186: Switch > Security > Management > Https
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > HTTPS This page lets you configure secure HTTP (HTTPS) parameters and copy an HTTPS Certificate. HTTPS creates a secure channel over an insecure network. Web browsers know how to trust HTTPS websites based on certificate authorities that come pre-installed in their software.
Page 187: Switch > Security > Management > Nfc
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > NFC This page lets you configure NFC (Near Field Communication) parameters. Note that NFC configuration is automatically updated at boot up. The NFC antenna located inside the cover of the switch lets you configure the switch prior to connecting or powering it up simply by holding a smart device with the Switch App over the NFC antenna and transferring data.
Page 188: Switch > Security > Management > Tamper Detection
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > Tamper Detection This page lets you configure tamper detection. The switch includes a 3-axis linear accelerometer that detects if the switch has exceeded user-selected vibration limits, indicating someone may be tampering with the switch or the switch mount has somehow been compromised.
Page 189: Switch > Security > Management > Ssh
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > SSH This page lets you configure SSH (Secure Shell) parameters. See the end of this section for term definitions. Parameter descriptions: SSH section SSH Server Status: At the dropdown select Enabled to enable SSH Authentication globally or select Disabled.
Page 190 Lantronix SESPM1040-541-LT-xx Operation Guide Host Public-Key Settings section Public Key of Host RSA: displays the RSA Host Public Key. Public Key of Host DSA: displays the DSA Host Public Key. User Public-Key Settings section Public Key of User RSA: displays the RSA User Public Key.
Page 191 Lantronix SESPM1040-541-LT-xx Operation Guide RSA is a public-key encryption technology developed by RSA Data Security, Inc. The acronym stands for Rivest, Shamir, and Adelman, the inventors of the technique. The RSA algorithm is based on the fact that there is no efficient way to factor very large numbers.
Page 192: Switch > Security > Management > Telnet
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > Telnet This page lets you enable and disable the Telnet state. Parameter descriptions: Telnet State: At the dropdown select Enabled or Disabled. The default is Disabled. Buttons Apply: Saves the entries on this page to the running-config file.
Page 193: Switch > Security > Management > Radius
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > RADIUS This page lets you configure up to six RADIUS servers. Note that you must successfully configure and save the Radius Client before you can configure and save Radius Servers. By default, the RADIUS page displays with Radius Client Status set to Disabled.
Page 194 Lantronix SESPM1040-541-LT-xx Operation Guide Buttons Apply: Click once to save the RADIUS Client parameters on this page to the running-config file. Click a second time to save the RADIUS Server parameters on this page to the running-config file. Reset: Click to reset the page to all blank fields. Displays “Form data has been reset.”...
Page 195: Switch > Security > Management > Tacacs
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Security > Management > TACACS+ This page lets you enable and disable the TACACS+ Client and configure up to six TACACS+ Servers. Note that you must successfully configure and save the TACACS+ Client before you can configure and save TACACS+ Servers.
Page 196 Lantronix SESPM1040-541-LT-xx Operation Guide TACACS Server 1-6 Server IP address: Enter the IP address of the TACACS+ server for up to six TACACS+ servers. Server Secret: Enter the TACACS+ server secret for up to six TACACS+ servers. Timeout (1-60s): Enter a server timeout period for one to six TACACS+ servers.
Page 197: Switch > Event Notifications > Snmp Traps
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Event Notifications > SNMP Traps This page lets you add and configure SNMP Traps. At the default page click the Add New Trap button to display the Add Trap Host table. Parameter descriptions: Add Trap Host: At the default page click the Add New Trap button to display the Add Trap Host table.
Page 198: Switch > Event Notifications > System Log
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Event Notifications > System Log This page lets you set Syslog parameters and download syslog to a file. Parameter descriptions: System Log section Remote Server Address : Enter the IP address of a running and configured Syslog Server. The default is 0.0.0.0.
Page 199 Lantronix SESPM1040-541-LT-xx Operation Guide Example : View Syslog Webpage Parameter descriptions: Date : the log date in the format 02:14:14. : Calendar icon; click to display the calendar for date selection. Service : the logged service (e.g., agent3-tn-ion kernel or agent3-tn-ion ntpd[1707].
Page 200 Lantronix SESPM1040-541-LT-xx Operation Guide : At the dropdown select the number of rows to view per page. : Next button; click to view the previous page data. Syslog Examples: Lantronix Date Service Message 04-16 17:52:15 SESPM1040-541-LT liblogging-stdlog [origin software="rsyslogd" swVersion="8.24.0" x-pid="1599" x- info="http://www.rsyslog.com"] start...
Page 201: Switch > Maintenance > Configuration > Backup
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Maintenance > Configuration > Backup This page lets you back up the running-config, startup-config, or default-config file. The file types are: running-config: A virtual file that represents the currently active configuration on the switch. This file is volatile.
Page 202 Lantronix SESPM1040-541-LT-xx Operation Guide Buttons Backup : click to transfer the specified file to the specified server using the selected protocol. The message “Backup in progress. DO NOT INTERRUPT!” displays momentarily. The message “Successfully backed up” displays when successfully completed. Displays “Failed backup.” if the Backup was unsuccessful.
Page 203 Lantronix SESPM1040-541-LT-xx Operation Guide Backup and Restore Summary The table below lists and briefly explains each command in the Backup and Restore functions. Web Command CLI Command What It Does Generate a backup file of the running config copy running-config Backup running-config tftp://<server_ip>/<path>...
Page 204: Switch > Maintenance > Configuration > Restore
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Maintenance > Configuration > Restore This page lets you restore the backed up running-config or startup-config file. "Keep IP" (revert IP settings to the factory defaults of static IP, 192.168.1.10) is the default mode and currently the only mode.
Page 205 Lantronix SESPM1040-541-LT-xx Operation Guide Messages : Activating. Please wait a few moments.. Restoring. DO NOT INTERRUPT! Successfully activated configuration file! Failed restore. Successfully restored Note: Configuration Backup and Restore currently only work when you select the tftp protocol. The first startup-config file is automatically saved at initial boot. Thereafter, it is replaced whenever you run Save startup-config.
Page 206: Switch > Maintenance > Configuration > Save Startup-Config
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Maintenance > Configuration > Save startup-config This page lets you save the startup-config file to "/etc/tn_poe_startup_config.xml.gz" on the local device. This copies running-config to startup-config, thereby ensuring that the currently active configuration will be used at the next reboot.
Page 207: Switch > Maintenance > Configuration > Activate Startup-Config
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Maintenance > Configuration > Activate startup-config This page lets you activate the saved startup-config file. It is possible to activate any of the configuration files present on the switch, except for running-config which represents the currently active configuration.
Page 208: Switch > Maintenance > Restart Device
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Maintenance > Restart Device This page lets you perform a switch restart. A switch restart will cause the switch to reboot. If you are re-deploying the switch or need to clear the current configurations, use the Factory Default option instead.
Page 209: Switch > Maintenance > Factory Default
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Maintenance > Factory Default This page lets you restore configuration to factory default settings. Parameter descriptions: Are you sure you want to restore configuration to factory default? : Displays to give you the option to continue or quit the Restart operation.
Page 210: Switch > Maintenance > Firmware > Firmware Selection (Swap)
Lantronix SESPM1040-541-LT-xx Operation Guide Switch > Maintenance > Firmware > Firmware Selection (Swap) This page lets you switch firmware versions if more than one version exists. This will effectively “swap” the Active Image with the Alternate Image. Parameter descriptions: Software Revision: The Active Software Revision and date of release (e.g., 3.0.3 20210605).
Page 211: Switch > Maintenance > Firmware > Firmware Upgrade
The switch will only update PSE firmware if it can correctly determine the current running version. Otherwise, the message "Unable to determine running PSE firmware version, exiting PSE firmware update" displays. How to Obtain firmware: Send Lantronix a firmware download request based on your current firmware version.
Page 212 Lantronix SESPM1040-541-LT-xx Operation Guide Burning image to flash. DO NOT INTERRUPT! Upgrade succeeded. The device will now restart. The switch automatically reboots once after a switch firmware upgrade; the switch will reboot twice if both the switch firmware and the BLE firmware are upgraded.
Page 213 Lantronix SESPM1040-541-LT-xx Operation Guide Message: File is too big! Meaning: The firmware file you selected cannot be loaded because it is too large (likely an improper file). Recovery: 1. Click OK to clear the webpage message. 2. Select a .bin firmware file. The current sespm1040-541- lt-3.0.0.bin file is 49.3 Mb.
Page 214: Web Ui Messages
Lantronix SESPM1040-541-LT-xx Operation Guide Message: Failed upgrade. Result is: WRONG_FIRMWARE Meaning: You chose an invalid Firmware File. Recovery: Verify the downloaded filename and extension, choose a valid Firmware File, and then click the Upload button. Web UI Messages Message: Certificate Information Meaning: Login message;...
Page 215 Lantronix SESPM1040-541-LT-xx Operation Guide Message: Your connection is not private Meaning: Login message; this server could not prove that it is <ip address>; its security certificate is not trusted by your computer’s operating system. Recovery: 1. Click the Advanced button. 2. Click “Proceed to <ip address> …”. 3. Log back in to the SESPM1040- 541-LT-xx Web UI.
Page 216: Additional Information
A3. The IEEE802.3bt standard has an Annex Clause 145.3.8.2.1 for input average power exceptions. In closed systems (e.g., one in which a Lantronix’ SESPM1040-541-LT-AC or –DC version switch is providing power to Lantronix’ SESPM1040-541-LT-PD switch, this clause allows the PD to determine resistance and draw power up to, but not exceeding, the amount the PSE puts out.
Page 217 Lantronix SESPM1040-541-LT-xx Operation Guide Q8. What does the BLE feature do? A8. The Bluetooth Low Energy feature allows remote access to the switch without having to physically connect with a cable, so monitoring and troubleshooting and changes can be made prior to leaving the job site or after ladders or scissor lifts have been removed.
Page 218: Troubleshooting
Lantronix SESPM1040-541-LT-xx Operation Guide Troubleshooting Use the NFC app to configure before or during installation. Use the BLE app to troubleshoot after installation. See the Install Guide for PoE Modes, Compliance, Standards and Troubleshooting, and other related topics. 1. Check the Release Notes for any known issues.
Page 219: Led Troubleshooting
Lantronix SESPM1040-541-LT-xx Operation Guide LED Troubleshooting LEDs are provided to report PoE activity, link activity, system readiness, and switch power and BLE pairing. 1. PoE Activity LEDs (PSE Pair Powered LEDs): PSE Port 1: off = no power; amber = 2-pair powered; green = 4-pair powered.
Page 220 Lantronix SESPM1040-541-LT-xx Operation Guide 3. Link Activity: amber LEDs from top to bottom: Port 1: off = no activity; on = link activity. Port 2: off = no activity; on = link activity. Port 3: off = no activity; on = link activity.
Page 221: Poe Troubleshooting
Lantronix SESPM1040-541-LT-xx Operation Guide PoE Troubleshooting 1. Get as much detail as possible regarding the symptom, including any system messages from the PoE switch. For example, does a PD not power up at all, or does it power up briefly and then power down? 2.
Page 222: Nfc Troubleshooting
Lantronix SESPM1040-541-LT-xx Operation Guide NFC Troubleshooting Check if you have NFC. Not all phones and tablets have NFC. Check your phone’s Settings menu: 1. On your Android device, tap on Settings. 2. Tap More. 3. Scroll down and you should see NFC and Android Beam options.
Page 223: Snmp Configuration
Lantronix SESPM1040-541-LT-xx Operation Guide SNMP Configuration SNMP Traps and Informs <to be provided> May 17, 2019: Add warm start and cold start traps. SNMP MIBs / OIDs <to be provided>. SNMP Error Messages 1 Error in packet.\nReason: %s\n SNMP SetTimeout: No Response from %s\n", ss->peername);...
Page 224: Compliance Information
Lantronix SESPM1040-541-LT-xx Operation Guide Compliance Information See the Install Guide for all regulatory agency compliance information. Party Software Packages Open Source Software Packages Open Source packages=ncurses-base login libpam-radius-auth libpam-tacplus util-linux hostname libc-bin bash findutils grep sed diffutils atftp less mount base-passwd openntpd openssh-client openssh-server openbsd-inetd...
Page 225 Lantronix SESPM1040-541-LT-xx Operation Guide Glossary of Terms Note that the mention or definition of a term here does not imply that the switch supports that particular feature. 802.11b standard has a maximum raw data rate of 11 Mbit/s and uses the same media access method defined in the original standard.
Page 226 Lantronix SESPM1040-541-LT-xx Operation Guide formation of ice on the enclosure. See https://www.nema.org/Products/Documents/nema-enclosure-types.pdf for more information. See NEMA Standards Publication 250-2003, “Enclosures for Electrical Equipment (1000 Volts Maximum)”. This Standards Publication as well as all other NEMA publications are available from IHS @ 800 854-7179 or http://www.global.ihs.com.
Page 227 Lantronix SESPM1040-541-LT-xx Operation Guide 2011. PoH delivers up to 100W over all four pairs in a category cable. By using all four pairs, two power interfaces are available to provide twice the power offered by two-pair solutions. If multiple PDs need power, PoH allows devices to be daisy-chained together and all powered through higher-power extenders (95W).
Page 228 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 228 of 228 33773 Rev. F https://www.lantronix.com/...
