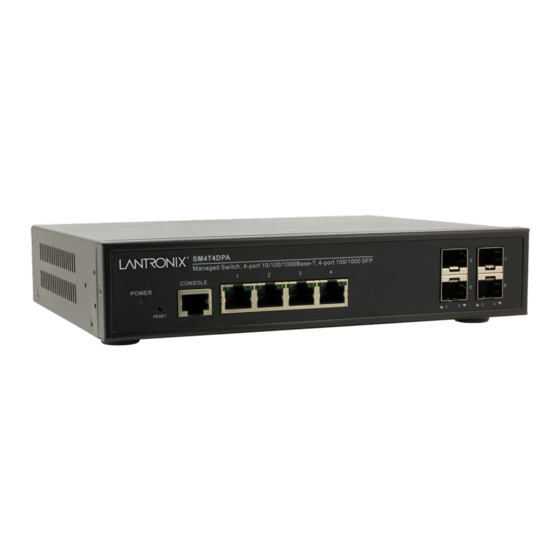

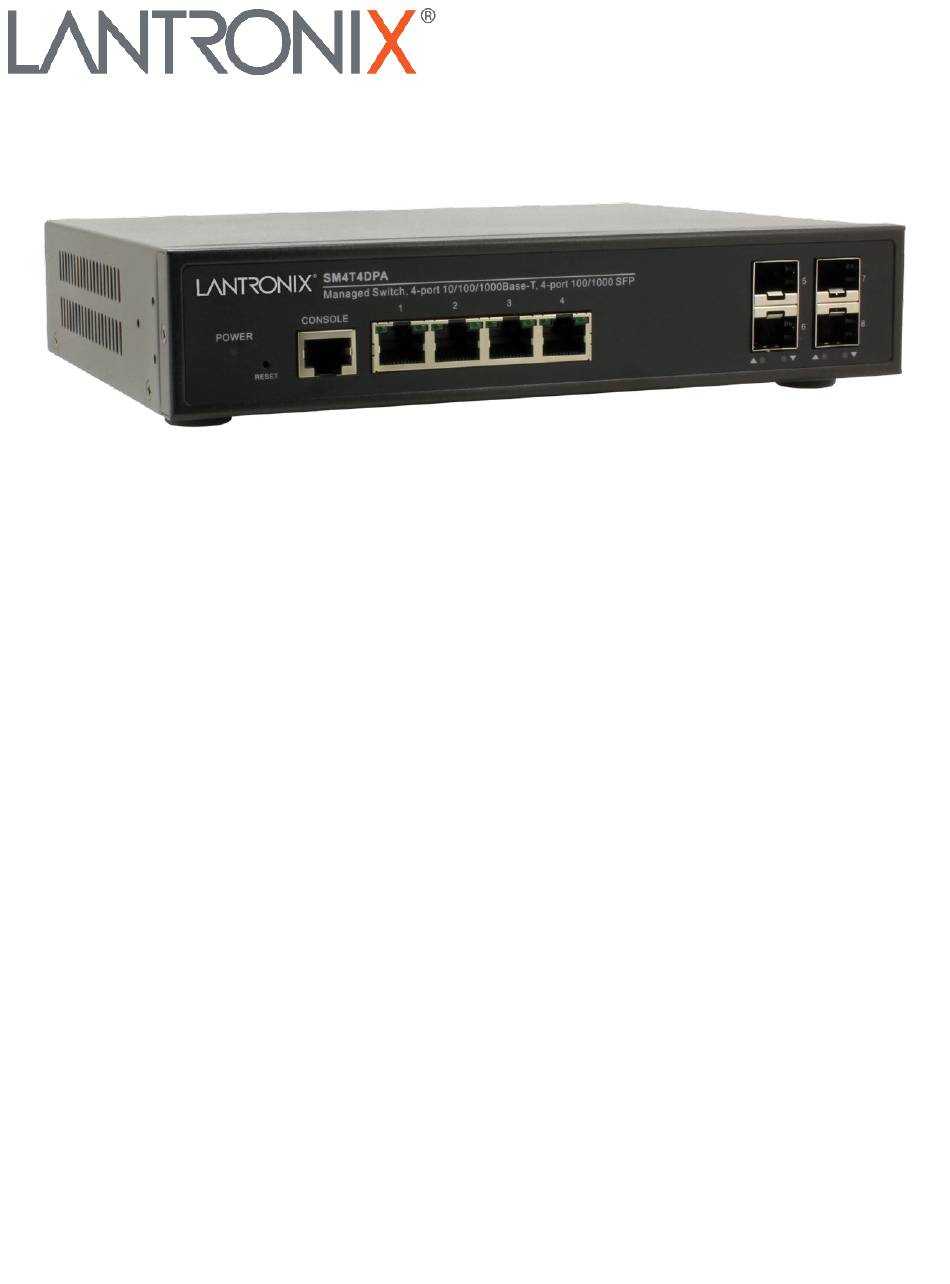

- Page 1 SM4T4DPA Managed Layer 2 Gigabit Ethernet Switch (4) 10/100/1000Base-T Ports + (4) 100/1000Base-X SFP Slots Install Guide Part Number 33867 Revision A August 2023...
-
Page 2: Revision History
SM4T4DPA Install Guide Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. -
Page 3: Table Of Contents
Lantronix SM4T4DPA Install Guide Contents Revision History ................................ 2 Product Description ..............................5 Ordering Information ..............................5 About this Manual ..............................5 Related Manuals ............................... 5 For More Information ..............................5 Features ................................. 5 Specifications ................................. 6 Cautions and Warnings ............................. 7 Hardware Description .............................. - Page 4 Lantronix SM4T4DPA Install Guide Switching Features .............................. 27 Management Features ............................27 Standards ................................27 Compliance ................................28 Regulatory Agency Information ..........................28 RoHS, WEEE, and Environmental Programs ...................... 28 Declaration of Conformity ............................ 28 33867 Rev. A https://www.lantronix.com Page 4 of 29...
-
Page 5: Product Description
Internet Protocol (IP), Ethernet switches and networking, and Simple Network Management Protocol (SNMP). Transition Networks is now Lantronix. Some products/firmware items are still in process of being re-branded and may still reflect the Transition Networks name/logo Related Manuals •... -
Page 6: Specifications
Lantronix SM4T4DPA Install Guide • Supports IGMP Snooping V1/V2/V3, IGMP Proxy and GVRP • Supports 8 hardware queues with Strict priority and WRR. Per port bandwidth management • Supports IEEE 802.1s MSTP, IEEE 802.1w RSTP and IEEE 802.1D STP Compliant Port Based VLAN, IEEE 802.1Q tag-based, 4096 VLAN entries, MACbased VLAN, Private VLAN Edge,... -
Page 7: Cautions And Warnings
Lantronix SM4T4DPA Install Guide Cautions and Warnings Cautions indicate that there is the possibility of poor equipment performance or potential damage to the equipment. Warnings indicate that there is the possibility of injury to person. Cautions and Warnings appear here and may appear throughout this manual where appropriate. Failure to read and understand the information identified by this symbol could result in poor equipment performance, damage to the equipment, or injury to persons. -
Page 8: Hardware Description
Lantronix SM4T4DPA Install Guide Hardware Description Switch Architecture The switch provides a wire-speed, non-blocking switching fabric. This allows wire-speed transport of multiple packets at low latency on all ports simultaneously. The switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection. -
Page 9: 1000Base-T Ports
Port and System Status LEDS The SM4T4DPA switch includes a display panel for system and port indications that simplify installation and network troubleshooting. The LEDs, which are located on left hand side of the front panel for easy viewing. Details are shown below and described in the following tables. -
Page 10: Network Planning
Lantronix SM4T4DPA Install Guide Network Planning Introduction to Switching A network switch allows simultaneous transmission of multiple packets; it can partition a network more efficiently than bridges or routers. Thus the switch has been recognized as one of the most important device for today’s networking technology. - Page 11 Lantronix SM4T4DPA Install Guide Network Connection between Remote Site and Central Site Office Network Connection 33867 Rev. A https://www.lantronix.com Page 11 of 29...
-
Page 12: Installation
◆ Make sure the twisted-pair Ethernet cable is always routed away from power lines, radios, transmitters or any Allow the status LEDs to be clearly visible. ◆ Make sure that SM4T4DPA Switch is connected to a separate grounded power outlet that provides 100 to 240 other electrical interference. -
Page 13: Equipment Checklist
Lantronix SM4T4DPA Install Guide Equipment Checklist After unpacking this switch, please check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. Package Contents SM4T4DPA Management Switch □... -
Page 14: Desktop Or Shelf Mounting
Lantronix SM4T4DPA Install Guide Installing the switch in a Rack Step 3. If installing a single switch only, turn to “Connection to a Power Source” at the end of this chapter. Step4. If installing multiple switches, mount them in the rack, one below the other, in any order. -
Page 15: Installing An Optional Sfp Transceiver
Lantronix SM4T4DPA Install Guide Installing an Optional SFP Transceiver You can install or remove a mini-GBIC SFP from a mini-GBIC slot without having to power off the switch. Note: The SFP ports operate only at full duplex. Half duplex operation is not supported. -
Page 16: Connecting To The Console Port
Lantronix SM4T4DPA Install Guide Connecting to the Console Port The RJ-45 serial port on the switch’s front panel is used to connect to the switch for out-of-band console configuration. The command-line-driven configuration program can be accessed from a terminal or a PC running a terminal emulation program. - Page 17 “admin”. For first time use, enter the default username and password, and then click the <Login> button. The login process now is completed. SM4T4DPA Web User Interface: Note: If you need to set other parameters, refer to the detail in the related. You can also access the Switch and click the "help"...
-
Page 18: Making Network Connections
Lantronix SM4T4DPA Install Guide Making Network Connections Connecting Network Devices The switch is designed to be connected to 10, 100 or 1000Mbps network cards in PCs and servers, as well as to other switches and hubs. It may also be connected to remote devices using optional SFP transceivers. - Page 19 Lantronix SM4T4DPA Install Guide Network Wiring Connections The punch-down block is an integral part of many of the newer equipment racks. It is actually part of the patch panel. Instructions for making connections in the wiring closet with this type of equipment follows.
- Page 20 Lantronix SM4T4DPA Install Guide Making Fiber Port Connections Step 4. As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the connection is valid. The fiber optic ports operate at 1 Gbps. The maximum length for fiber optic cable operating at Gigabit speed will depend on the fiber type as listed under “1000 Mbps Gigabit Ethernet Collision...
-
Page 21: Troubleshooting
Because the SM4T4DPA behave in this way (in compliance with the IEEE802.3 standard), if a device connected to the switch has a fixed configuration at full duplex, the device will not connect correctly to the switch. The result will be high error rates and very inefficient communications between the switch and the device. - Page 22 Lantronix SM4T4DPA Install Guide Power and Cooling Problems Installation: If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply. However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet.
-
Page 23: Cables
Lantronix SM4T4DPA Install Guide Cables Twisted-Pair Cable and Pin Assignments For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the twisted-pair cable must have four pairs of wires. Each wire pair is identified by two different colors. - Page 24 Lantronix SM4T4DPA Install Guide Straight-Thru Wiring If the twisted-pair cable is to join two ports and only one of the ports has an internal crossover (MDI-X), the two pairs of wires must be straight-through. (When auto-negotiation is enabled for any RJ-45 port on this switch, you can use either straight-through or crossover cable to connect to any device type.)
- Page 25 Lantronix SM4T4DPA Install Guide 1000BASE-T Pin Assignments All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. The table below shows the 1000BASE-T MDI and MDI-X port pinouts. These ports require that all four pairs of wires be connected.
- Page 26 Lantronix SM4T4DPA Install Guide Fiber Standards: The International Telecommunication Union (ITU-T) has standardized various fiber types for data networks. These are summarized in the following table. ITU-T Description Application Standard Multimode Fiber G.651 Short-reach connections in the 1300- nm or 850-nm band...
-
Page 27: Specifications
Lantronix SM4T4DPA Install Guide Specifications Physical Characteristics Ports 4 port 10/100/1000Mbps TP, 4 port 100/1000Mbps SFP Fiber ports Ports 1-4: RJ-45 connector, auto MDI/X 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) Network Interface 1000BASE-T: RJ-45 (100-ohm, UTP or STP cable;... - Page 28 Declaration of Conformity Manufacture’s Name: Lantronics, Inc. Manufacture’s Address: 48 Discovery, Suite 250, Irvine, California 92618 USA Declares that the products: SM4T4DPA Conforms to the following Product Regulations: FCC Part 15 Class A, EN 55032:2012, EN 55024:2010 Directive 2014/30/EU...
- Page 29 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support Online: https://www.lantronix.com/technical-support/ Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. 33867 Rev. A https://www.lantronix.com Page 29 of 29...
