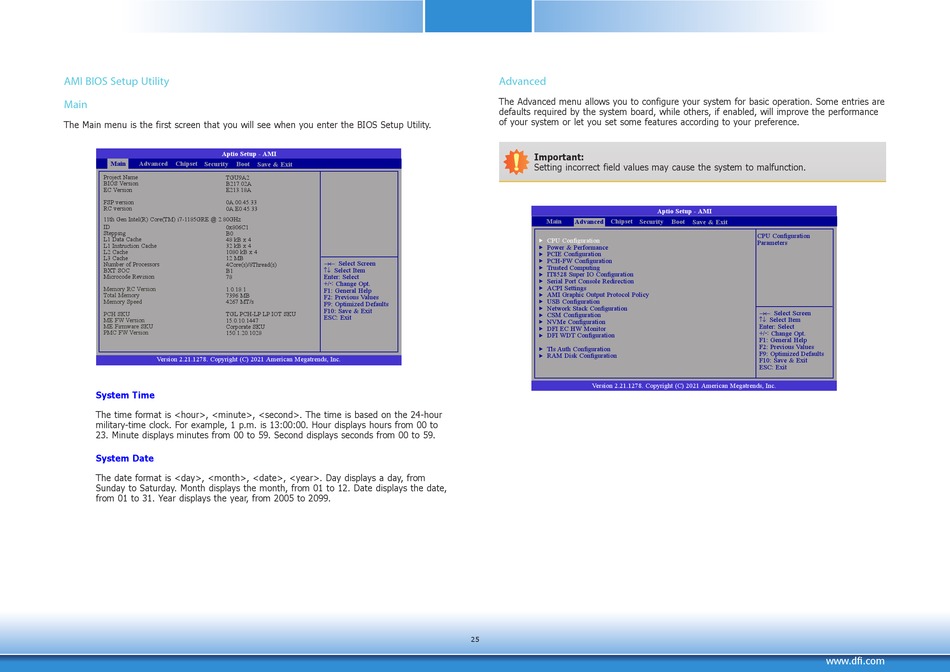

AMI BIOS Setup Utility

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Aptio Setup - AMI
Main

Advanced

Chipset
Security Boot
Project Name TGU9A2
BIOS Version B217.02A
EC Version E213.18A
FSP version
0A.00.45.33
RC version 0A.E0.45.33
11th Gen Intel(R) Core(TM) i7-1185GRE @ 2.80GHz
ID 0x806C1
Stepping
B0
L1 Data Cache 48 kB x 4
L1 Instruction Cache 32 kB x 4
L2 Cache 1080 kB x 4
L3 Cache 12 MB
Number of Processors
4Core(s)/8Thread(s)
BXT SOC B1
Microcode Revision 78
Memory RC Version 1.0.18.1
Total Memory
7396 MB
Memory Speed 4267 MT/s
PCH SKU TGL PCH-LP LP IOT SKU
ME FW Version
15.0.10.1447
ME Firmware SKU
Corporate SKU
PMC FW Version 150.1.20.1028
Version 2.21.1278. Copyright (C) 2021 American Megatrends, Inc.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour
military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to
23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from
Sunday to Saturday. Month displays the month, from 01 to 12. Date displays the date,
from 01 to 31. Year displays the year, from 2005 to 2099.
Save & Exit
Select Screen
→←:
Select Item
↑↓:
Enter: Select
+/ -: Change Opt.
F1: General Help
F2: Previous Values
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
Advanced
The Advanced menu allows you to configure your system for basic operation. Some entries are
defaults required by the system board, while others, if enabled, will improve the performance
of your system or let you set some features according to your preference.
Important:
Setting incorrect field values may cause the system to malfunction.
Main Advanced Chipset Security
CPU Configuration

Power & Performance

PCIE Configuration

PCH-FW Configuration

Trusted Computing

IT8528 Super IO Configuration

Serial Port Console Redirection

ACPI Settings

AMI Graphic Output Protocol Policy

USB Configuration

Network Stack Configuration

CSM Configuration

NVMe Configuration

DFI EC HW Monitor

DFI WDT Configuration

Tls Auth Configuration

RAM Disk Configuration

Version 2.21.1278. Copyright (C) 2021 American Megatrends, Inc.
25
Aptio Setup - AMI
Boot
Save & Exit
CPU Configuration
Parameters
Select Screen
→←:
Select Item
↑↓:
Enter: Select
+/ -: Change Opt.
F1: General Help
F2: Previous Values
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
