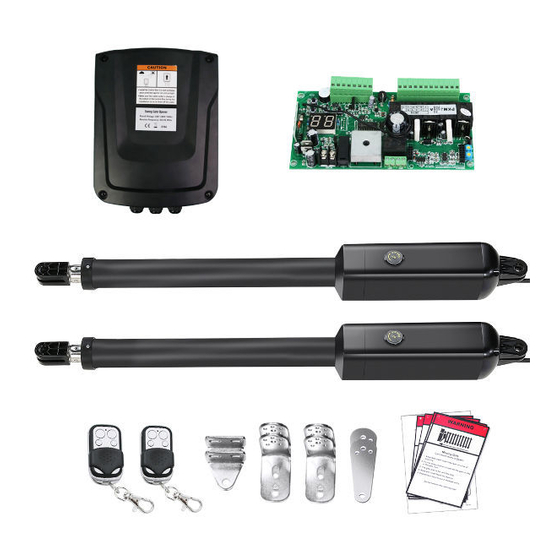

Swing Gate Opener
MK1101M / MK1102M
MK1301M / MK1302M
MK1501M / MK1502M
★ Please read and follow all warnings, precautions and instructions before
installation and use.
★ Never connect the solar panel to the control board directly to charge the battery.
★ Periodic checks of the opener are required to ensure safe operation.
★ Save this manual.
C030009
User's Manual
Model:
MK1101 / MK1102
MK1301 / MK1302
VER 21a
Advertisement
Related Manuals for Topens MK1101
Summary of Contents for Topens MK1101
- Page 1 Swing Gate Opener User’s Manual Model: MK1101 / MK1102 MK1301 / MK1302 MK1101M / MK1102M MK1301M / MK1302M MK1501M / MK1502M ★ Please read and follow all warnings, precautions and instructions before installation and use. ★ Never connect the solar panel to the control board directly to charge the battery.
- Page 2 Table of Contents Safety Installation Information .......................... 1 Dual Gate Opener Parts List ..........................2 Single Gate Opener Parts List ......................... 3 Optional Accessories Parts List........................4 Tools Needed: ..............................4 Technical Specifications & Features ........................ 5 Dual Gate Overview ............................7 Single Gate Overview............................
- Page 3 use on any pedestrian gate. Pedestrians must be Safety Installation Information supplied with a separate pedestrian access. 1. READ and FOLLOW all instruction. For an installation utilizing non-contact sensors The gate opener is intended for use with Class I (safety sensors), see product manual on the vehicular swing gates.
- Page 4 13. To AVOID damaging gas, power, or other SAVE INSTRUCTION. underground utility lines, contact underground utility 14. Do not permit children to play on or around the locating companies BEFORE digging. gate and keep all controls out of their reach. Dual Gate Opener Parts List...
- Page 5 Single Gate Opener Parts List...
- Page 6 Optional Accessories Parts List Tools Needed: ·Power Drill ·Tape Measure ·Open End Wrenches - 14# &17# or Adjustable Wrenches ·Wire Strippers ·C-Clamps - small, medium, and large ·Level ·Hacksaw or Heavy Duty Bolt Cutters ·Phillips Screwdriver ·An extra person will be helpful...
- Page 7 Technical Specifications & Features Specifications MK1101/1102 MK1301/1302 MK1501M/1502M MK1101M/1102M MK1301M/1302M Input: 110V~120V/60Hz or 220~240V/50Hz Motor voltage: 24VDC Power: 50W each actuator 80W each actuator 100W each actuator Current: Actuator speed: 20mm/s（0.8 in/s） Max. actuator travel: 385mm（15.2 in） 485mm（19 in） Ambient Temperature: -22℃~ +55℃...
- Page 8 Gate Capacity of MK15 450kg(990lbs) 400kg(880lbs) 350kg(770lbs) 300kg(660lbs) 200kg(440lbs) 150kg(330lbs) ...
- Page 9 Dual Gate Overview...
- Page 10 Single Gate Overview Preparation for Installation There are two installation types for the gate opener, Pull-to-Open and Push-to-Open. In the Push-to-Open installation, gate opens out from the property. A Push-To-Open Bracket (PSO part) is required to be used for each gate. NOTE: Ensure the gate does not open into public areas.
- Page 11 Install the Gate Opener on the Gate The position of Post Bracket is very important. The following illustrations and tables are required to determine the proper mounting position for the Post Bracket. The tables show the maximum opening angle of the gate for a given A and B.
- Page 12 Push-to-Open Installation — Gate in Closed position (Moving-Rod is retracted) 1. Insert the M10 x 30 bolt through the center hole of the post bracket and post pivot bracket as shown. Place a ￠10 washer , ￠10 lock washer and M10 nut on the bottom of the bolt and hand tighten.
- Page 13 5. Make sure that there is a minimum clearance of 2.5cm between the gate and the opener and that the opener and the Post Pivot Bracket are not binding in both the gate-open and gate-closed positions. If there is not at least 2.5cm of clearance or if the opener and the Post Pivot Bracket are binding, rotate the Post Pivot Bracket and/or move the Post Bracket Assembly to obtain the minimum clearance and eliminate the binding.
- Page 14 6. Sign the bolt-hole point on the gate bracket and gate. Do this by placing a punch or a sign in the middle of each bolt slot on the post bracket assemblies and the gate bracket. It allows slight adjustments to the post bracket. Then remove the post bracket and gate bracket by taking off the C-clamps.
- Page 15 10. Cut off any part of the bolts that extend beyond the tightened nuts. 11. With the gate opener fully retracted and with the gate in the fully open position (for Pull-to-Open installation) or fully closed position (for Push-to-Open installation), attach the gate opener to the Post Bracket Assembly and the Gate Bracket by inserting a clevis pin through the gate opener and the Post Pivot Bracket and another clevis pin through the gate opener and the Gate Bracket.
- Page 16 CAUTION: Install the Control Box in a well ventilated place protected against rain and sunlight. 3.Insert the cable of the second gate opener and alarm lamp cables into the control box through middle strain relief. Then repeat step 2. 4. Insert other cables into the control box through rightmost strain relief. Then repeat step NOTE: Only motor cables (1.5m length) are provided.
- Page 17 Connection of the Control Board...
- Page 18 Motor connection for PULL-TO-OPEN Actuator 1 Insert the stripped cable wires into the appropriate terminals on the opener terminals block. The red wire should be inserted into the “MOTOR1+” terminal, the black wire into “MOTOR1-“, the blue wire into ULT1, the green wire into COM, and the yellow wire into DLT1 terminal.
- Page 19 Loop Detector (optional) First insert the LOOP DETECTOR BOARD into the CONTROL BOARD, and then connect the LOOP DETECTOR to the control board. Detailed instruction please refers to the manual instruction of LOOP DETECTOR separated. Exit Wand (optional) Please refers to the manual instruction of EXIT WAND separated. Electric Lock (optional) The electric lock should be wired to the “LOCK”...
- Page 20 Setting of the Control Board 1. Check again for completed and correct assembly of your swing gate opener and gate. Plug the Power Grounded Cord into the nearest AC outlet. The Digital Display on the Control Board will flash with “- -”. The unit is in standby. 2.
- Page 21 When the Digital Display indicates “P5”, the gate opener is on the Stall Force Adjustment. Without a properly installed safety reversal system, person (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing gate. *Too much force on gate will interfere with proper operation of safety reversal system. *NEVER increase force beyond minimum amount required to close gate.
- Page 22 You can press and release the “INC” or “DEC” button to set or shut off the PBS function. The Digital Display indicates “11”, the PBS is available. The Digital Display indicates “00”, the PBS is null. If the “11” is be set, the gate opener won’t work until the PBS system is equipped. The PBS Note: system works only when gate opener is closing.
- Page 23 or “u” respectively. When the motor is not running, the Digital Display “- -”. indicates Adjusting the Limit Switch The position of Limit Switch A was fixed in factory, do not adjust it again. Plug on the power to running gate opener, use a screwdriver to loose the screw of Limit Switch B, slide Limit Switch B to the desired closed position and fix it.
- Page 24 Trouble Shooting 1. Opener does not run. Digital Display indicator is not on. • Check if all motor are properly connected and color coded. Make sure the AC input is connected. • Check if the fuse in control board is bad. 2.
- Page 25 Quick-Setting Guide...
