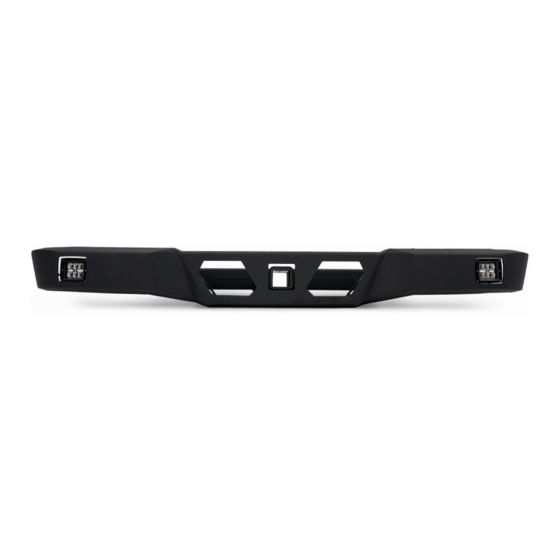

Ultra-Slim High Clearance Rear Bumper
2020+ Jeep Gladiator
RBGL-05
TOOLS
REQUIRED
- Screw Driver (Philips)
- Ratchet
- 13mm Socket
- 18mm Socket
- 21mm Socket
- 18mm Wrench
- T27 Torx Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3.5 Hours
Time to install this should only
take Approximately 3.5 Hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Related Manuals for DV8 OFFROAD RBGL-05
Summary of Contents for DV8 OFFROAD RBGL-05
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (6) M12x35 Bolts (6) M12 Flat Washer (6) M12 Lock Washer Light Pod Hardware: (2) M8x25 Bolts (2) M8 Flat Washers...
- Page 3 INSTALLATION MANUAL STEP Begin by installing frame horns on the rails using a 21mm Socket and four factory bolts, secure but do not tighten. NOTE: Take notice of the orientation of the frame horns. Pictured is the drivers side. STEP Install hitch by lifting it up to the frame horns and inserting the four factory bolts to hold it up.
- Page 4 INSTALLATION MANUAL STEP Align the hitch so it is even and level, then secure the factory bolts and hardware using a 18mm socket and wrench. NOTE: Some may prefer to put the hitch as high as possible for more clearance. STEP On the pod lights, line the bracket up with the existing holes on both sides...
- Page 5 INSTALLATION MANUAL STEP Rotate the light so gravity holds the nut in place, and thread a M6x15 bolt in from the bottom gently until it catches the threads. Repeat on the other side of the light. Rotate bracket to the side of the light without wiring, leave this loose enough to allow for adjustment.
- Page 6 INSTALLATION MANUAL STEP Lift the bumper to the frame horns and using an 18mm socket install the M12x35 bolts and hardware. Ensure the bumper is centered before securing. STEP Finish securing the two factory bolts on the bottom of the frame horn using a 21mm socket.
- Page 7 INSTALLATION MANUAL STEP Unplug the camera harness and tuck out of the way. STEP Remove camera assembly by sliding it towards the bottom of the tailgate and then pulling out gently. STEP Take the smaller piece of foam padding and attach to license plate light by removing the material covering the sticky side and slide wires through.
- Page 8 INSTALLATION MANUAL STEP Using a philips head screwdriver attach the light to the tailgate bracket by sliding the wires through the gap and secure using the M4x15 bolts and hardware. 855-680-9595 NEED HELP?
- Page 9 INSTALLATION MANUAL STEP Take the larger piece of foam padding, remove the material covering the sticky side, and apply to bracket. STEP Slide wires through the gaps in the bracket so that it protrudes out of the bracket through the opening. STEP Install license plate using provided allen wrench and provided M6...
- Page 10 INSTALLATION MANUAL STEP Install bracket by putting the square backing plate inside the tail gate, and secure using a 10mm socket and two M6 silver hatted nuts. Ensure the bracket is centered when securing it. STEP Wire the license plate using the existing license plate light wiring.
- Page 11 INSTALLATION MANUAL STEP Feed camera harness through the gaps so that it protrudes out of the tailgate and reconnect to the camera. STEP Reinstall camera by pushing the top section in and then sliding upwards until secure. 855-680-9595 NEED HELP?
- Page 12 INSTALLATION MANUAL STEP Reinstall cover with the factory screws using a T27 torx bit. STEP Double check all hardware is secure. 855-680-9595 NEED HELP?
