DV8 OFFROAD SPEC Series Installation Manual

Rear bumper for 14-21 toyota tundra
Hide thumbs Also See for SPEC Series:

Advertisement

Quick Links

Download this manual

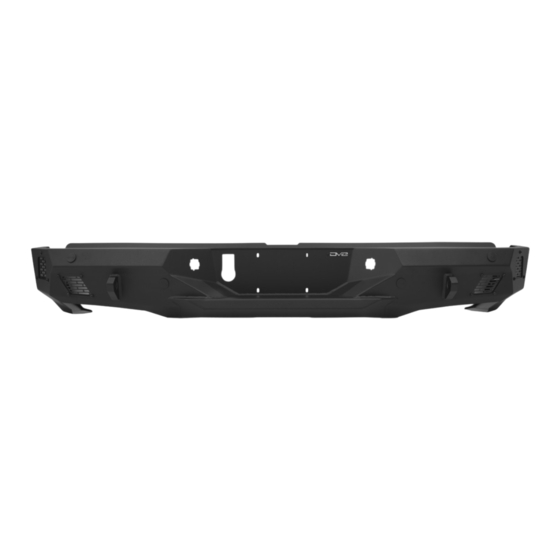

SPEC SERIES REAR BUMPER
14-21 TOYOTA TUNDRA
RBTT2-06
TOOLS
REQUIRED
- 10mm, 12mm & 18mm sockets
- #4 Allen tool
- Trim Pry Tools
- Phillips Head Screwdriver
- Pick Tool
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
555 E QUEEN CREEK RD #A
CHANDLER, AZ 85286
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 persons
Little skill level required, however,
additional help is required for
removal and install of bumpers.
Read and understand all
INSTALLATION
PRODUCT
TIME
- 3.5 Hours
Time to install this should only
take about three and a half
hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPEC Series and is the answer not in the manual?

Questions and answers

Related Manuals for DV8 OFFROAD SPEC Series

Summary of Contents for DV8 OFFROAD SPEC Series

  • Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
  • Page 2 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (8) M10x30 Hex Bolts (8) M6 Flat Washer (8) M10 Flat Washers (4) Nylon Lock Nuts...
  • Page 3 INSTALLATION MANUAL STEP 2 | Remove the rear license plate to gain access to 1 of 3 push pins retaining the center bumper section. Remove all 3 push pins. 855-680-9595 NEED HELP?
  • Page 4 INSTALLATION MANUAL STEP 3 | Remove the trailer connector socket by depressing the large metal retaining clips on the backside and pushing the connector socket out the front side of the bumper. NOTE: A trim tool can be used to depress the large silver retaining clips.
  • Page 5 INSTALLATION MANUAL STEP 6 | Gently pry the bumper plastic away from the bumper to allow enough access to the parking sensors. Gently unplug the sensors from the harness. STEP 7 | Remove both license plate light by depressing both retaining clips and pushing the lights out the front side.
  • Page 6 INSTALLATION MANUAL STEP 8 | Remove the bumpers plastic center section and ensure any harness retaining clips are removed. Using a trim tool, remove any attached wire harness fasteners. 855-680-9595 NEED HELP?
  • Page 7 INSTALLATION MANUAL STEP 9 | Remove the wiring harness from the bumper support attached to the tow hitch. STEP 10 | Use a 12mm socket to remove the bumper support. 855-680-9595 NEED HELP?
  • Page 8 INSTALLATION MANUAL STEP 11 | Use a trim tool to remove any bumper push pins retaining the bumper corner plastic fascia pieces. 855-680-9595 NEED HELP?
  • Page 9 INSTALLATION MANUAL STEP 12 | With firm grip, pull to remove the bumpers plastic corner fascia pieces to gain access to the blind spot monitoring sensors.(If equipped) If you do not have blind spot monitoring sensors, skip to step 14. STEP 13 | Unplug the blind spot monitoring sensors and using a 10mm...
  • Page 10 INSTALLATION MANUAL STEP 14 | Use a 12mm socket to remove bumper corner supports so that only the tow hitch is left attached to the frame. Be careful not to damage any sensor wiring harness during removal. 855-680-9595 NEED HELP?
  • Page 11 INSTALLATION MANUAL STEP 15 | Use a pick tool to pry up the sensor locking tab to remove the parking sensor from the sensor bezels. STEP 16 | Use the pick tool to depress the sensor bezels locking tabs. With the tabs depressed, push the sensor bezels out the front of the bumper fascia.
  • Page 12 INSTALLATION MANUAL STEP 17 | With everything removed, your vehicles rear end should look as shown. 855-680-9595 NEED HELP?
  • Page 13 INSTALLATION MANUAL STEP 18 | Place the DV8 Rear Bumper on a work bench or soft surface to prevent damage. If your factory bumper is equipped with BSM sensors, remove the bumper corner mesh/ light bracket using a 10mm socket and #4 Allen tool.
  • Page 14 INSTALLATION MANUAL STEP 20 | If your vehicle is not equipped with Blind Spot Monitoring Sensors the mesh/light bracket will accept up to an 3” pod light. If you are planning to run pod lights, install them now using the hardware that is provided with the pod light.
  • Page 15 INSTALLATION MANUAL STEP 23 | Install your parking sensors into your new bumper. First press the mounting ring in from the front side of the bumper, then push the sensors into place from the back side. Make sure to install your sensors in the same position/order as they came off your old bumper.
  • Page 16 INSTALLATION MANUAL STEP 25 | Remove the 3 of the tow hitch mounting bolts from each side using an 18mm socket. STEP 26 | Mount the provided bumper brackets using the tow hitch factory hardware previously removed. Loosely secure the hardware using a 18mm socket.
  • Page 17 INSTALLATION MANUAL STEP 27 | Install the provided Nut clips on to the bumper as shown. Use (4) nut clips on each side. STEP 28 | With assistance, mount the DV8 rear bumper on to the vehicle. Use the provided M10 hardware and a 18mm socket to loosely secure the bumper on the vehicle.
  • Page 18 INSTALLATION MANUAL STEP 29 | Center the bumper side to side and Up & Down. Ensure that the tailgate opens and closes with out contacting the bumper. Use a 18mm socket to secure the M10 bumper mounting hardware and the mounting brackets factory hardware.
  • Page 19 INSTALLATION MANUAL STEP 31 | Double check that all hardware is secured. Congratulations!!! Installation of the DV8 Spec Series Rear Bumper is now complete. 855-680-9595 NEED HELP?
