Spec Series Rear Bumper
2022+ Bronco Raptor
RBBR-05
TOOLS
REQUIRED
- 10,13,18, 21mm Sockets
- #4 Allen Bit
- Zip Ties
- Silicone (Optional)
- Electrical Tape
- Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
- Novice/Intermediate
- 2 People
Little skill level required.
Read and understand all
PRODUCT
INSTALLATION
LEVEL
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
TIME
REQUIRED
- Approximately 3 Hours
855-680-9595
NEED HELP?
Advertisement
Subscribe to Our Youtube Channel

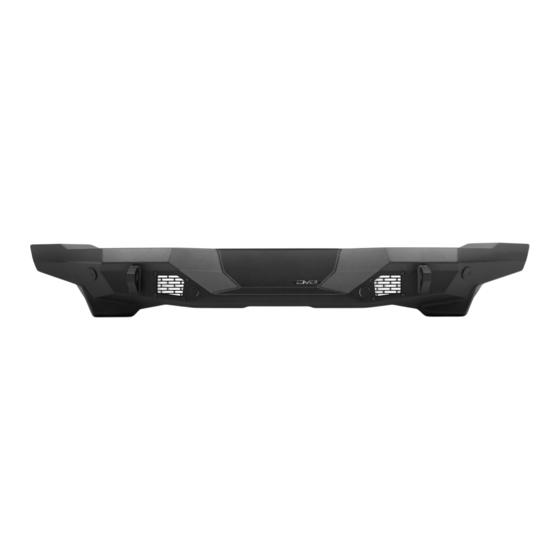

Related Manuals for DV8 OFFROAD Spec Series
Summary of Contents for DV8 OFFROAD Spec Series
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP Unplug the factory bumper from the Bronco. Locate the small plug just to the rear of the rear wheel wells on each side of the bumper. STEP Using a 13mm socket, unbolt the side bumper supports on each side of the bumper just outside of the frame rails.
- Page 3 INSTALLATION MANUAL STEP Once bumper is removed, lay on soft surface face down. Unclip the license plate light by squeezing the plug and pulling away from the bumper. STEP Remove the thirteen bolts holding the three center brackets using a 13mm socket.
- Page 4 INSTALLATION MANUAL STEP Using a push pin removal tool, remove point where the wire harness is connected to the bumper or brackets. STEP Remove the two center sensors from the sensor bezels by spreading the two tabs on the bezels and pull the sensor up.
- Page 5 INSTALLATION MANUAL STEP Lean the bumper forward, and while pulling the face of the sensor bezel from the outside of the bumper, squeeze the two tabs on the bezel near the bumper to remove the bezel. STEP Carefully, pull the wire harness away to be used on your new DV8 bumper.
- Page 6 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. (4) M6 Lock Nuts Hardware Included: (6) M12x35mm Bolts (8) M6 Flat Washers (1) M6 Serrated Nut (6) M12 Nuts (2) M4x15 Pan Head...
- Page 7 INSTALLATION MANUAL STEP To install the sensor bezels into the bumper, identify the location of the bezel by reading the identifier on the bezel. For example, our image shows “ROR” which stands for rear outer right. STEP On the two center bezels, you will need to trim down the tabs on the side to allow for the thicker material our bumper uses.
-
Page 8: Installation
INSTALLATION MANUAL STEP Trim the tabs on corner sensor bezels rear locking cage. 855-680-9595 NEED HELP? - Page 9 INSTALLATION MANUAL Note: On the DV8 bumper, these should be oriented down. 855-680-9595 NEED HELP?
- Page 10 INSTALLATION MANUAL STEP Lean the bumper back and fit the two inner sensor bezels into place. Note: Our bumpers are designed to accept both factory metal bumper and plastic bumper sensor bezels. All cutouts are cut differently to ensure each bezel is placed into the correct hole STEP Install the sensors by holding the face...
- Page 11 INSTALLATION MANUAL STEP If installing Pod lights, do so at this time using the hardware provide with the lights. Note: We are running two DV8 3 inch elite series LED Pod lights. STEP To wire up the license plate light you will need to cut off the factory connector and wire it to our new LED light, or you can opt to wire in a new...
- Page 12 INSTALLATION MANUAL STEP Install the 6 provided nut clips on to the DV8 Rear Bumper. STEP Install the Bumper mounting bracket on to the rear bumper using the six provided M12 hardware and an 18mm socket. Keep hardware semi loose to allow for adjustment after mounted onto the Bronco.
- Page 13 INSTALLATION MANUAL STEP With assistance, lift the bumper to the truck and reusing the factory M12 bolts with a 16mm socket, install the lower four bolts tightening to 70 ft lbs. STEP After the bumper is aligned with the vehicle, tighten all six M12 bracket bolts to the bumper until secure.
- Page 14 INSTALLATION MANUAL STEP Start by installing your license plate onto the relocation bracket using the provided M6 hardware with a 4mm Allen bit and a 10mm wrench. STEP Drop the provided M6 serrated nut into the rubber bumper and install onto the license plate bracket using the provided M6x20 hardware and a 4mm Allen bit.
- Page 15 INSTALLATION MANUAL STEP Install the license plate light onto the bracket with the light facing the license plate. Use the provided M4x15 hardware with a Philips head screwdriver and 7mm wrench. STEP Using provided wire butt connectors, con- nect the license plate light to the provided wiring.
- Page 16 INSTALLATION MANUAL STEP Remove the two factory bolts on the bot- tom driver corners of the spare tire carrier using a 13mm socket. Note: This is shown with our TCBR-01 backing plate. This bracket is compatible with and without the TCBR-01 carrier installed. STEP Loosely install the license plate bracket onto the vehicle utilizing the factory hard-...
- Page 17 INSTALLATION MANUAL STEP Open the tailgate and remove the trim piece of the interior of the tailgate using a trim piece removal tool. Unclip the fasteners on the bottom of the long trim and slide it down to remove. Unclip the fasteners on the passenger side of the wide trim and slide to the pas- STEP Feed the wire through the vent in the...
- Page 18 INSTALLATION MANUAL STEP Partially remove the trim piece to the passenger wall of the trunk closest to the tailgate by pulling up on the bottom and out on the sides. Use a trim piece removal tool if necessary. STEP Remove the trim piece behind the com- partment for the factory jack by pulling up on it.
- Page 19 INSTALLATION MANUAL STEP BLACK TO BLACK Disconnect the battery to prepare for splicing wires. RED TO YELLOW If you have a lot of excessive wire, trim it to an appropriate length. Snip the facto- ry license plate wiring to splice the new license plate wiring.
- Page 20 STEP Double check all hardware is secure and wired connection are plugged in. Congratulations installation of the RBBR-05 Spec Series Rear Bumper is now complete. 855-680-9595 NEED HELP?
