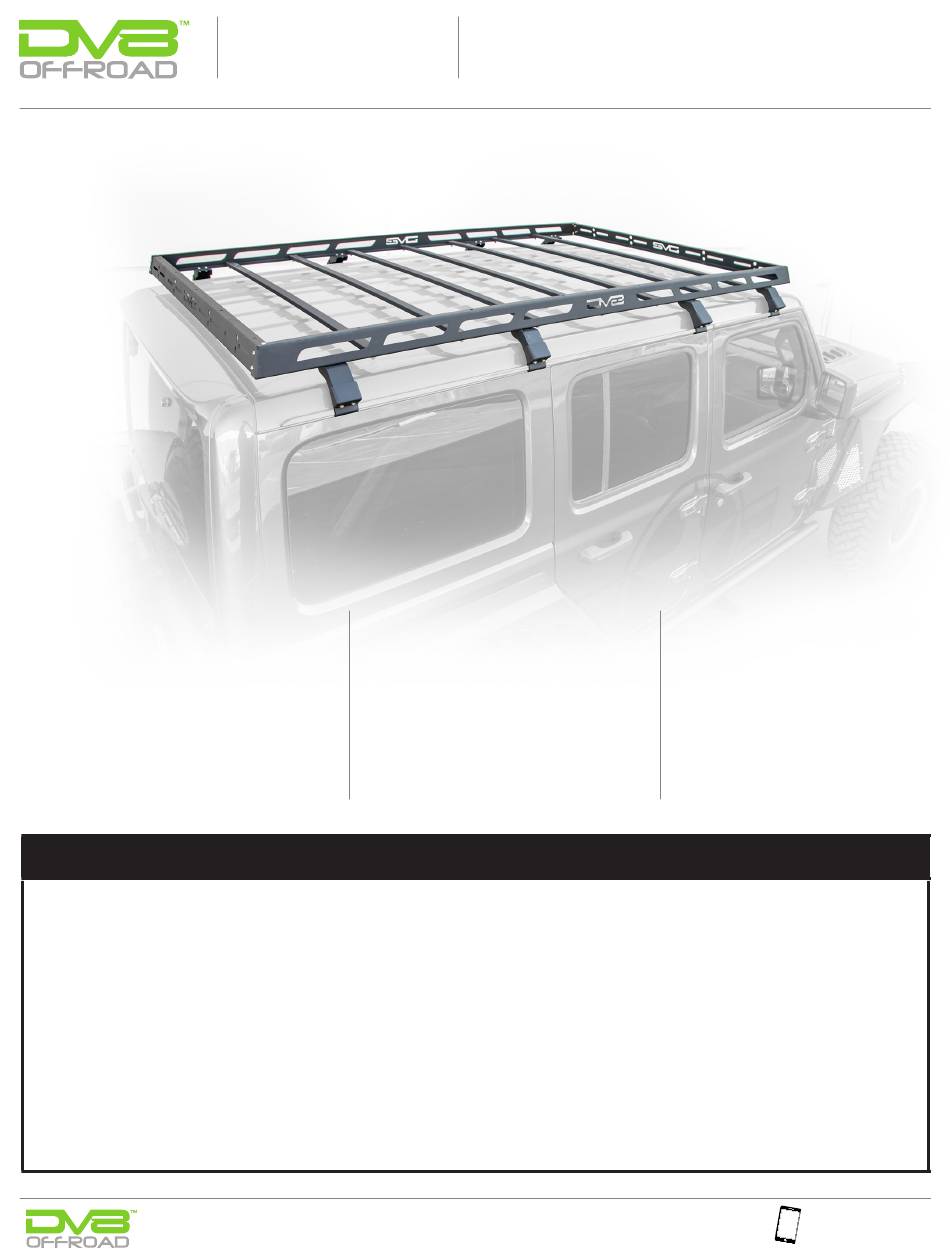

RRJL-01

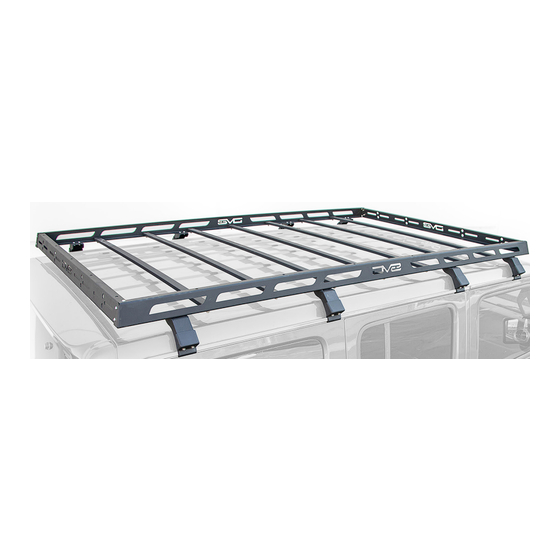

2018+ JEEP Jl 4 DOOR
ROOF RACK
TOOLS
REQUIRED
– H4 head socket
– 10mm socket or wrench
– 1/4" or 3/8" ratchet
– Safety Glasses
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and knowledge
of basic mechanical work. If you do not feel that you are
capable of performing this install please take this product
to a trained professional.
After reading this guide please contact us with any questions
or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm
to you or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
- Novice/Intermediate
– 2 persons
Little skill level required, you
and a buddy can easily install it.
— Read and understand all
PRODUCT
INSTALLATION
LEVEL
Proper installation of this kit requires knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop
manual and any special tools needed to service your vehicle be on
hand during the installation. Installation of this kit without proper
knowledge of the factory recommended procedures may affect the
performance of these components and the safety of the vehicle.
• Always wear eye protection when operating power tools. •
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing
from kit, please be prepared to provide the following information:
1.
Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
TIME
REQUIRED
– 1 Hour
Time to install this
cover should only take
about an hour.
855-680-9595
NEED HELP?
Advertisement
Related Manuals for DV8 OFFROAD RRJL-01
Summary of Contents for DV8 OFFROAD RRJL-01
- Page 1 Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm 3. Date above bar code to you or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP : Layout all the parts on the ground to ensure you have everything needed. STEP STEP : Apply the rubber pads to all of the gutter rail clamp mounts as seen in step 2a and 2b. Make sure to line up the edge of the pad with the edge of the clamp as seen in 2b.
- Page 3 INSTALLATION MANUAL STEP : When you layout the trusses...They are bowed so make sure the bow faces upward. This way when weight is applied they flatten out to support the weight properly. STEP STEP : Assemble the corners together put- ting the front and back rails inside the side rails using the hardware shown in step 5.
- Page 4 INSTALLATION MANUAL STEP : Finger tighten each truss in place with the 10mm nut on the bottom side of the rail. Note: We use 4 gutter mounts to rest the rack on. This gets it off the floor to install the trusses much more STEP easily.
- Page 5 INSTALLATION MANUAL STEP : Next center the rack right to left to where you have equal spacing on each side. STEP STEP : Next install the gutter clamps on each mount using the 2 H4 hardware screws. STEP STEP : Making sure the rack is centered on the top, tighten up the front and back gutter clamps on each side first.
- Page 6 INSTALLATION MANUAL STEP : You’re done! Double check to Insure all hardware is secure and lined up properly then you are good to go. Note: Rack weight limit is 200lbs. evenly distributed. 855-680-9595 NEED HELP?
