DV8 OFFROAD SPEC Series Installation Manual

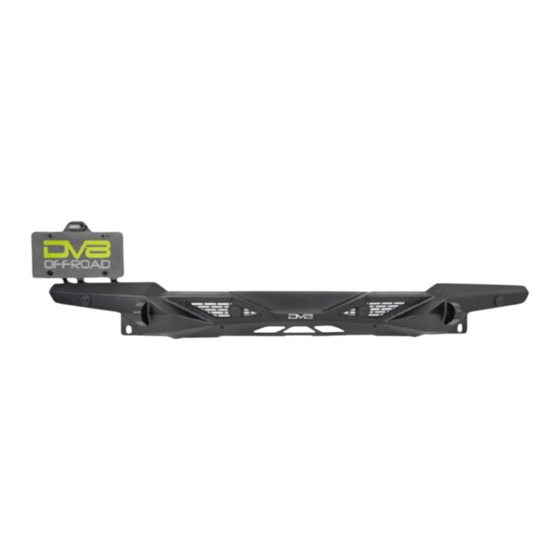

Rear bumper for 2018+ jeep jl wrangler
Hide thumbs
Also See for SPEC Series:
- Installation manual (24 pages) ,
- Product installation manual (20 pages) ,
- Installation manual (15 pages)
Advertisement
Quick Links

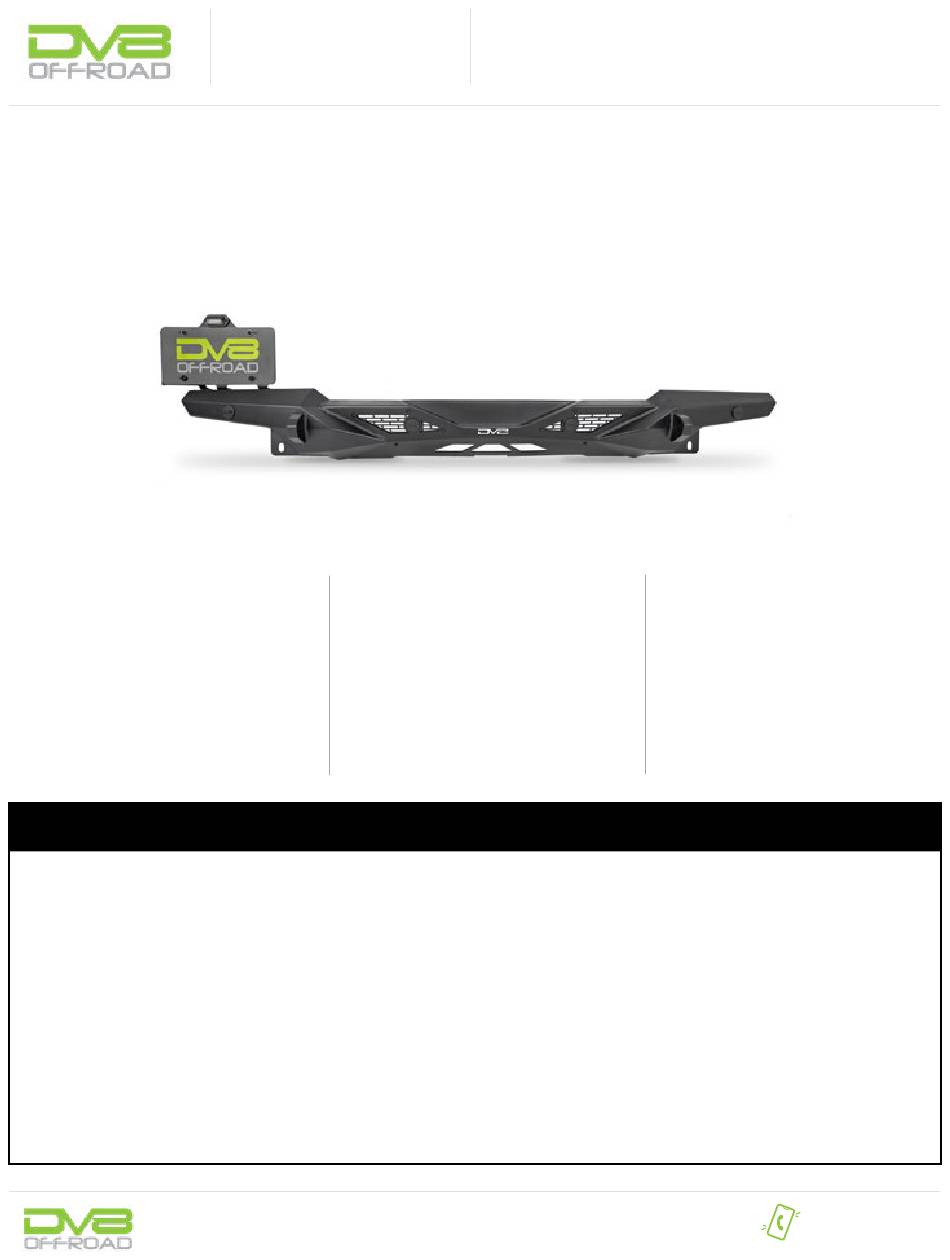

SPEC SERIES REAR BUMPER
2018+ JEEP JL WRANGLER
RBJL-09
TOOLS
REQUIRED
-8mm, 16mm, 18mm, 21mm Socket
-10mm, 22mm Wrench
-4mm,10mm Allen Bit
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3 Hours
Time to install this should only
take about three hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DV8 OFFROAD SPEC Series
Summary of Contents for DV8 OFFROAD SPEC Series
- Page 1 1. Name of purchase location Customer Service: 855-680-9595 2. Bar Code on side of box DV8 Offroad is not responsible for any bodily injury or harm to you 3. Date above bar code or your vehicle as a result of an improper install.
- Page 2 INSTALLATION MANUAL STEP 1 | Disconnect the wiring harness for the license plate light. This is located inside the bumper behind the license plate. STEP 2 | Disconnect the bumper wiring harness using a panel clip tool or flat screwdriver to pry open the white locking clip and remove.
- Page 3 INSTALLATION MANUAL STEP 3 | Use a 8mm socket to remove the bolts securing the rear inner fender covers. STEP 4 | Use a 16mm socket to remove the bolts securing the bumper brackets to the bumper. These are located on the edges of the bumper behind the rear tires.
- Page 4 INSTALLATION MANUAL STEP 6 | Remove the remaing brackets from the frame rails using either an 18mm or 21mm socket. Note: The tool required may vary based on model. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concens, please contact the company the product was purhcased from. HARDWARE INCLUDED (2) M14x35 Hex (7) M6x20 Allen (2) M14x35 Allen (7) M6 Flat Washers (2) M14 Nylon Lock Nuts (7) M6 Nylon Lock Nuts (2) M14 Nuts...
- Page 6 INSTALLATION MANUAL STEP 8 | Apply the foam on to the license plate light and install onto the license plate with the light facing down. Use a philips head screwdriver while holding the nut with your hand to secure. STEP 9 | If you choose to run pod lights, install these at this time using the hardware provided with the lights.
- Page 7 INSTALLATION MANUAL STEP 10 | Install the brackets onto the bumper using the provided M14x35 hardware. Use a 10mm allen bit, 21mm socket, and a 21mm wrench. We provided an allen head bolt to be used for the exterior mounting on the bottom corners.
- Page 8 INSTALLATION MANUAL STEP 13 | Adjust the bumpers up and down position as desired. When it is adjusted, secure the bottom corner bolts using a 10mm allen bit and a 22mm wrench Then secure the upper hardware using a 21mm socket and 22m wrench..
- Page 9 Reconnect vehicle battery by referring to manufacturers manual for proper procedure. STEP 16 | Congrats! You are finished with the install of the 2018+ Jeep JL Wrangler Spec Series Rear Bumper. NEED HELP? 855-680-9595...
