2 | Product description
2.1 Short description
• Semi-hermetic two-cylinder reciprocating compressor with suction gas cooled driving motor.
• The flow of refrigerant sucked in from the evaporator is led over the engine and provides for a
particularly intensive cooling. Thus the engine can be kept on a relatively low temperature level
specially during high load.
• Oil pump independent of direction of rotation for reliable and safe oil supply.
• O ne decompression valve each on the low and high pressure side, which vent into the atmos-
phere when inadmissibly high pressure levels are reached.
Transport eyelet
D
Oil pump
US
Terminal box
Suction
shut-off valve
Dimension and connection values can be found in chapter 9
6 | AQ450435606290en-US0201

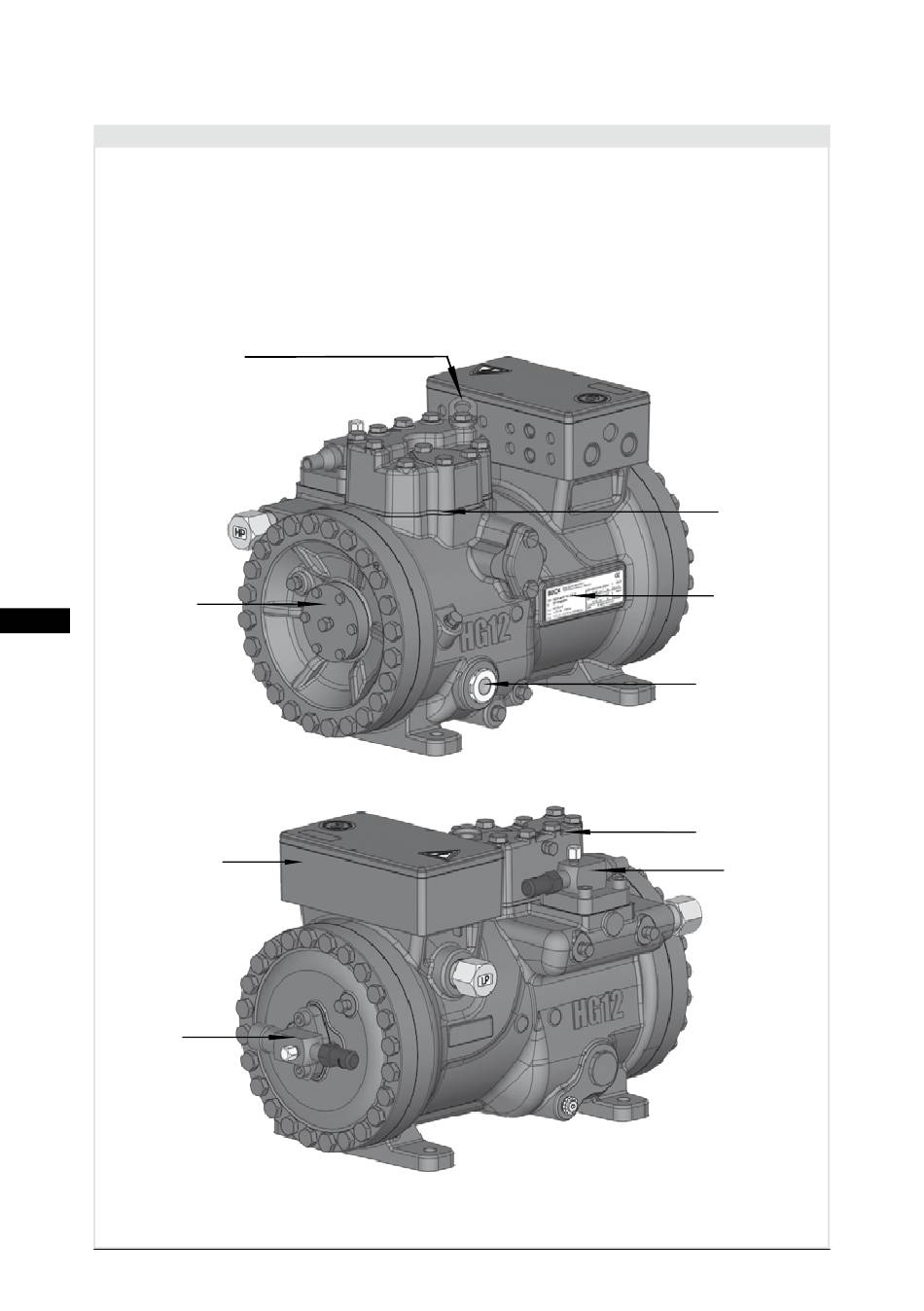

Fig. 1
Fig. 2
© Danfoss | Climate Solutions | 2023.06
Valve plate
Name plate
Oil sight glass
Cylinder cover
Discharge
shut-off valve
