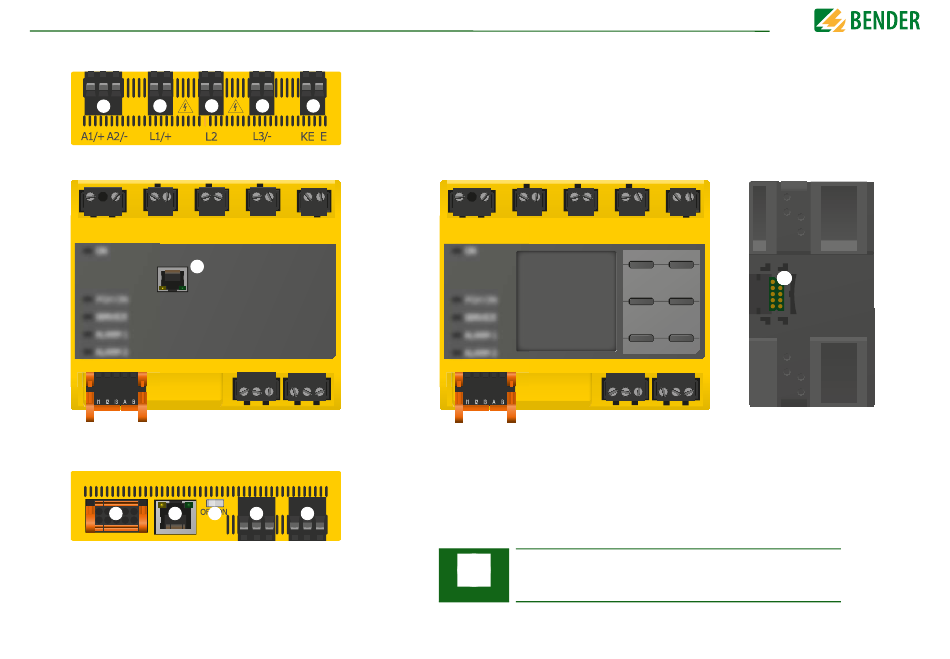

Device overview

4.3 Connection and panel

Top
11 12
10
iso685(W)-S... and isoxx685(W)-S...
Front
20
REMOTE
X1 ETH
Bottom
15 16 17
12
13 14
Connection top
Control panel
Connction bottom
R 11 12 14 21 22 24
18 19
10 A1/+, A2/- Connection to the power supply voltage U
11 L1/+ Connector for the IT system to be monitored
12 L2 Connector for the IT system to be monitored
13 L3/- Connector for the IT system to be monitored
14 KE, E Connection to PE
iso685(W)-D... and isoxx685(W)-D...
20 X4 REMOTE interface to connect the FP200(W) *
50 X3 Optional expansion interface for Bender products
15 X1 Multifunctional I/O interface (see
16 ETH (X2) Ethernet interface
17 R Switchable terminating resistor for termination of the RS-485 interface
18 11 12 14 Connector for alarm relay 1
19 21 22 24 Connector for alarm relay 2
* The connection between the iso685 device and an FP200(W) can
be interrupted and restored at any time (Plug&Play).
s
50 50 50 50 50 50 50 50 50 50 50
„Connection of the X1 interface")
iso685-x_D00022_08_M_XXEN/02.2019
